Fisherman 3 Details

PropertyValue
Rupture Count209
Ruptures Above Sect Min Mag208
Ruptures w/ Nonzero Rates54
Magnitude Range[6.99, 7.99]
Length Range[20, 232] km
Total Rate2.4469722E-5 /yr
Multi-Fault Rate2.4469722E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults23

Table Of Contents

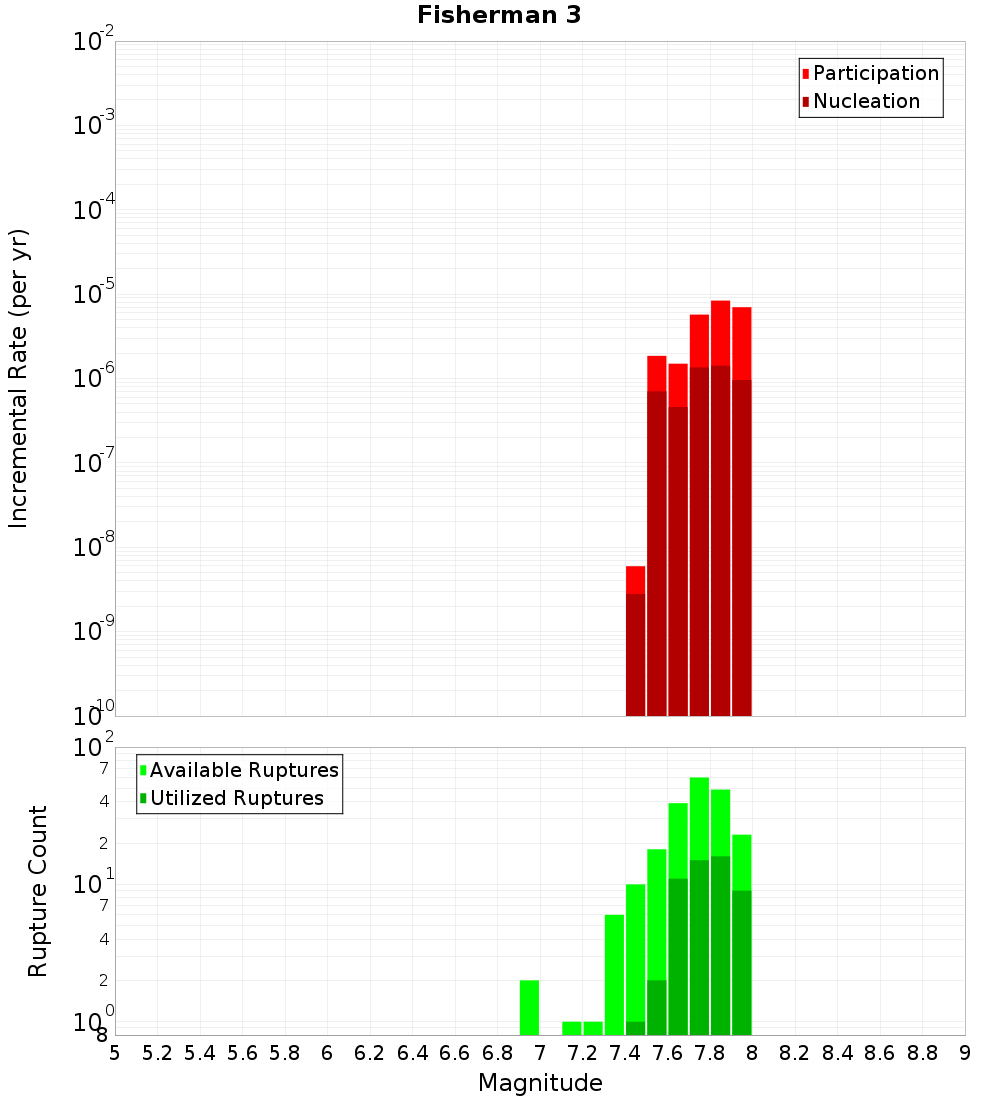

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

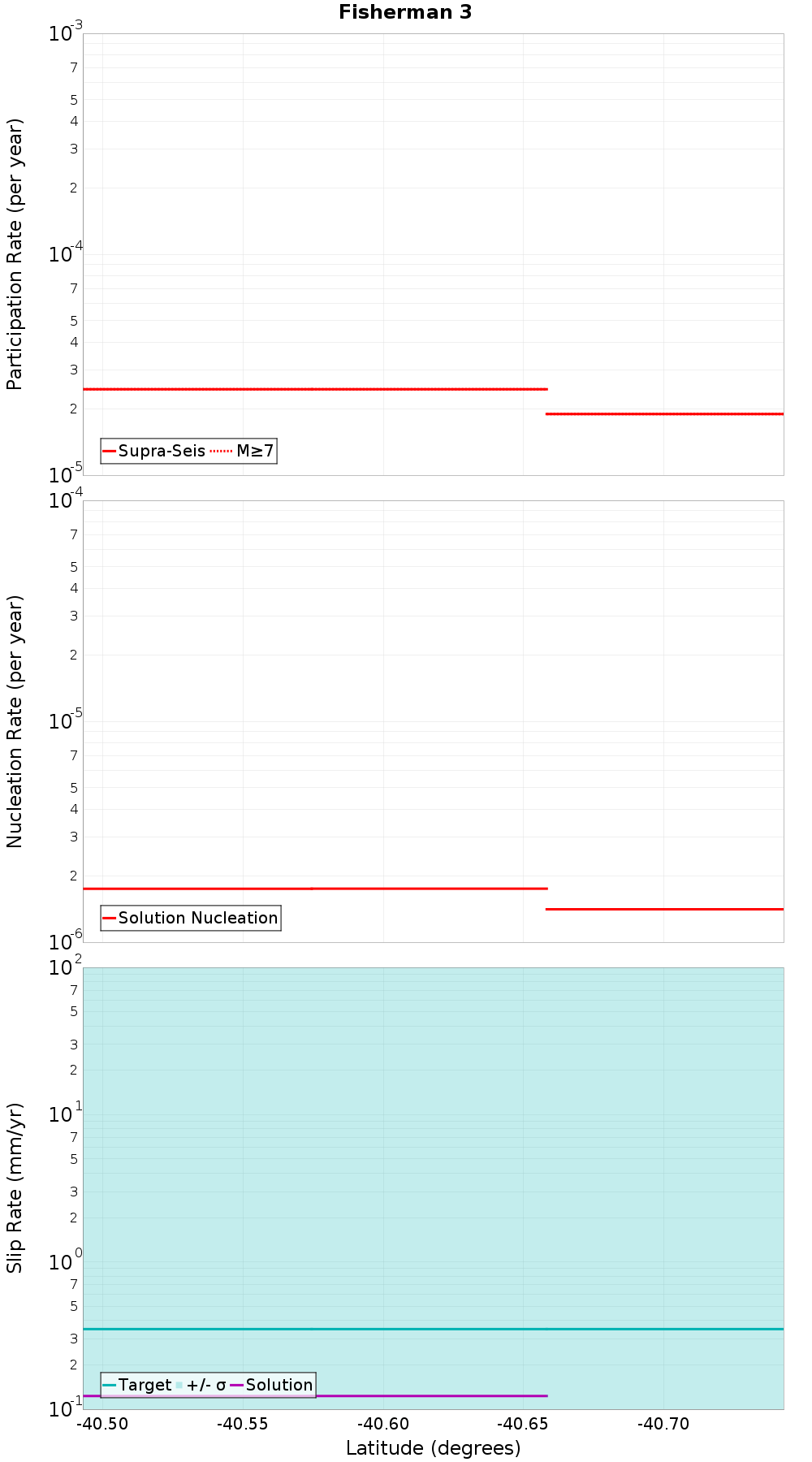

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.15 km away
Onepoto, 0.22 km away
Otaheke North, 0.9 km away
Fisherman 2, 1.22 km away
Rangitikei Offshore 1, 2.73 km away
Poroutawhao, 6.43 km away
Otaheke South, 6.67 km away
Okupe 1, 8.61 km away
Himatangi, 12.2 km away
Levin Anticline, 13.22 km away

Mascarin, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate3.0254732E-6

Onepoto, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate1.5394626E-5

Otaheke North, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate0.0

Fisherman 2, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate8.548627E-7

Rangitikei Offshore 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate9.751536E-6

Poroutawhao, 6.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 6.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate1.8901193E-5

Okupe 1, 8.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate7.3498722E-6

Himatangi, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
