Hope: Hurunui Details

Property	Value
Rupture Count	31,188
Ruptures Above Sect Min Mag	31,187
Ruptures w/ Nonzero Rates	313
Magnitude Range	[6.73, 8.56]
Length Range	[14, 973] km
Total Rate	2.0834827E-4 /yr
Multi-Fault Rate	2.0834827E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	168

Table Of Contents

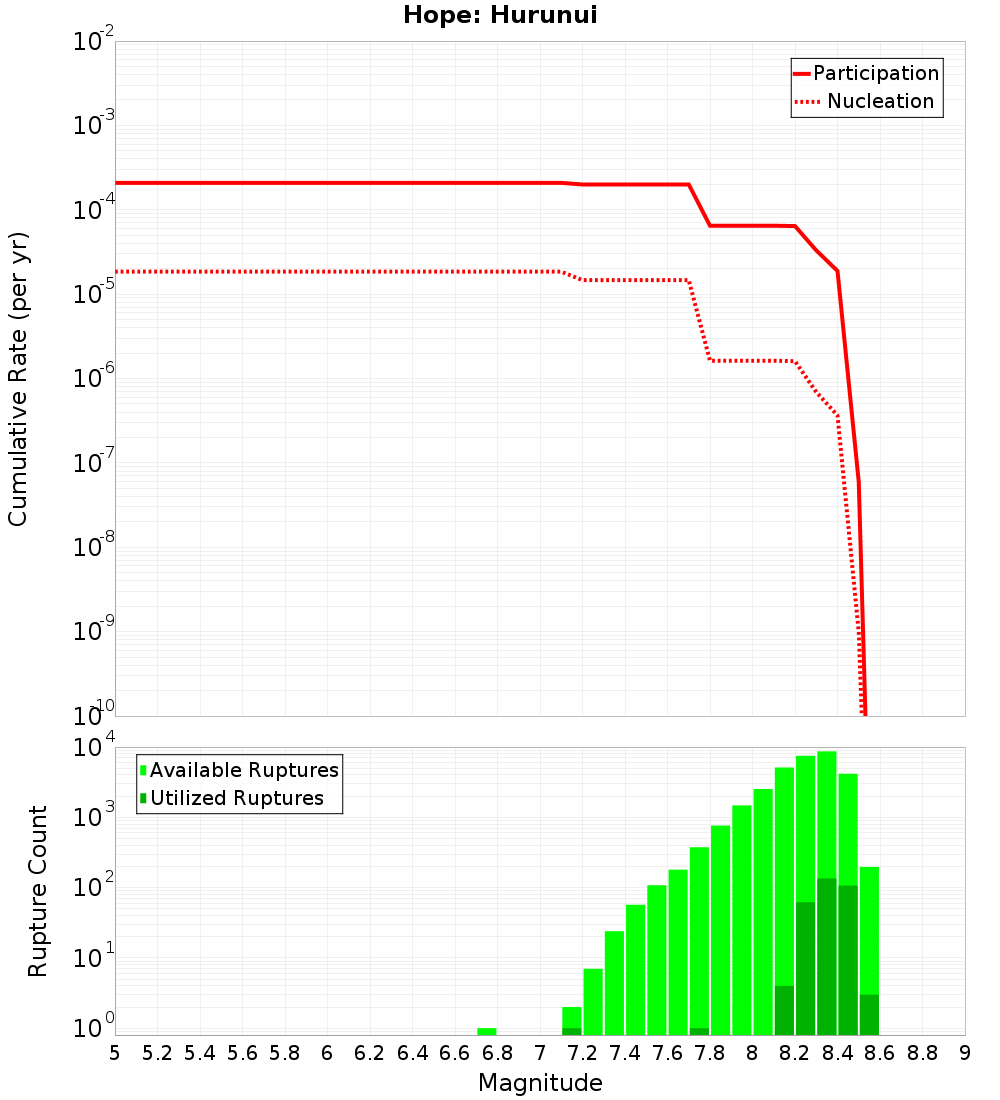

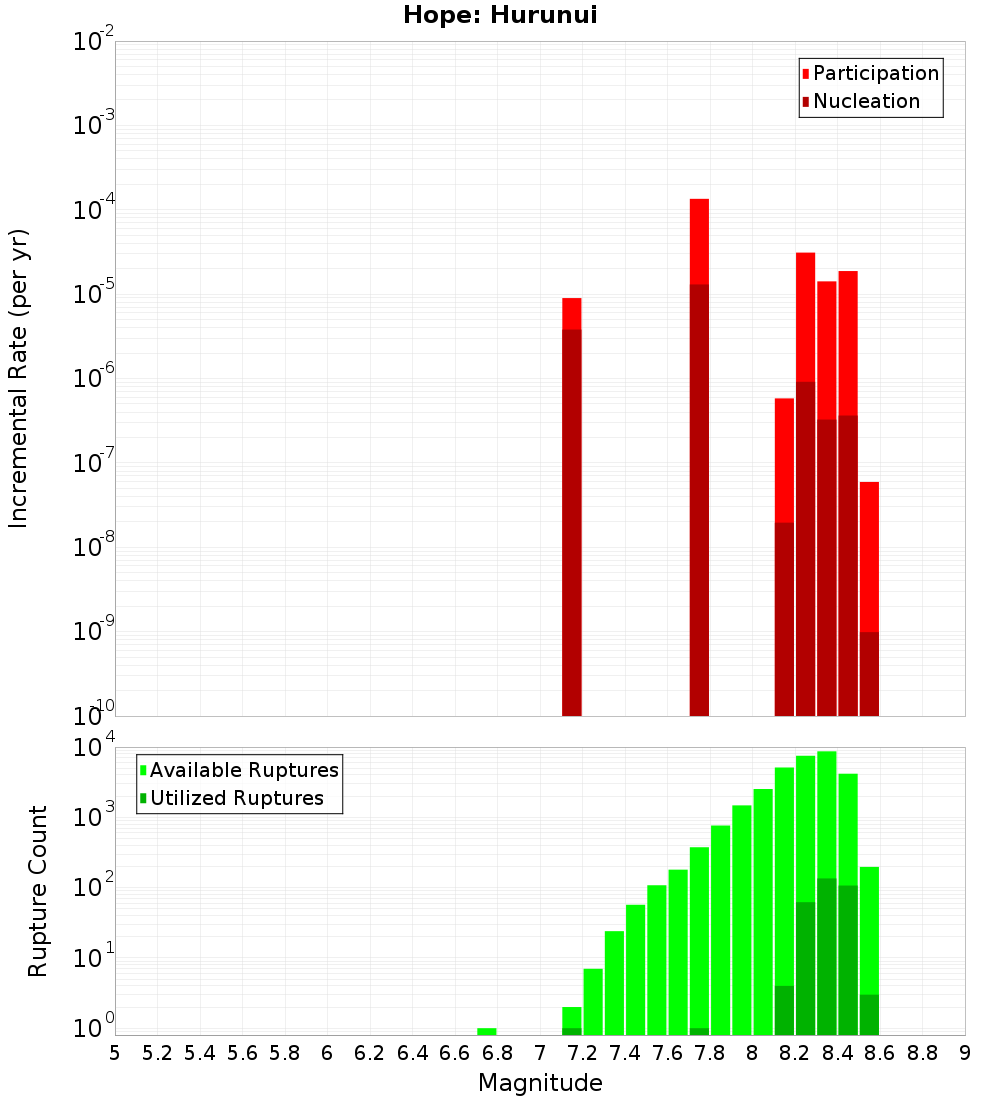

Magnitude-Frequency Distribution

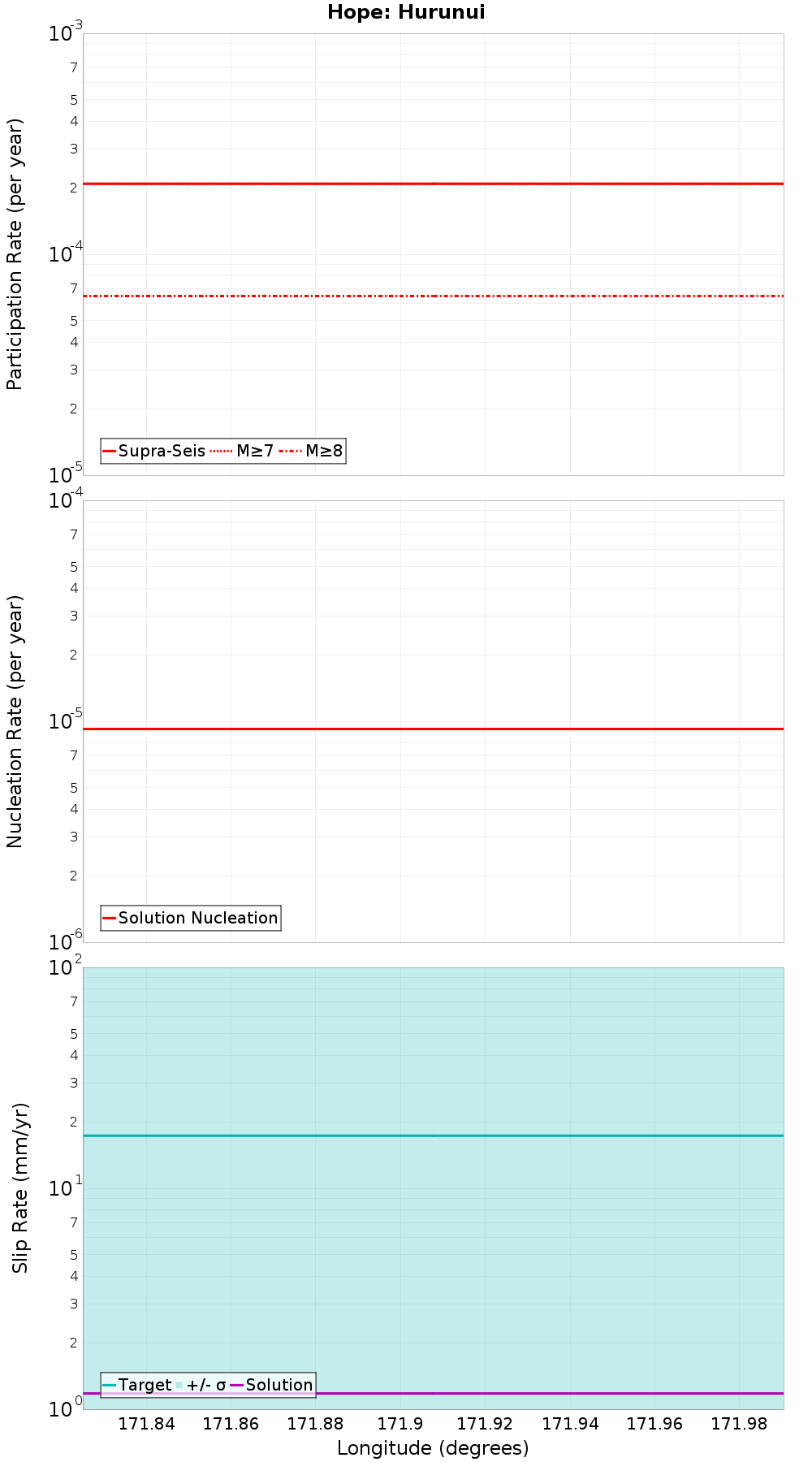

Along-Strike Values

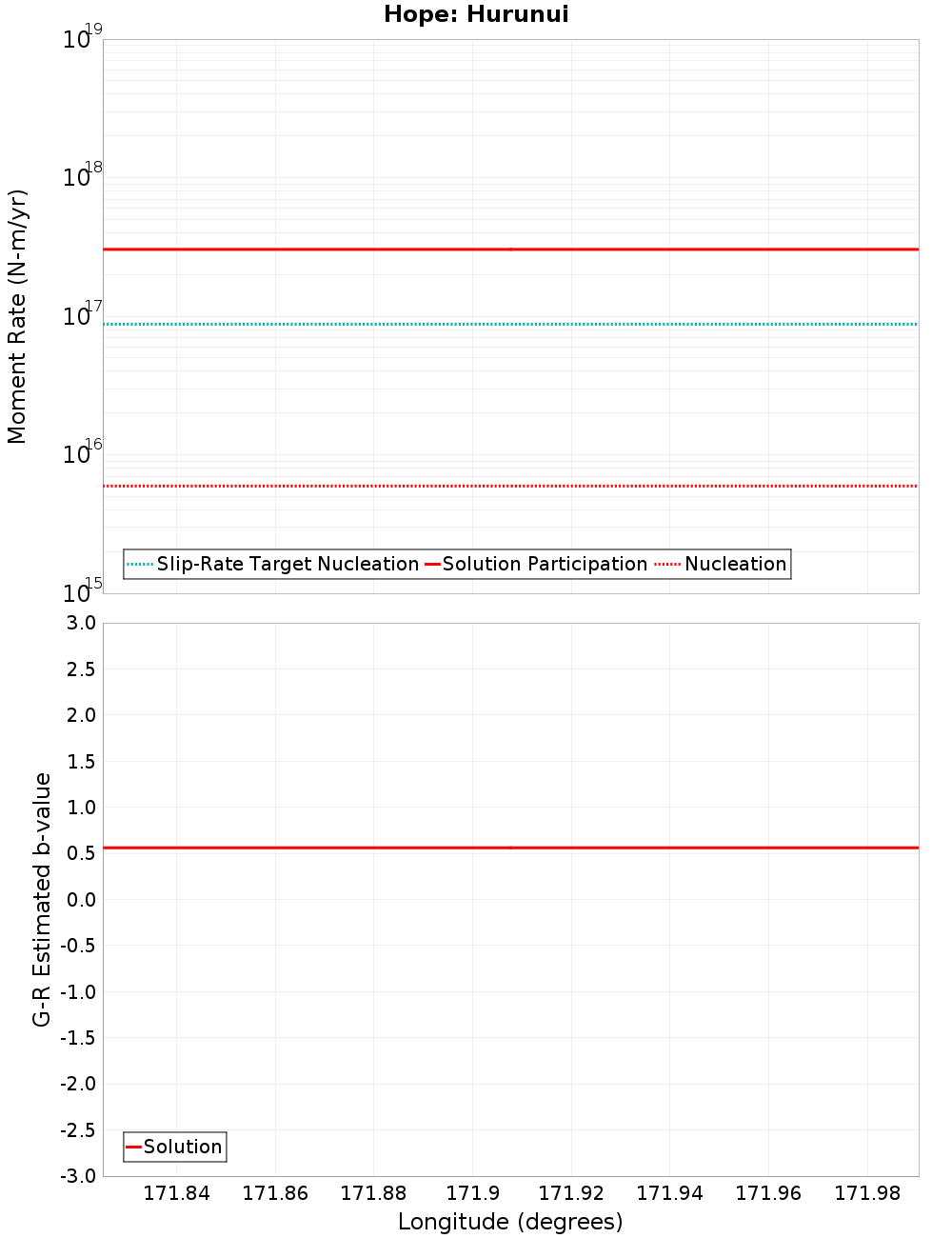

- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Kelly, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 0.19 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	6,997
Co-rupture Rate	1.5403553E-4

Hope: Taramakau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	1,721
Co-rupture Rate	1.4086974E-4

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	29,970
Co-rupture Rate	1.9936936E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	23,914
Co-rupture Rate	5.3723437E-5

Alpine: Kaniere to Springs Junction, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	11,548
Co-rupture Rate	1.4190472E-4

Poulter, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	0.0

Clarence: Southwest, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	8,724
Co-rupture Rate	4.100599E-5
