Waipukurau - Poukawa Details

Property	Value
Rupture Count	1,338
Ruptures Above Sect Min Mag	1,333
Ruptures w/ Nonzero Rates	86
Magnitude Range	[6.78, 8.13]
Length Range	[19, 408] km
Total Rate	1.5030823E-4 /yr
Multi-Fault Rate	9.534479E-5 /yr (63.43%)
Directly-Connected Faults	5
All Co-Rupturing Faults	45

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

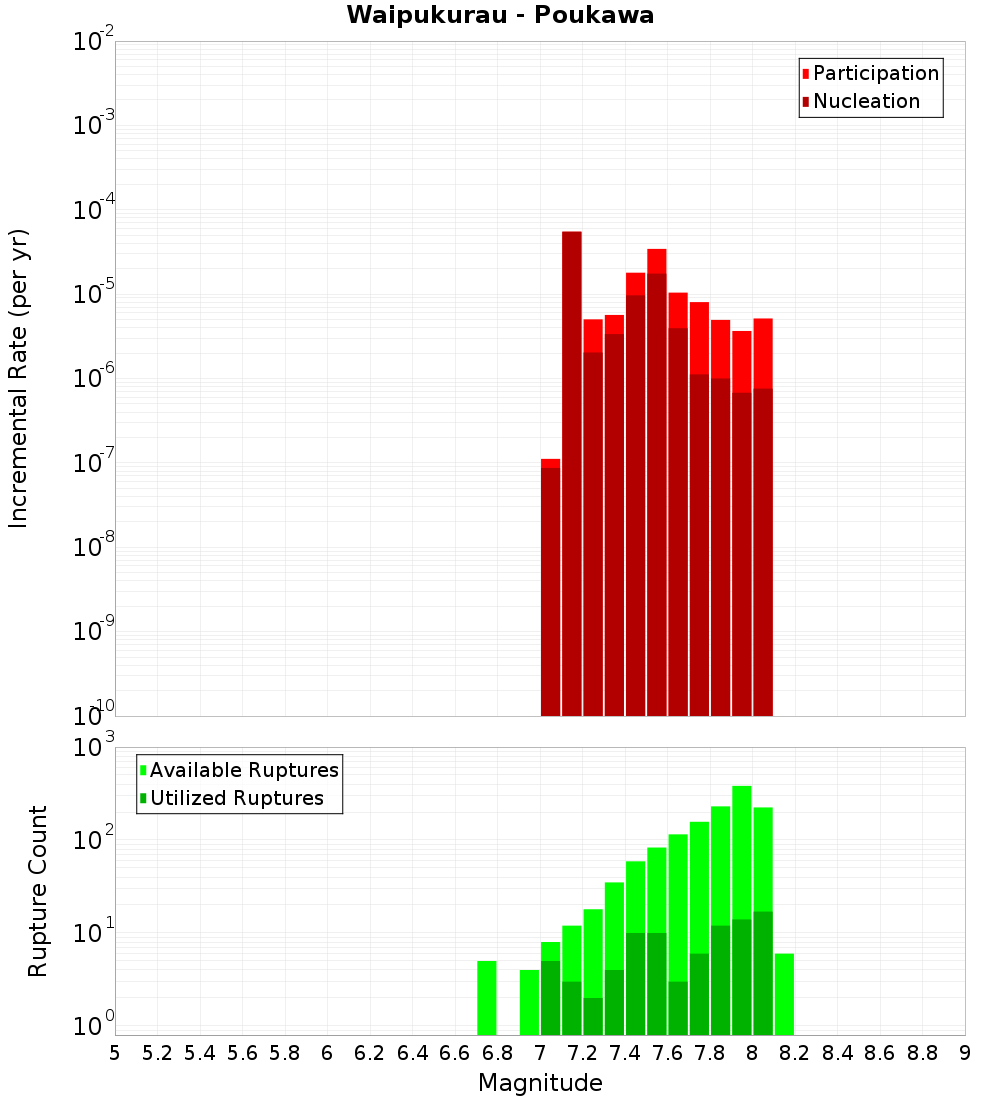

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

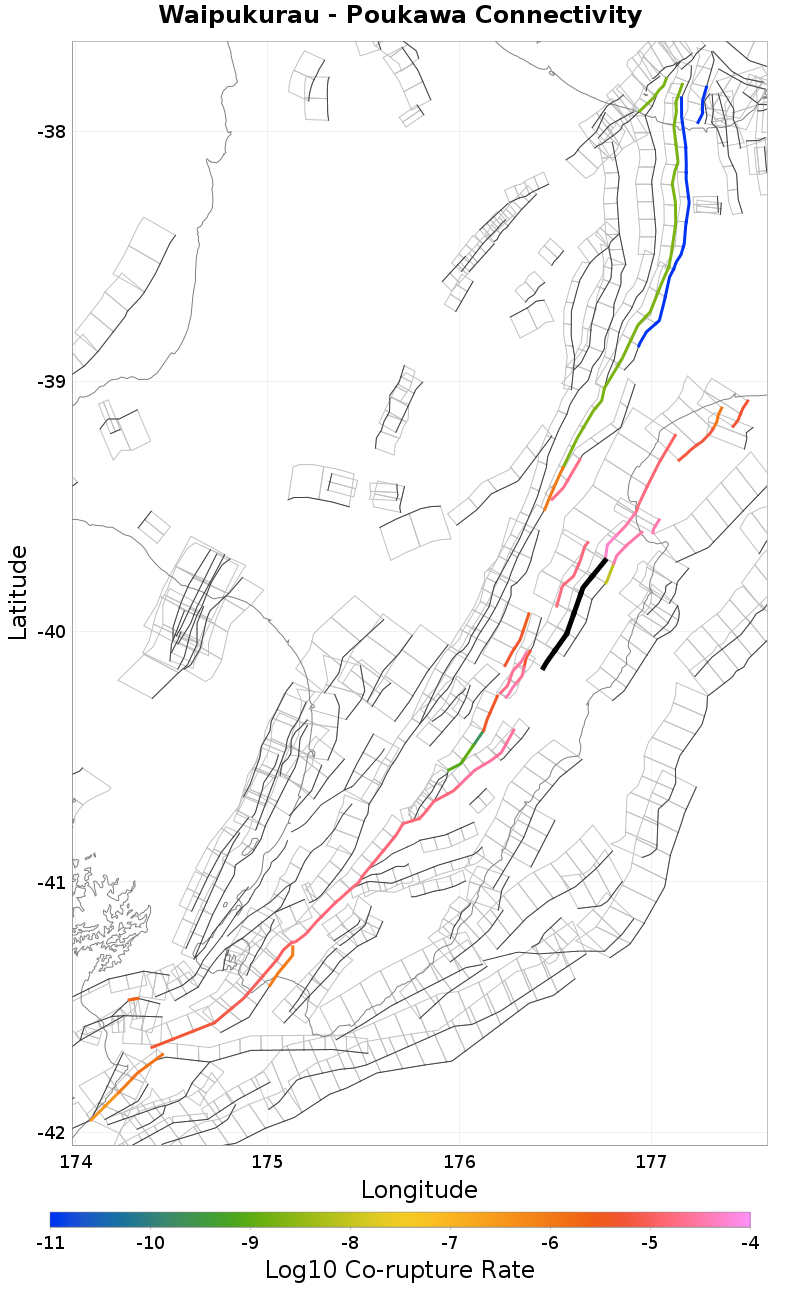

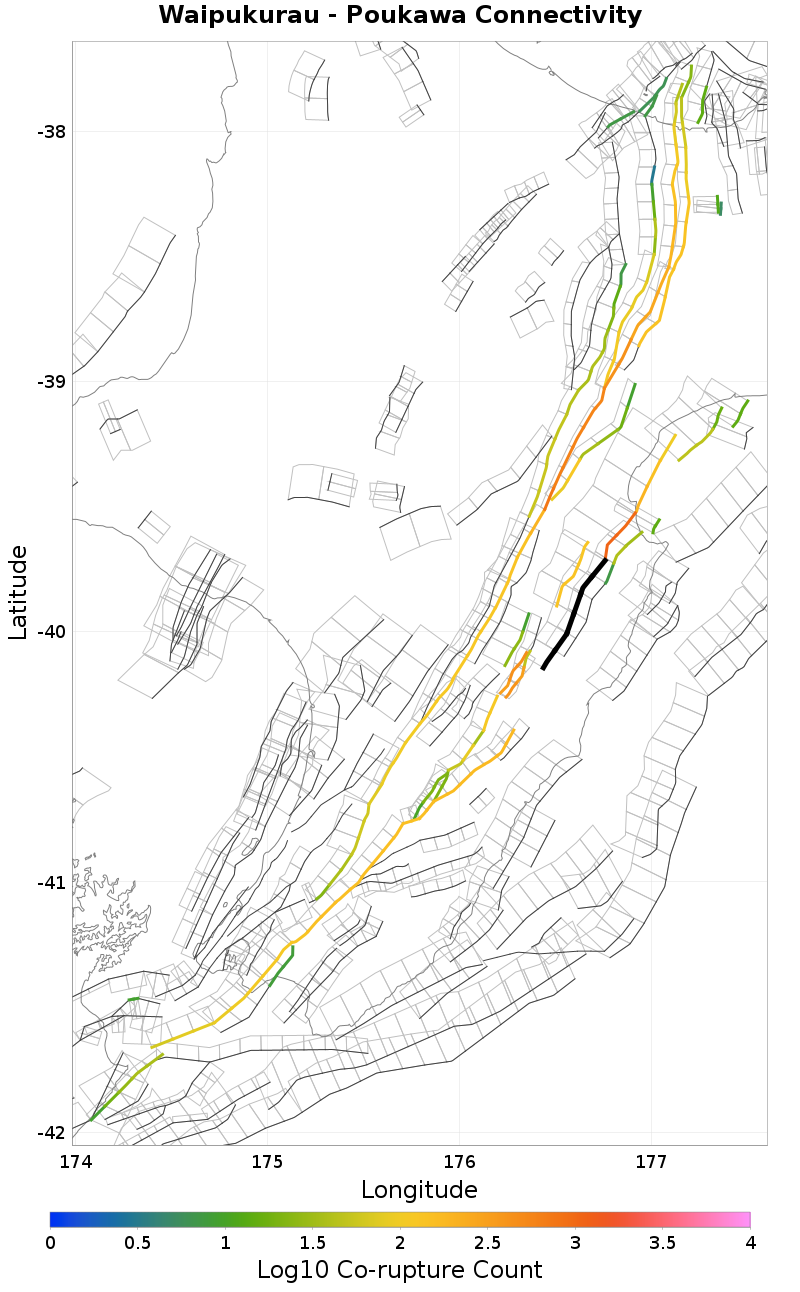

Connectivity

Nearby Sections

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,110
Co-rupture Rate	5.1093673E-5

Clear Hills - Waikopiro, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	2.9770341E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	3.8785412E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	3.358829E-5

Te Heka, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	1.6260165E-5

Ruataniwha, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MjQuMEFRa3Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	4.9123464E-6
