Albury Details
| Property | Value |
|---|---|
| Rupture Count | 1,744 |
| Ruptures Above Sect Min Mag | 1,743 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [6.80, 8.05] |
| Length Range | [21, 341] km |
| Total Rate | 5.8475613E-5 /yr |
| Multi-Fault Rate | 5.8475613E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 39 |
Table Of Contents

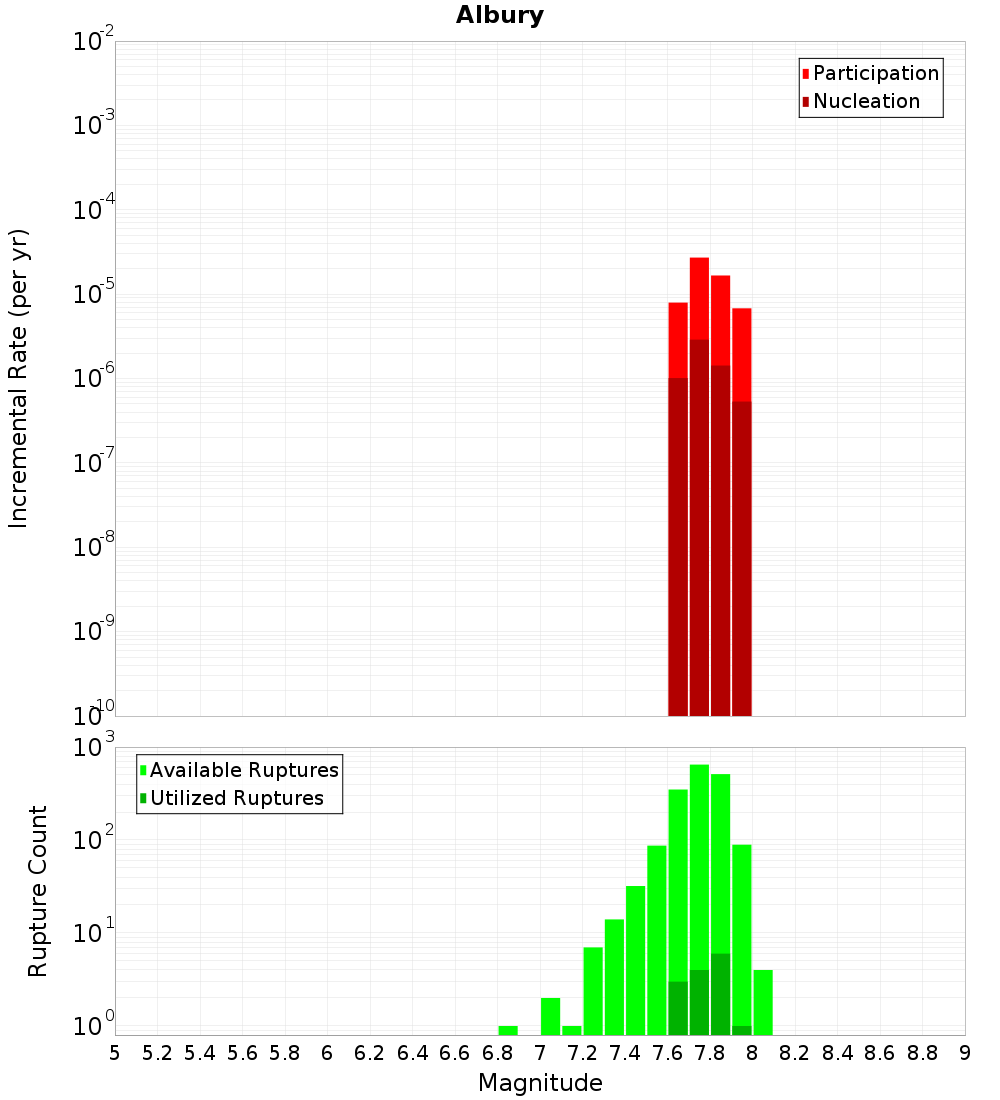

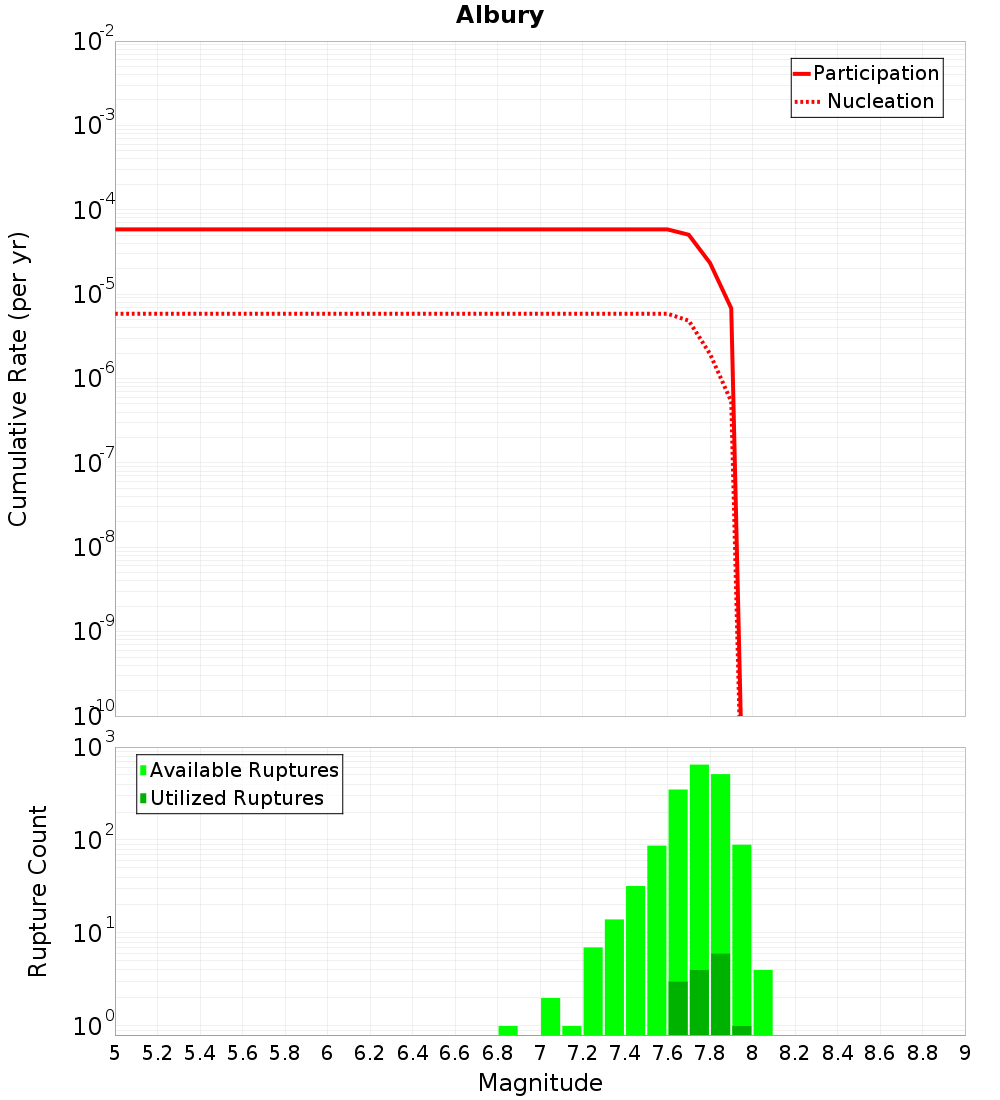

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

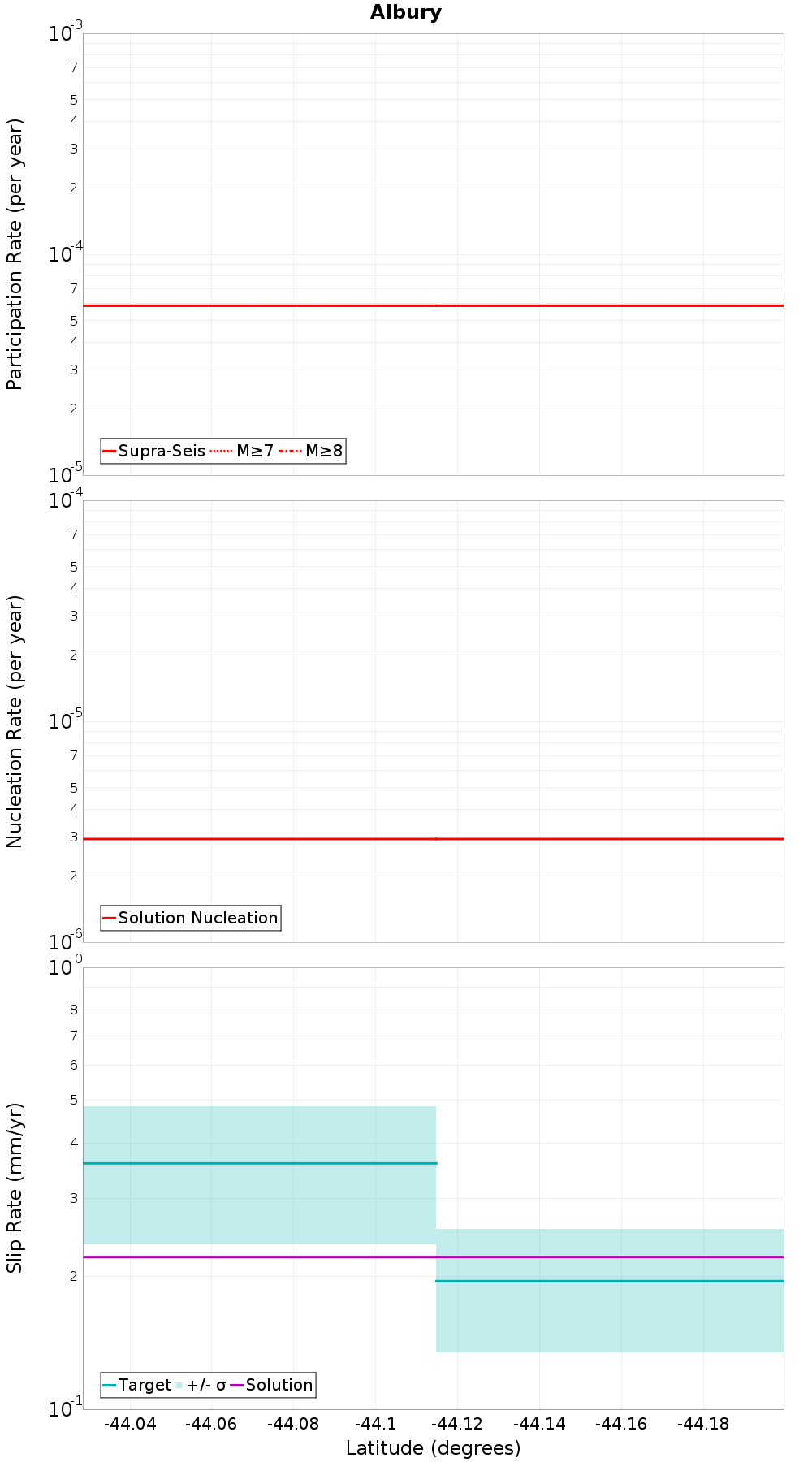

Along-Strike Values

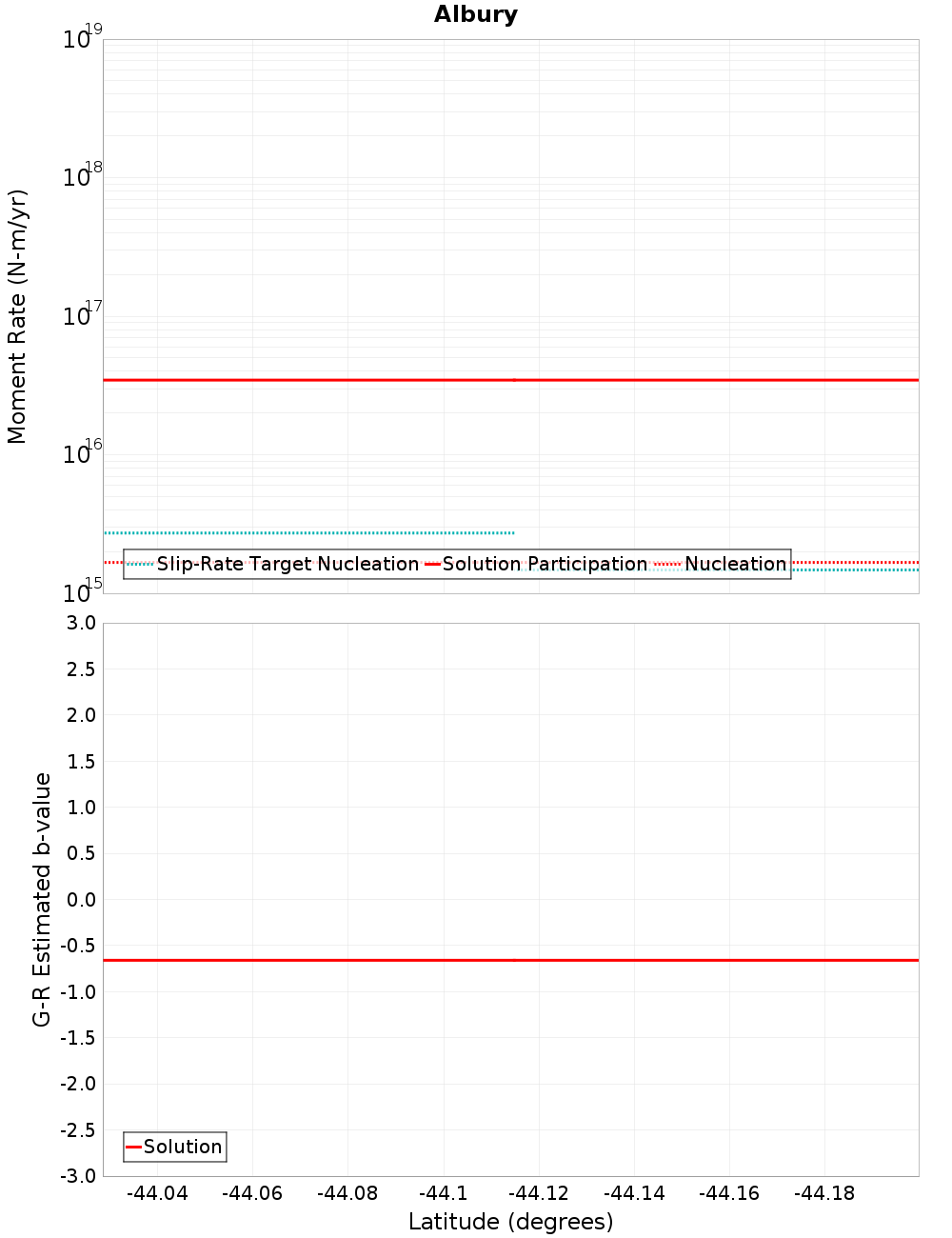

Moment-Rates and b-Values

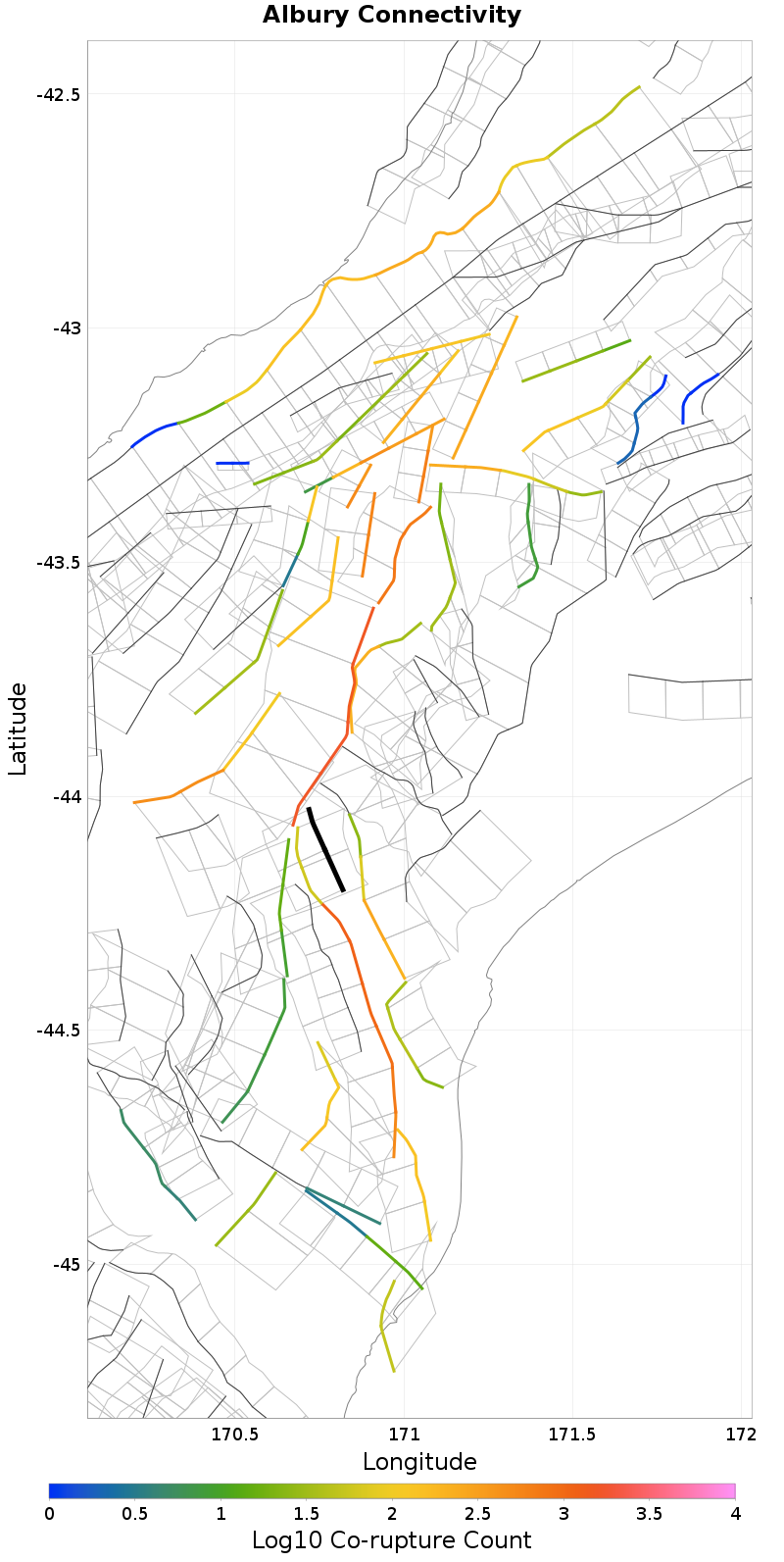

Connectivity
 |  |
|---|
Nearby Sections
Opawa, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 2.1670556E-5 |
Irishman Creek, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 463 |
| Co-rupture Rate | 3.238592E-5 |
Fox Peak, 2.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,823 |
| Co-rupture Rate | 5.759241E-5 |
Brothers, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 270 |
| Co-rupture Rate | 0.0 |
Hunters, 4.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,224 |
| Co-rupture Rate | 5.790523E-5 |
Dalgety, 5.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Chamberlain, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
The Wolds, 8.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sugarloaf, 13.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 14.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
