Hutt Peel Details

PropertyValue
Rupture Count7,806
Ruptures Above Sect Min Mag7,802
Ruptures w/ Nonzero Rates40
Magnitude Range[6.96, 8.22]
Length Range[27, 603] km
Total Rate4.6282672E-4 /yr
Multi-Fault Rate4.6282672E-4 /yr (100.00%)
Directly-Connected Faults14
All Co-Rupturing Faults89

Table Of Contents

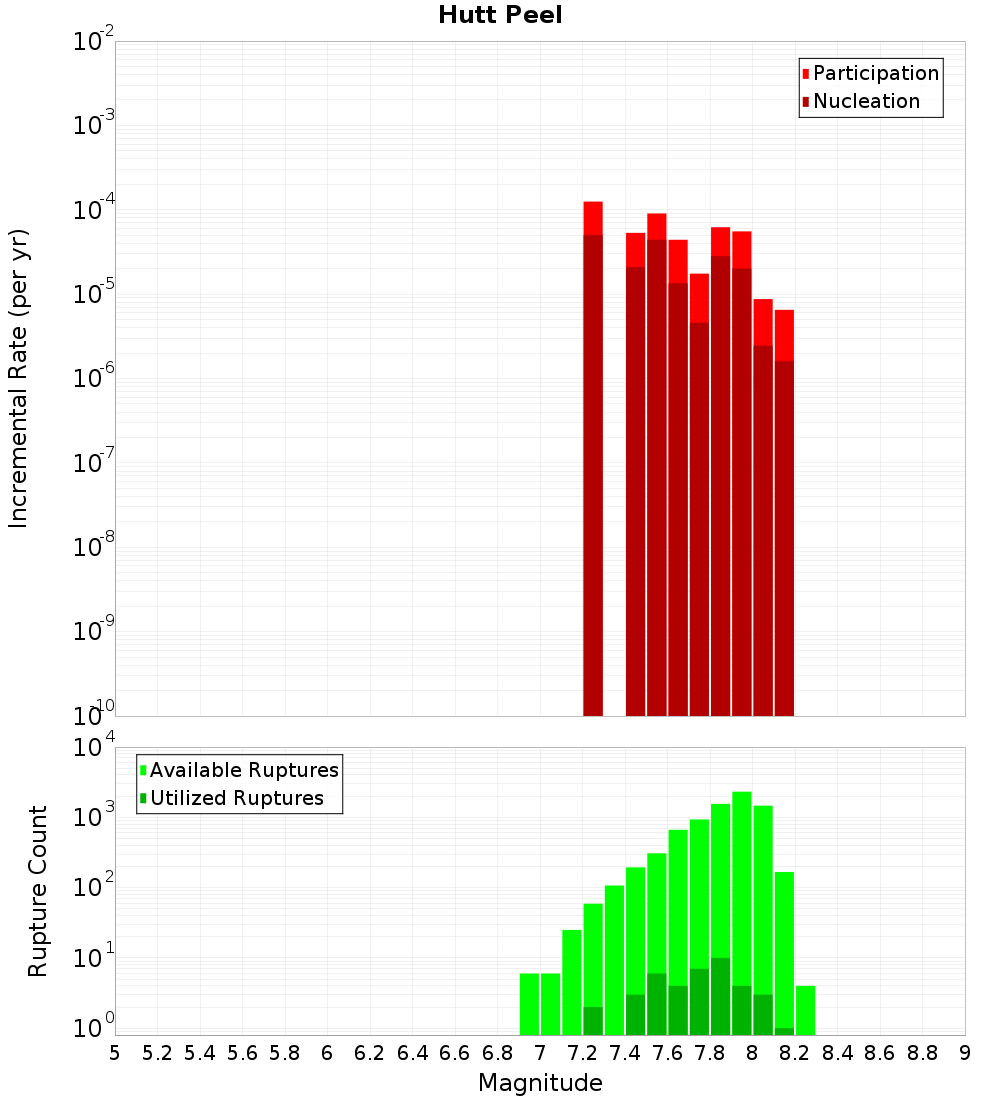

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

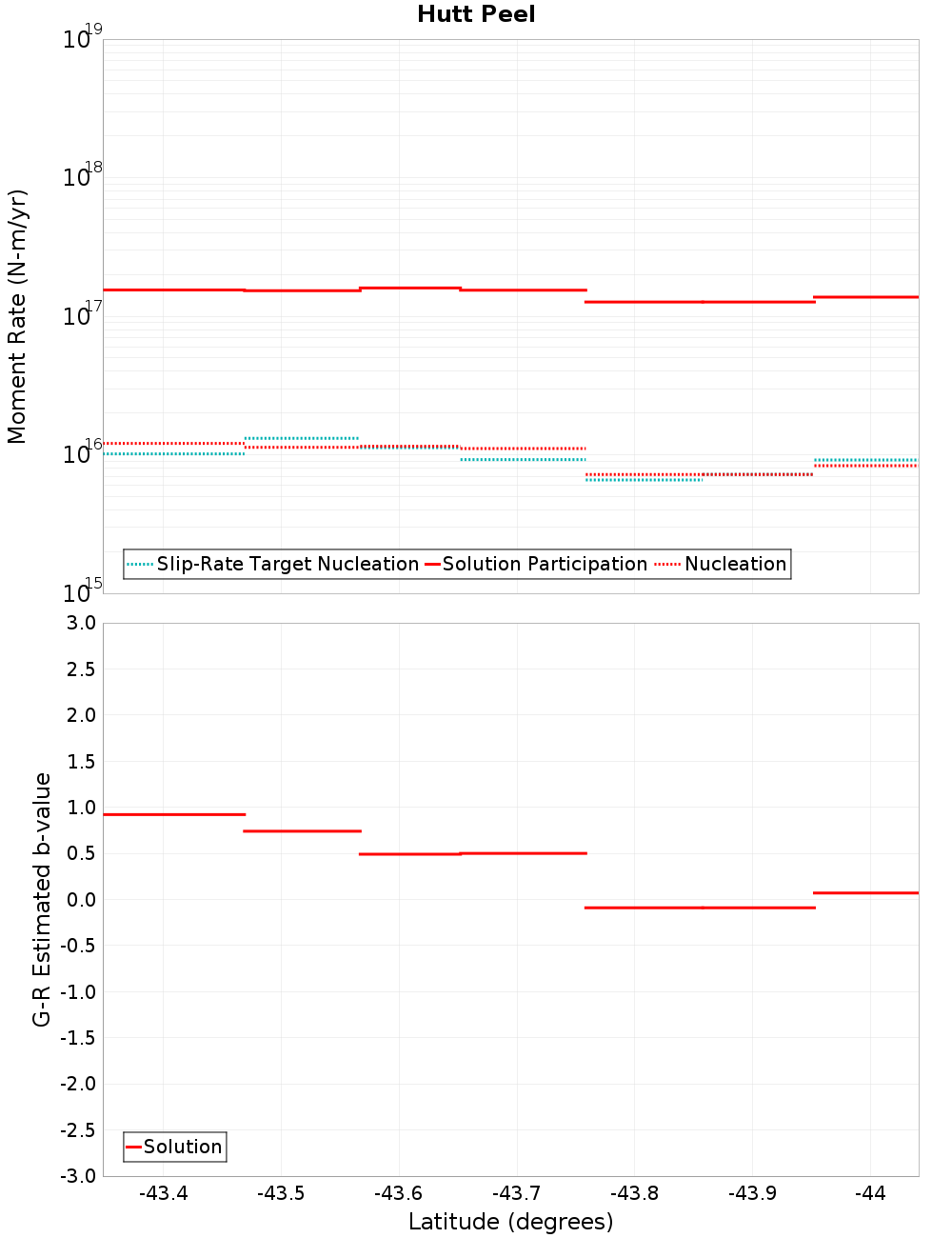

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ben McLeod, 0.06 km awayHarper, 0.48 km away
Klondyke Moor, 0.1 km awayPorters Pass, 1.77 km away
Redcliffe, 0.2 km awayBig Ben, 2.07 km away
Coal Creek, 0.21 km awayRapuwai, 4.18 km away
North Branch, 0.23 km awayTorlesse, 6.35 km away
Edith, 0.23 km awayHigh Peak - Sheffield, 6.61 km away
Lake Heron, 0.26 km awayCheeseman, 7.5 km away
Double Hill, 0.26 km awayKowai - View Hill, 8.24 km away
Catherine, 0.26 km awayIrishman Creek, 9.64 km away
Brothers, 0.36 km awayOpawa, 9.82 km away
Sugarloaf, 0.4 km awayHororata, 10.65 km away
Quartz Creek, 0.45 km away

Ben McLeod, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count91
Co-rupture Rate3.3745844E-5

Klondyke Moor, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate3.1809715E-5

Redcliffe, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count285
Co-rupture Rate7.502014E-5

Coal Creek, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate1.325195E-4

North Branch, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate7.020667E-5

Edith, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate1.8115927E-6

Lake Heron, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count62
Co-rupture Rate3.3607215E-5

Double Hill, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count178
Co-rupture Rate0.0

Catherine, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate2.2718186E-5

Brothers, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count1,541
Co-rupture Rate4.61061E-5

Sugarloaf, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count652
Co-rupture Rate9.897952E-5

Quartz Creek, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count264
Co-rupture Rate1.8115927E-6

Harper, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count698
Co-rupture Rate5.7917863E-5

Porters Pass, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count6,032
Co-rupture Rate3.5419935E-4

Big Ben, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count886
Co-rupture Rate0.0

Rapuwai, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count719
Co-rupture Rate4.145373E-5

Torlesse, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate2.099649E-4

High Peak - Sheffield, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?false
Co-rupture Count333
Co-rupture Rate3.3308493E-6

Kowai - View Hill, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?false
Co-rupture Count819
Co-rupture Rate0.0

Irishman Creek, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opawa, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
