Whangamoa Details

PropertyValue
Rupture Count49,332
Ruptures Above Sect Min Mag49,324
Ruptures w/ Nonzero Rates42
Magnitude Range[6.87, 8.51]
Length Range[23, 1,002] km
Total Rate2.5859833E-4 /yr
Multi-Fault Rate2.5859833E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults136

Table Of Contents

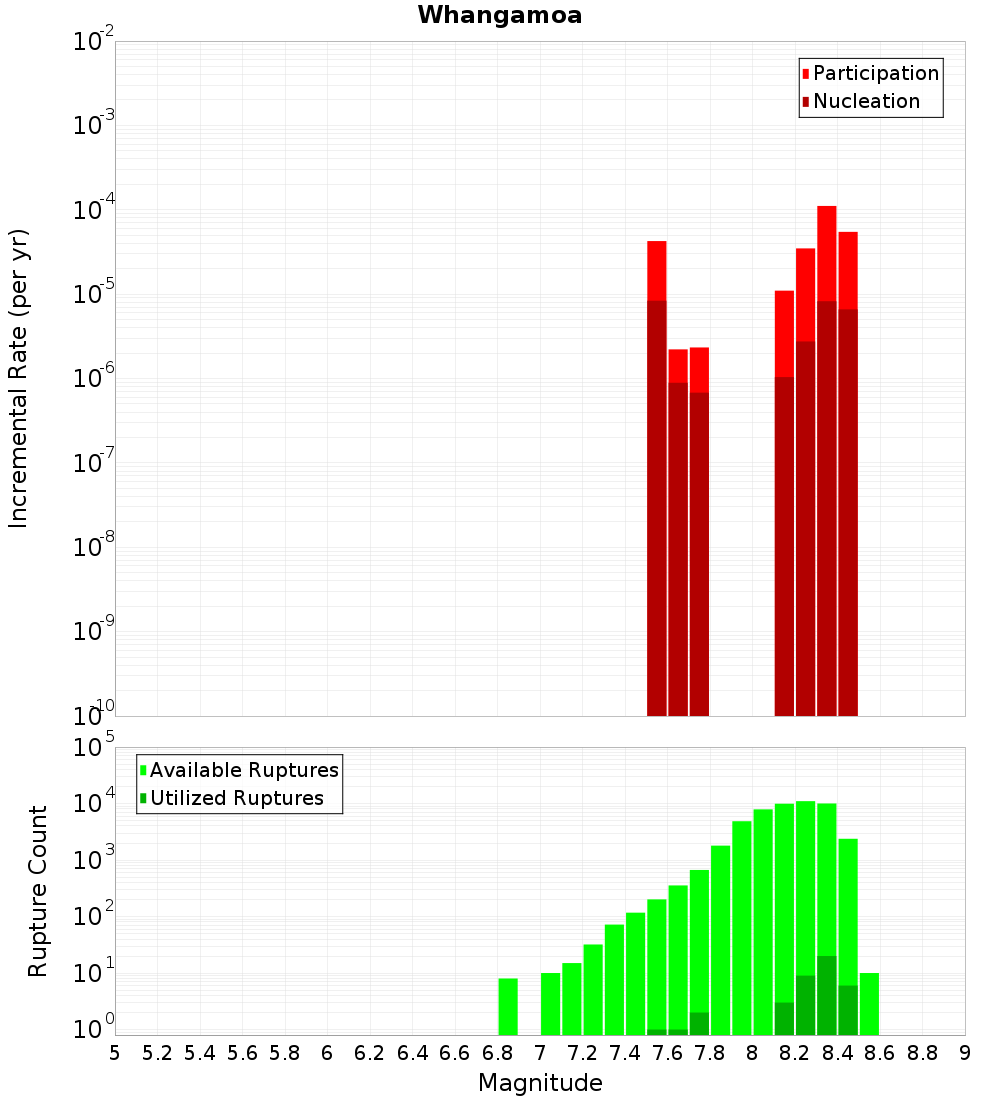

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

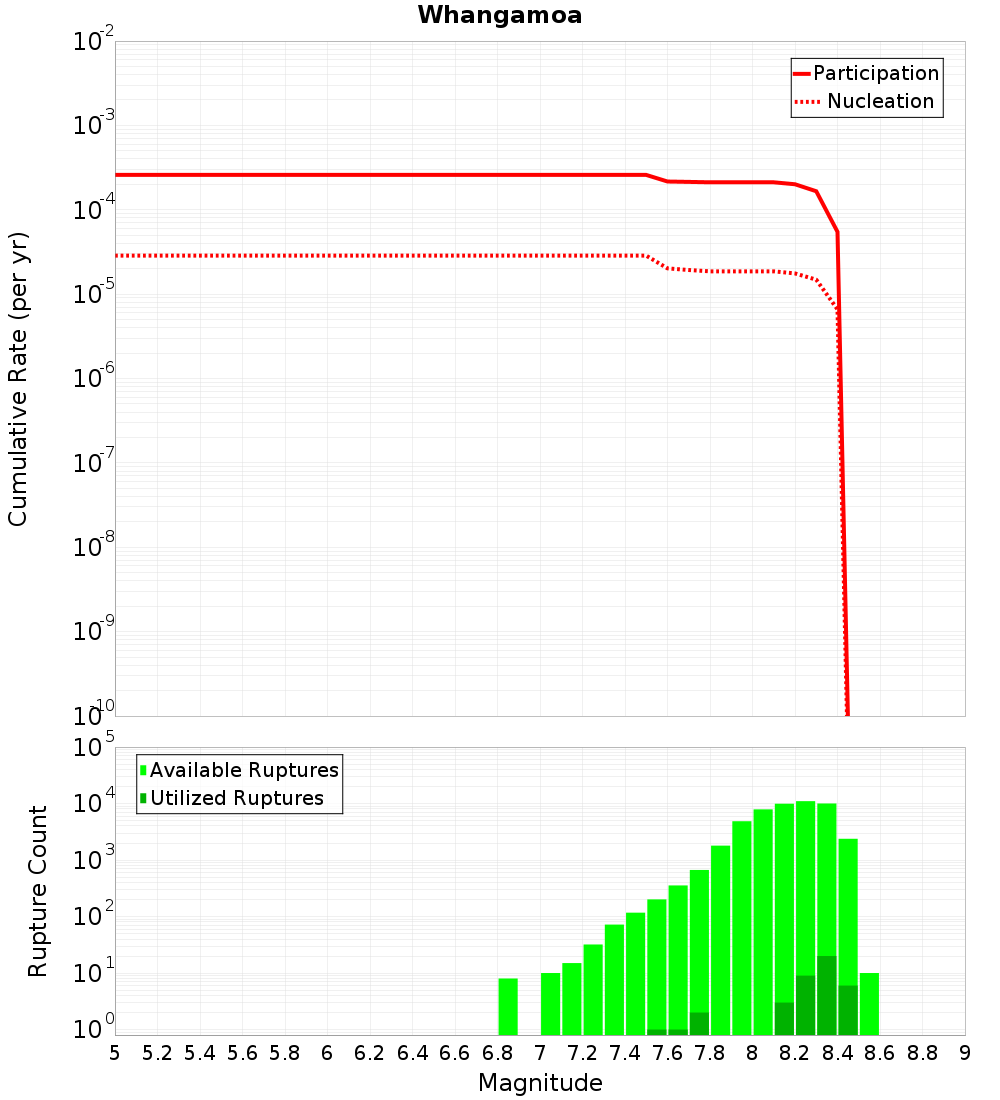

Incremental PlotCumulative Plot

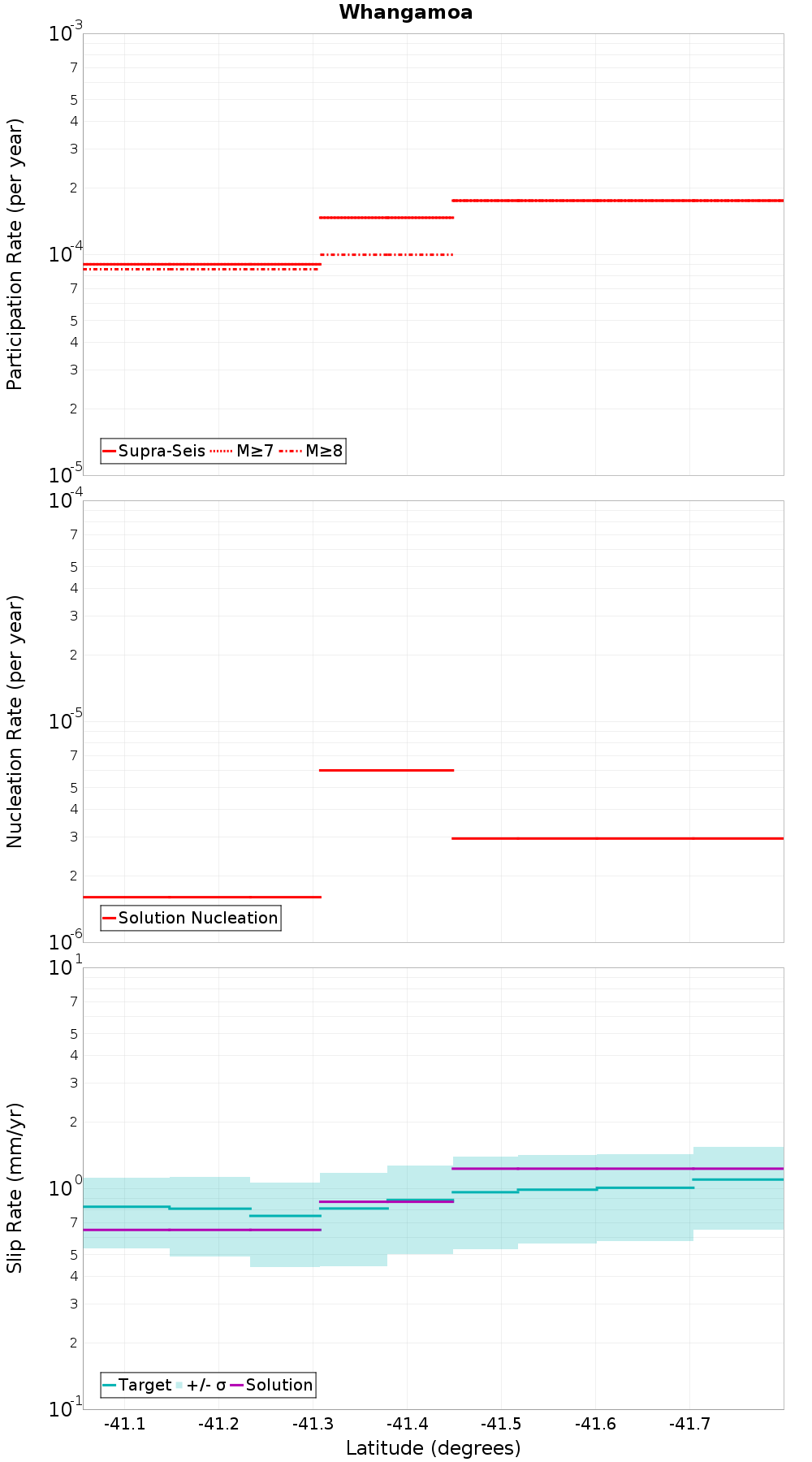

Along-Strike Values

(top)

Along-strike plot

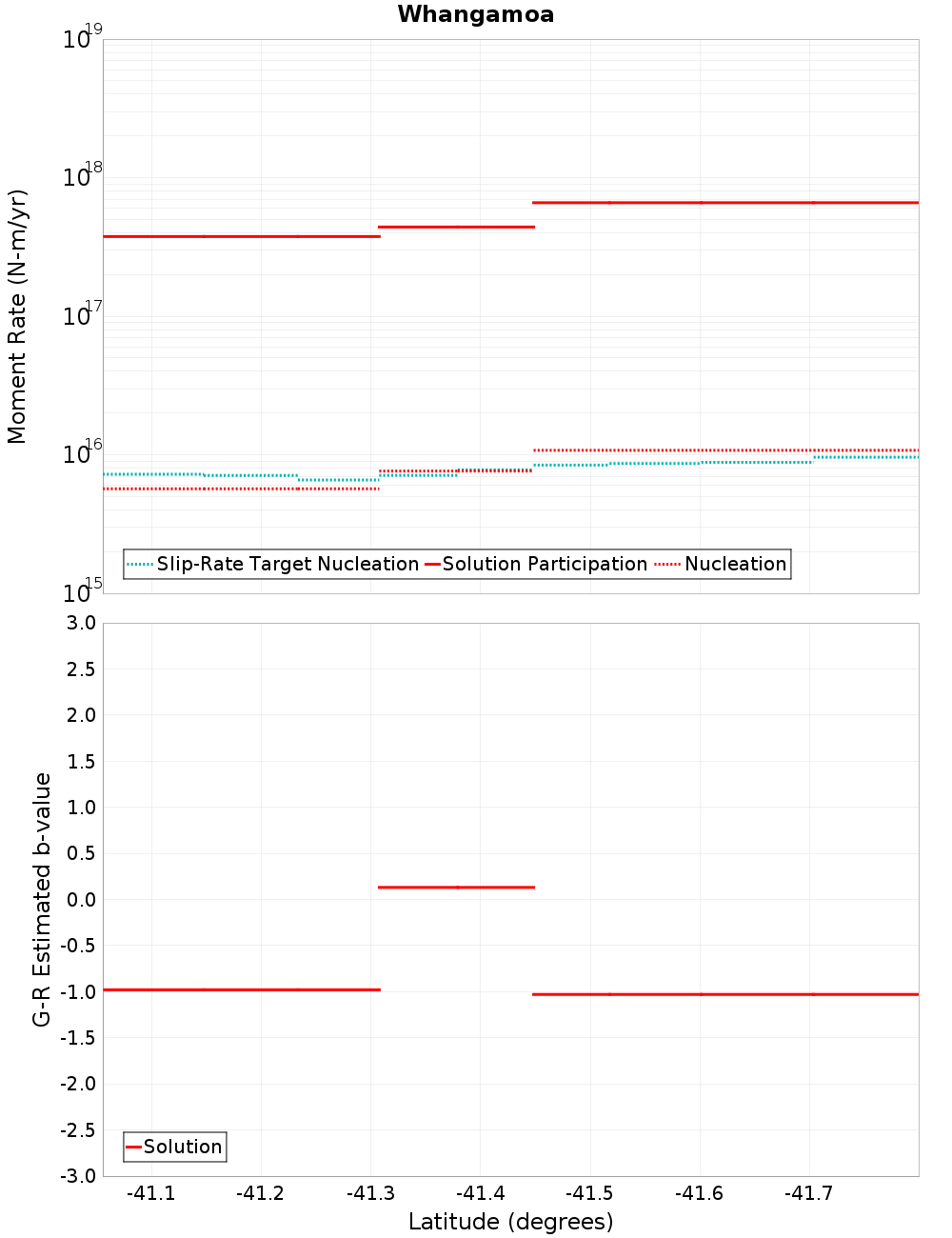

Moment-Rates and b-Values

(top)

Along-strike plot

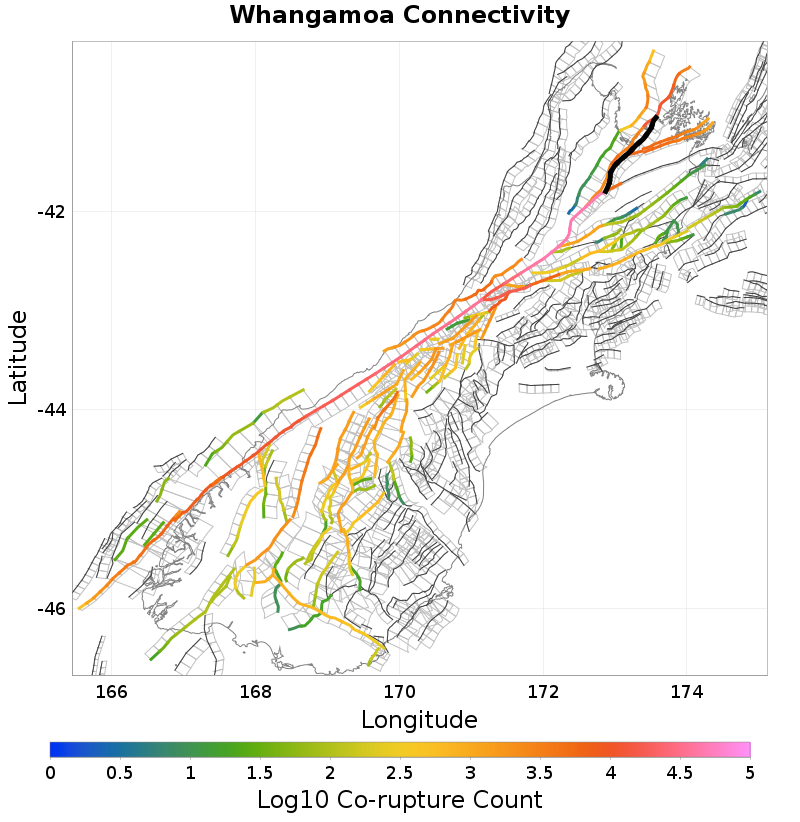

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Totara Saddle, 0.19 km away
Kenepuru, 0.43 km away
Waimea Offshore, 0.81 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Queen Charlotte, 3.21 km away
Waihopai, 13.04 km away
Surville, 13.9 km away
Tutaki, 14.85 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count47,509
Co-rupture Rate1.9923408E-4

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count5,287
Co-rupture Rate0.0

Totara Saddle, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count5,944
Co-rupture Rate1.1206078E-4

Kenepuru, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count5,907
Co-rupture Rate1.6856097E-4

Waimea Offshore, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count13,044
Co-rupture Rate7.116652E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count5,700
Co-rupture Rate8.354725E-5

Queen Charlotte, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count5,517
Co-rupture Rate9.235701E-5

Waihopai, 13.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Surville, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?true
Co-rupture Count3,162
Co-rupture Rate4.547964E-6

Tutaki, 14.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzguMFJvNlVa
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate2.4743588E-7
