Galloway Shanty Details
| Property | Value |
|---|---|
| Rupture Count | 2,069 |
| Ruptures Above Sect Min Mag | 2,068 |
| Ruptures w/ Nonzero Rates | 43 |
| Magnitude Range | [6.91, 8.27] |
| Length Range | [17, 425] km |
| Total Rate | 1.18633994E-4 /yr |
| Multi-Fault Rate | 1.18633994E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 61 |
Table Of Contents

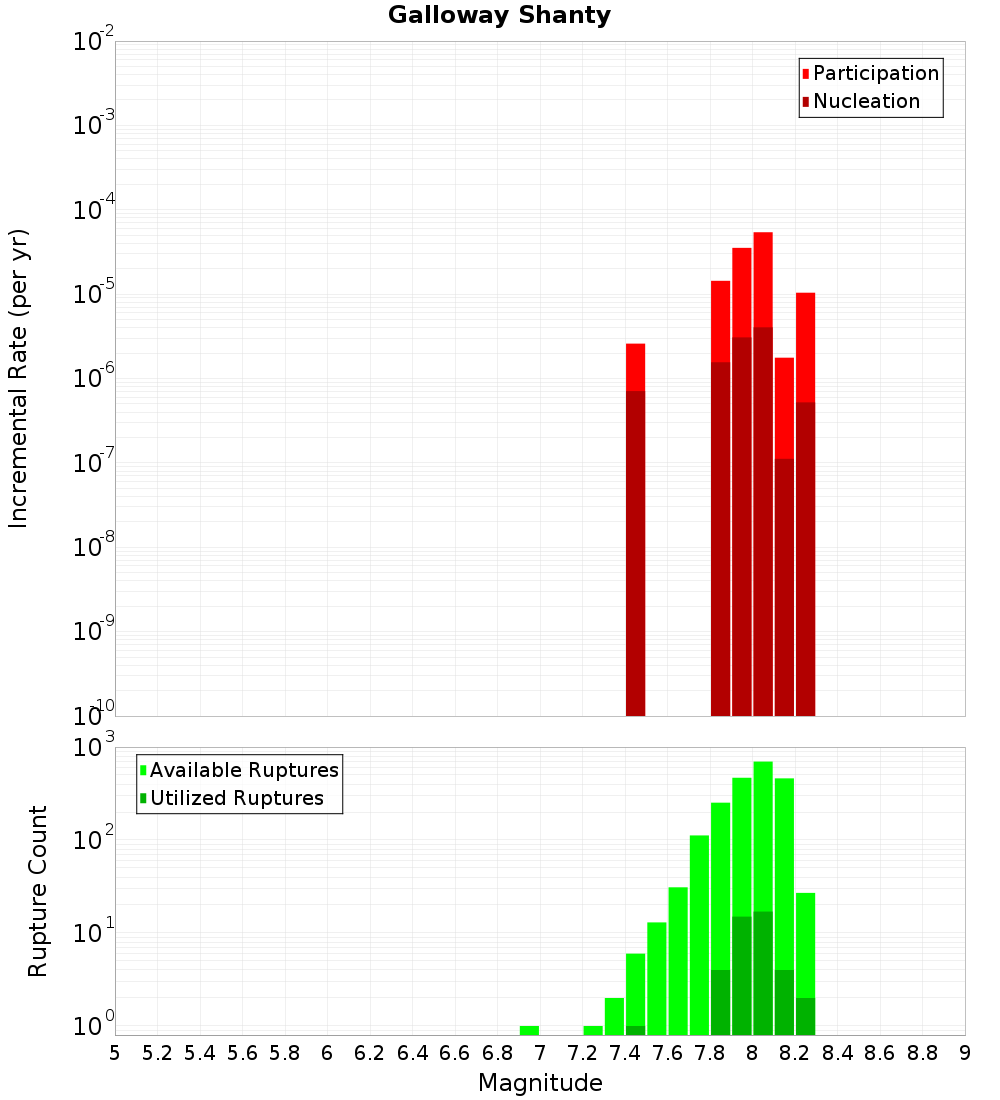

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

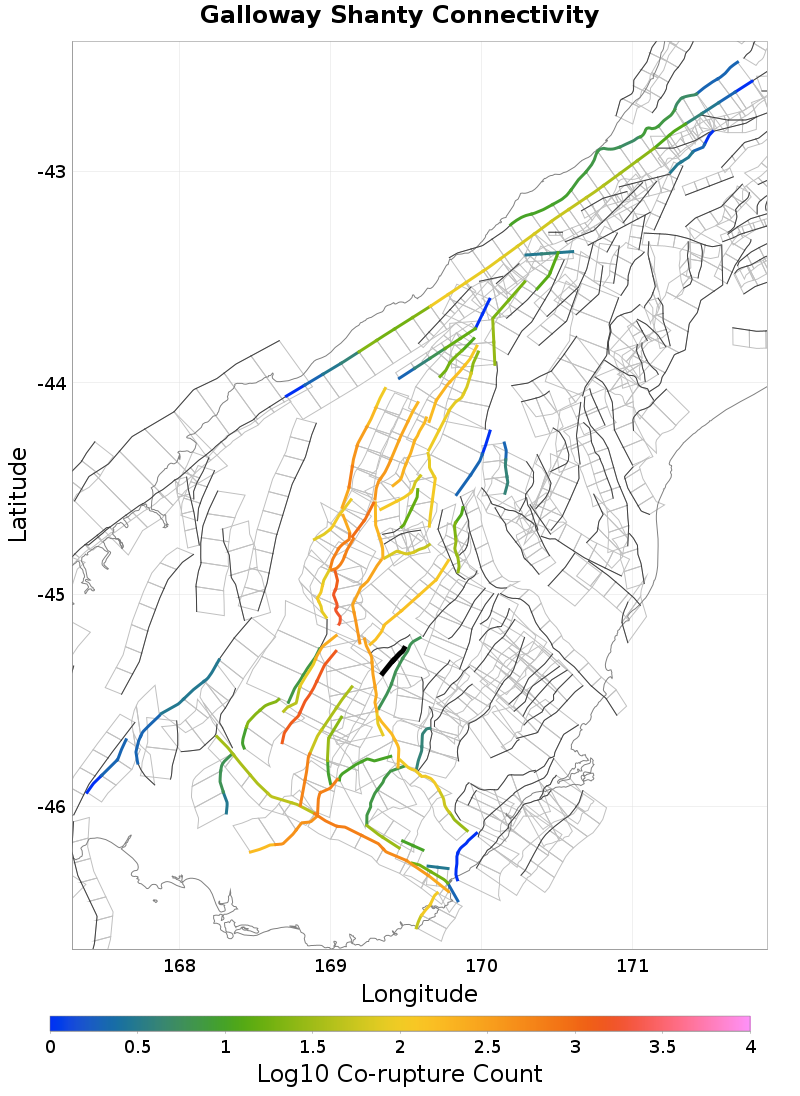

Connectivity
 |  |
|---|
Nearby Sections
Galloway, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Roaring Lion, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 239 |
| Co-rupture Rate | 3.721825E-5 |
Little Valley, 2.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Garvie, 3.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,434 |
| Co-rupture Rate | 7.8824545E-5 |
Old Man, 4.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 311 |
| Co-rupture Rate | 2.448412E-5 |
Roaring Meg, 5.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,679 |
| Co-rupture Rate | 7.884118E-5 |
Dunstan, 10.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 145 |
| Co-rupture Rate | 8.244411E-6 |
Raggedy - Blackstone, 11.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pisa, 13.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 382 |
| Co-rupture Rate | 1.0396717E-5 |
Waikaia, 14.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2MzkuMHI0a0th | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 604 |
| Co-rupture Rate | 5.2636828E-5 |
