Grandview Details

Property	Value
Rupture Count	16,664
Ruptures Above Sect Min Mag	16,662
Ruptures w/ Nonzero Rates	208
Magnitude Range	[6.80, 8.41]
Length Range	[20, 770] km
Total Rate	1.1150317E-4 /yr
Multi-Fault Rate	1.1150317E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	99

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

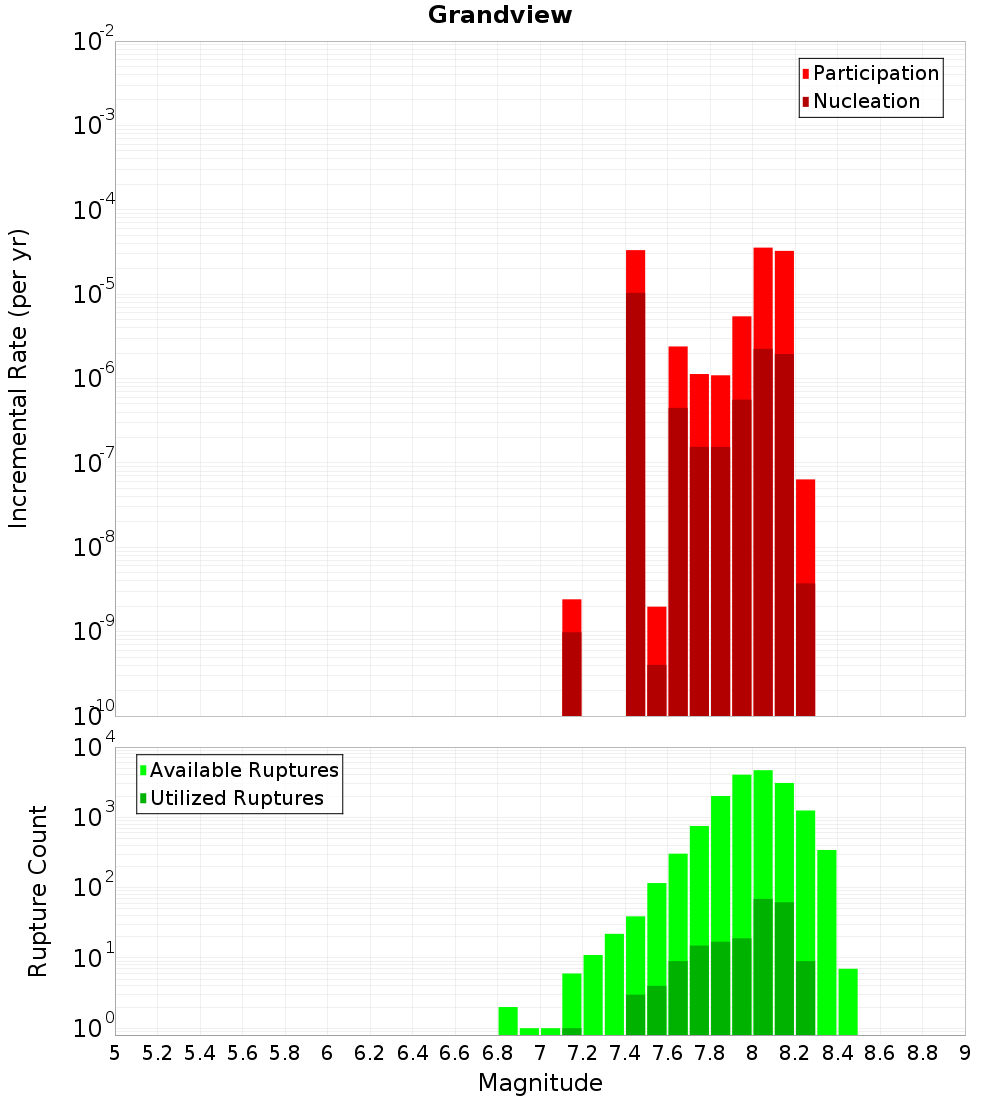

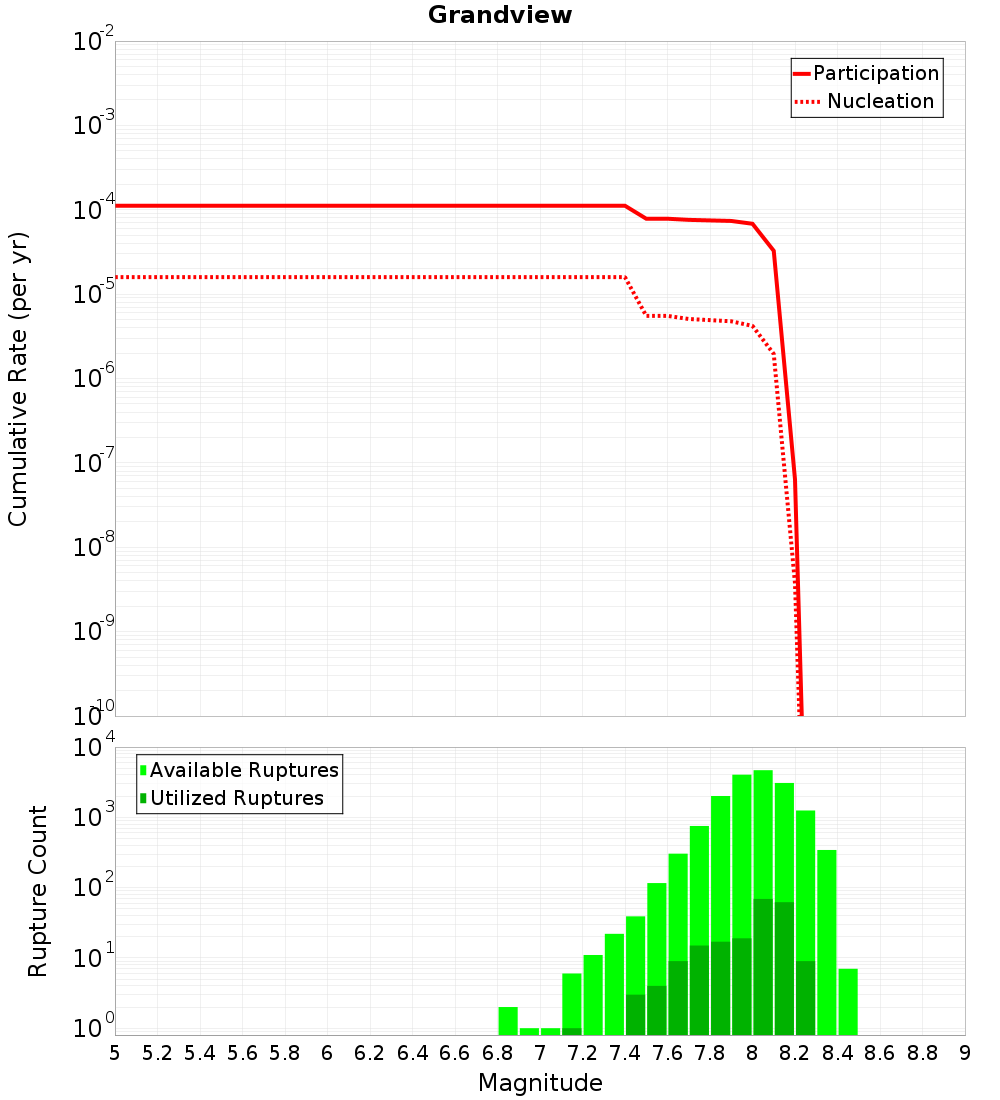

Magnitude-Frequency Distribution

Incremental	Cumulative

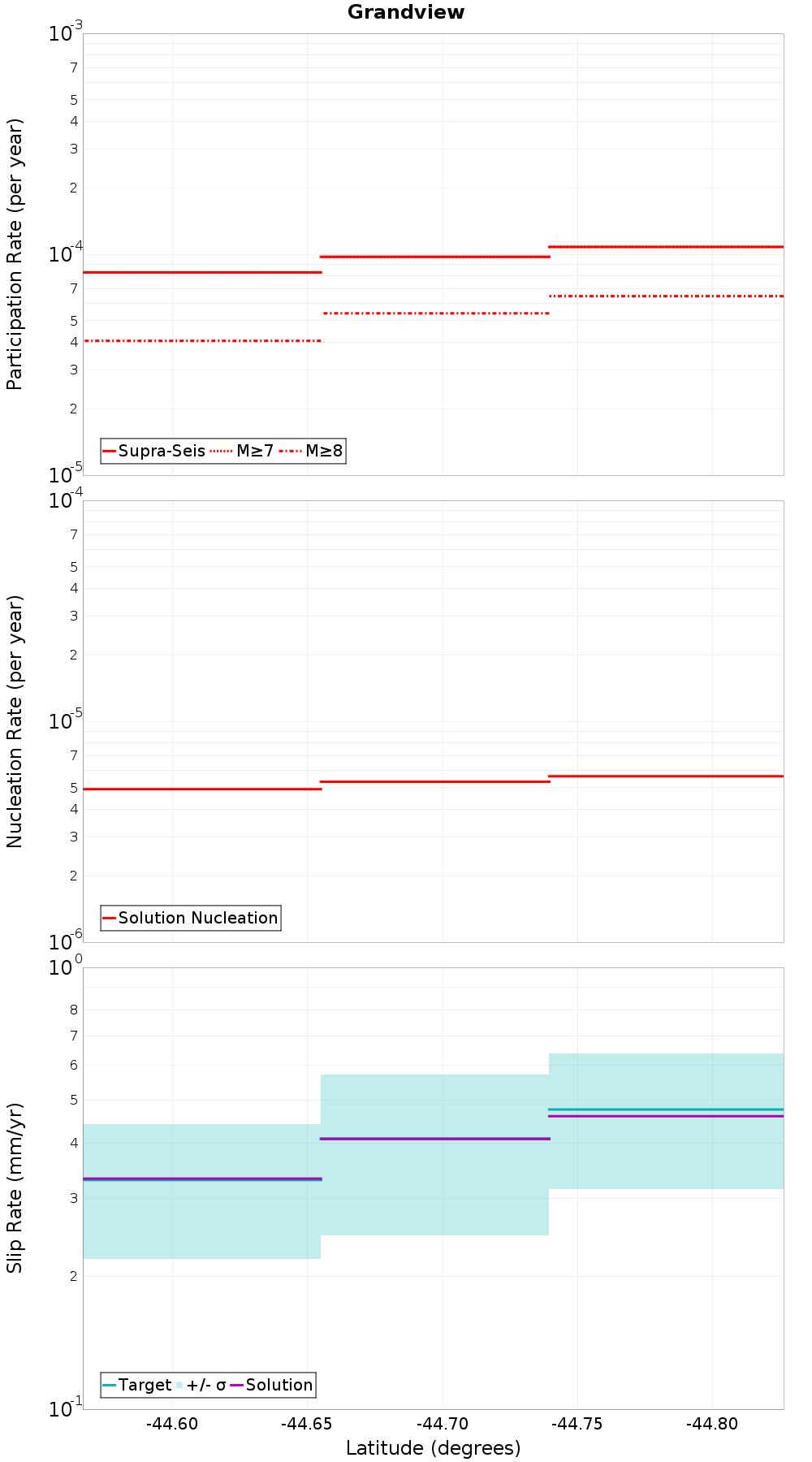

Along-Strike Values

Moment-Rates and b-Values

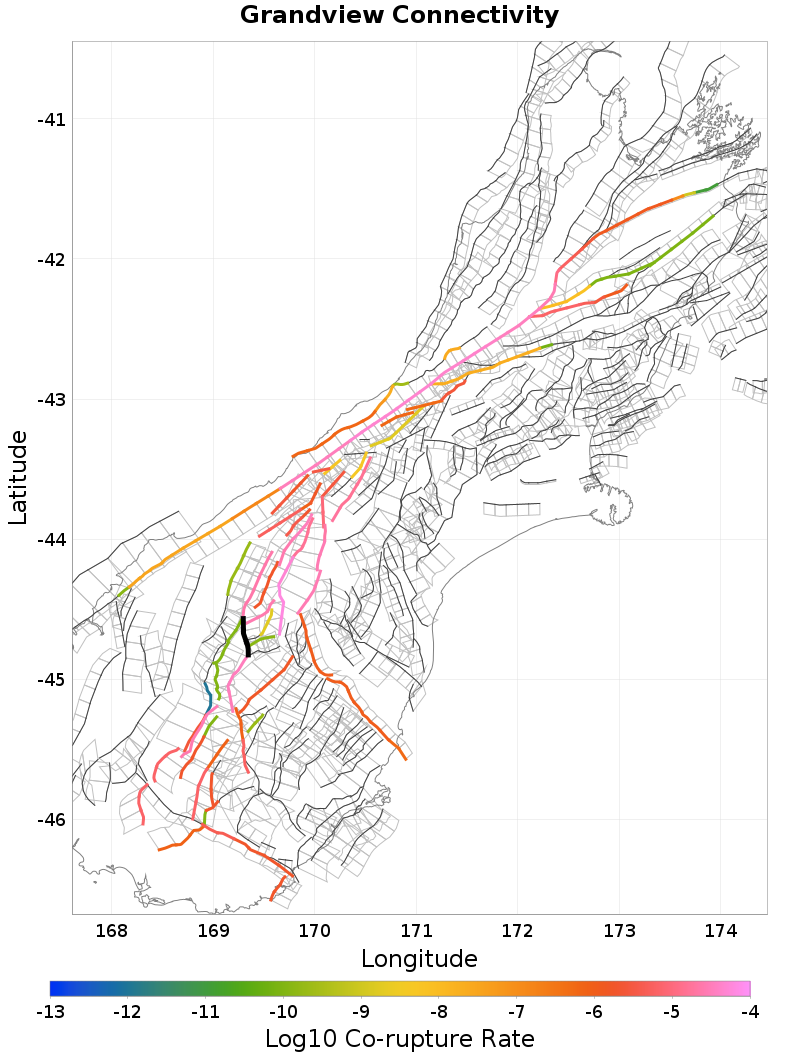

Connectivity

Nearby Sections

Fault Section
Lindis River, 0.11 km away
Cluden, 0.14 km away
Goodger, 0.22 km away
Dunstan, 0.27 km away
Timaru Creek, 0.3 km away
Cardrona - Hawea, 0.97 km away
Dromedary, 1.07 km away
Pisa, 1.55 km away
Hunter Valley, 1.98 km away
Dingle, 9.57 km away
Motatapu, 11.67 km away
Paddys Ridge, 12.38 km away
Wanaka, 12.49 km away
NW Cardrona North, 14.11 km away

Lindis River, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	1.742726E-9

Cluden, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Goodger, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	1.2339414E-10

Dunstan, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,400
Co-rupture Rate	1.6222729E-6

Timaru Creek, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	7,259
Co-rupture Rate	2.6415186E-5

Cardrona - Hawea, 0.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	9.8979325E-11

Dromedary, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,955
Co-rupture Rate	6.208415E-5

Pisa, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	11,423
Co-rupture Rate	3.2865537E-5

Hunter Valley, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,448
Co-rupture Rate	2.3100605E-5

Dingle, 9.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	4,166
Co-rupture Rate	1.7035851E-6

Motatapu, 11.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Paddys Ridge, 12.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	9.8979325E-11

Wanaka, 12.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	829
Co-rupture Rate	1.8869216E-10

NW Cardrona North, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	0.0
