Hawke Bay 8 Details
| Property | Value |
|---|---|
| Rupture Count | 147 |
| Ruptures Above Sect Min Mag | 145 |
| Ruptures w/ Nonzero Rates | 23 |
| Magnitude Range | [6.33, 7.69] |
| Length Range | [6, 168] km |
| Total Rate | 9.971046E-5 /yr |
| Multi-Fault Rate | 9.971046E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 13 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

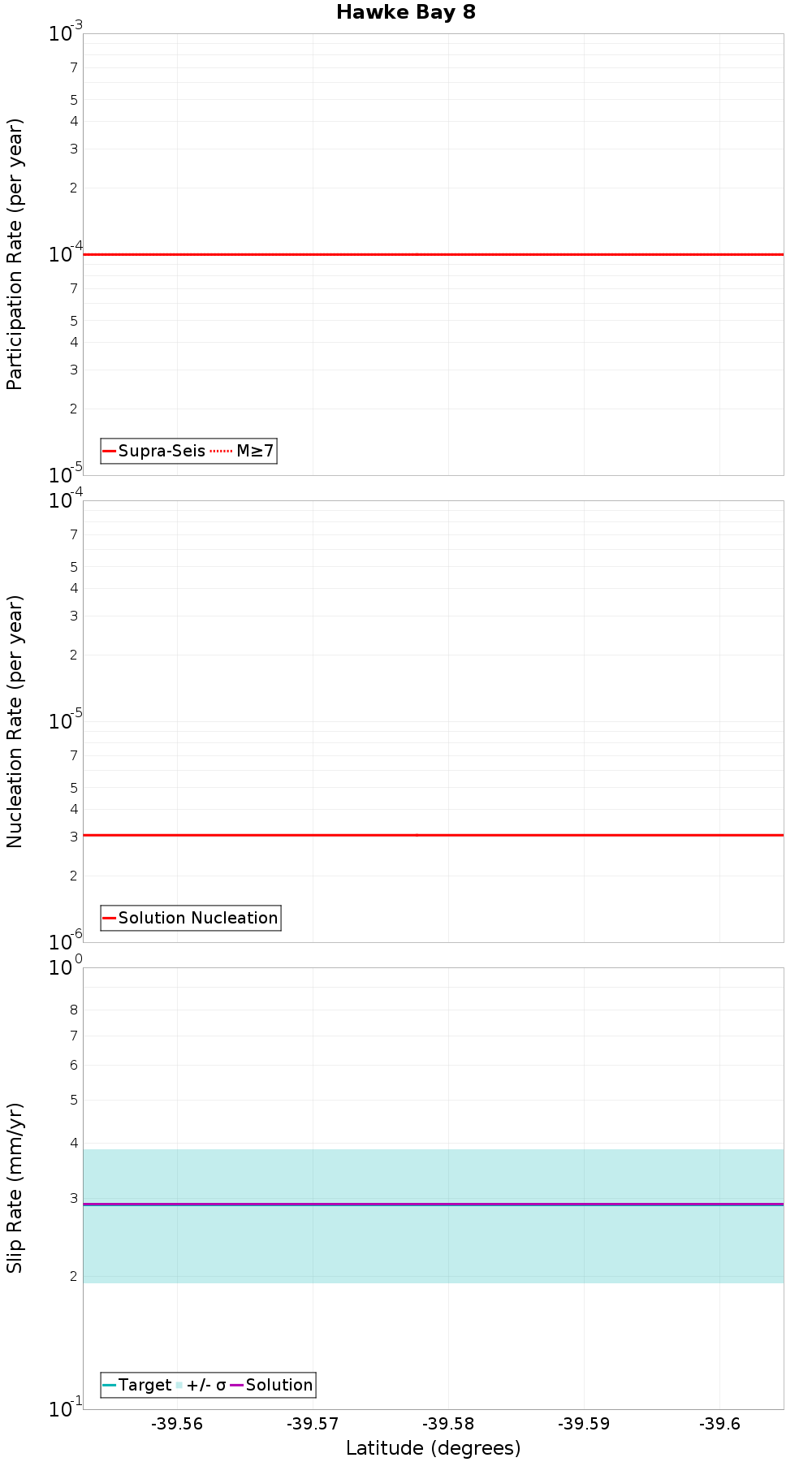

Along-Strike Values
Moment-Rates and b-Values

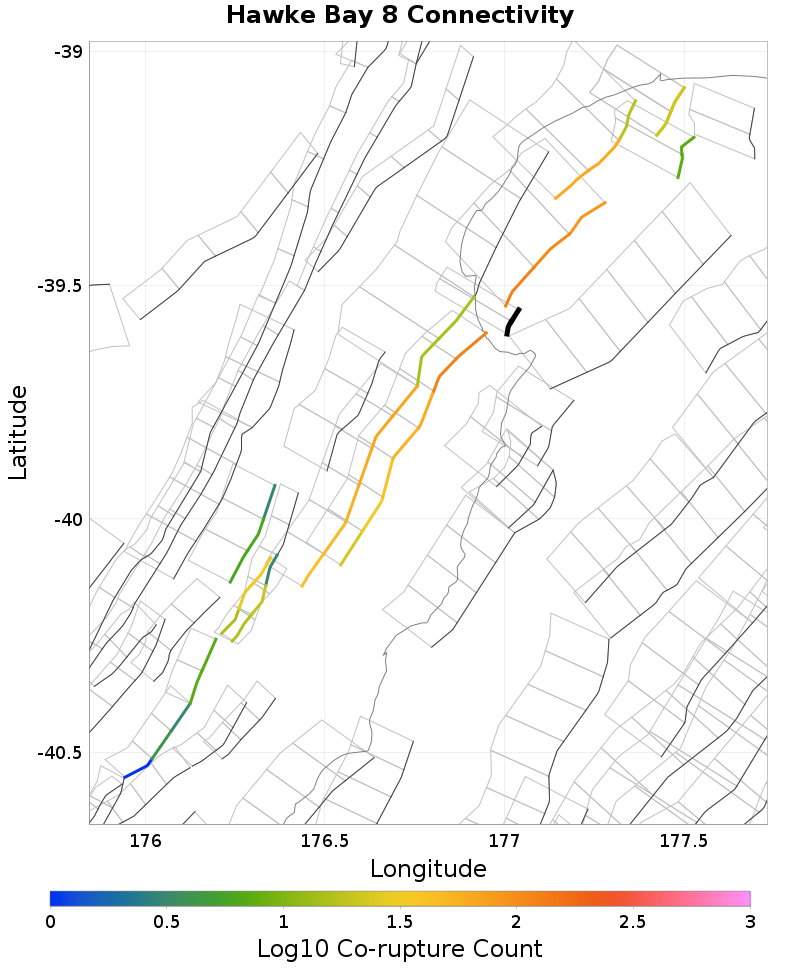

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 2, 1.95 km away |
| Tukituki Thrust, 2.13 km away |
| Awanui, 6.81 km away |
| Kidnappers Ridge, 10.62 km away |
| Waimarama 3 & 4, 14.92 km away |
Hawke Bay 2, 1.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 123 |
| Co-rupture Rate | 7.600821E-5 |
Tukituki Thrust, 2.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 129 |
| Co-rupture Rate | 9.971046E-5 |
Awanui, 6.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Kidnappers Ridge, 10.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimarama 3 & 4, 14.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
