Old Man Details

PropertyValue
Rupture Count26,252
Ruptures Above Sect Min Mag26,251
Ruptures w/ Nonzero Rates59
Magnitude Range[7.05, 8.46]
Length Range[26, 856] km
Total Rate7.41836E-5 /yr
Multi-Fault Rate7.41836E-5 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults109

Table Of Contents

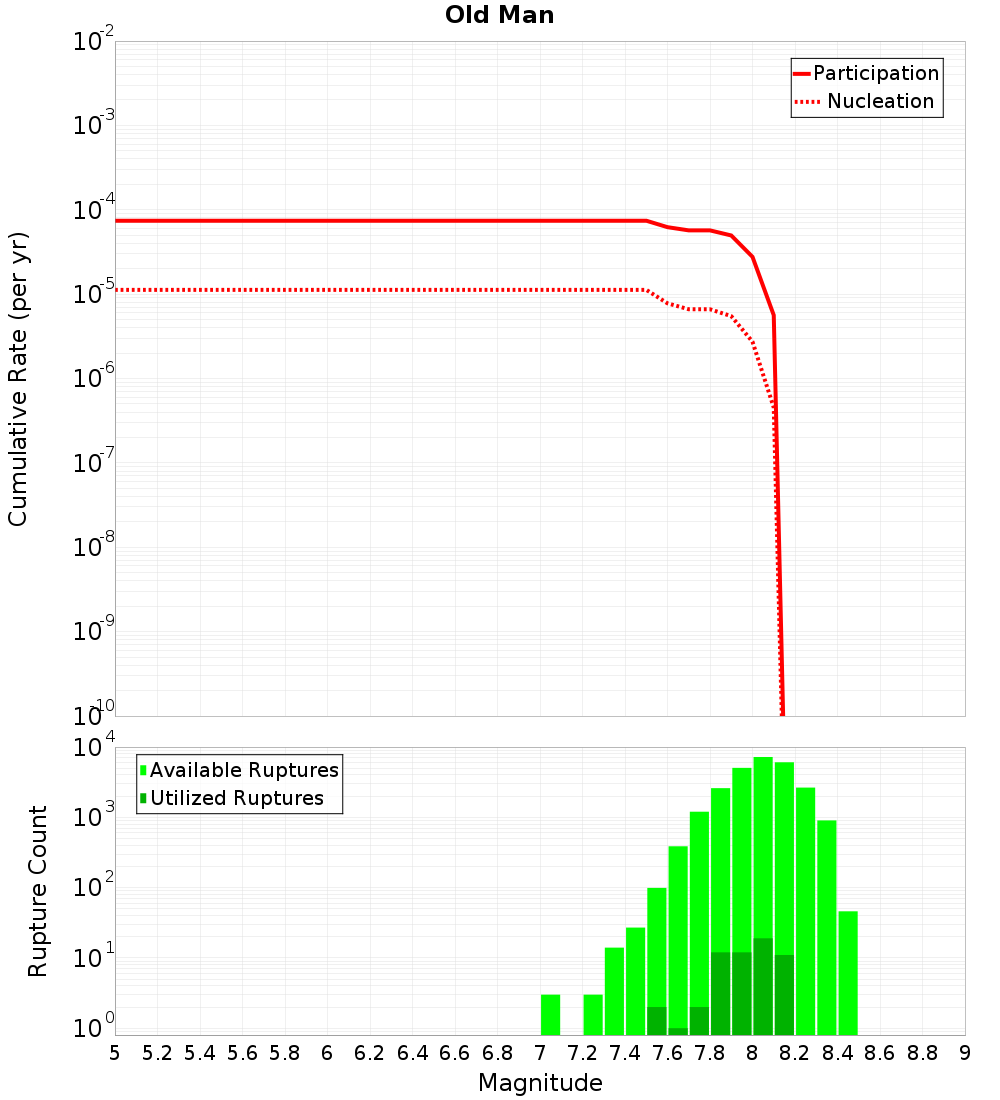

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

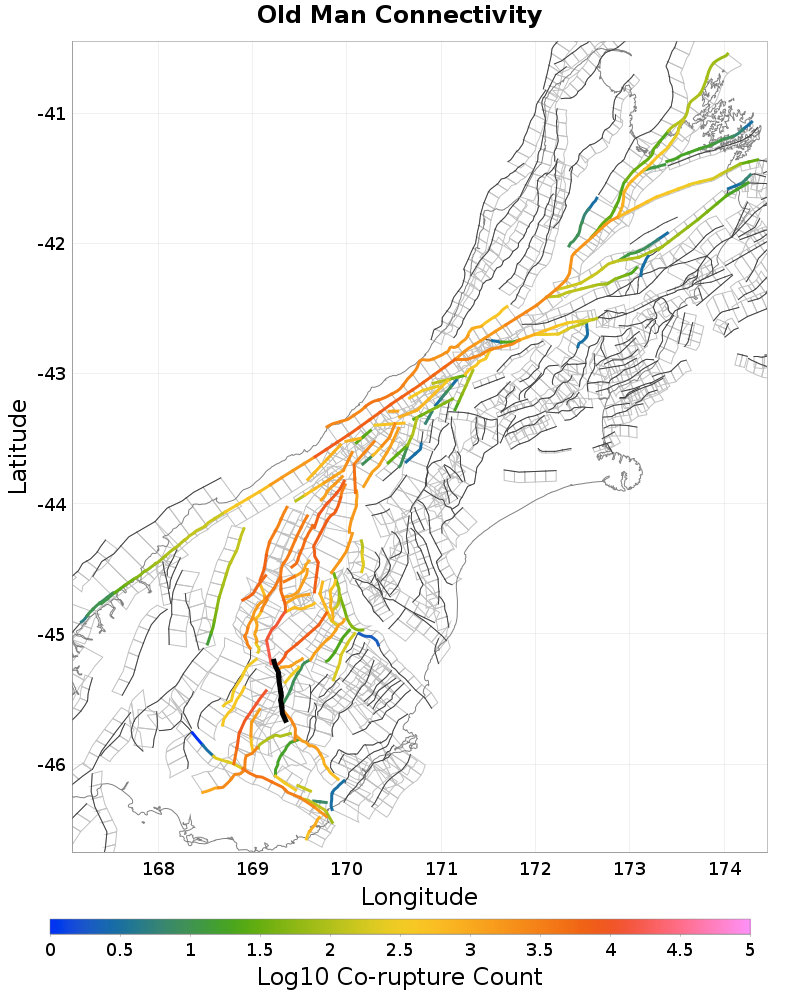

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Roaring Lion, 0.17 km away
Wendon Valley, 0.17 km away
Waikaia, 0.22 km away
Garvie, 0.26 km away
Galloway, 0.55 km away
Teviot, 0.71 km away
Little Valley, 1.09 km away
Pisa, 1.67 km away
Dunstan, 1.92 km away
Galloway Shanty, 4.11 km away
Roaring Meg, 10.4 km away
Spylaw, 11.99 km away
Mid Dome, 13.89 km away
Nevis, 14.73 km away
Waikaka, 14.99 km away

Roaring Lion, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count334
Co-rupture Rate2.569798E-5

Wendon Valley, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count1,491
Co-rupture Rate1.7971632E-5

Waikaia, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count12,476
Co-rupture Rate6.216153E-5

Garvie, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count405
Co-rupture Rate0.0

Galloway, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count1,280
Co-rupture Rate2.2477732E-5

Teviot, 0.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count2,460
Co-rupture Rate0.0

Little Valley, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Pisa, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count16,245
Co-rupture Rate2.309619E-5

Dunstan, 1.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count8,038
Co-rupture Rate1.3194112E-5

Galloway Shanty, 4.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?true
Co-rupture Count311
Co-rupture Rate3.3934969E-6

Roaring Meg, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?false
Co-rupture Count1,237
Co-rupture Rate4.853715E-9

Spylaw, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate0.0

Mid Dome, 13.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nevis, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaka, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?true
Directly Connected?false
Co-rupture Count2,913
Co-rupture Rate2.1604017E-6
