Titri North Details

Property	Value
Rupture Count	31
Ruptures Above Sect Min Mag	31
Ruptures w/ Nonzero Rates	9
Magnitude Range	[7.10, 7.72]
Length Range	[29, 131] km
Total Rate	1.3784162E-4 /yr
Multi-Fault Rate	1.3784162E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

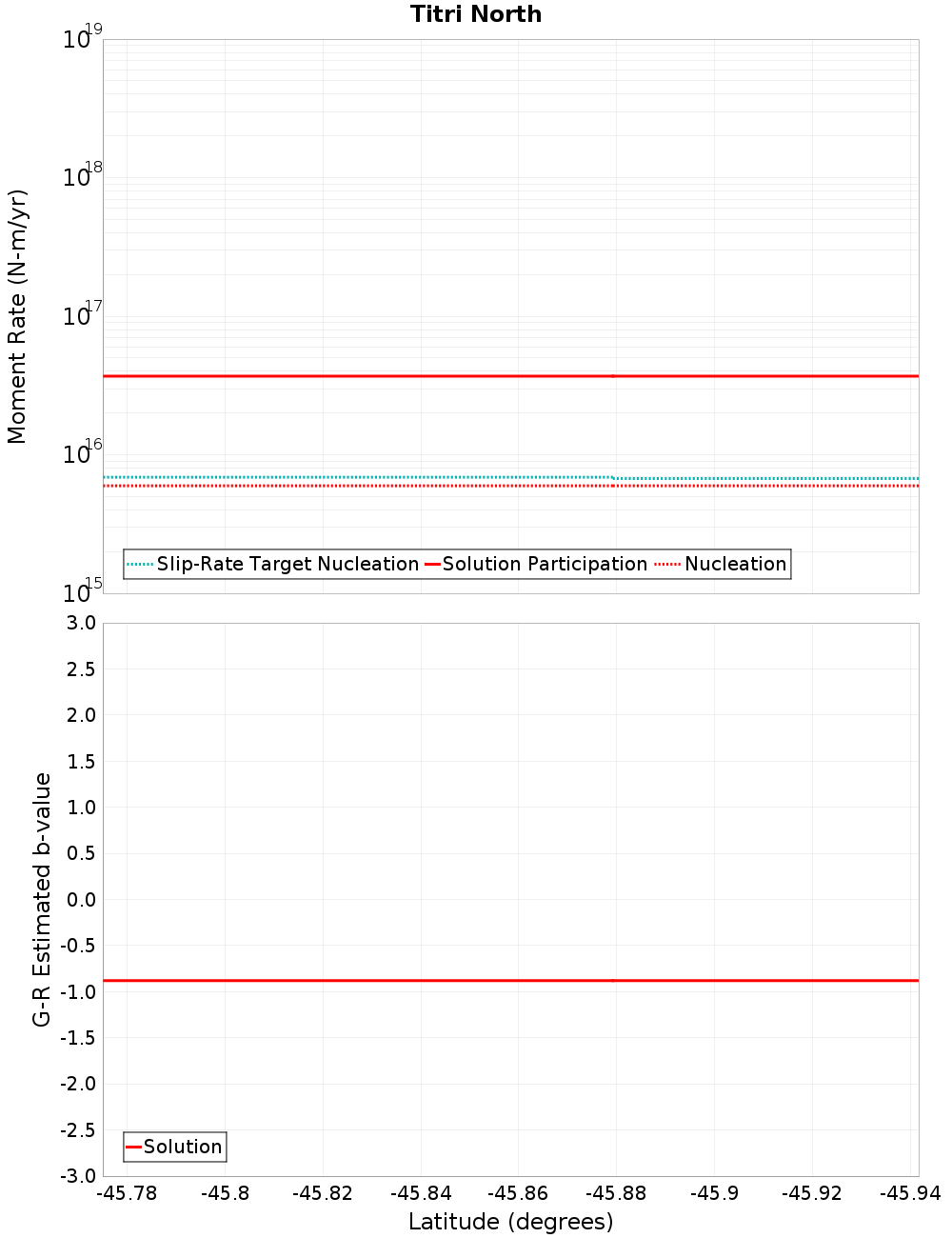

Moment-Rates and b-Values

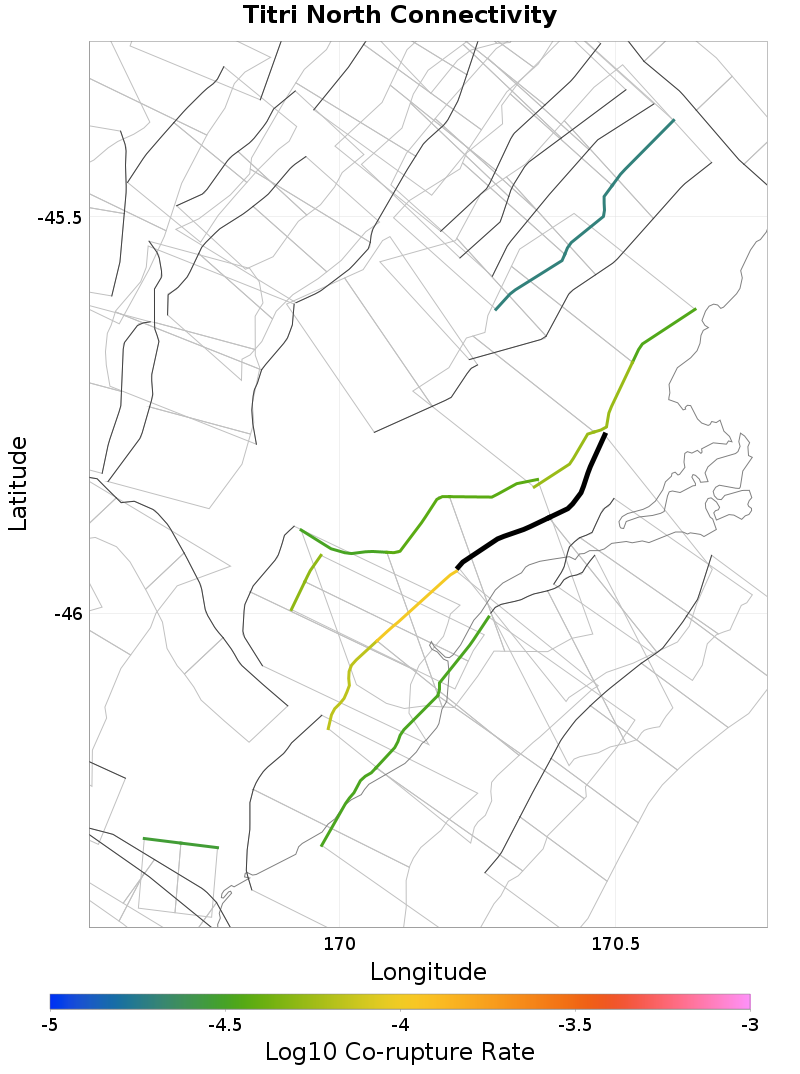

Connectivity

Nearby Sections

Fault Section
Titri Central, 0.04 km away
Sliver Stream - Merton, 0.88 km away
Kaikorai, 2.69 km away
Maungatua - North Taieri, 3.41 km away
Akatore, 5.06 km away
Green Island, 5.36 km away
Waitahuna 2, 11.55 km away

Titri Central, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	1.0493912E-4

Sliver Stream - Merton, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	5.414296E-5

Kaikorai, 2.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungatua - North Taieri, 3.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	3.6690933E-5

Akatore, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	3.2902495E-5

Green Island, 5.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	5.090979E-5
