Whaiti Ridge Details

Property	Value
Rupture Count	11,759
Ruptures Above Sect Min Mag	11,758
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.96, 8.42]
Length Range	[26, 855] km
Total Rate	1.0968474E-6 /yr
Multi-Fault Rate	1.0968474E-6 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

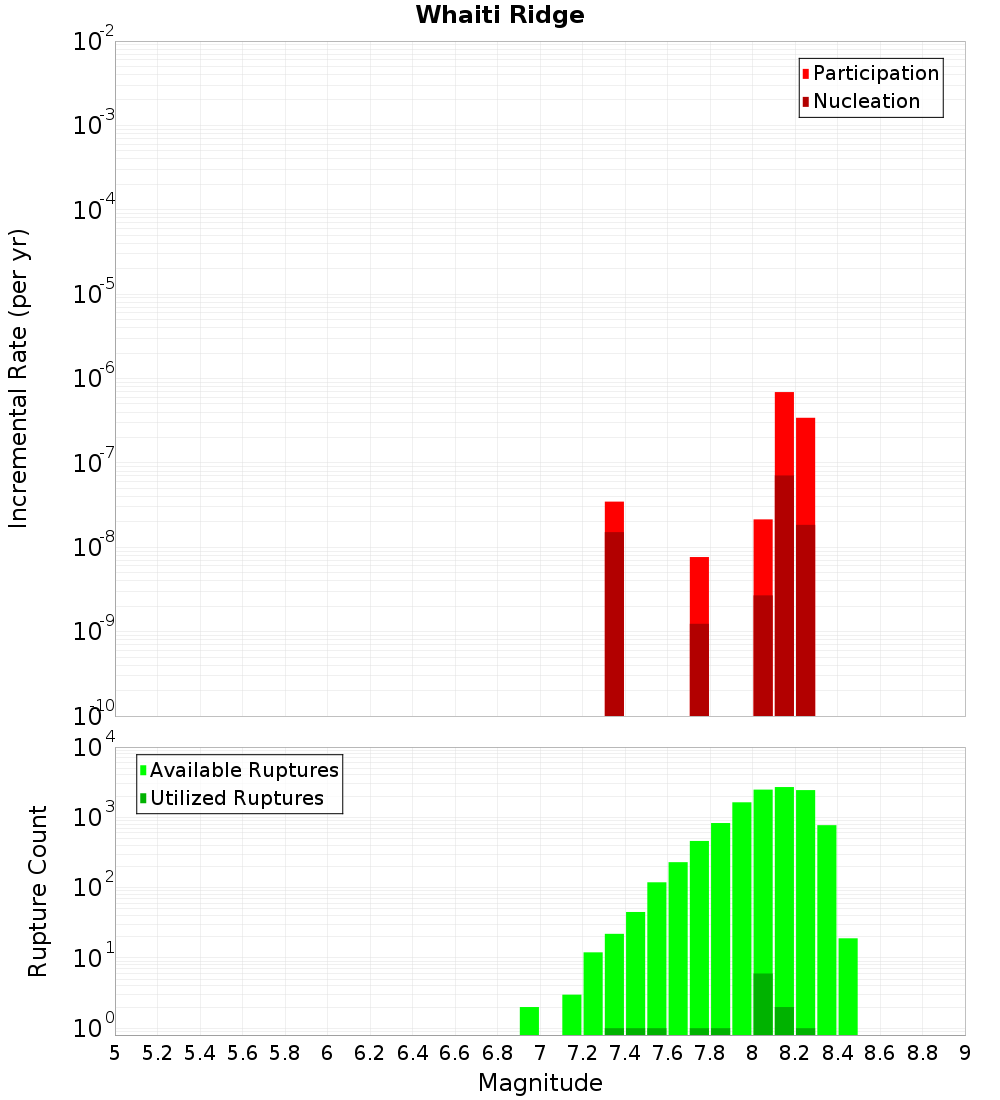

Magnitude-Frequency Distribution

Incremental	Cumulative

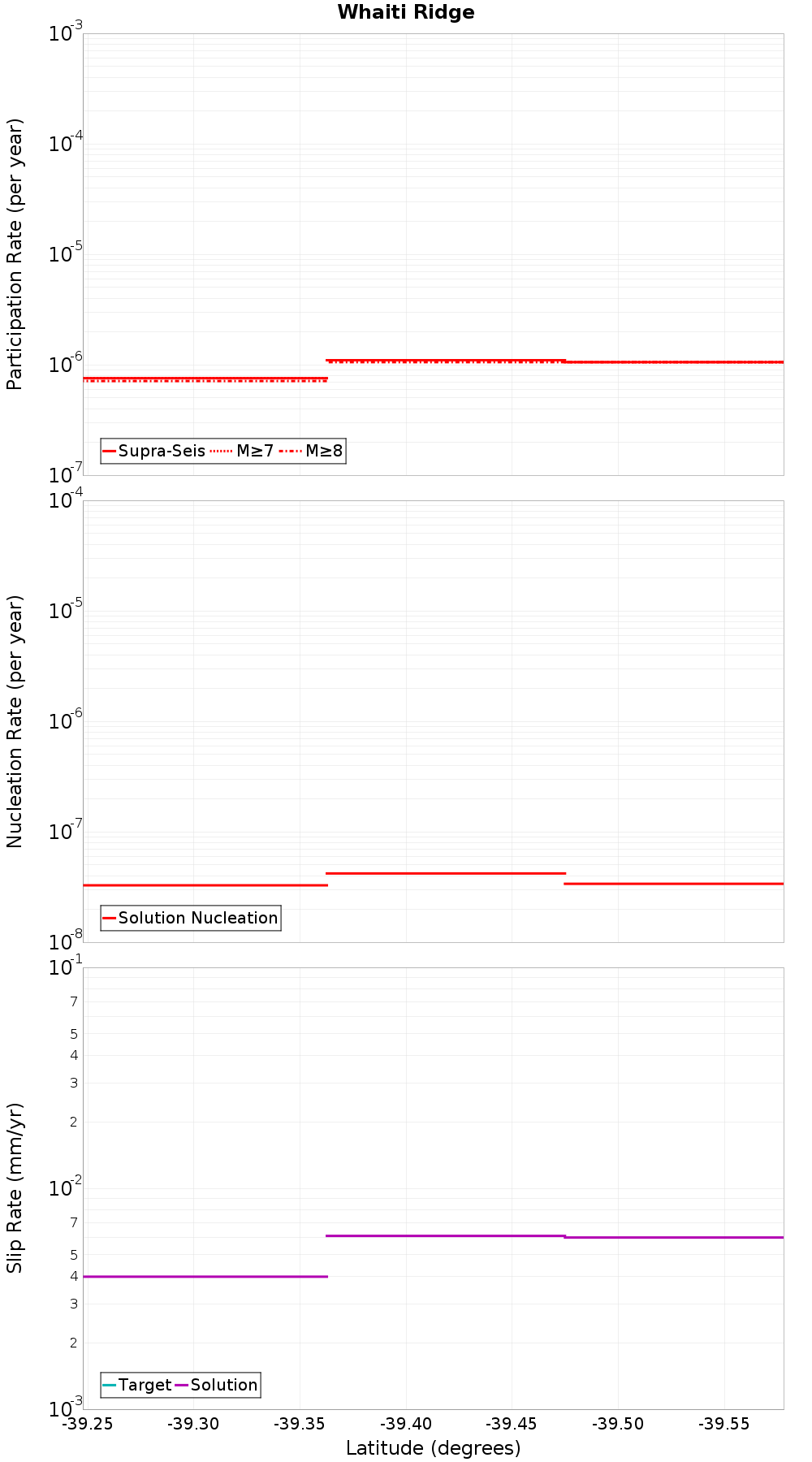

Along-Strike Values

Moment-Rates and b-Values

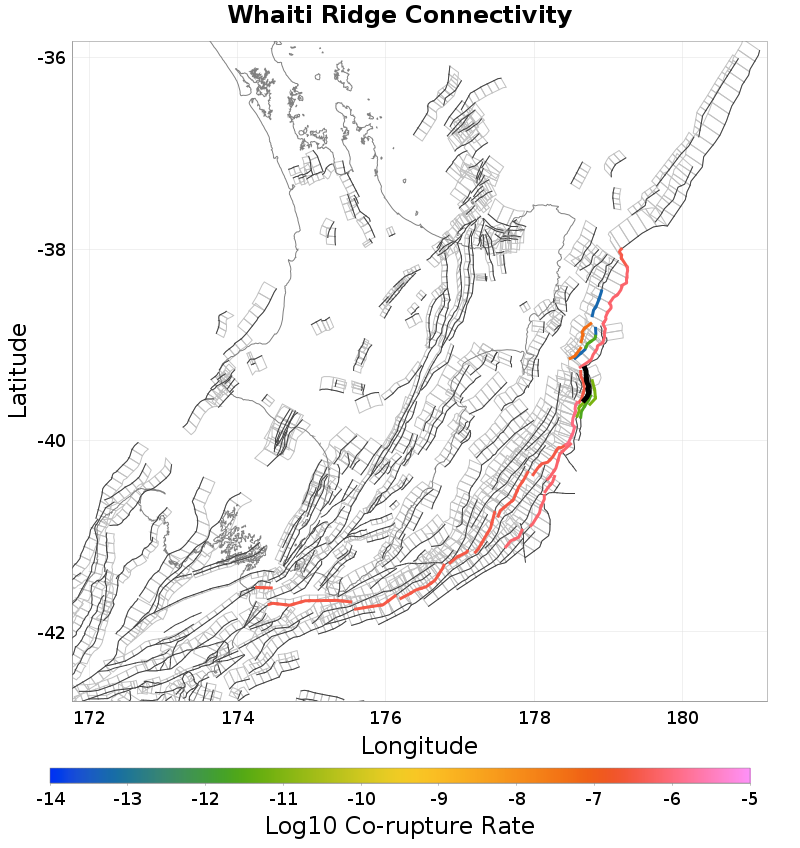

Connectivity

Nearby Sections

Fault Section
Pakupaku Ridge, 0.02 km away
Te Kapu Bank, 0.08 km away
Puke Knoll, 0.09 km away
Rock Garden - Ritchie East 1, 0.62 km away
Te Kapu Bank East, 1.89 km away
Riwha, 2.35 km away
Pakupaku Ridge East, 3.58 km away
Ritchie Ridge 1, 5.59 km away
Rock Garden - Ritchie East, 5.87 km away
Ritchie Ridge, 6.26 km away
Paritu Ridge, 7.95 km away
Paritu West, 8.89 km away

Pakupaku Ridge, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,257
Co-rupture Rate	2.4275417E-12

Te Kapu Bank, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Puke Knoll, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	3,841
Co-rupture Rate	0.0

Rock Garden - Ritchie East 1, 0.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	5,004
Co-rupture Rate	8.068373E-12

Te Kapu Bank East, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	682
Co-rupture Rate	3.424615E-7

Riwha, 2.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,381
Co-rupture Rate	7.119775E-7

Pakupaku Ridge East, 3.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	615
Co-rupture Rate	8.068373E-12

Ritchie Ridge 1, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rock Garden - Ritchie East, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	5,870
Co-rupture Rate	1.054431E-6

Ritchie Ridge, 6.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paritu Ridge, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	272
Co-rupture Rate	2.481028E-12

Paritu West, 8.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDIuMFNZYWN5
Connected?	true
Directly Connected?	true
Co-rupture Count	305
Co-rupture Rate	4.240837E-8
