Alpine: George seaward Details

PropertyValue
Rupture Count40,230
Ruptures Above Sect Min Mag40,229
Ruptures w/ Nonzero Rates854
Magnitude Range[6.70, 8.58]
Length Range[16, 1,081] km
Total Rate0.0019420672 /yr
Multi-Fault Rate0.0019420672 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults192

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

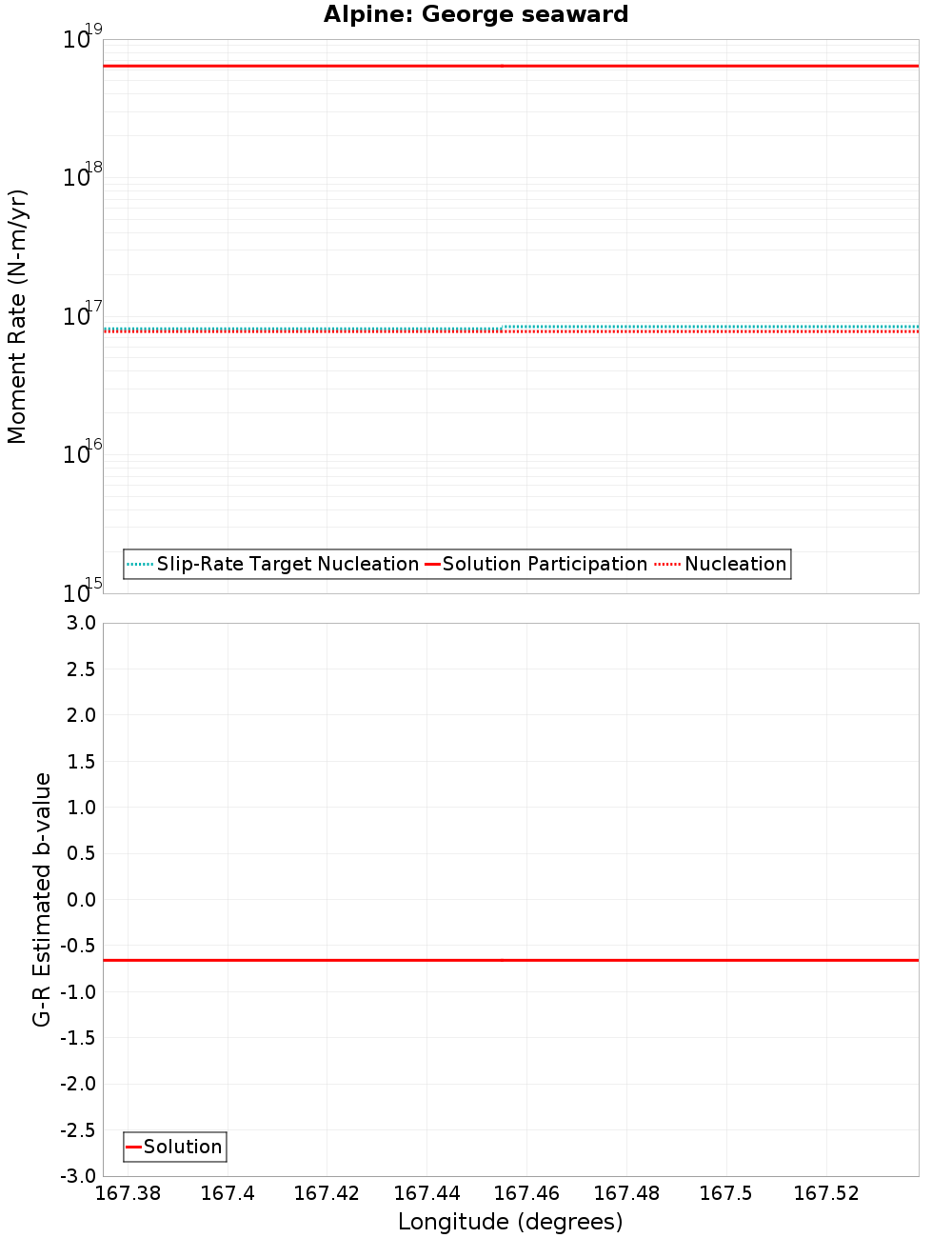

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George to Jacksons, 0 km away
Alpine: George landward, 0 km away
Alpine: Caswell - South George, 0.03 km away
Madagascar, 0.21 km away
Central Wedge 1 & 2 & 3, 7.74 km away

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count40,145
Co-rupture Rate0.0019420672

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count395
Co-rupture Rate2.3451077E-5

Alpine: Caswell - South George, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count37,970
Co-rupture Rate0.0019166471

Madagascar, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 1 & 2 & 3, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count309
Co-rupture Rate3.3150278E-5
