Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count95,011
Ruptures Above Sect Min Mag95,007
Ruptures w/ Nonzero Rates810
Magnitude Range[7.00, 8.61]
Length Range[24, 1,132] km
Total Rate0.0016516388 /yr
Multi-Fault Rate0.0016463052 /yr (99.68%)
Directly-Connected Faults8
All Co-Rupturing Faults179

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

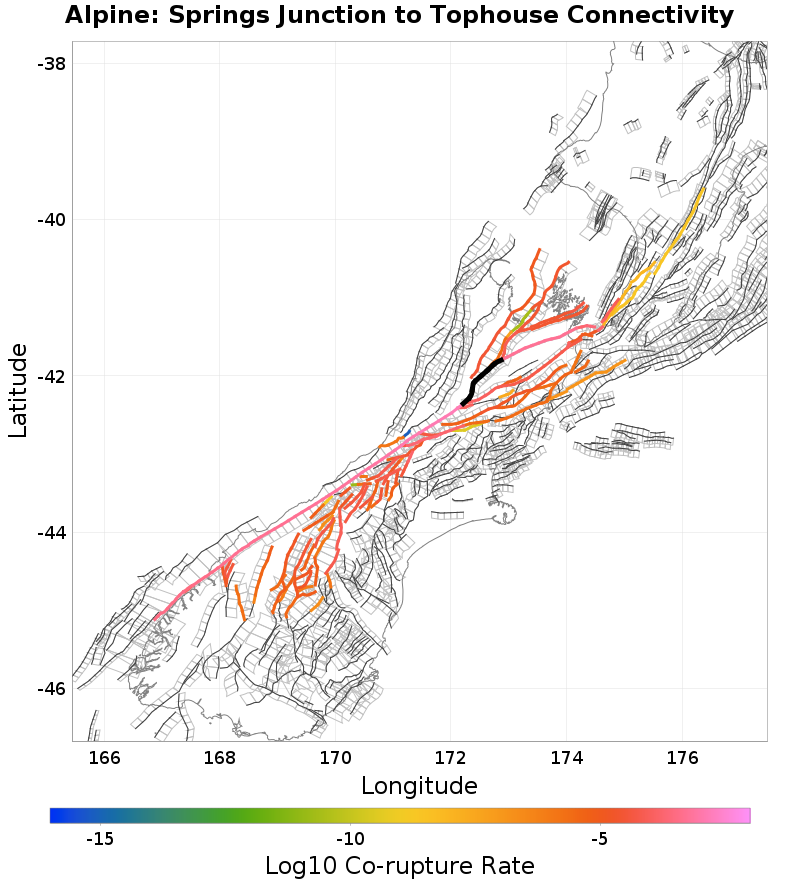

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.15 km away
Fowlers, 0.21 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.45 km away
Hope: Hope River, 13.2 km away
Waihopai, 14.6 km away
Esk North, 14.63 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count93,096
Co-rupture Rate0.0015264652

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count47,509
Co-rupture Rate7.243101E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count429
Co-rupture Rate1.3274983E-4

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count29,329
Co-rupture Rate5.468539E-4

Tutaki, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count8,505
Co-rupture Rate2.9836363E-5

Fowlers, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count312
Co-rupture Rate9.846695E-5

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count7,634
Co-rupture Rate2.9259188E-6

Clarence: Southwest, 5.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count1,099
Co-rupture Rate2.118033E-5

Hope: Hope River, 13.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count10,407
Co-rupture Rate1.48666E-4

Waihopai, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 14.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
