Kotare - Moutuhora Details
| Property | Value |
|---|---|
| Rupture Count | 42 |
| Ruptures Above Sect Min Mag | 38 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.95, 7.84] |
| Length Range | [22, 178] km |
| Total Rate | 2.88618E-4 /yr |
| Multi-Fault Rate | 2.8732338E-4 /yr (99.55%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

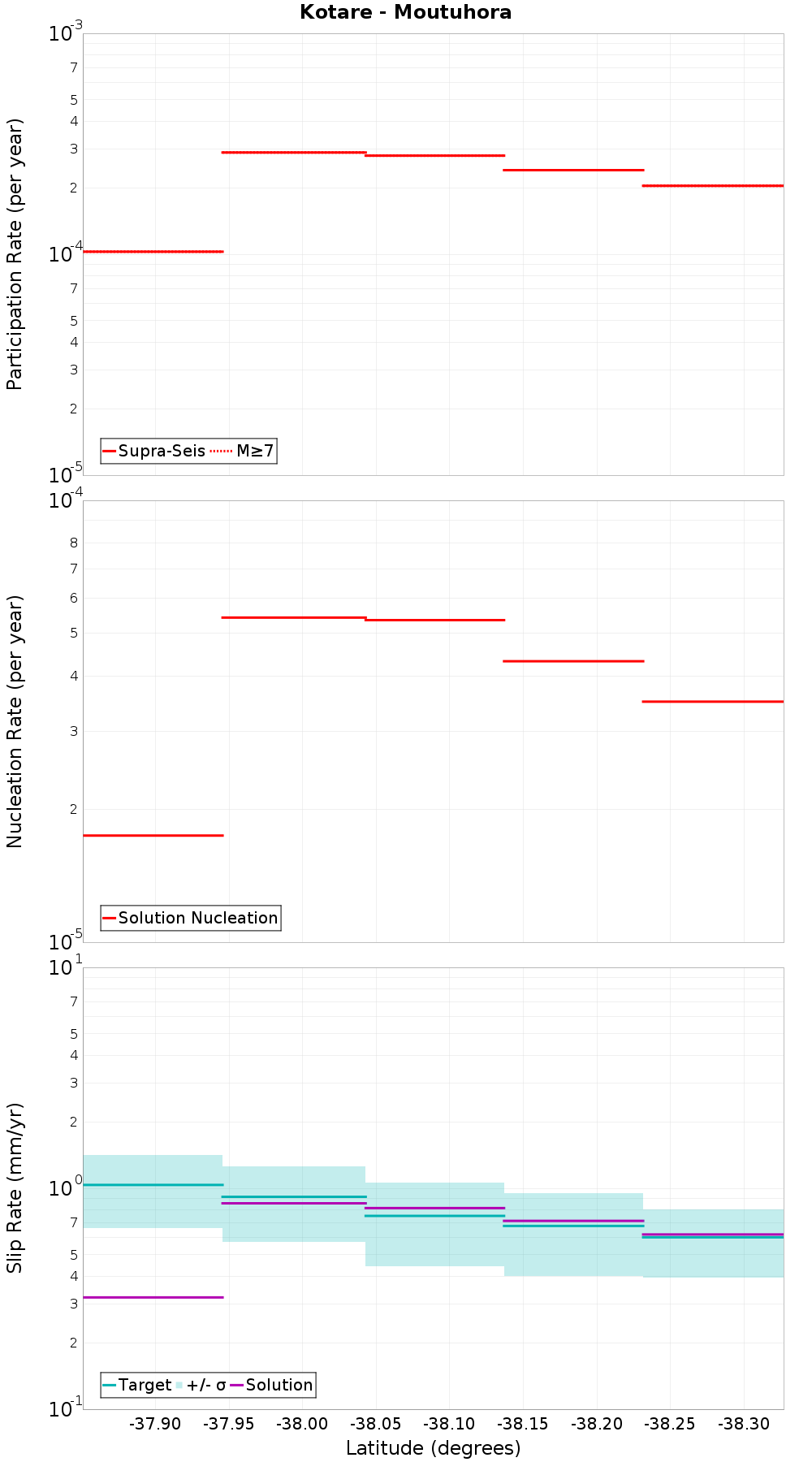

Along-Strike Values
Moment-Rates and b-Values

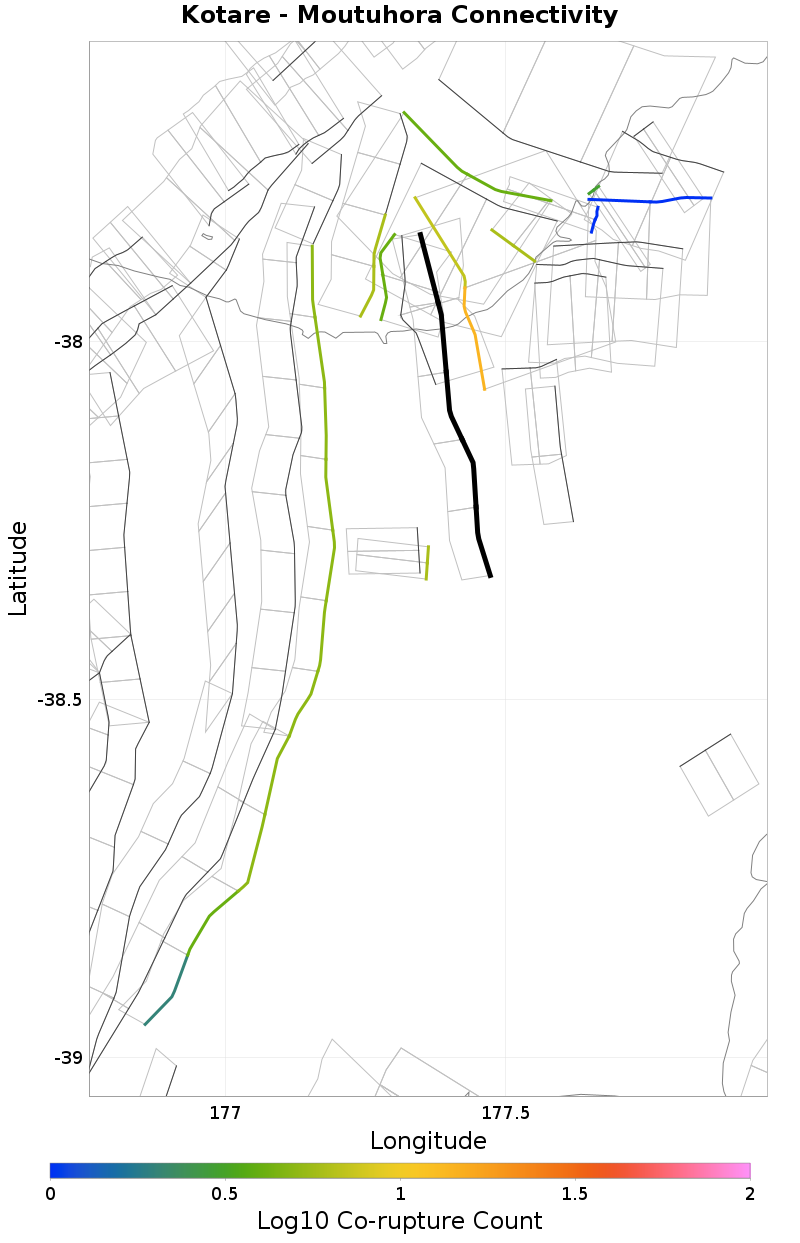

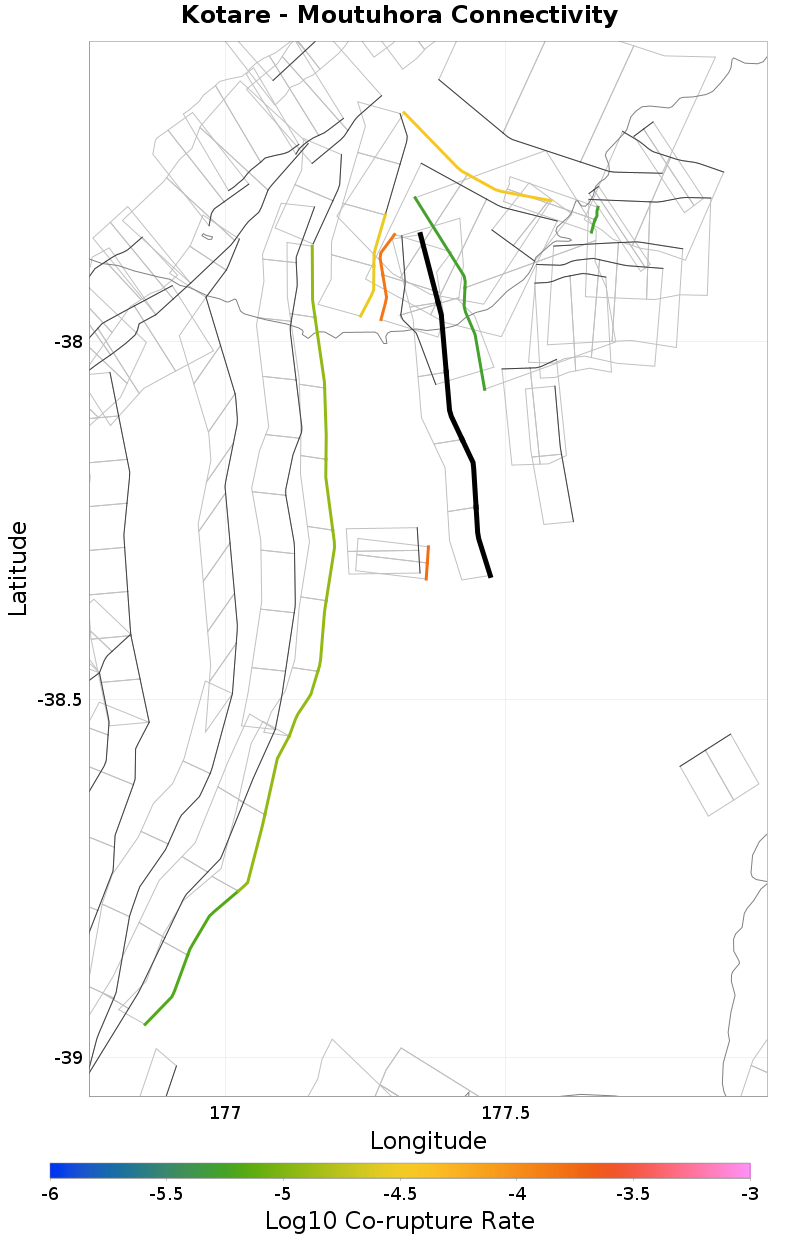

Connectivity
 |  |
|---|
Nearby Sections
Opotiki 2, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.4486432E-4 |
Ohae 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 1, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 3.5809855E-5 |
Tirohanga, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opape 1, 2.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 5.2990026E-6 |
Opotiki 3, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.8254717E-5 |
Raukumara 9, 7.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.6386245E-4 |
Raukumara 16, 8.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairata, 9.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 3, 10.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Motu, 13.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimanawa - Waikaremoana, 14.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
