OmihiLwrHuru Details

PropertyValue
Rupture Count5,151
Ruptures Above Sect Min Mag5,144
Ruptures w/ Nonzero Rates147
Magnitude Range[6.76, 8.22]
Length Range[18, 518] km
Total Rate2.5815013E-4 /yr
Multi-Fault Rate2.5815013E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults60

Table Of Contents

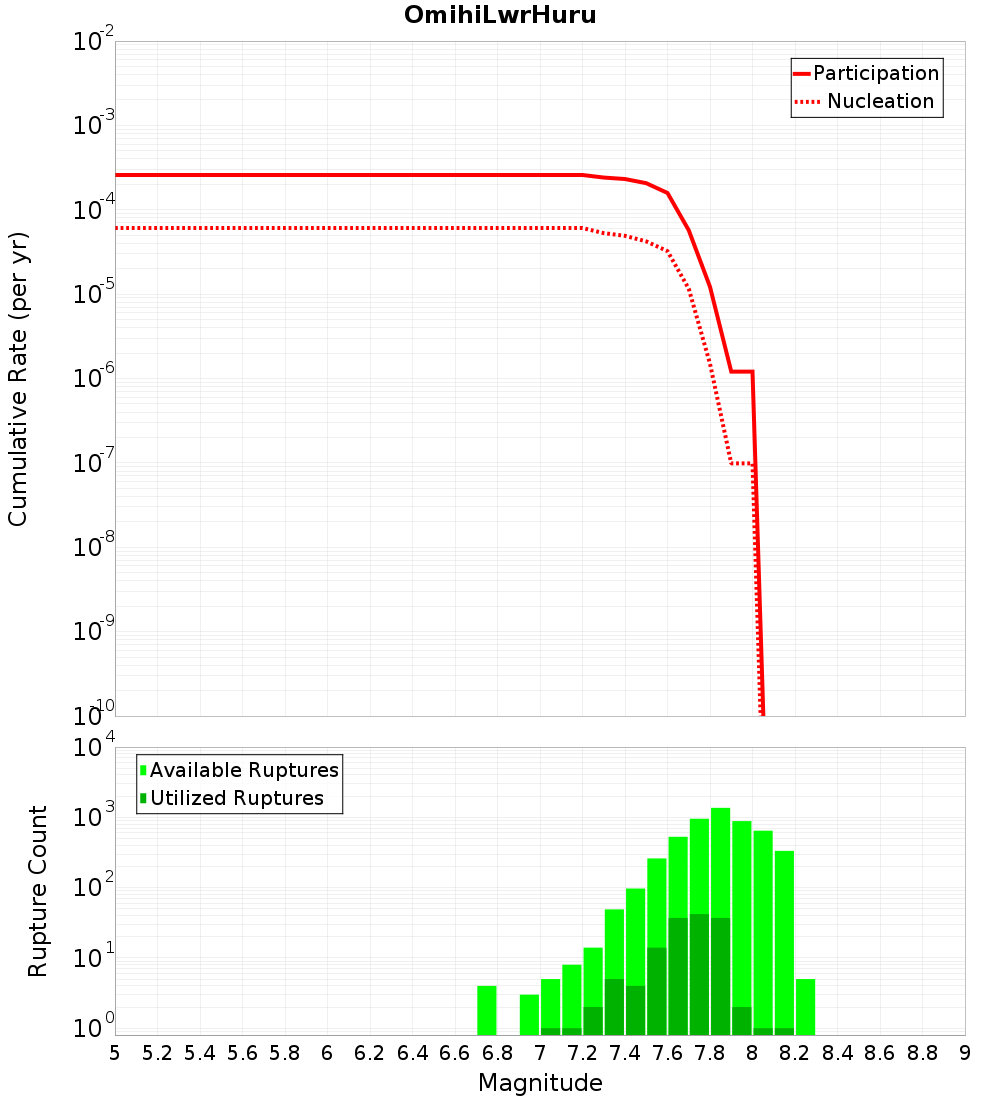

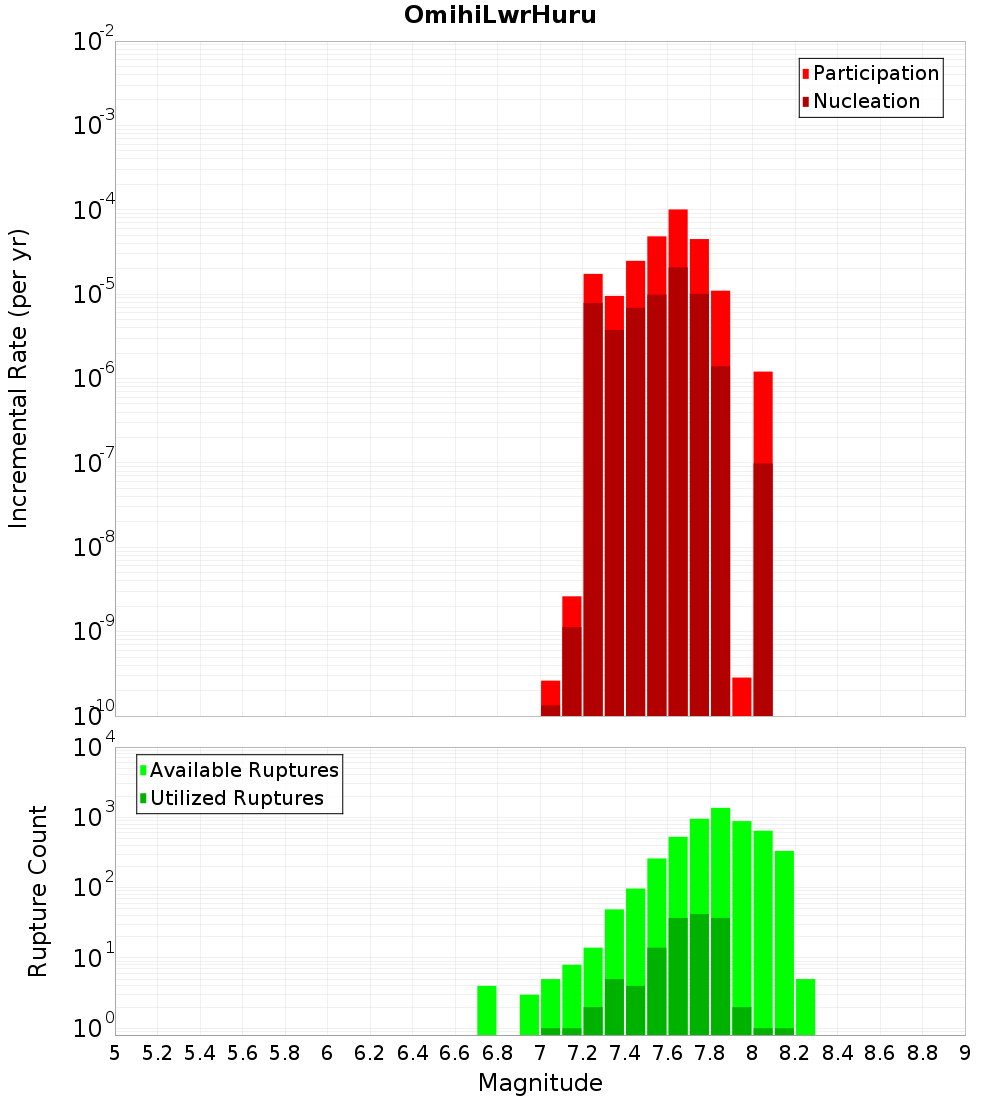

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

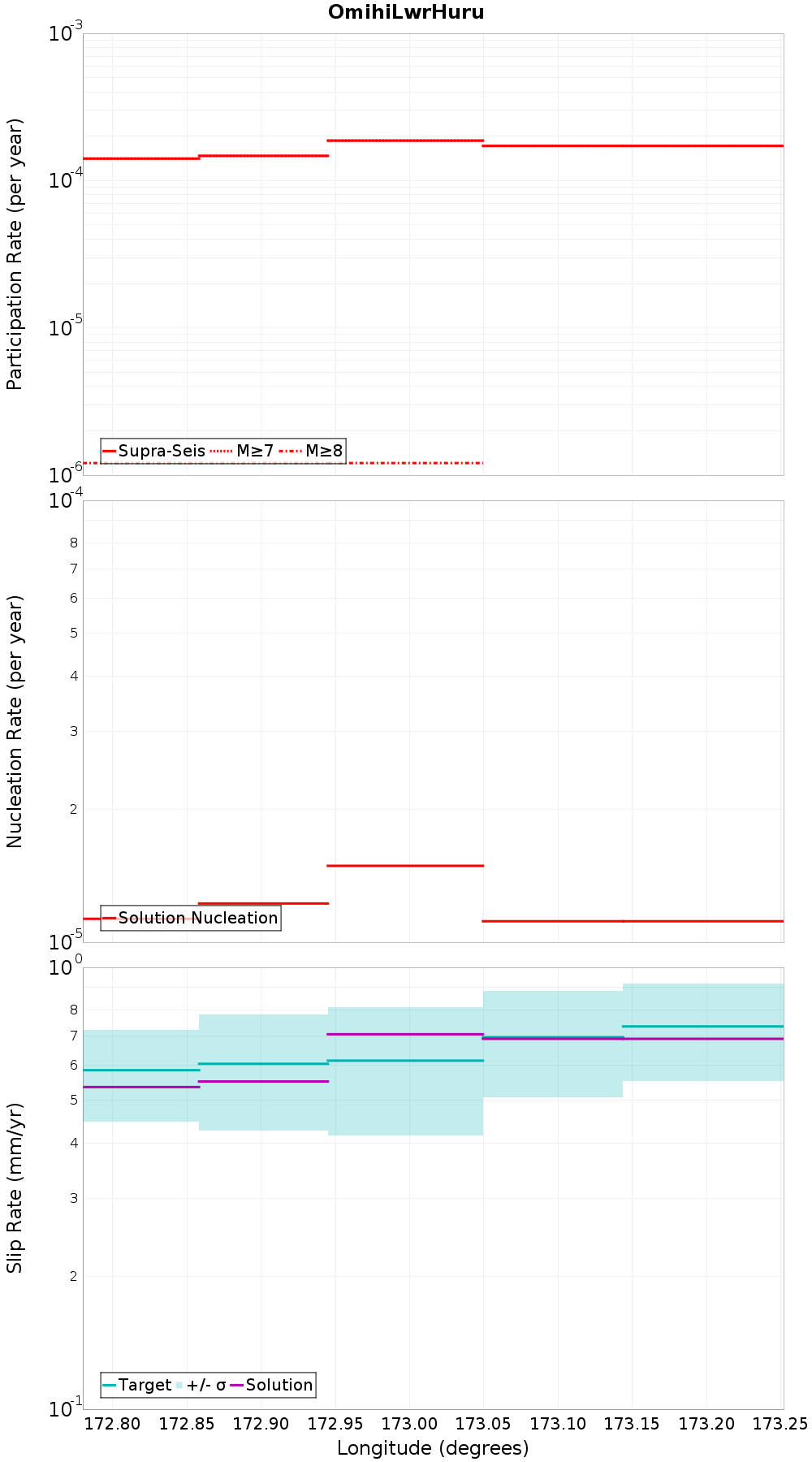

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

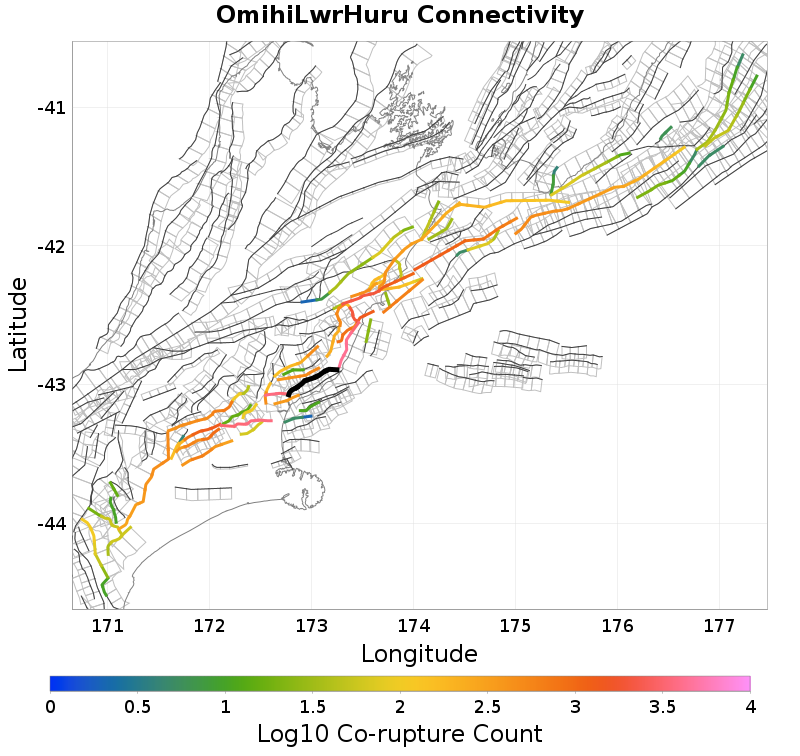

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Boby Stream, 0.79 km away
AmberBlyth, 1.98 km away
Kaiwara South, 3.01 km away
Hawkswood, 3.06 km away
Alexander, 6.66 km away
Motunau, 8.85 km away
Point Gibson, 9.05 km away
Kaiwara North, 10.71 km away
Leithfield - NCVI - NCVII, 11.17 km away
North Canterbury Shelf 2, 11.23 km away
Lowry, 11.55 km away
North Canterbury Shelf 11, 11.78 km away
Doctors, 12.38 km away
Waikuku, 14.73 km away

Boby Stream, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count3,628
Co-rupture Rate1.073606E-4

AmberBlyth, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count360
Co-rupture Rate1.622078E-10

Kaiwara South, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count495
Co-rupture Rate6.371483E-5

Hawkswood, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count4,282
Co-rupture Rate1.7208797E-4

Alexander, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate1.5229844E-5

Motunau, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count235
Co-rupture Rate1.6878697E-10

Leithfield - NCVI - NCVII, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate7.490579E-9

North Canterbury Shelf 2, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate1.2558544E-4

North Canterbury Shelf 11, 11.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count457
Co-rupture Rate3.8701724E-5

Waikuku, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
