Rangitaiki 2 Details

Property	Value
Rupture Count	3,684
Ruptures Above Sect Min Mag	3,681
Ruptures w/ Nonzero Rates	286
Magnitude Range	[6.66, 8.31]
Length Range	[13, 575] km
Total Rate	5.28804E-4 /yr
Multi-Fault Rate	5.28804E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	52

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

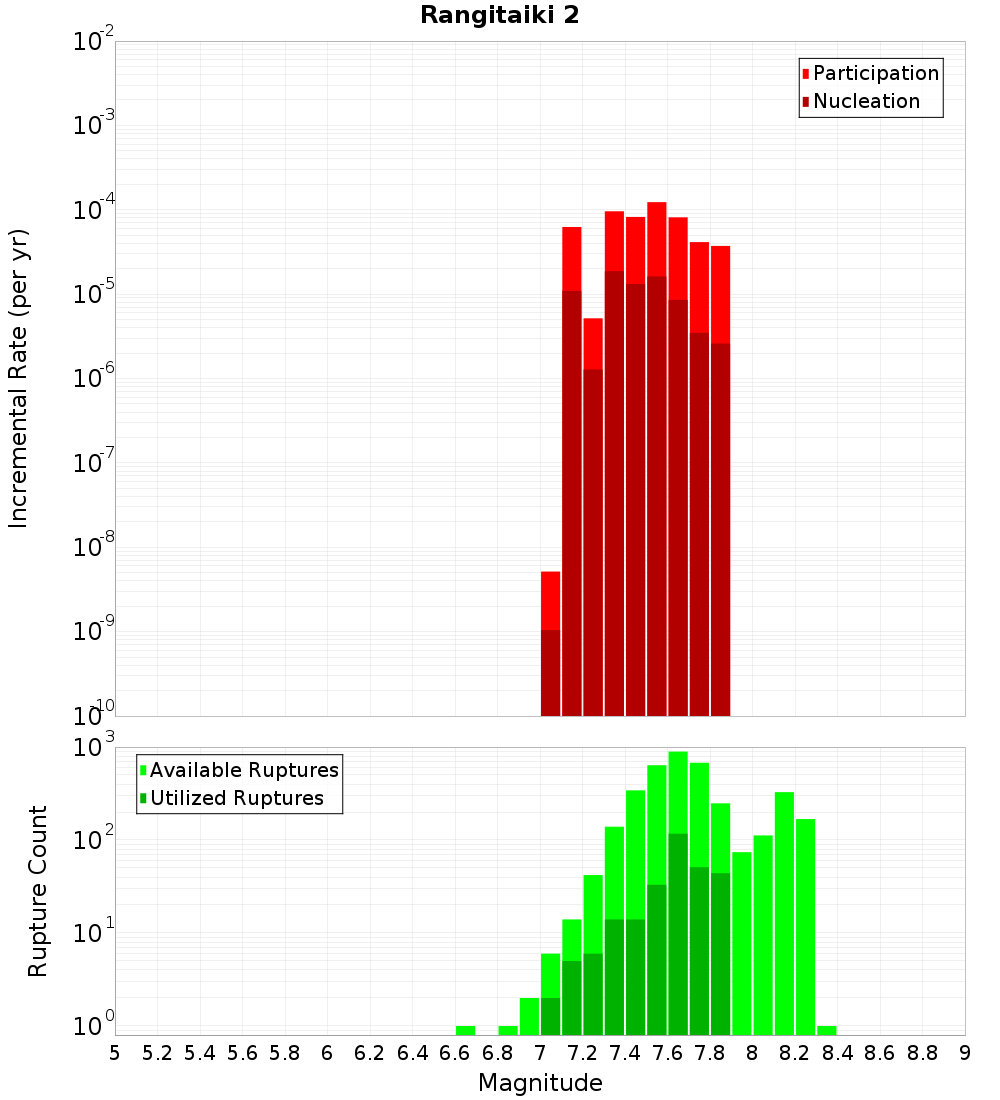

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

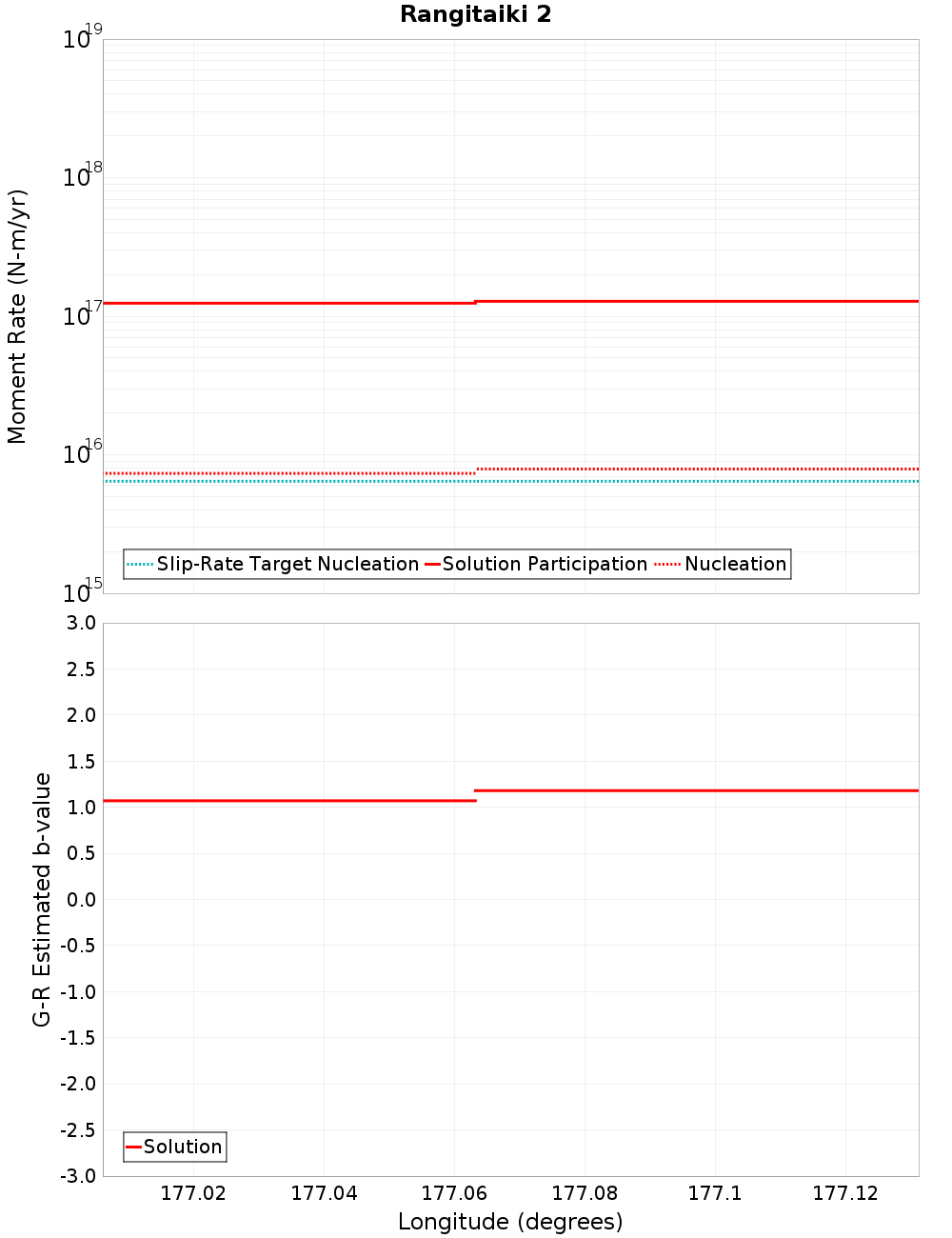

Moment-Rates and b-Values

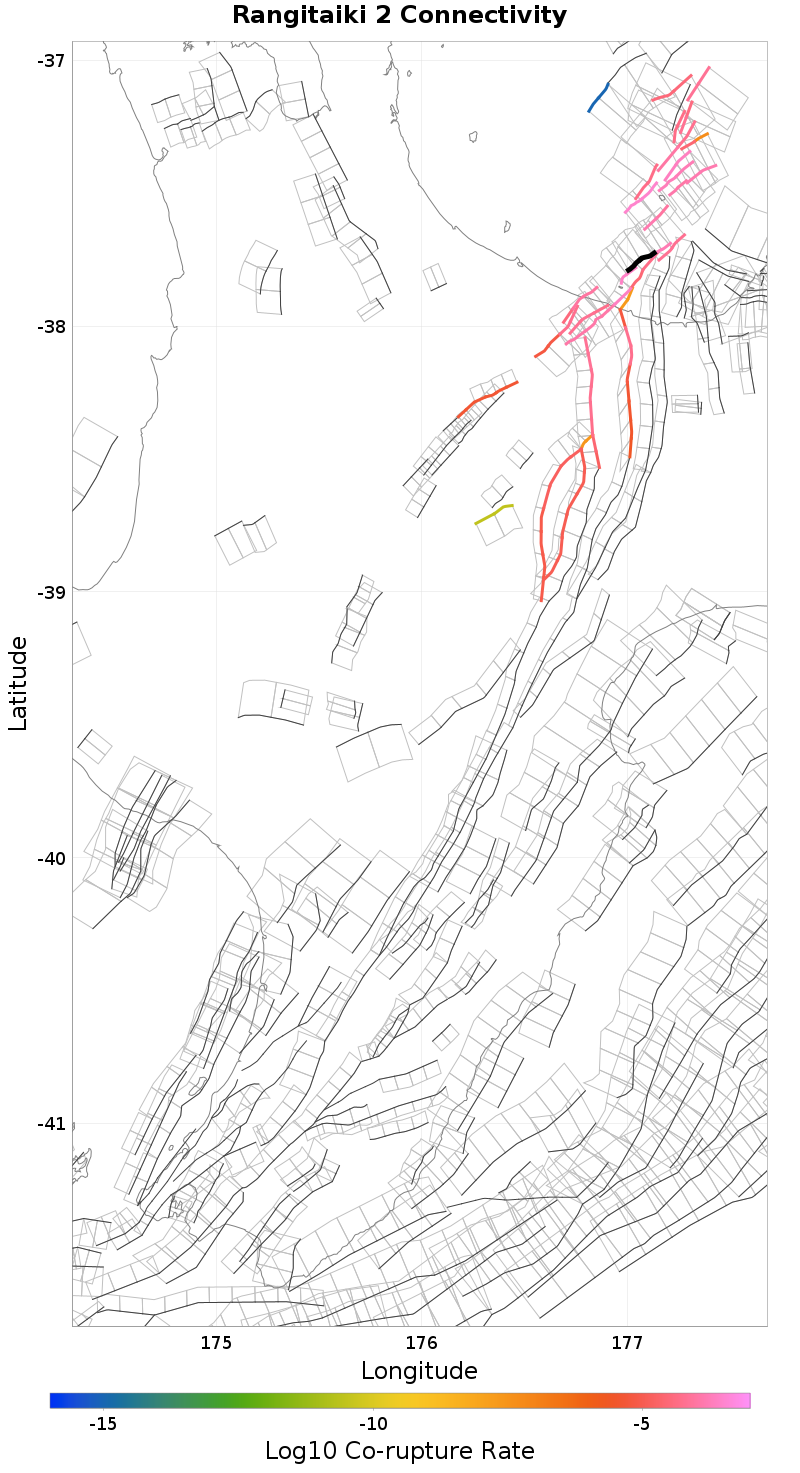

Connectivity

Nearby Sections

Fault Section
Ohiwa 1, 0.42 km away
Whakaari 4, 0.45 km away
Rangitaiki 1, 0.74 km away
White Island 1, 0.77 km away
White Island 2, 2.66 km away
Waimanawa - Waikaremoana, 6.46 km away
Keepa, 7.48 km away
Calypso 2, 8.01 km away
Waimana: North, 9.39 km away
Edgecumbe Coastal, 14.83 km away
Waiotahi: North, 14.86 km away
Ohae 1, 14.97 km away

Ohiwa 1, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	true
Co-rupture Count	890
Co-rupture Rate	1.6551497E-4

Whakaari 4, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,965
Co-rupture Rate	3.089194E-4

Rangitaiki 1, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	true
Co-rupture Count	3,163
Co-rupture Rate	2.5688228E-4

White Island 1, 0.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	false
Co-rupture Count	3,540
Co-rupture Rate	2.521084E-4

White Island 2, 2.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,043
Co-rupture Rate	6.568209E-5

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Keepa, 7.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	1.96328E-8

Calypso 2, 8.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	1.3773044E-4

Waimana: North, 9.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe Coastal, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	true
Directly Connected?	false
Co-rupture Count	1,719
Co-rupture Rate	1.1456598E-4

Waiotahi: North, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NDUuMFVabVVX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
