Akatarawa Details
| Property | Value |
|---|---|
| Rupture Count | 8,239 |
| Ruptures Above Sect Min Mag | 8,235 |
| Ruptures w/ Nonzero Rates | 157 |
| Magnitude Range | [6.59, 8.23] |
| Length Range | [15, 606] km |
| Total Rate | 3.4239402E-4 /yr |
| Multi-Fault Rate | 3.4239402E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 96 |
Table Of Contents

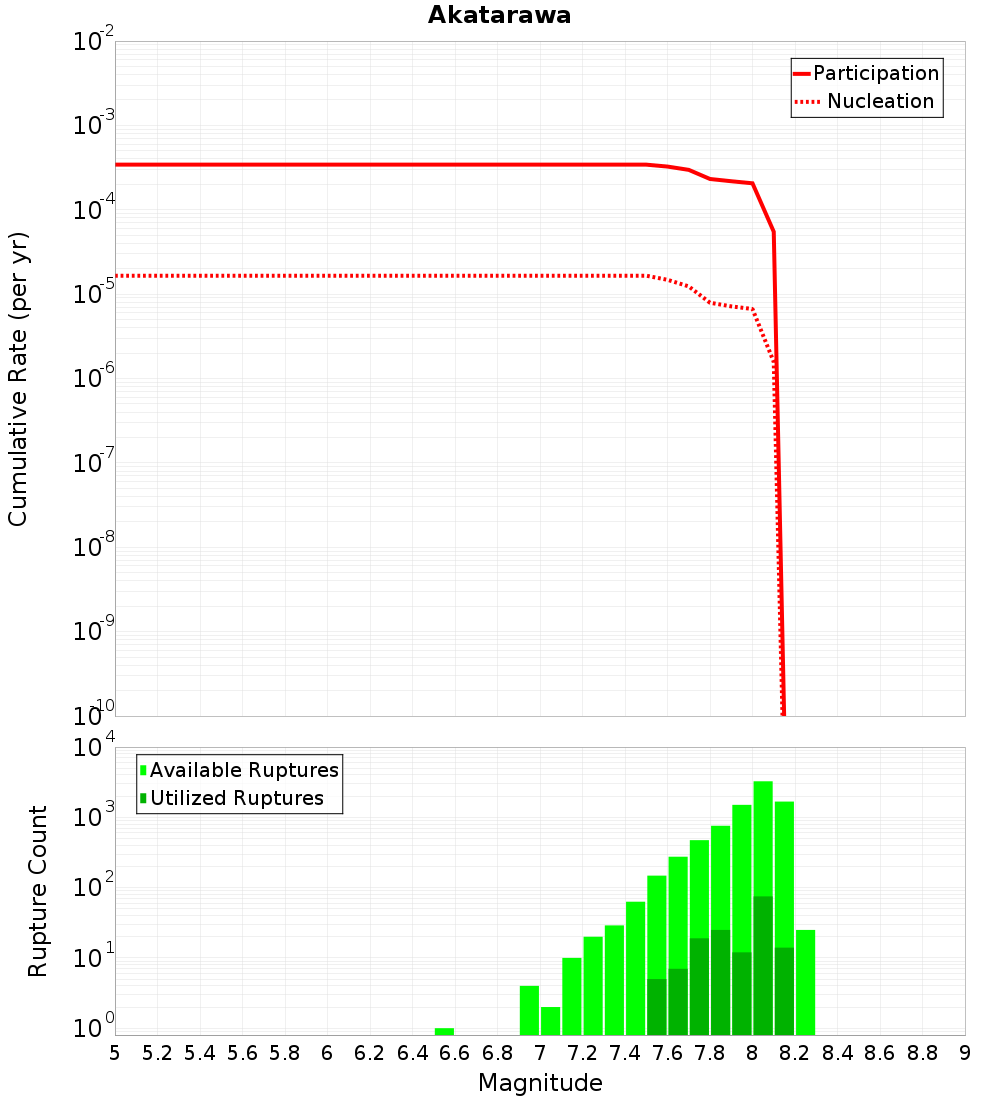

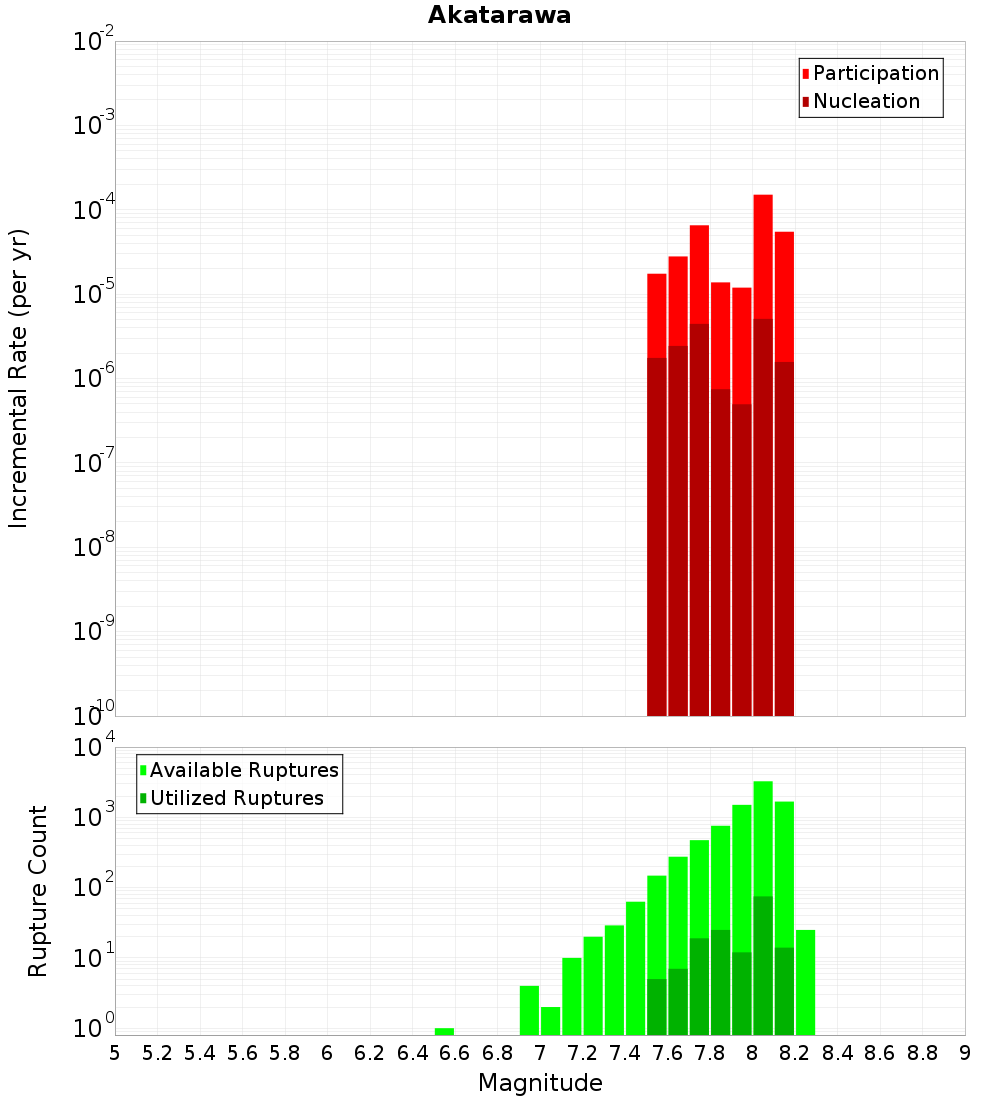

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

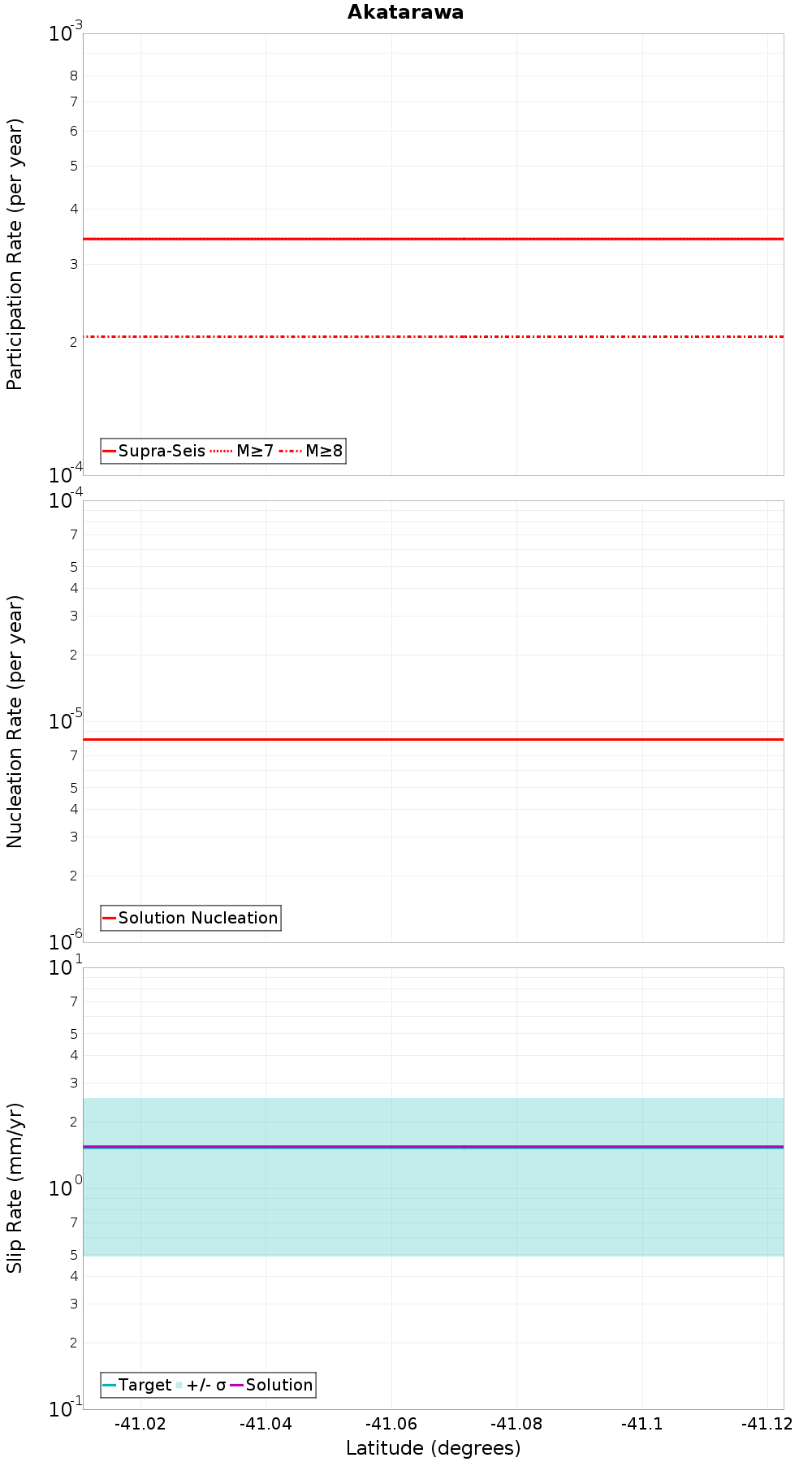

Along-Strike Values

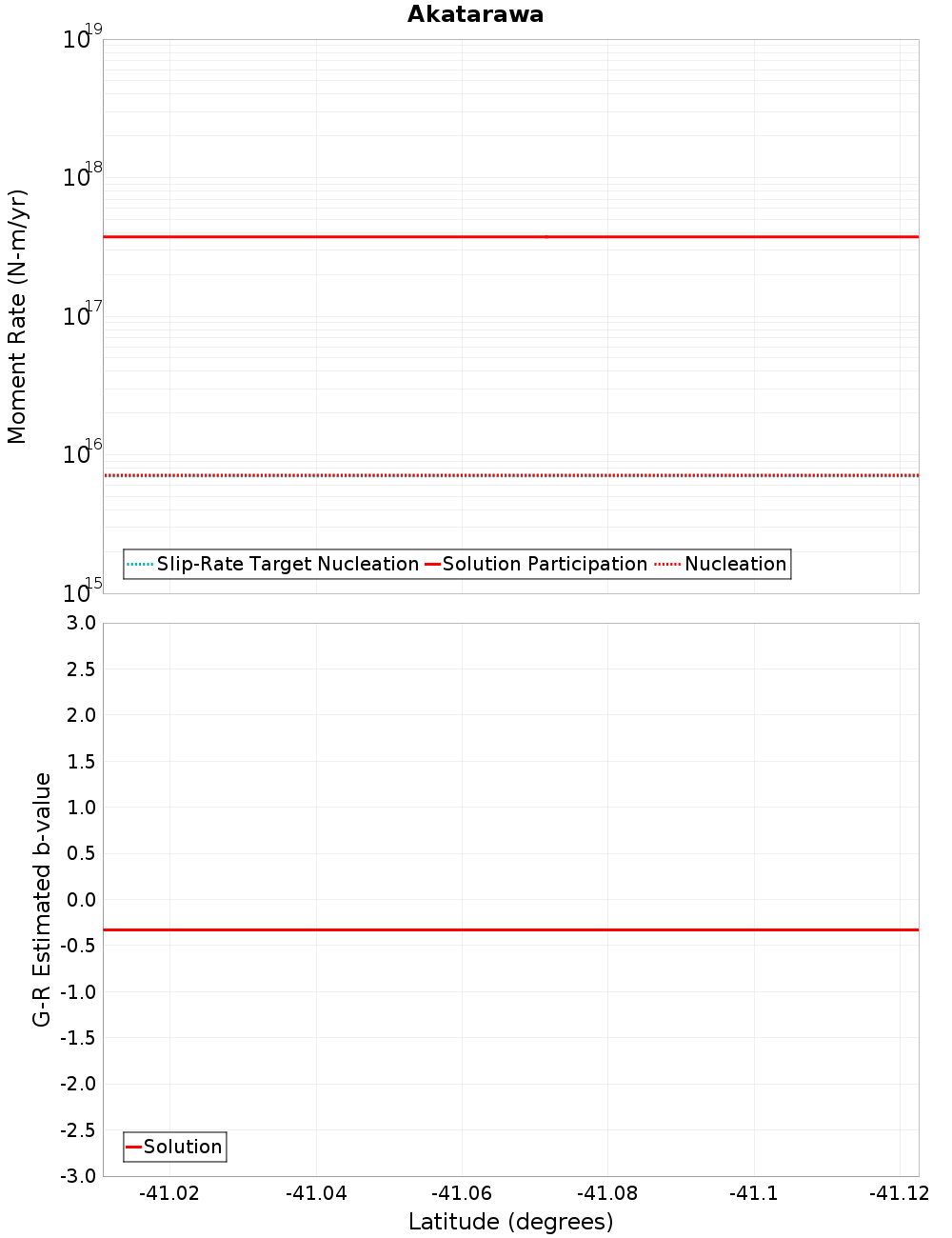

Moment-Rates and b-Values

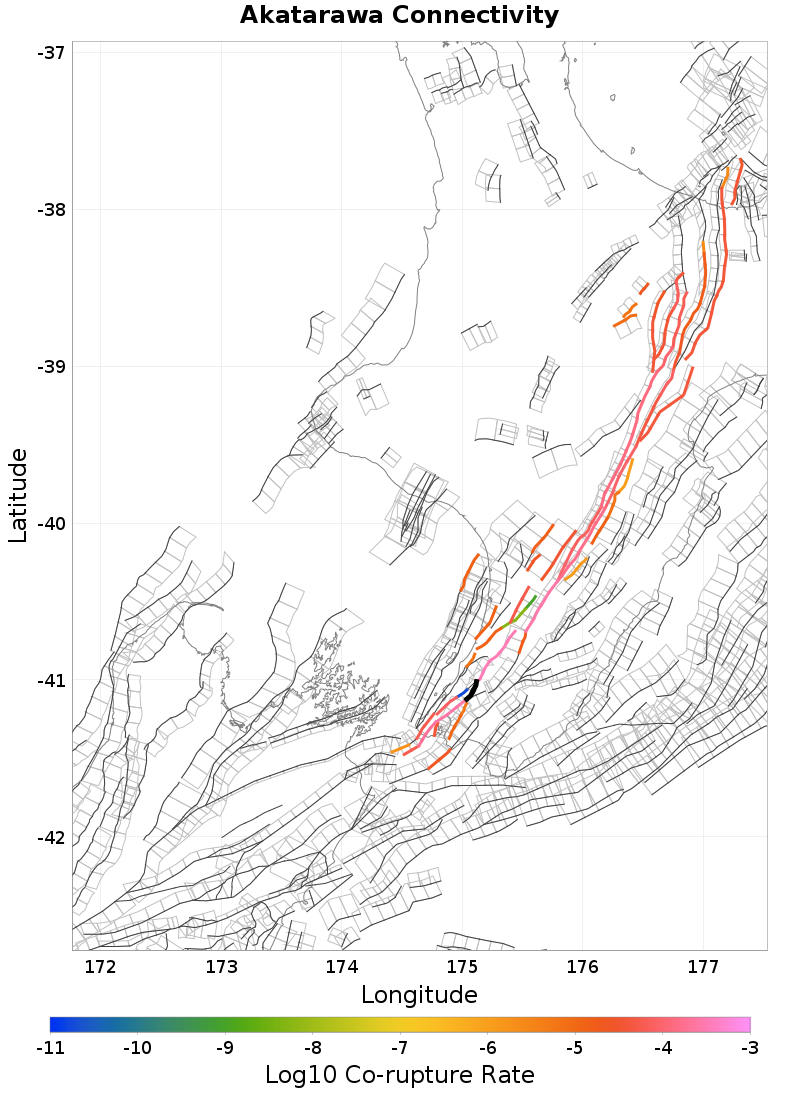

Connectivity
 |  |
|---|
Nearby Sections
Wellington Hutt Valley: 5, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otaki Forks: 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,178 |
| Co-rupture Rate | 3.4239402E-4 |
Moonshine, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,056 |
| Co-rupture Rate | 7.609902E-5 |
Wellington Hutt Valley: 4, 0.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,209 |
| Co-rupture Rate | 2.6002683E-4 |
Gibbs, 0.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Whitemans Valley, 3.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,231 |
| Co-rupture Rate | 1.10115125E-5 |
Wharekauhau, 6.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Ohariu, 6.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,481 |
| Co-rupture Rate | 6.726573E-5 |
Wellington: Tararua 1, 9.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 3, 10.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington: Tararua 2, 10.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: 1, 12.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 141 |
| Co-rupture Rate | 2.42866E-5 |
Wairarapa: 2, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
