Blue Lake Details

PropertyValue
Rupture Count6,829
Ruptures Above Sect Min Mag6,824
Ruptures w/ Nonzero Rates73
Magnitude Range[6.76, 8.29]
Length Range[20, 539] km
Total Rate2.0987049E-4 /yr
Multi-Fault Rate2.0987049E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults72

Table Of Contents

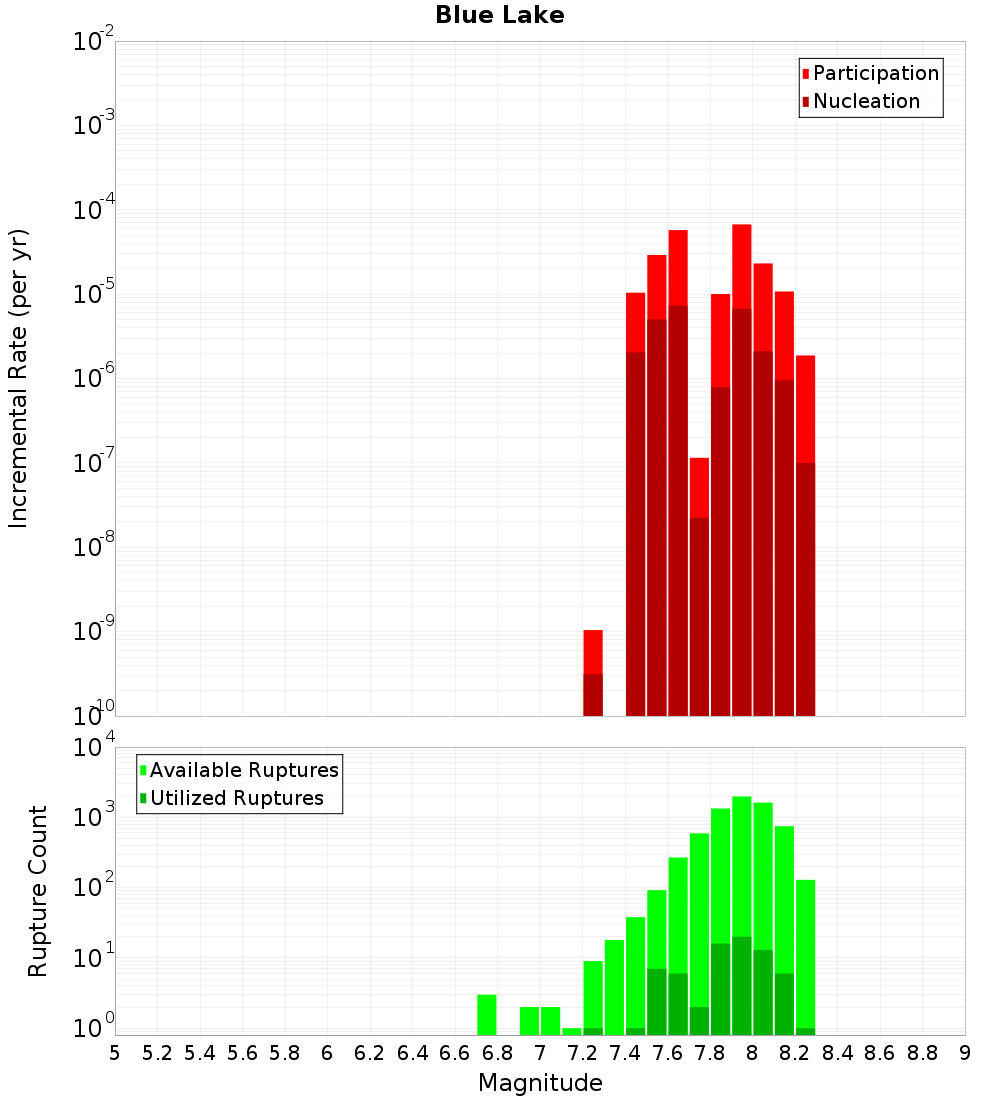

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

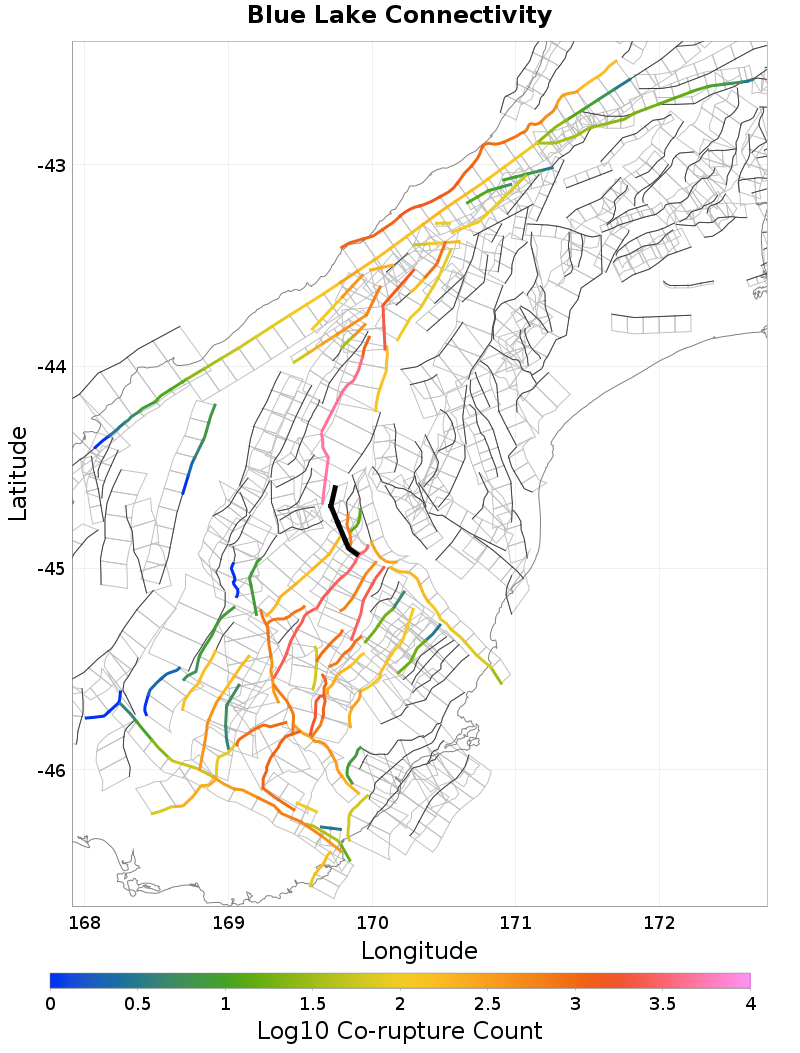

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Raggedy - Blackstone, 0.14 km away
Rocks Creek, 0.2 km away
Omarama Saddle, 1.09 km away
Garibaldi, 1.22 km away
Dunstan, 1.26 km away
Gimmerburn, 4.59 km away
Dromedary, 4.84 km away
Cluden, 7.31 km away
Lindis River, 8.84 km away
Goodger, 9.08 km away
Ostler South, 9.39 km away
Hawkdun, 9.49 km away
Fern Gully, 11.88 km away
Falstone, 14.6 km away

Raggedy - Blackstone, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count3,290
Co-rupture Rate7.118941E-5

Rocks Creek, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Omarama Saddle, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count640
Co-rupture Rate5.009457E-5

Garibaldi, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count623
Co-rupture Rate9.247606E-5

Dunstan, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count283
Co-rupture Rate5.179717E-10

Gimmerburn, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count2,921
Co-rupture Rate1.4202196E-4

Dromedary, 4.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count5,109
Co-rupture Rate8.0115744E-5

Cluden, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lindis River, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 9.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count275
Co-rupture Rate1.1134542E-5

Fern Gully, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
