Browning Pass Details

PropertyValue
Rupture Count34,102
Ruptures Above Sect Min Mag34,096
Ruptures w/ Nonzero Rates67
Magnitude Range[6.60, 8.47]
Length Range[16, 963] km
Total Rate9.586326E-5 /yr
Multi-Fault Rate9.586326E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults195

Table Of Contents

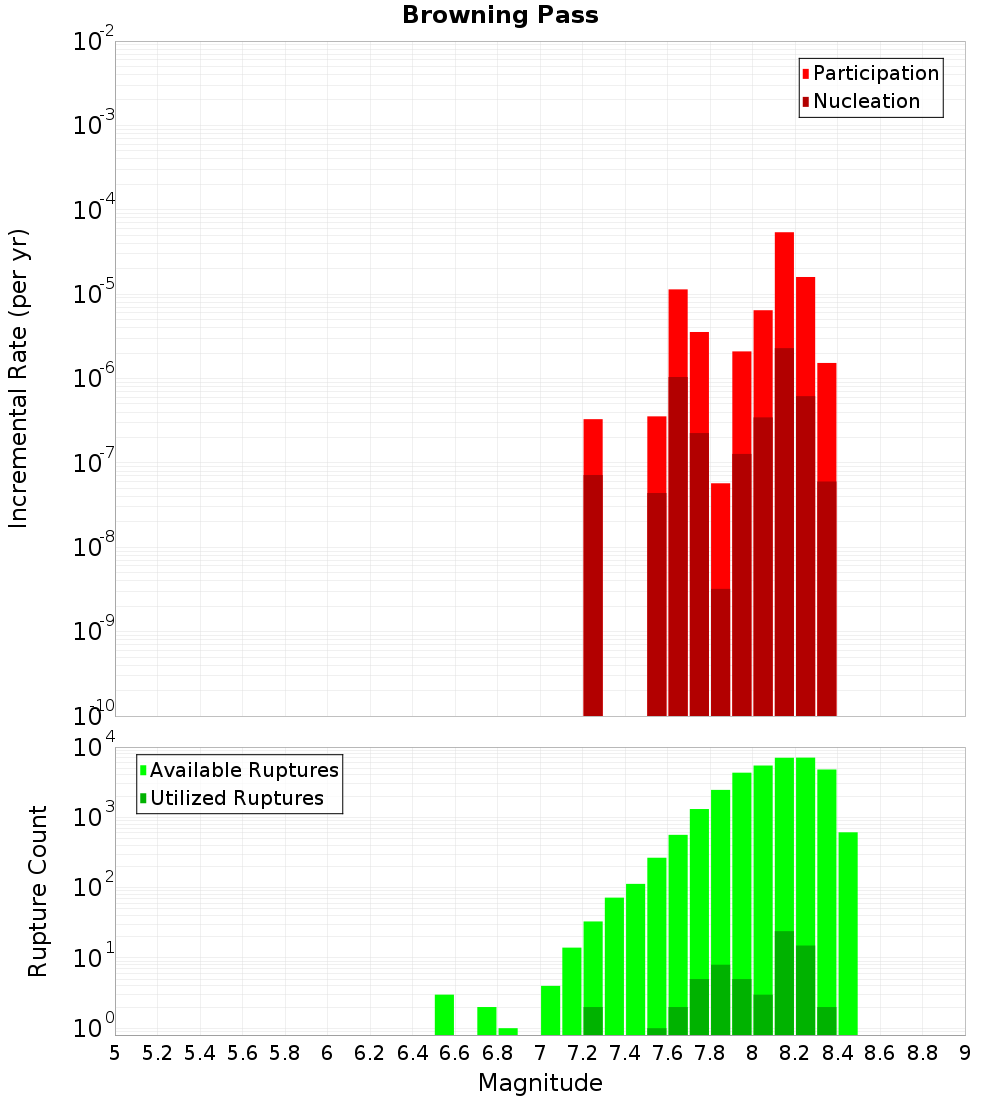

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

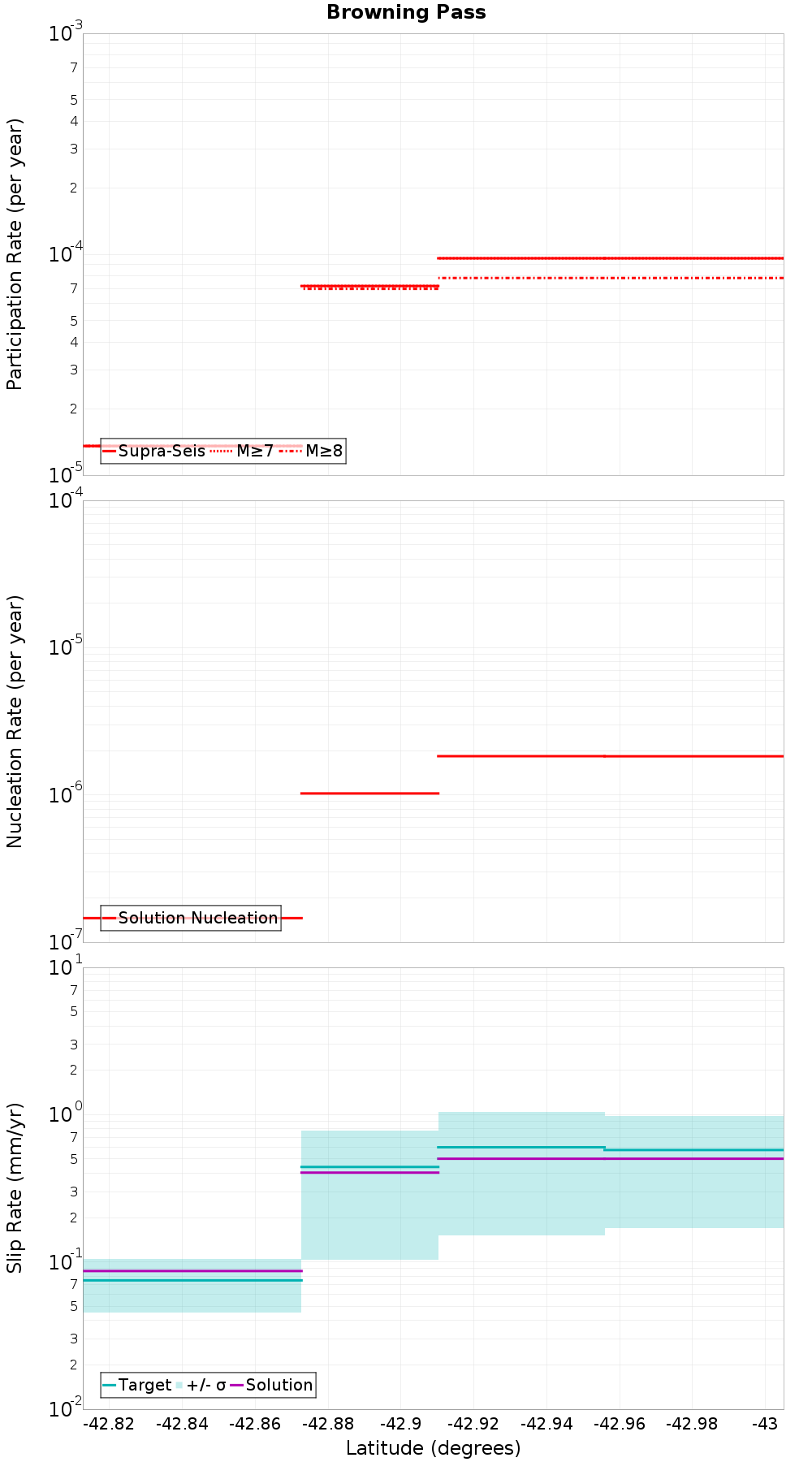

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hohonu, 0.09 km away
Kelly, 0.1 km away
Alpine: Kaniere to Springs Junction, 0.16 km away
Hope: Taramakau, 0.25 km away
Hohonu South, 0.29 km away
Alpine: Jacksons to Kaniere, 0.34 km away
Mungo, 0.92 km away
Mistake - Rolleston, 2.24 km away
Hohonu North, 5.75 km away
Mathias, 8.98 km away
Bruce, 13.64 km away
Poulter, 14.55 km away
Lord Range, 14.67 km away

Hohonu, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kelly, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count1,850
Co-rupture Rate1.535975E-5

Alpine: Kaniere to Springs Junction, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count30,531
Co-rupture Rate4.0622464E-5

Hope: Taramakau, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Hohonu South, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count542
Co-rupture Rate0.0

Alpine: Jacksons to Kaniere, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count29,497
Co-rupture Rate8.013106E-5

Mungo, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count161
Co-rupture Rate0.0

Mistake - Rolleston, 2.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count4,446
Co-rupture Rate4.280502E-8

Hohonu North, 5.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count224
Co-rupture Rate2.318361E-6

Mathias, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count875
Co-rupture Rate0.0

Bruce, 13.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 14.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Lord Range, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate0.0
