Murchison 1 - Ice Lake Details

Property	Value
Rupture Count	43,221
Ruptures Above Sect Min Mag	43,218
Ruptures w/ Nonzero Rates	250
Magnitude Range	[6.86, 8.36]
Length Range	[22, 768] km
Total Rate	5.1842886E-4 /yr
Multi-Fault Rate	5.1842886E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	220

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

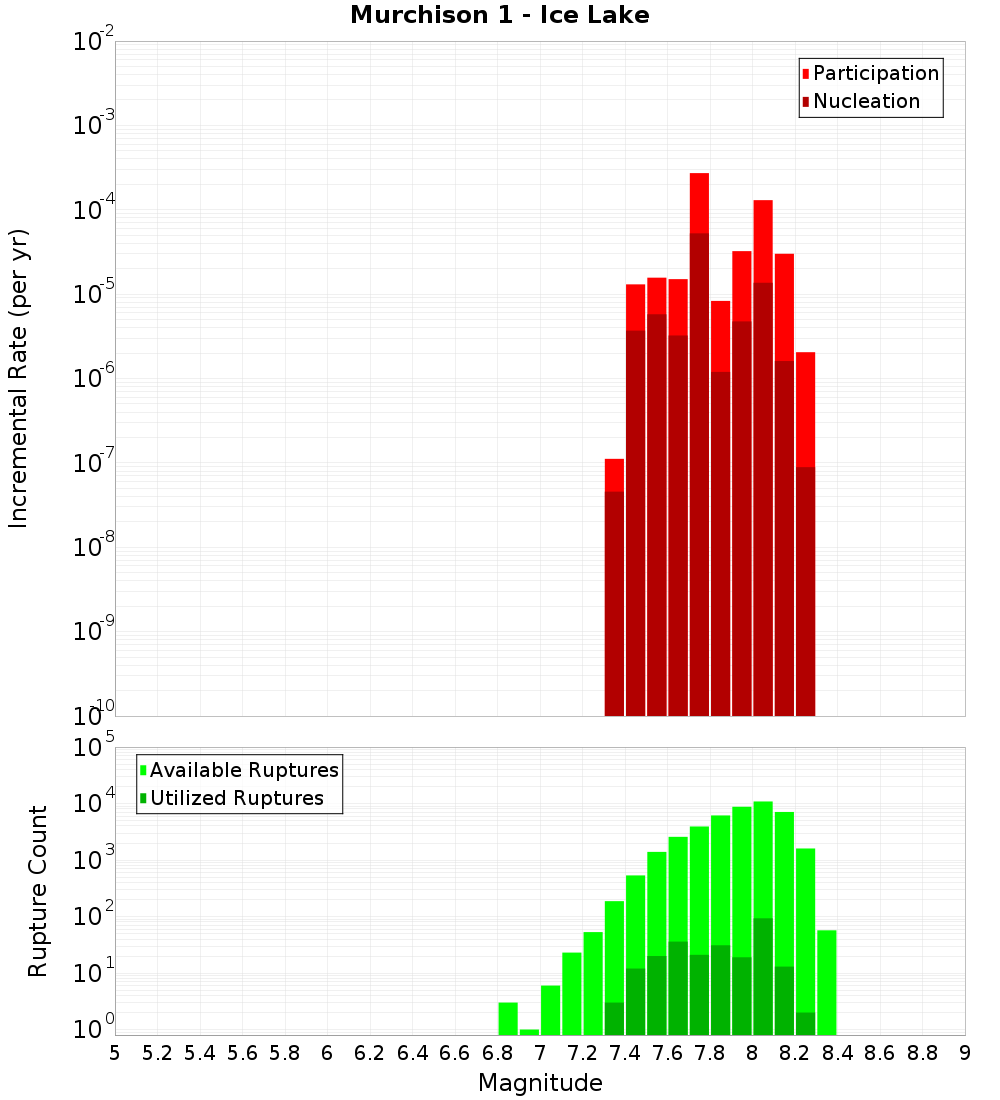

Magnitude-Frequency Distribution

Incremental	Cumulative

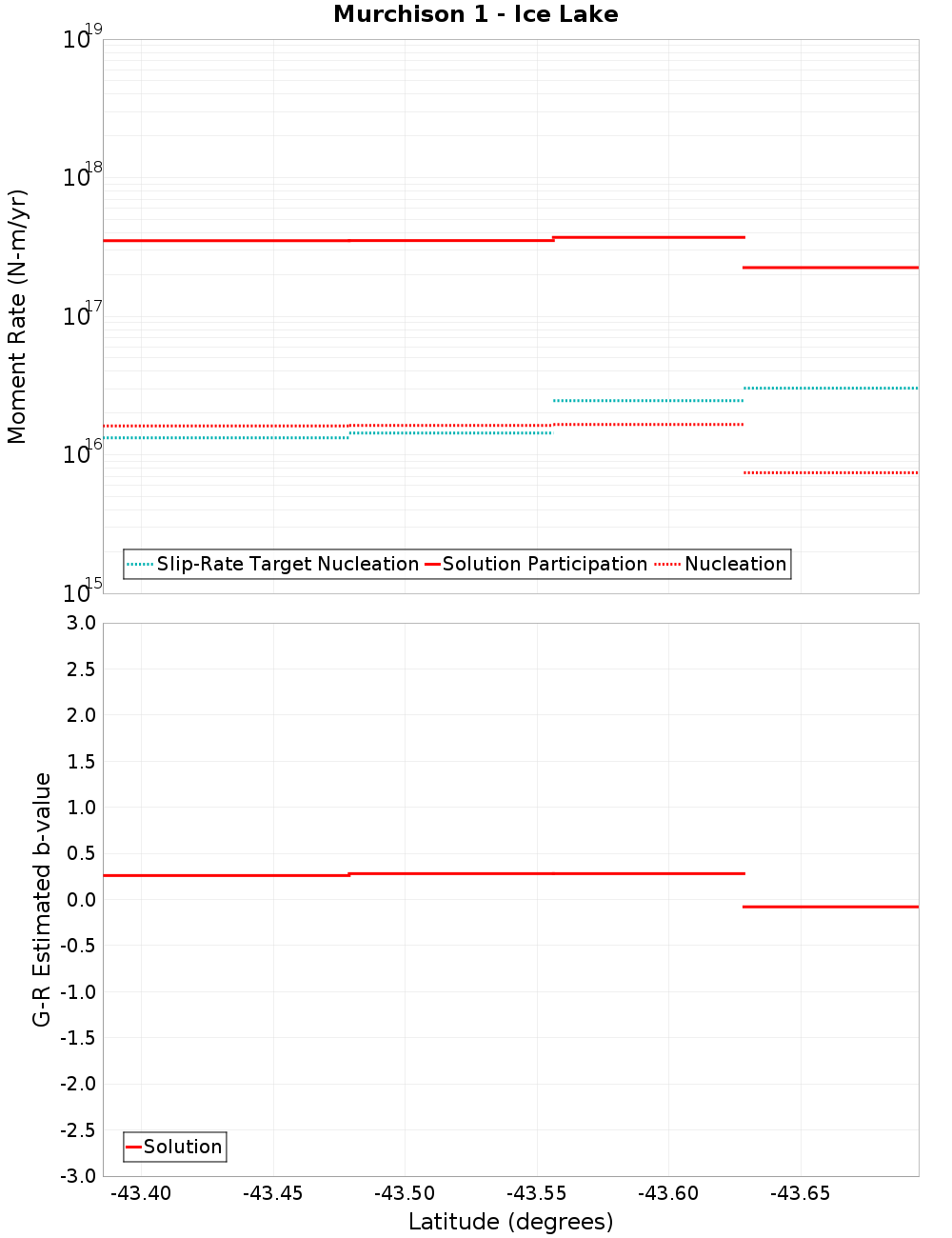

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hohonu South, 0.15 km away
Straight Creek, 0.23 km away
Alpine: Jacksons to Kaniere, 0.28 km away
Gunn Glacier, 0.3 km away
Mt Roon, 0.46 km away
Black Blob - Haast Ridge, 2.29 km away
Liebig North, 3.29 km away
Mt Adams, 4.56 km away
Karangarua, 5.3 km away
Great Groove, 6.66 km away
Lord Range, 6.99 km away
McKerrow - Douglas Duplex, 9.71 km away
Macaulay 2, 12.38 km away
Landsborough 2, 13.81 km away
Veil Stream, 14.64 km away

Hohonu South, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	22,906
Co-rupture Rate	4.4092703E-5

Straight Creek, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	12,324
Co-rupture Rate	2.93277E-4

Alpine: Jacksons to Kaniere, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	19,444
Co-rupture Rate	4.453644E-4

Gunn Glacier, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	15,479
Co-rupture Rate	3.7752872E-4

Mt Roon, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	1,147
Co-rupture Rate	6.3792555E-5

Black Blob - Haast Ridge, 2.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	14,217
Co-rupture Rate	4.3405762E-5

Liebig North, 3.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	1,436
Co-rupture Rate	7.2555275E-7

Mt Adams, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	6,748
Co-rupture Rate	6.148903E-5

Karangarua, 5.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	false
Co-rupture Count	1,709
Co-rupture Rate	5.729968E-7

Great Groove, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	false
Co-rupture Count	12,254
Co-rupture Rate	2.0165258E-5

Lord Range, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	false
Co-rupture Count	10,376
Co-rupture Rate	3.1229263E-4

McKerrow - Douglas Duplex, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	false
Co-rupture Count	10,052
Co-rupture Rate	3.0393214E-5

Macaulay 2, 12.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	true
Co-rupture Count	769
Co-rupture Rate	3.5316858E-5

Landsborough 2, 13.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	false
Co-rupture Count	6,623
Co-rupture Rate	1.0839802E-5

Veil Stream, 14.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?	true
Directly Connected?	false
Co-rupture Count	502
Co-rupture Rate	2.6180025E-5
