Waitaha Details

PropertyValue
Rupture Count7,077
Ruptures Above Sect Min Mag7,057
Ruptures w/ Nonzero Rates178
Magnitude Range[6.44, 8.28]
Length Range[13, 600] km
Total Rate3.6405944E-4 /yr
Multi-Fault Rate3.6405944E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults145

Table Of Contents

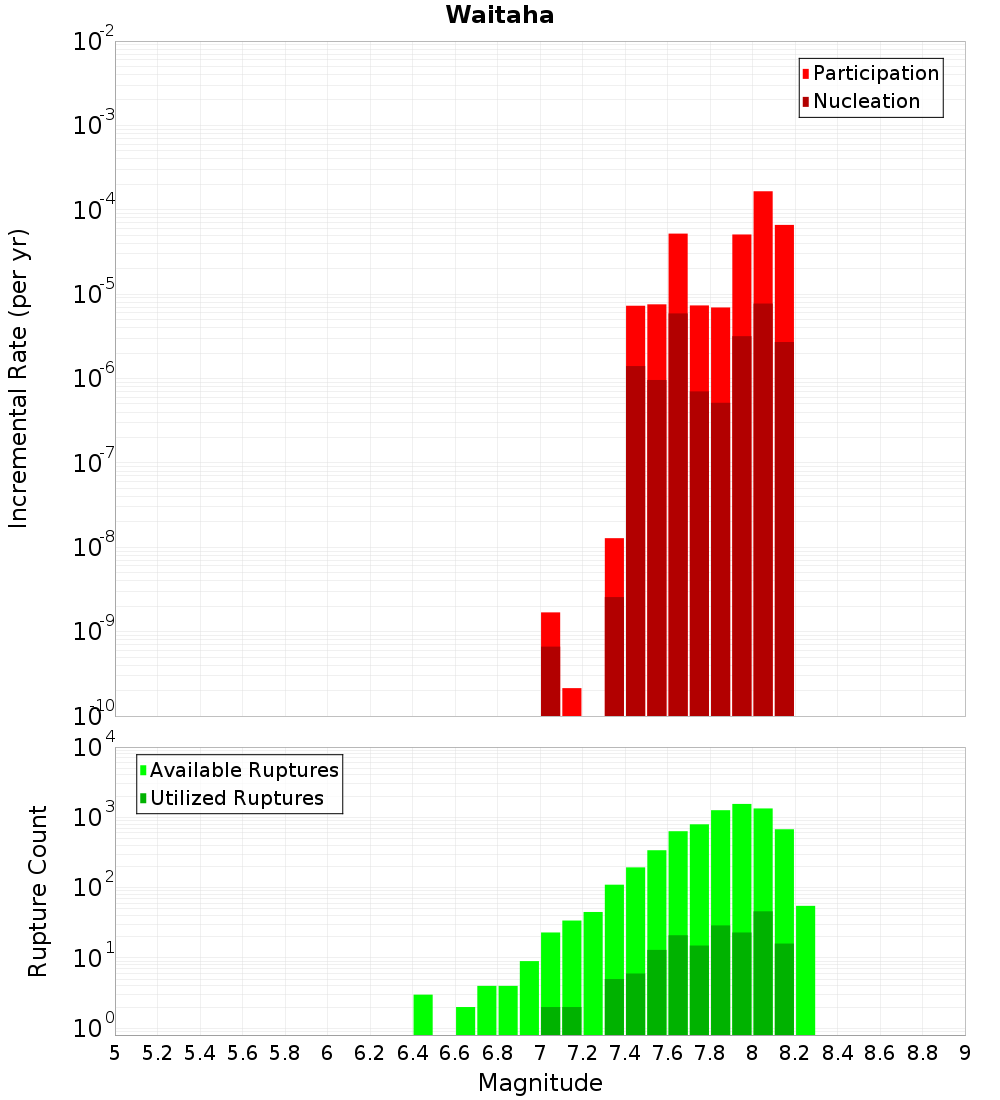

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

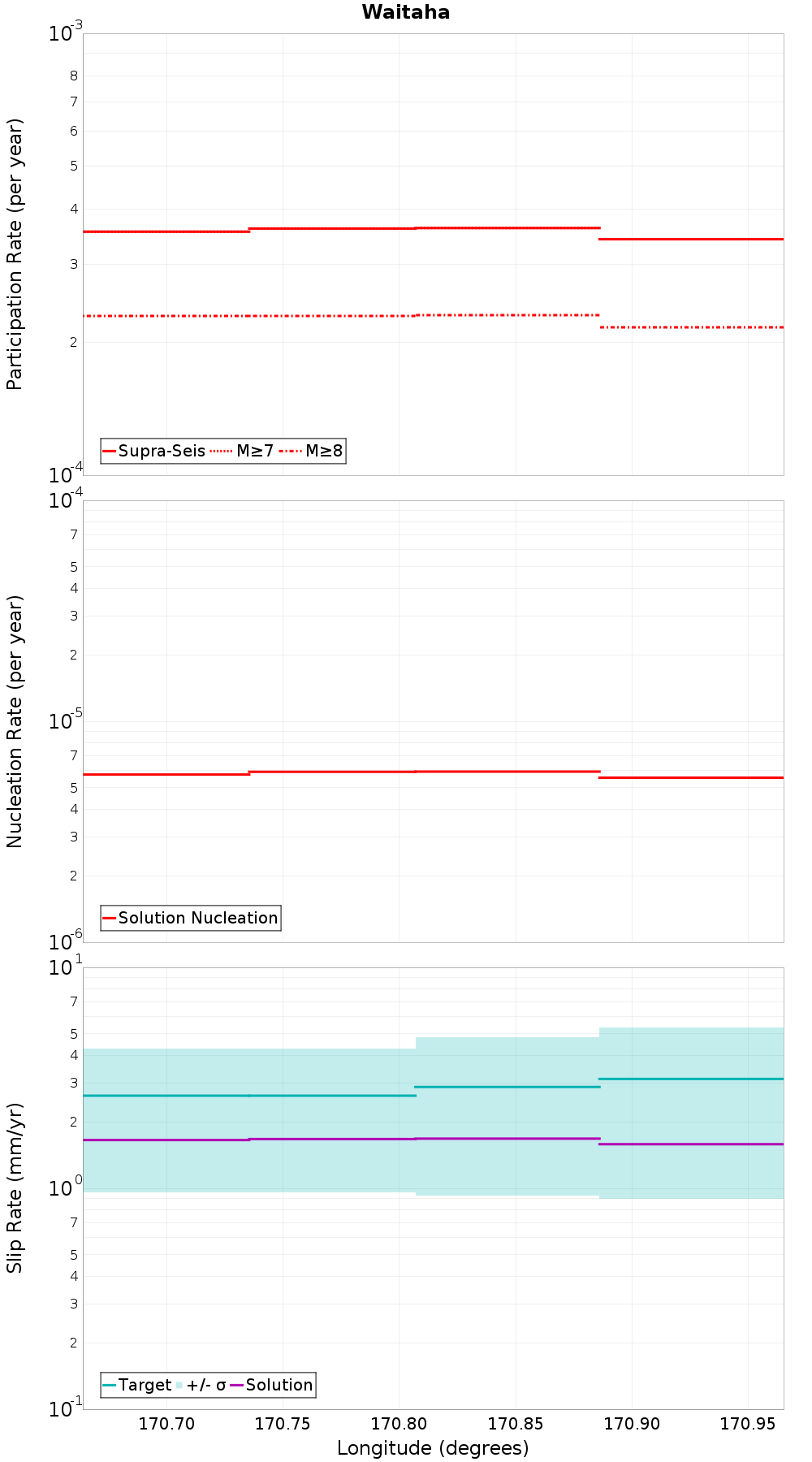

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

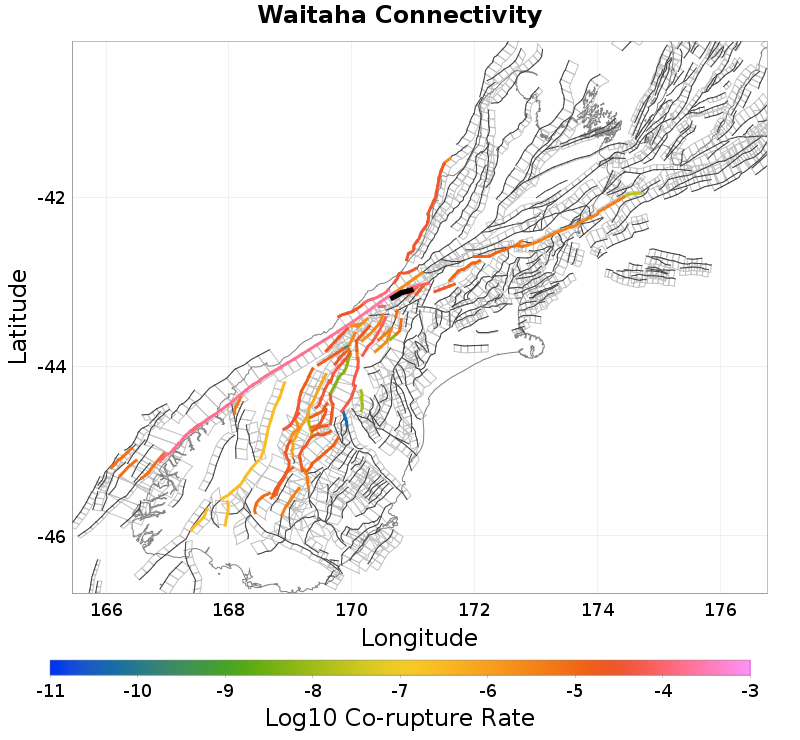

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mungo, 0.07 km away
Alpine: Jacksons to Kaniere, 0.08 km away
Lord Range, 0.26 km away
Mathias, 0.29 km away
Hohonu South, 0.4 km away
Observation, 3.91 km away
Jagged, 7.89 km away
Jollie Range, 8.98 km away
Veil Stream, 11.03 km away
Mistake - Rolleston, 13.29 km away
Mt Adams, 14.73 km away

Mungo, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count1,743
Co-rupture Rate1.5598773E-4

Alpine: Jacksons to Kaniere, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count3,790
Co-rupture Rate2.948848E-4

Lord Range, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count546
Co-rupture Rate3.3078002E-5

Mathias, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count422
Co-rupture Rate2.427676E-5

Hohonu South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?true
Co-rupture Count5,481
Co-rupture Rate1.9341818E-4

Observation, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Jagged, 7.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Jollie Range, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Veil Stream, 11.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate7.2928374E-6

Mistake - Rolleston, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Mt Adams, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTAuMFp3RmZV
Connected?true
Directly Connected?false
Co-rupture Count576
Co-rupture Rate1.01559206E-4
