Alpine: Kaniere to Springs Junction Details

PropertyValue
Rupture Count164,117
Ruptures Above Sect Min Mag164,110
Ruptures w/ Nonzero Rates556
Magnitude Range[6.96, 8.71]
Length Range[21, 1,132] km
Total Rate0.004248991 /yr
Multi-Fault Rate0.003687657 /yr (86.79%)
Directly-Connected Faults13
All Co-Rupturing Faults235

Table Of Contents

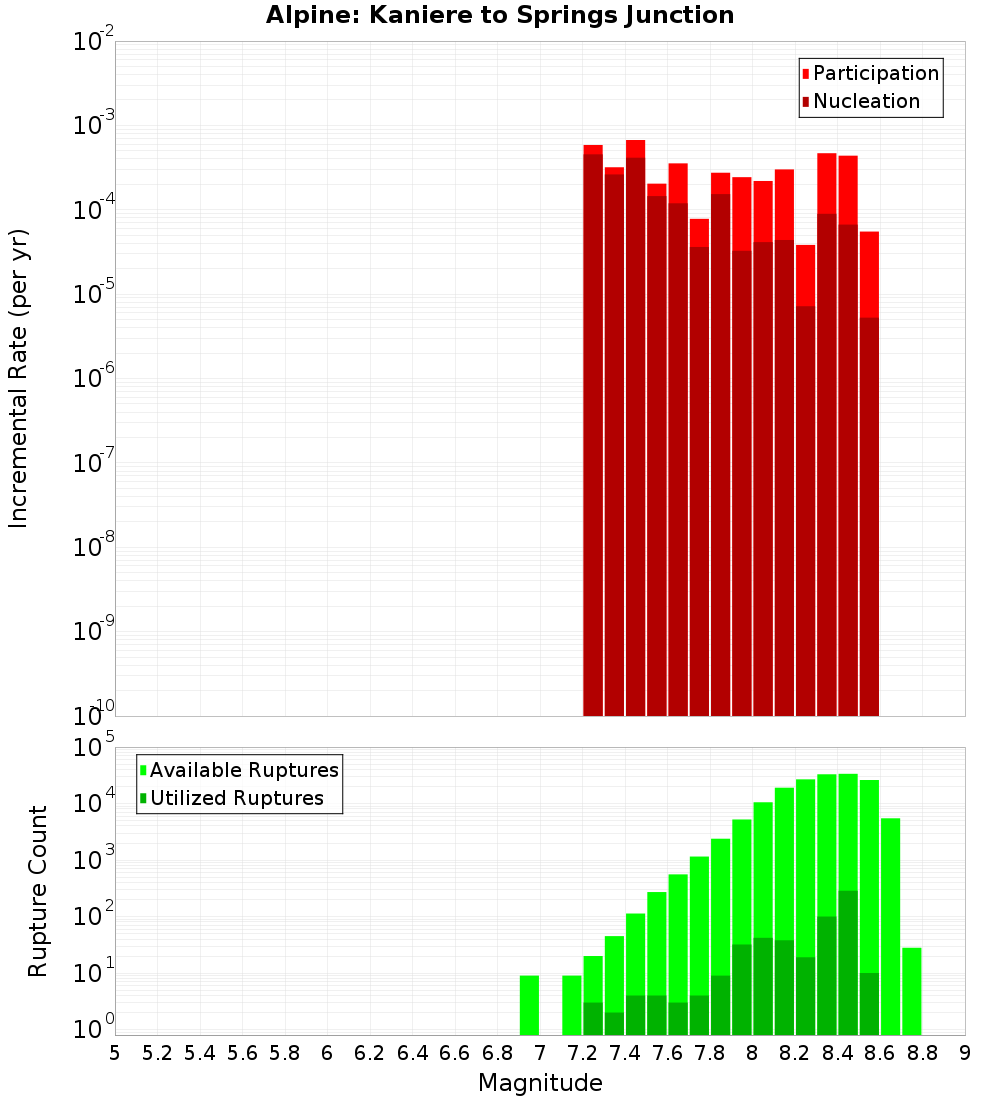

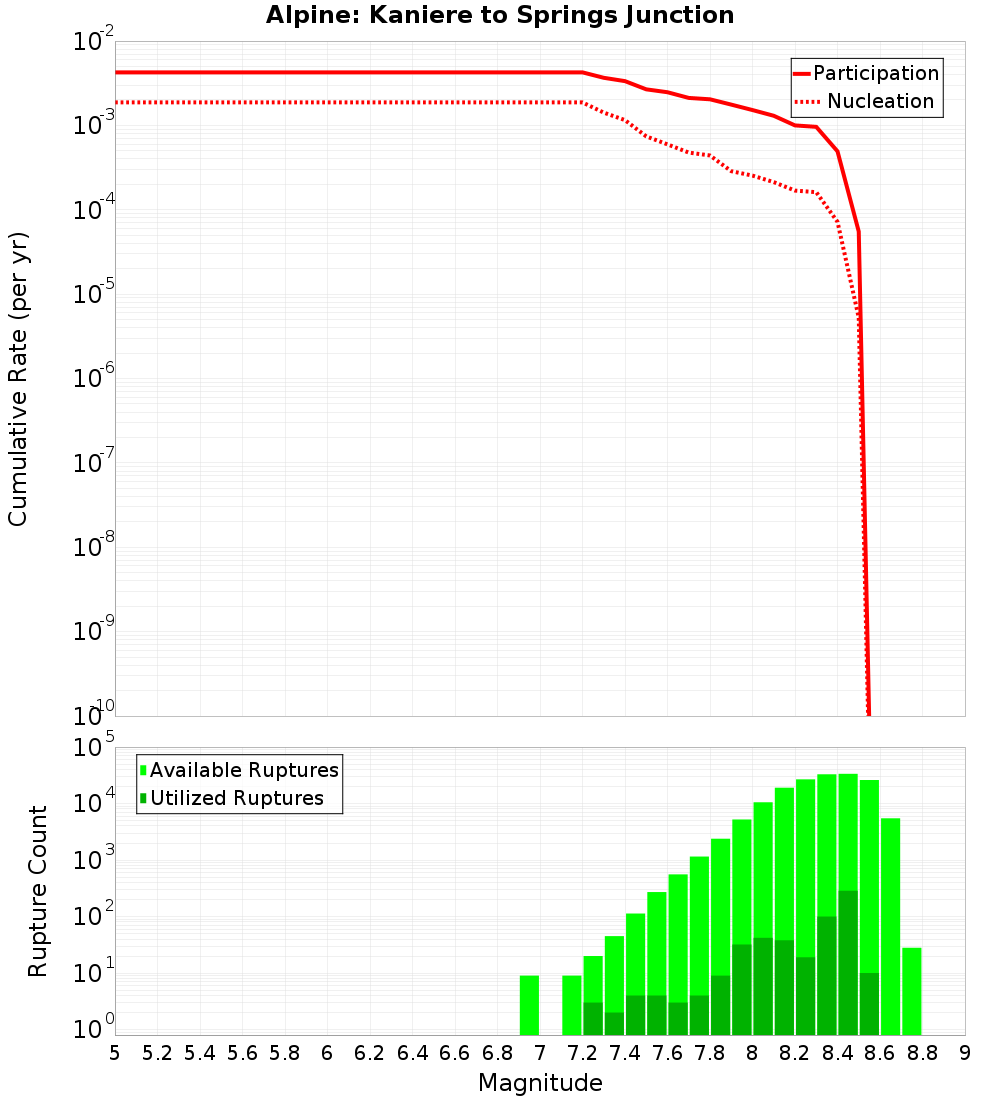

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Alpine: Springs Junction to Tophouse, 0 km awayFowlers, 0.24 km away
Alpine: Jacksons to Kaniere, 0 km awayHohonu North, 0.26 km away
Kelly, 0 km awayHope: Hope River, 2.94 km away
Awatere: Southwest, 0 km awayMistake - Rolleston, 3.4 km away
Hohonu South, 0.04 km awayKakapo, 6.32 km away
Browning Pass, 0.16 km awayMathias, 10.78 km away
Hohonu, 0.18 km awayWhite Creek - buried, 12.02 km away
Hope: Hurunui, 0.19 km awayMungo, 13.41 km away
Clarence: Southwest, 0.21 km awayEsk North, 14.61 km away
Hope: Taramakau, 0.23 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count92,332
Co-rupture Rate0.0010126232

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count122,197
Co-rupture Rate0.002622441

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count49,005
Co-rupture Rate6.170001E-4

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count39,330
Co-rupture Rate4.76142E-4

Hohonu South, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count22,109
Co-rupture Rate5.938238E-6

Browning Pass, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count30,482
Co-rupture Rate2.6848948E-5

Hohonu, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count6,462
Co-rupture Rate3.3266347E-6

Hope: Hurunui, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count16,403
Co-rupture Rate6.699954E-4

Clarence: Southwest, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count6,910
Co-rupture Rate1.7099125E-4

Hope: Taramakau, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count2,986
Co-rupture Rate5.7975398E-5

Fowlers, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count5,430
Co-rupture Rate6.695945E-5

Hohonu North, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count11,519
Co-rupture Rate1.6141337E-5

Hope: Hope River, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count16,293
Co-rupture Rate5.095246E-4

Mistake - Rolleston, 3.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count9,206
Co-rupture Rate4.4094422E-4

Kakapo, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count1,215
Co-rupture Rate2.332403E-7

Mathias, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count2,910
Co-rupture Rate5.4827533E-6

White Creek - buried, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count5,130
Co-rupture Rate1.6132431E-5

Mungo, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count880
Co-rupture Rate1.2315268E-4

Esk North, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
