Awatere: Southwest Details

PropertyValue
Rupture Count41,861
Ruptures Above Sect Min Mag41,856
Ruptures w/ Nonzero Rates196
Magnitude Range[7.04, 8.69]
Length Range[23, 1,082] km
Total Rate6.0185586E-4 /yr
Multi-Fault Rate6.0185586E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults135

Table Of Contents

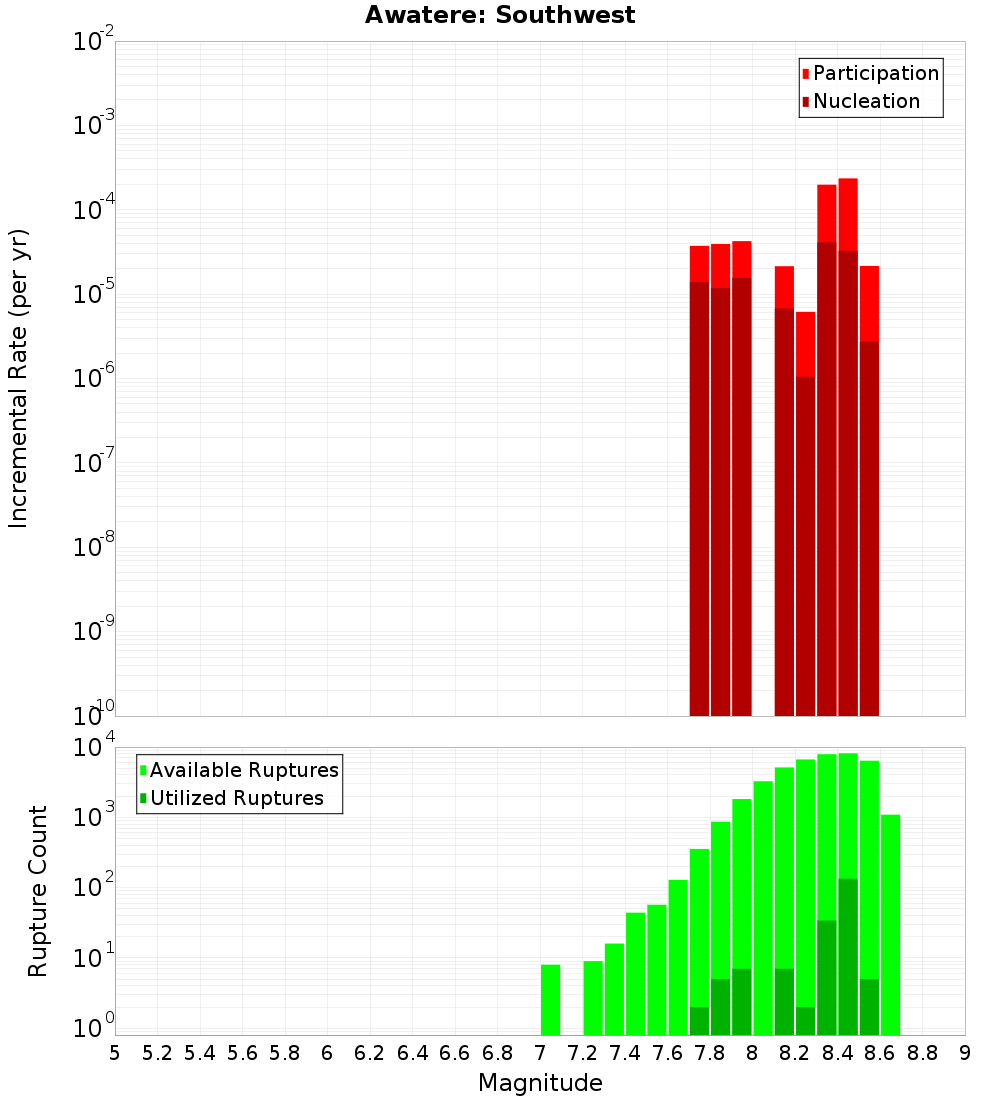

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

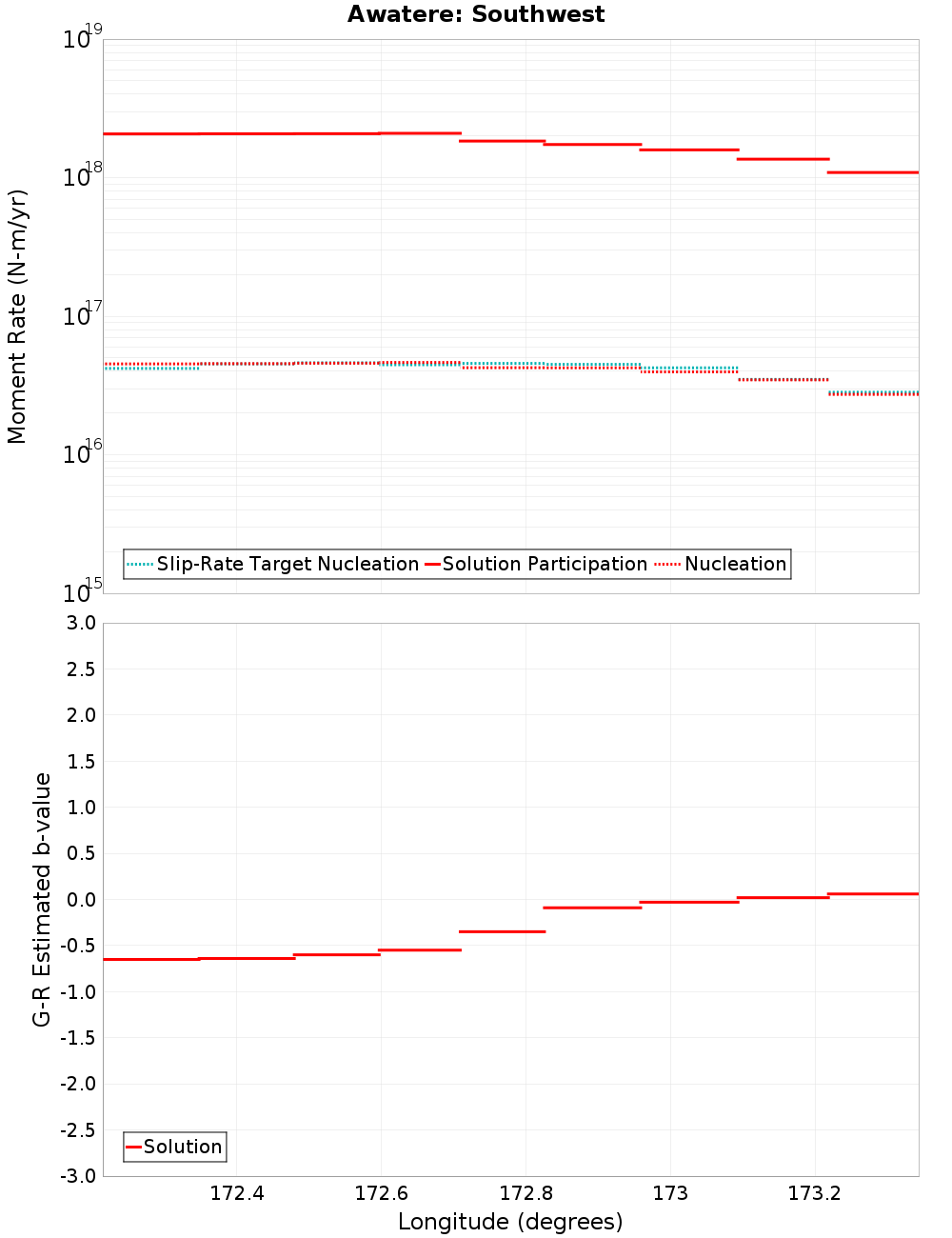

Moment-Rates and b-Values

(top)

Along-strike plot

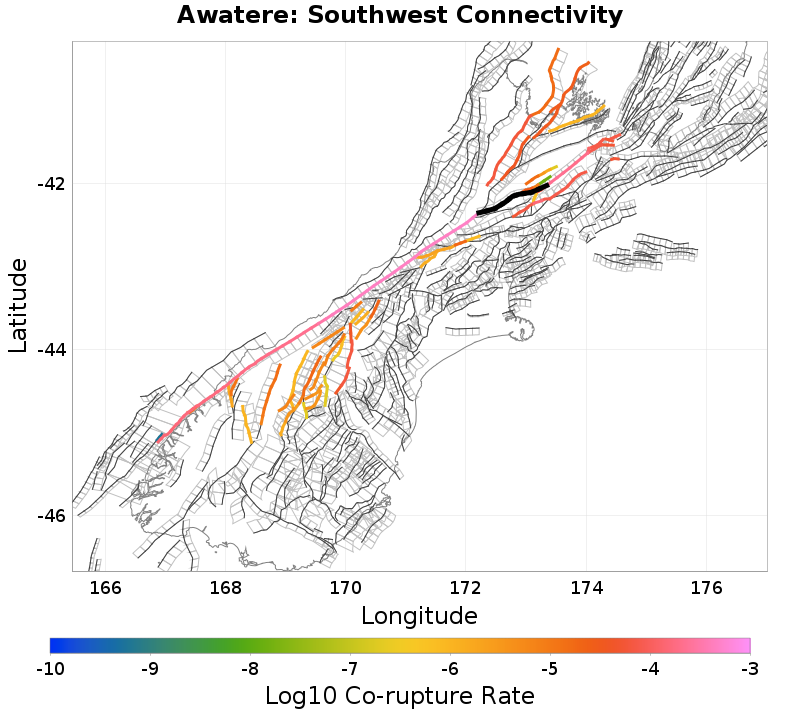

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Awatere: Northeast 1, 0.1 km away
Shingle Peak, 0.12 km away
Barefell, 0.18 km away
Fowlers, 4.56 km away
Waihopai, 6.39 km away
Tutaki, 9.39 km away
Elliott, 10.34 km away
Clarence: Northeast, 11.07 km away
Flaxmore - Waimea - Tahunanui, 12.04 km away
Clarence: Central, 12.19 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count429
Co-rupture Rate0.0

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count39,377
Co-rupture Rate4.76142E-4

Awatere: Northeast 1, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count19,264
Co-rupture Rate2.1895353E-4

Shingle Peak, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count1,722
Co-rupture Rate2.9432644E-5

Barefell, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count441
Co-rupture Rate5.446385E-7

Fowlers, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count659
Co-rupture Rate0.0

Waihopai, 6.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count455
Co-rupture Rate1.713437E-5

Tutaki, 9.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count6,194
Co-rupture Rate6.3285726E-5

Elliott, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Clarence: Northeast, 11.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count443
Co-rupture Rate7.7223194E-5

Flaxmore - Waimea - Tahunanui, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count5,557
Co-rupture Rate3.626491E-5

Clarence: Central, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count1,492
Co-rupture Rate1.4745982E-4
