Ben McLeod Details

Property	Value
Rupture Count	1,889
Ruptures Above Sect Min Mag	1,888
Ruptures w/ Nonzero Rates	29
Magnitude Range	[7.15, 8.29]
Length Range	[23, 382] km
Total Rate	1.1944765E-4 /yr
Multi-Fault Rate	1.1944765E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	64

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

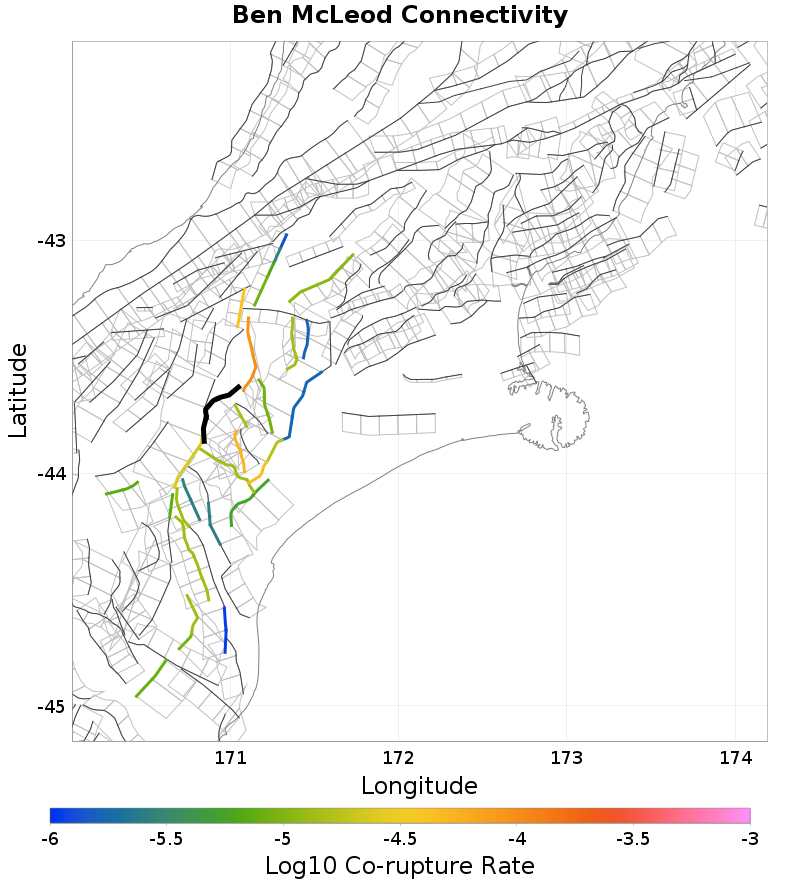

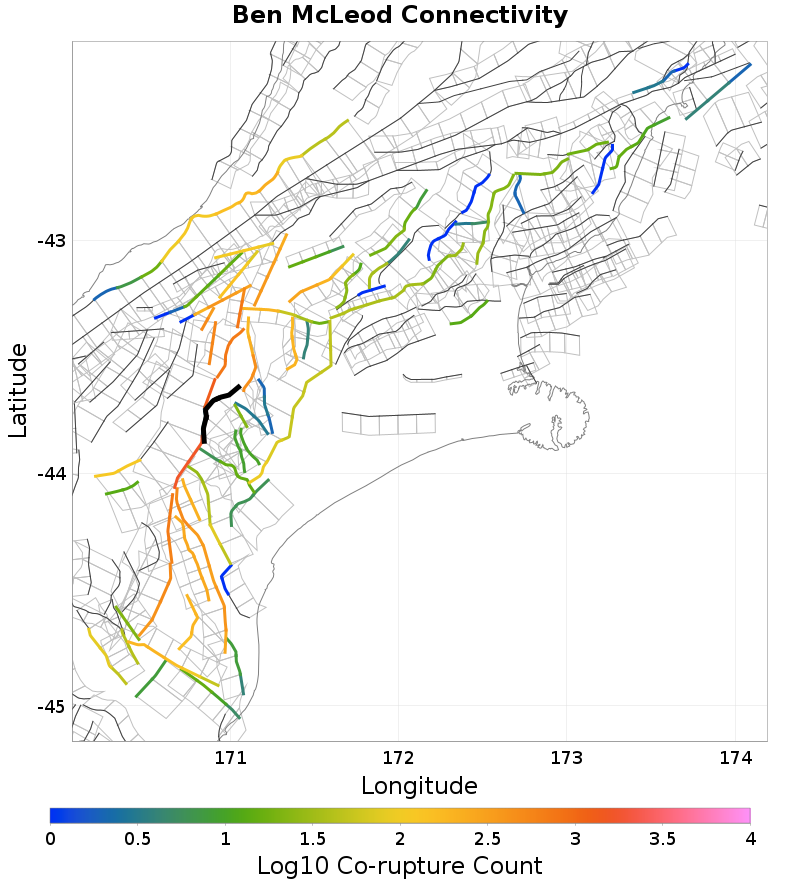

Connectivity

Nearby Sections

Fault Section
Hutt Peel, 0.06 km away
Catherine, 0.13 km away
Edith, 0.15 km away
Klondyke Moor, 0.19 km away
Coal Creek, 0.22 km away
Quartz Creek, 0.23 km away
Lake Heron, 0.29 km away
Fox Peak, 0.38 km away
Sugarloaf, 4.06 km away
Brothers, 5.41 km away
Potts River, 9.75 km away
Irishman Creek, 14.47 km away

Hutt Peel, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	91
Co-rupture Rate	4.4484437E-5

Catherine, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	5.1538664E-5

Edith, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	0.0

Klondyke Moor, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	8.828443E-6

Coal Creek, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Quartz Creek, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	1.4975513E-5

Lake Heron, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	456
Co-rupture Rate	1.03219776E-4

Fox Peak, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,934
Co-rupture Rate	2.3424547E-5

Sugarloaf, 4.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	1.35812925E-5

Brothers, 5.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	2.6335558E-6

Potts River, 9.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	745
Co-rupture Rate	0.0

Irishman Creek, 14.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	116
Co-rupture Rate	0.0
