Falstone Details

Property	Value
Rupture Count	1,911
Ruptures Above Sect Min Mag	1,909
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.93, 8.47]
Length Range	[18, 590] km
Total Rate	5.8966463E-5 /yr
Multi-Fault Rate	5.8966463E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

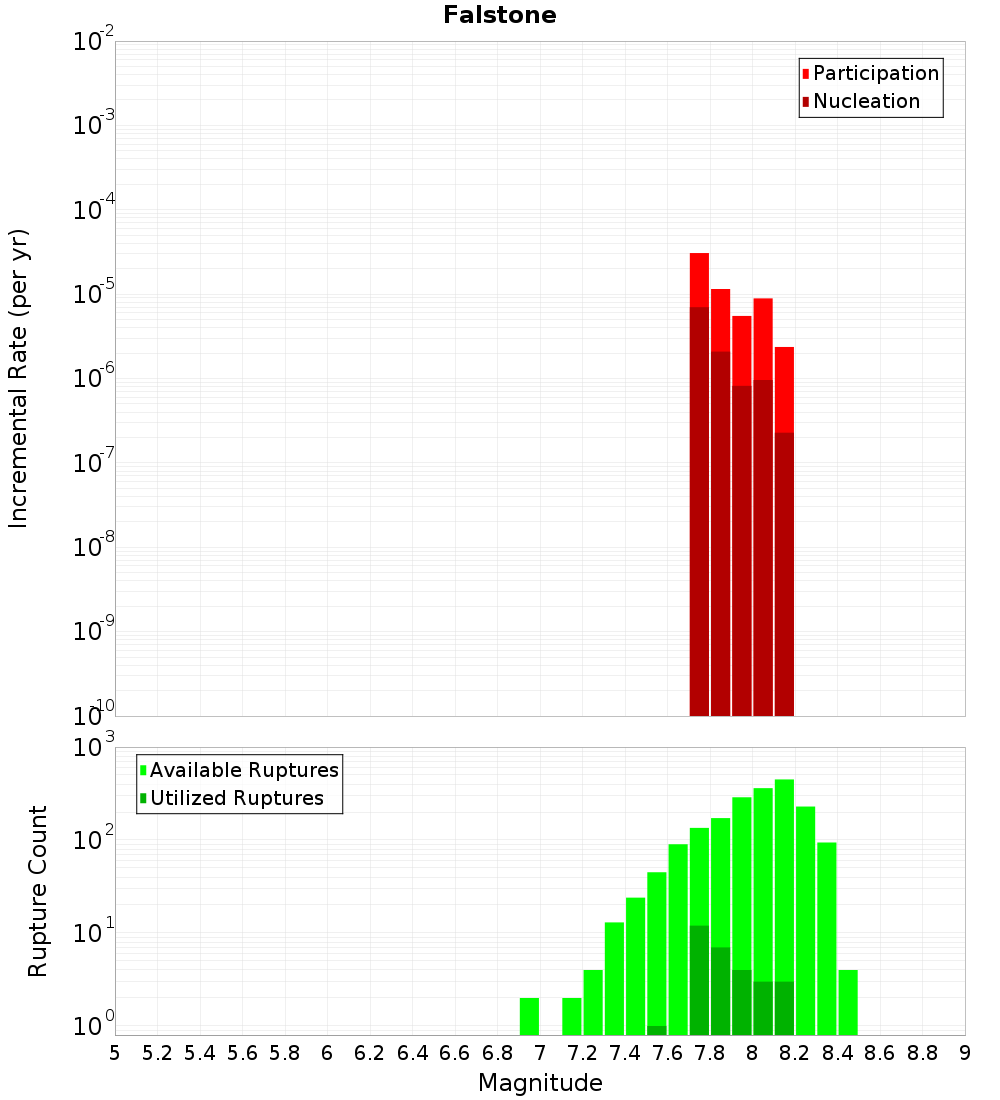

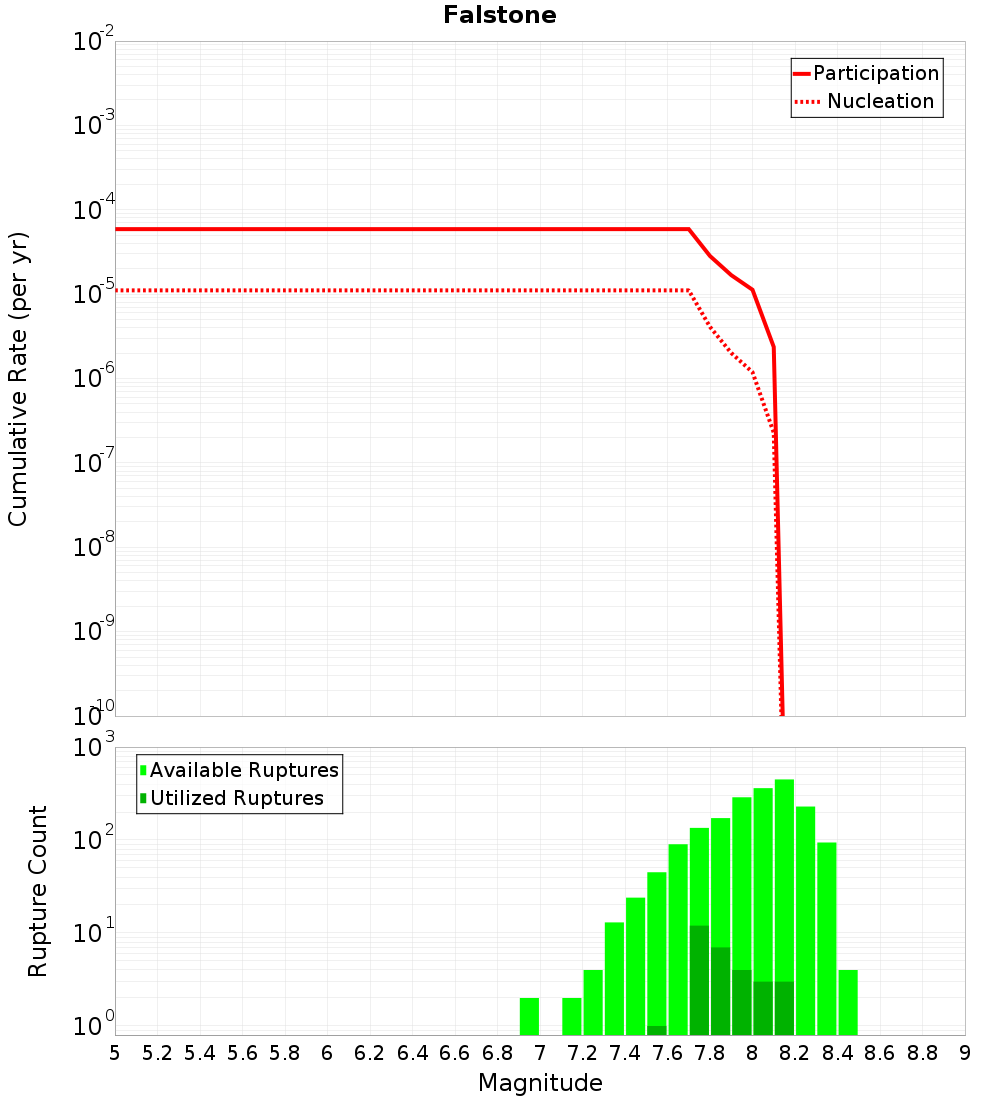

Magnitude-Frequency Distribution

Incremental	Cumulative

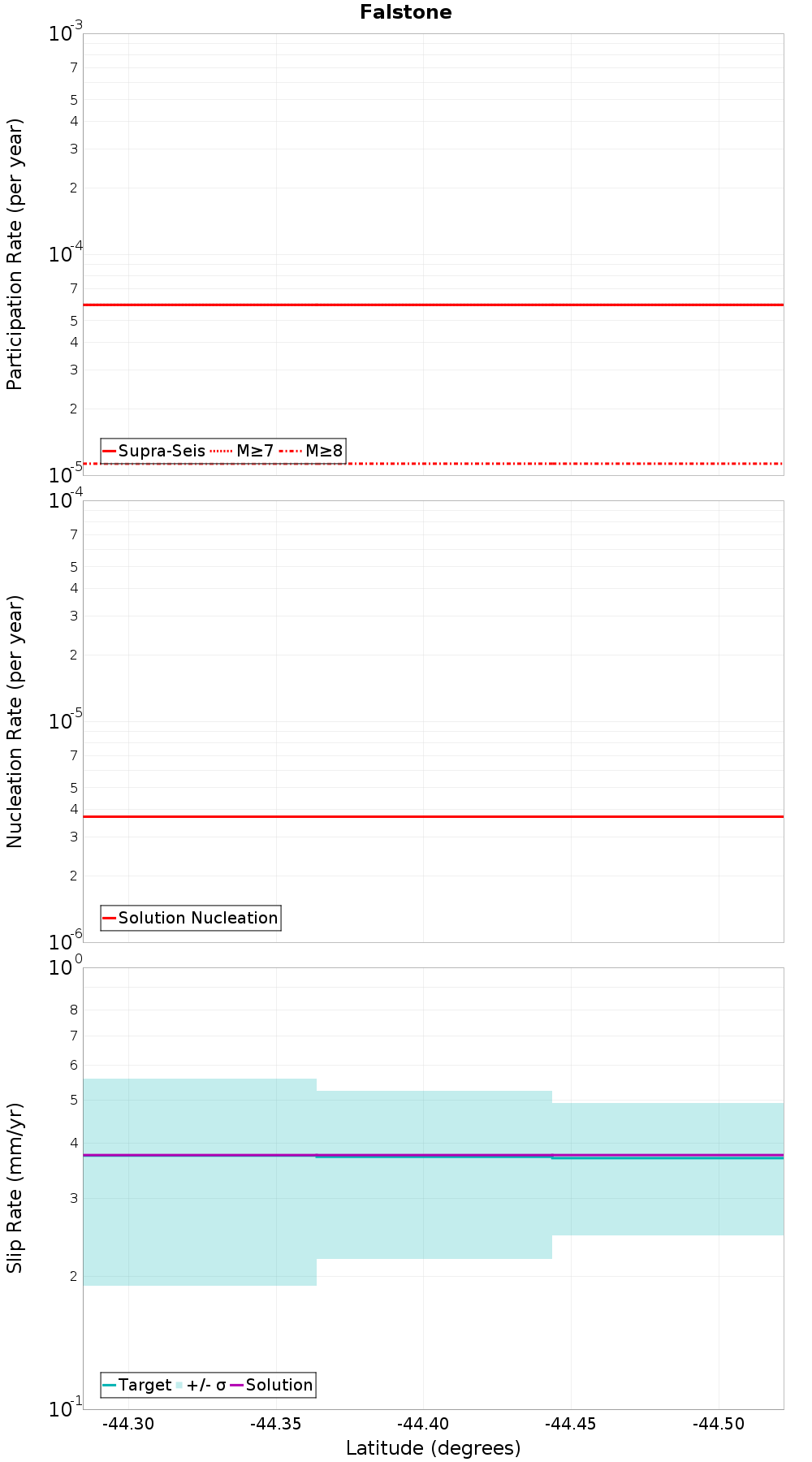

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Gibson, 0.95 km away
Fern Gully, 2.55 km away
Hawkdun, 3.76 km away
Omarama Saddle, 4.56 km away
Middle Range, 5.24 km away
Ostler South, 8.06 km away
Waitangi, 11.14 km away
Ostler North, 11.53 km away
Dryburgh, 14.51 km away
Blue Lake, 14.6 km away

Gibson, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	0.0

Fern Gully, 2.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	566
Co-rupture Rate	3.2159507E-5

Hawkdun, 3.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	779
Co-rupture Rate	0.0

Omarama Saddle, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	952
Co-rupture Rate	7.132532E-6

Middle Range, 5.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	2.7474107E-5

Ostler South, 8.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	2.0838854E-5

Waitangi, 11.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Ostler North, 11.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	634
Co-rupture Rate	5.8966456E-5

Dryburgh, 14.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Blue Lake, 14.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
