Motatapu Details

PropertyValue
Rupture Count19,658
Ruptures Above Sect Min Mag19,657
Ruptures w/ Nonzero Rates71
Magnitude Range[7.03, 8.66]
Length Range[19, 856] km
Total Rate6.311369E-5 /yr
Multi-Fault Rate6.311369E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults113

Table Of Contents

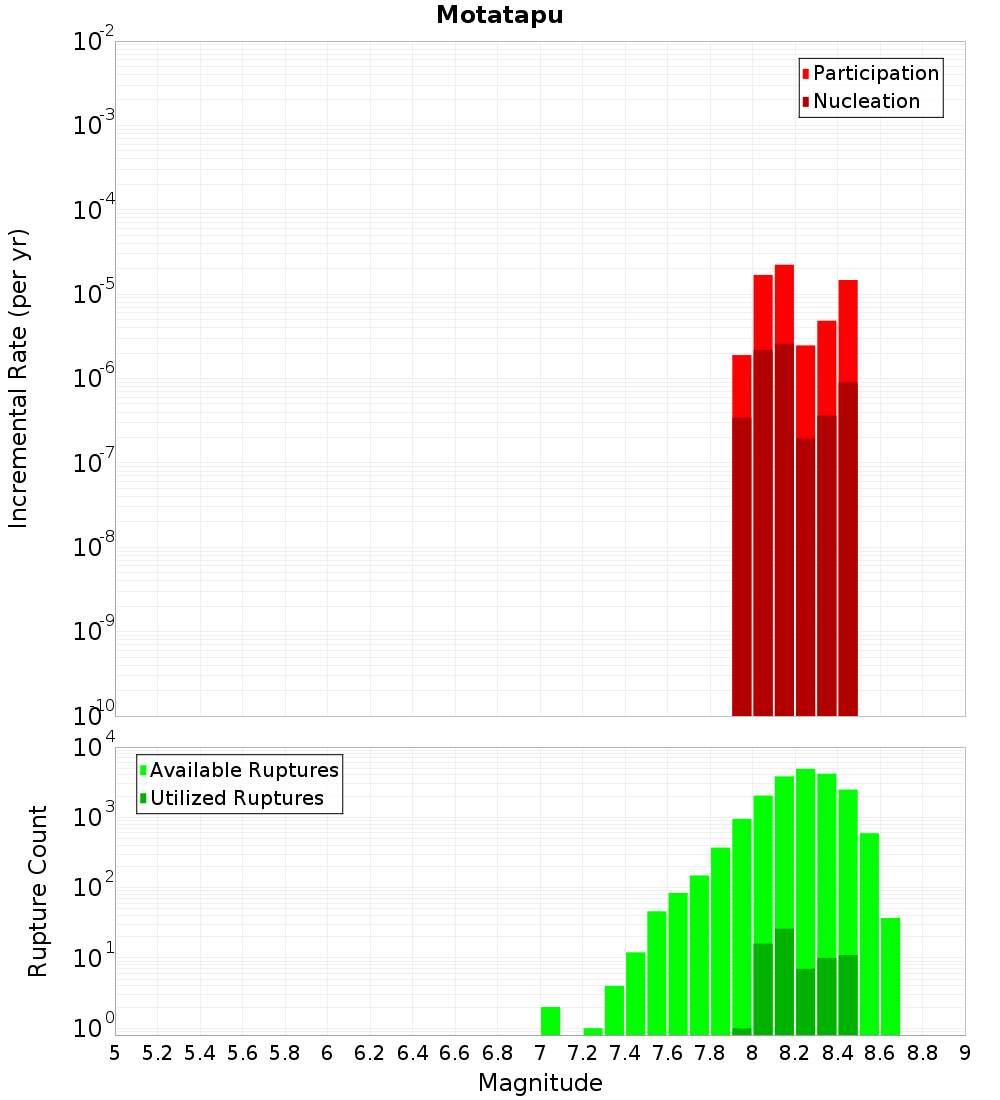

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

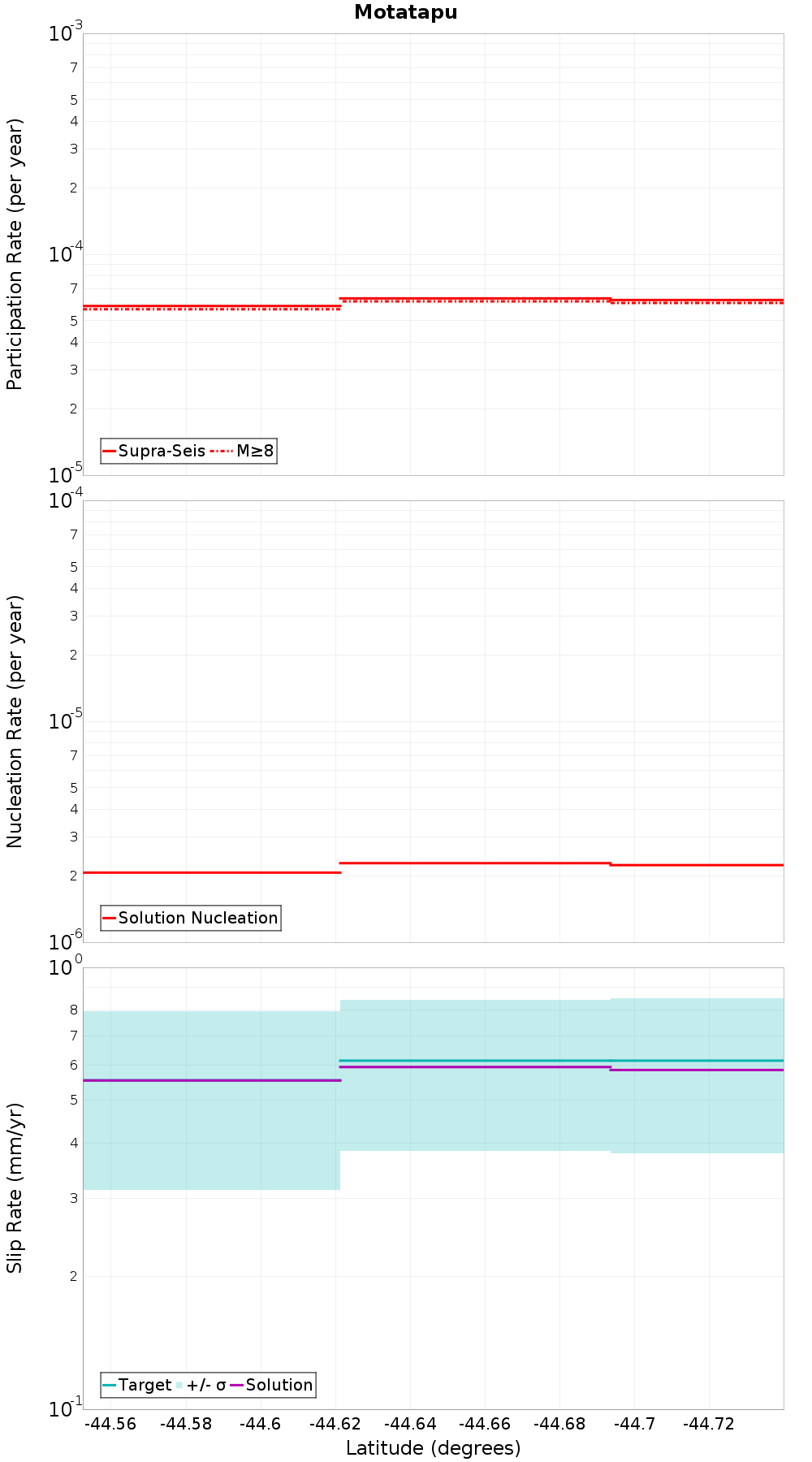

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
NW Cardrona North, 0.1 km away
Pisa, 0.11 km away
Cardrona - Hawea, 0.19 km away
Wanaka, 1.15 km away
NW Cardrona South, 6.08 km away
Hunter Valley, 6.8 km away
Timaru Creek, 7.21 km away
Cluden, 8.82 km away
Paddys Ridge, 10.99 km away
Roaring Meg, 11.22 km away
Grandview, 11.67 km away

NW Cardrona North, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count933
Co-rupture Rate9.11659E-6

Pisa, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count11,309
Co-rupture Rate2.0607084E-7

Cardrona - Hawea, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count3,600
Co-rupture Rate3.112382E-5

Wanaka, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count16,028
Co-rupture Rate1.9105422E-5

NW Cardrona South, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count5,484
Co-rupture Rate4.1998974E-5

Hunter Valley, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count2,016
Co-rupture Rate4.994005E-6

Timaru Creek, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count1,538
Co-rupture Rate2.0392768E-6

Cluden, 8.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate1.9643614E-5

Roaring Meg, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count138
Co-rupture Rate1.3668271E-5

Grandview, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
