NW Cardrona North Details

Property	Value
Rupture Count	8,998
Ruptures Above Sect Min Mag	8,997
Ruptures w/ Nonzero Rates	74
Magnitude Range	[7.05, 8.55]
Length Range	[21, 711] km
Total Rate	6.788194E-5 /yr
Multi-Fault Rate	6.788194E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

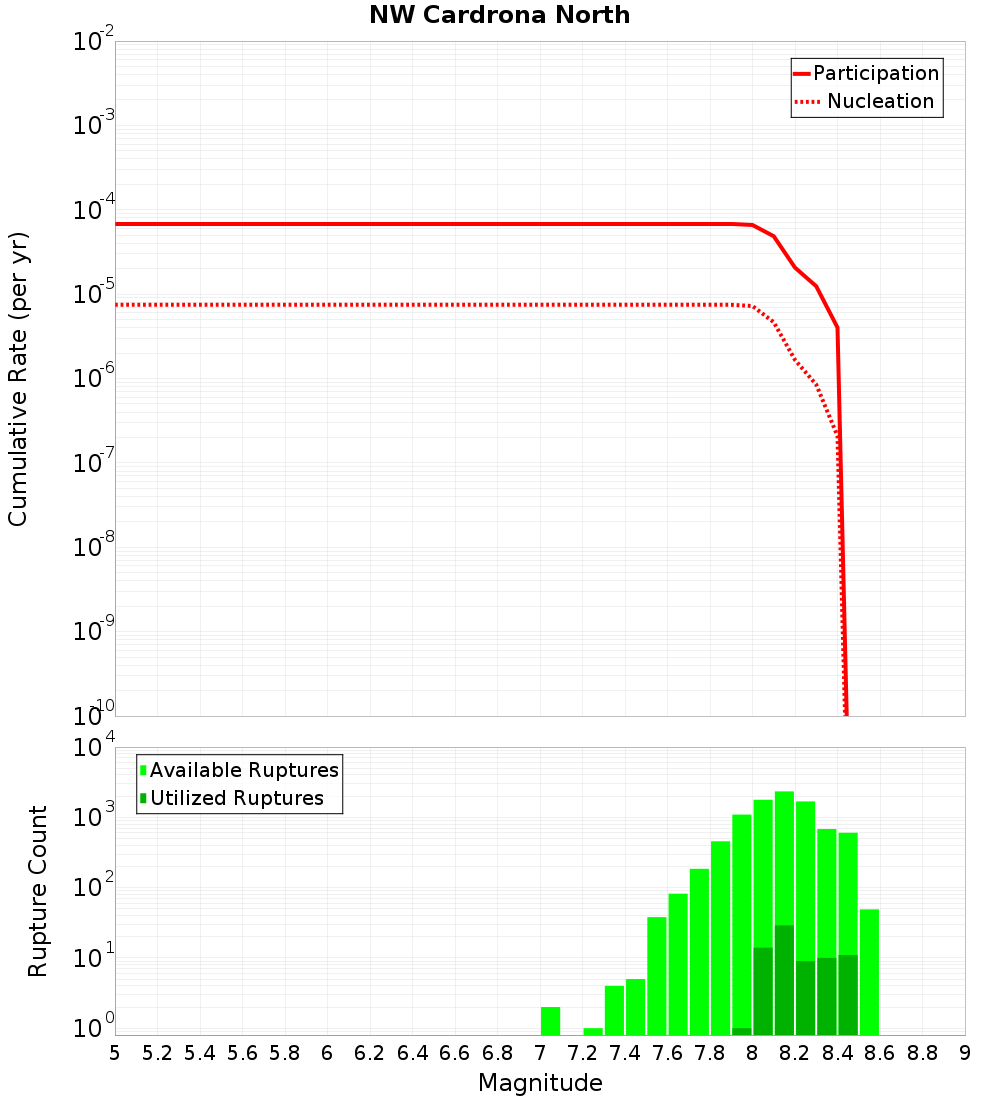

Magnitude-Frequency Distribution

Incremental	Cumulative

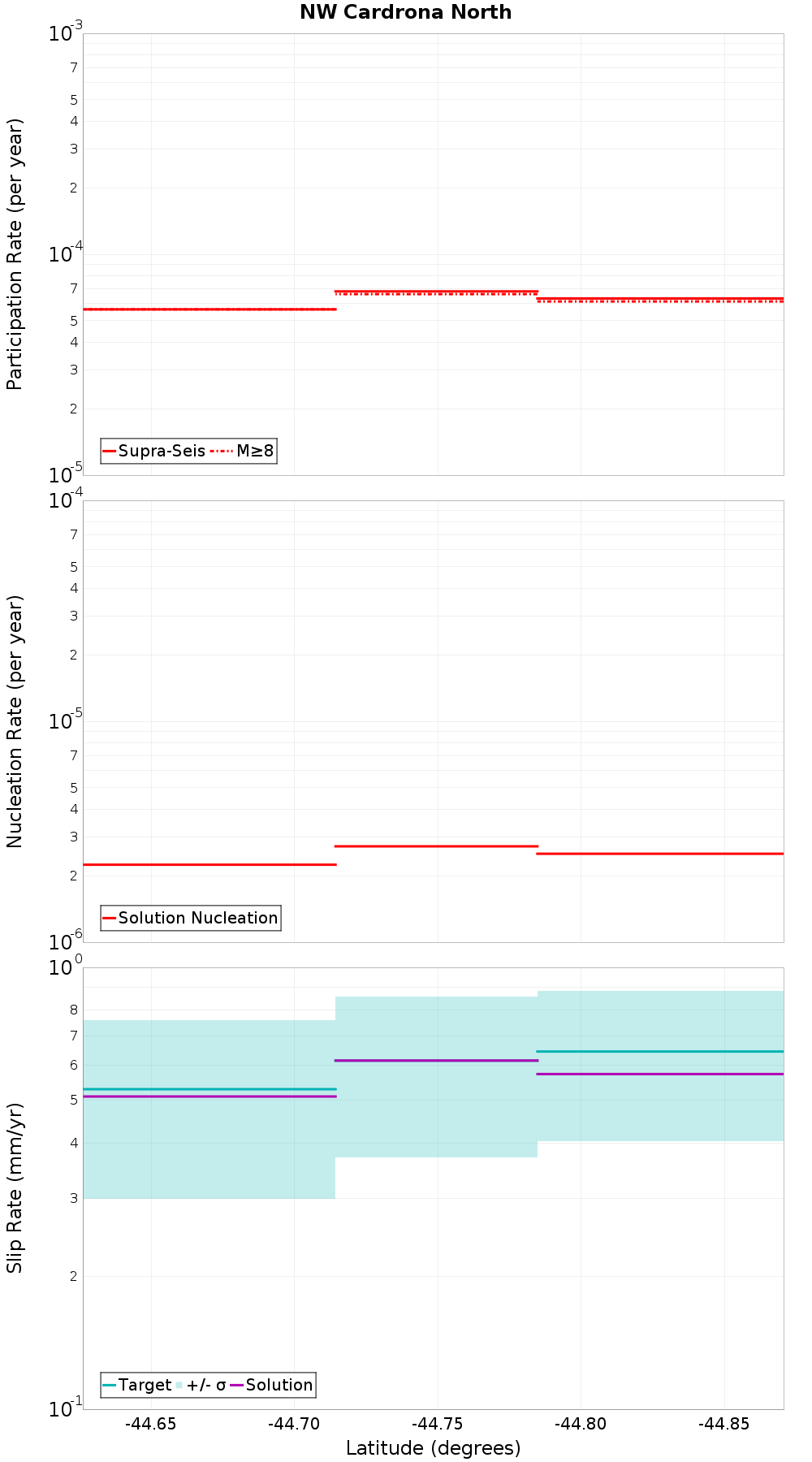

Along-Strike Values

Moment-Rates and b-Values

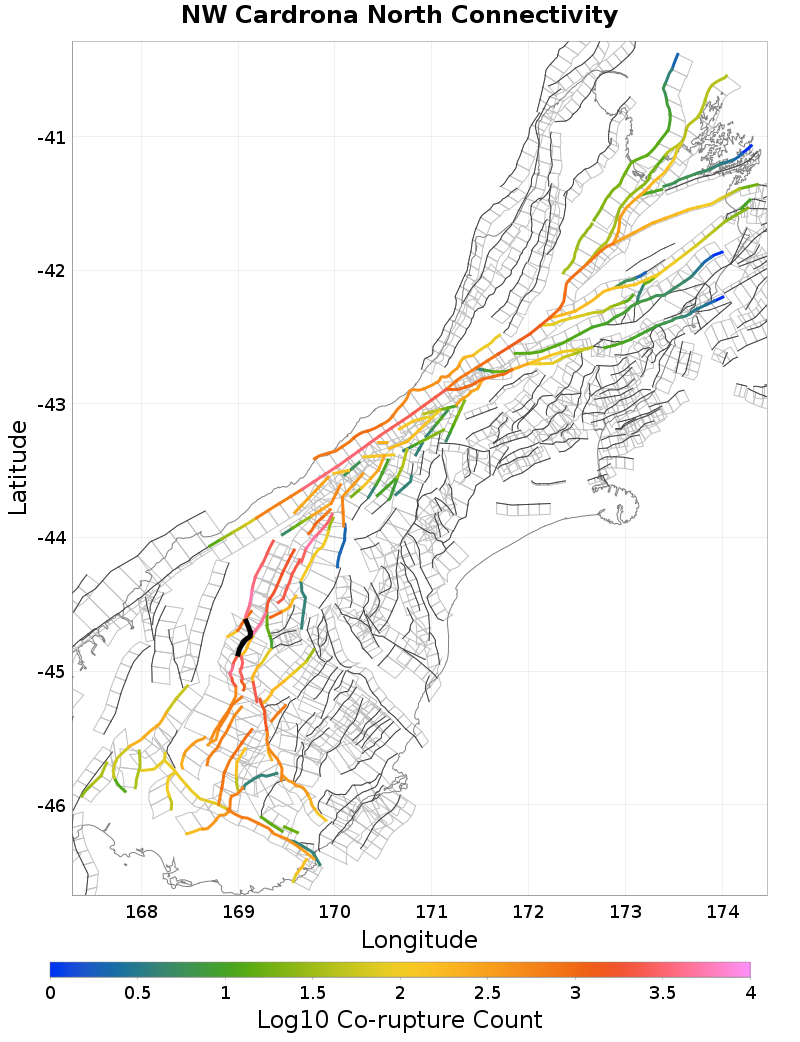

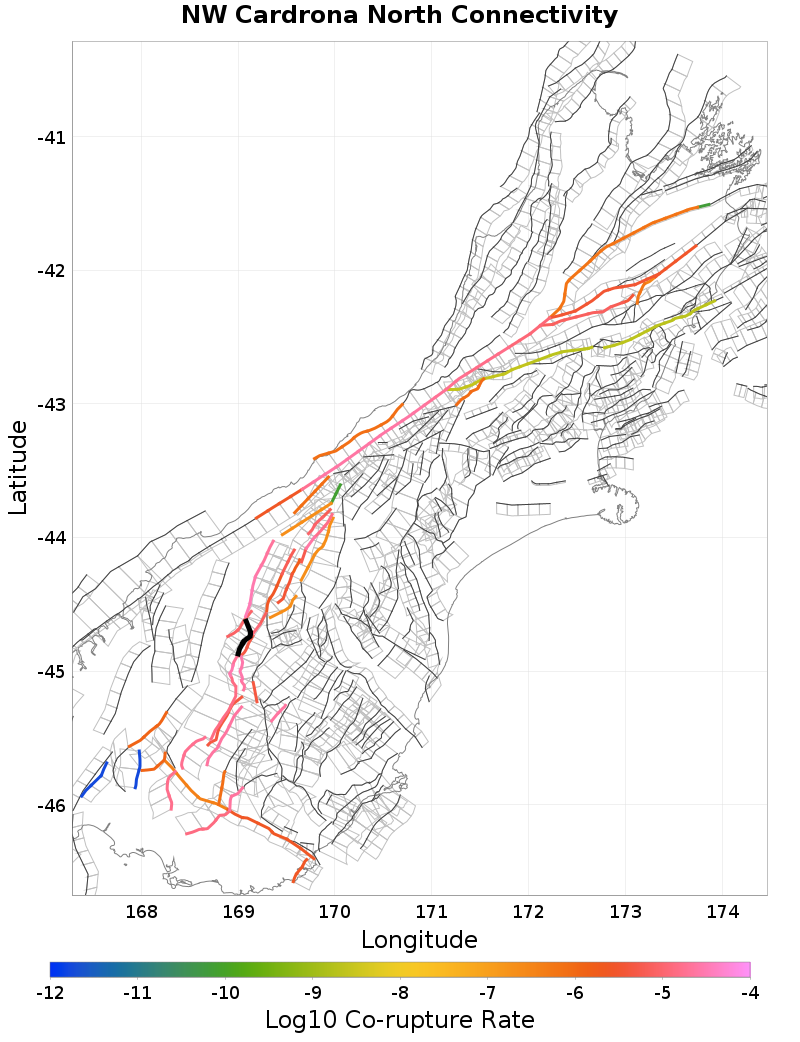

Connectivity

Nearby Sections

Fault Section
Motatapu, 0.1 km away
NW Cardrona South, 0.36 km away
Cardrona - Hawea, 1.36 km away
Paddys Ridge, 1.63 km away
Roaring Meg, 3.33 km away
Wanaka, 3.63 km away
Pisa, 8.52 km away
Grandview, 14.11 km away

Motatapu, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	933
Co-rupture Rate	9.11659E-6

NW Cardrona South, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,955
Co-rupture Rate	2.87993E-5

Cardrona - Hawea, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	4,755
Co-rupture Rate	1.1966537E-5

Paddys Ridge, 1.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	190
Co-rupture Rate	4.8358133E-6

Roaring Meg, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,656
Co-rupture Rate	2.7530088E-5

Wanaka, 3.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	5,287
Co-rupture Rate	3.2494474E-5

Pisa, 8.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,391
Co-rupture Rate	4.4971594E-6

Grandview, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	0.0
