Otakiri Details

PropertyValue
Rupture Count5,720
Ruptures Above Sect Min Mag5,717
Ruptures w/ Nonzero Rates71
Magnitude Range[6.70, 8.47]
Length Range[13, 669] km
Total Rate2.0801743E-4 /yr
Multi-Fault Rate2.0801743E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults72

Table Of Contents

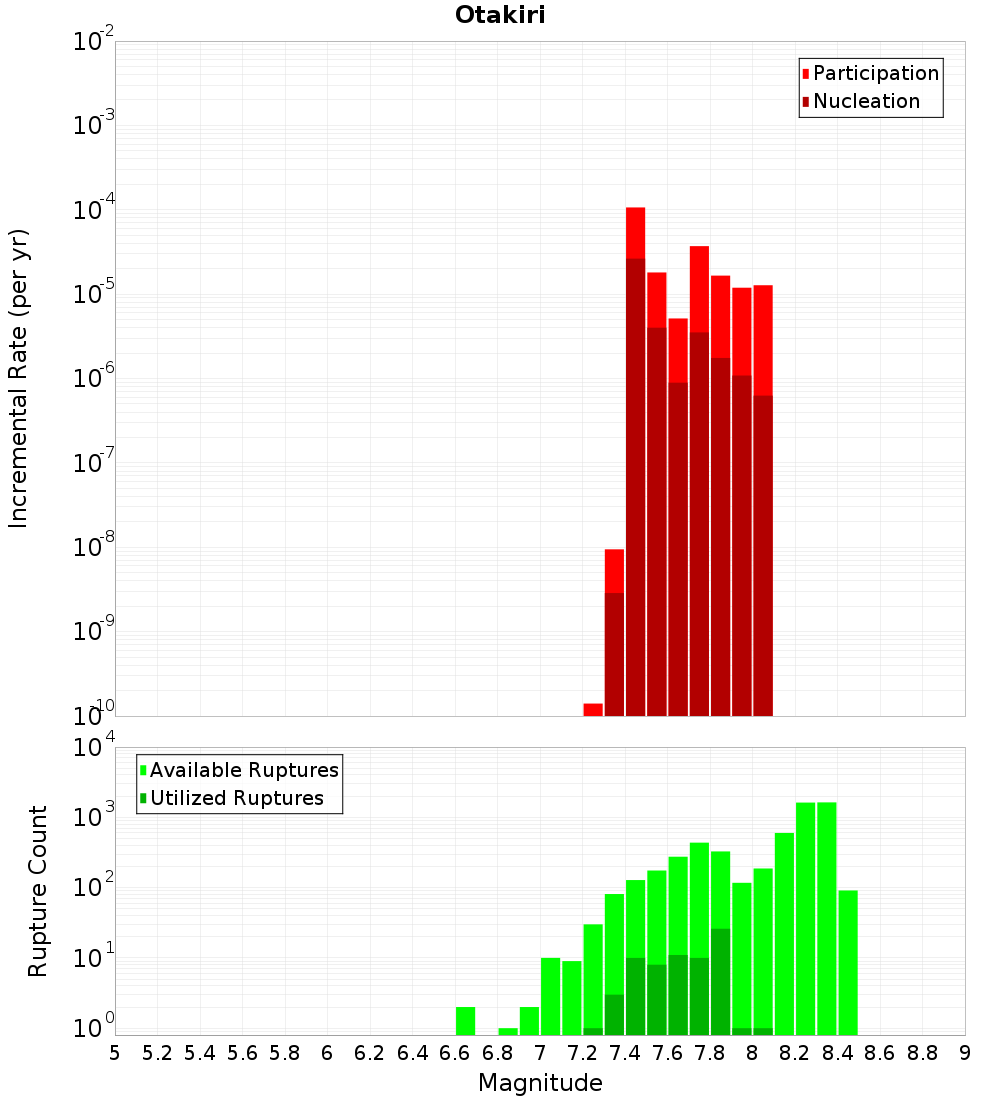

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

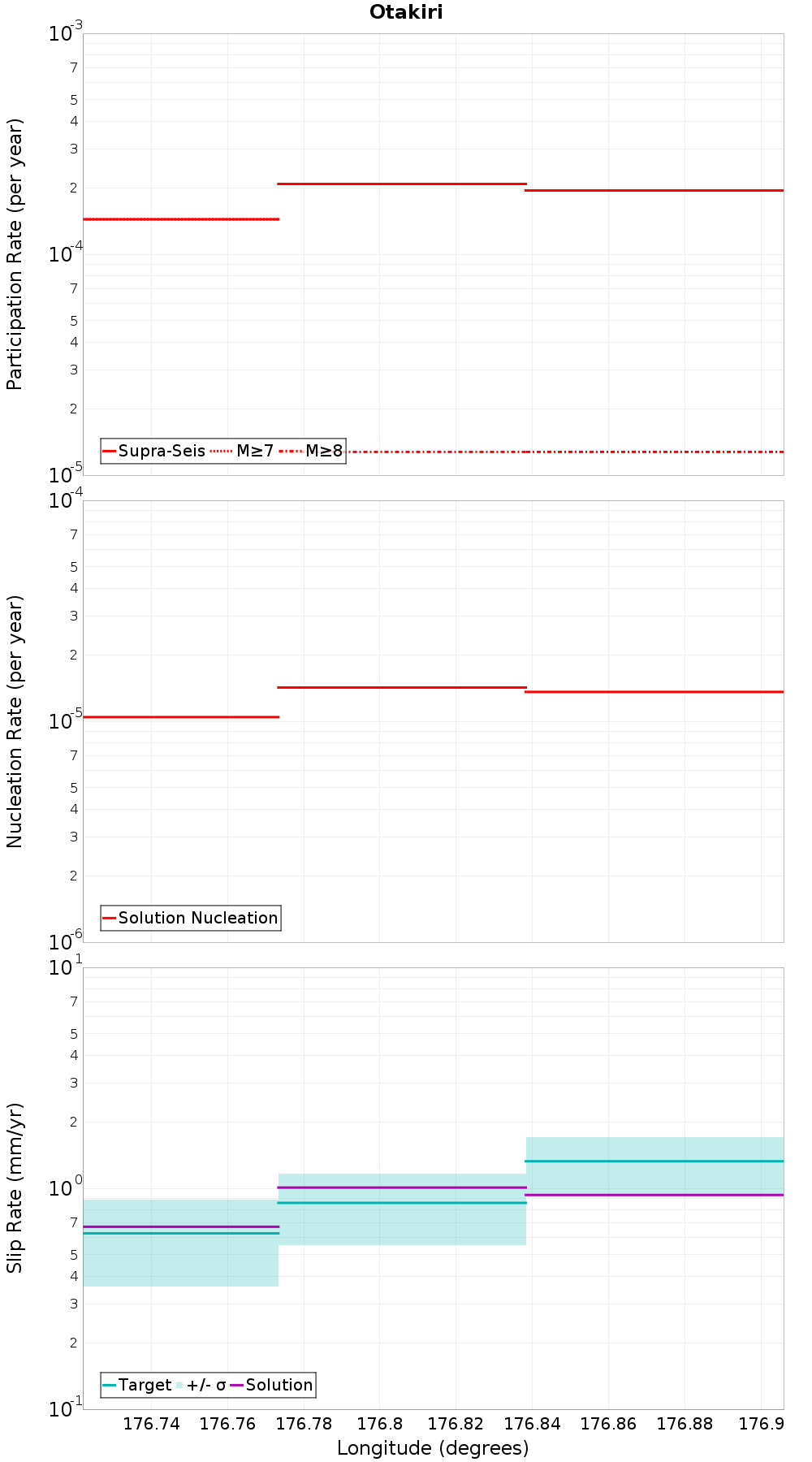

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Edgecumbe Coastal, 0.1 km away
Edgecumbe 1987, 0.19 km away
Whakatane: North, 0.29 km away
Braemar, 0.31 km away
Waiohau: North, 0.33 km away
White Island 1, 2.46 km away
Keepa, 2.92 km away
Matata, 4.49 km away
Waimana: North, 8.25 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.81 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count1,454
Co-rupture Rate1.0633512E-4

Edgecumbe 1987, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count2,783
Co-rupture Rate4.97608E-5

Whakatane: North, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count611
Co-rupture Rate8.980201E-5

Braemar, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count942
Co-rupture Rate1.2352224E-4

Waiohau: North, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count2,628
Co-rupture Rate0.0

White Island 1, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count2,847
Co-rupture Rate7.093707E-5

Keepa, 2.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count1,041
Co-rupture Rate0.0

Matata, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count1,628
Co-rupture Rate3.5416848E-5

Waimana: North, 8.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count3,618
Co-rupture Rate3.2458327E-5

Rangitaiki 1, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count731
Co-rupture Rate2.3780076E-5

Waiotahi: North, 13.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
