Te Arawa 2 Details

Property	Value
Rupture Count	2,632
Ruptures Above Sect Min Mag	2,631
Ruptures w/ Nonzero Rates	202
Magnitude Range	[6.92, 8.41]
Length Range	[16, 549] km
Total Rate	1.5684139E-4 /yr
Multi-Fault Rate	1.5684139E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	66

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

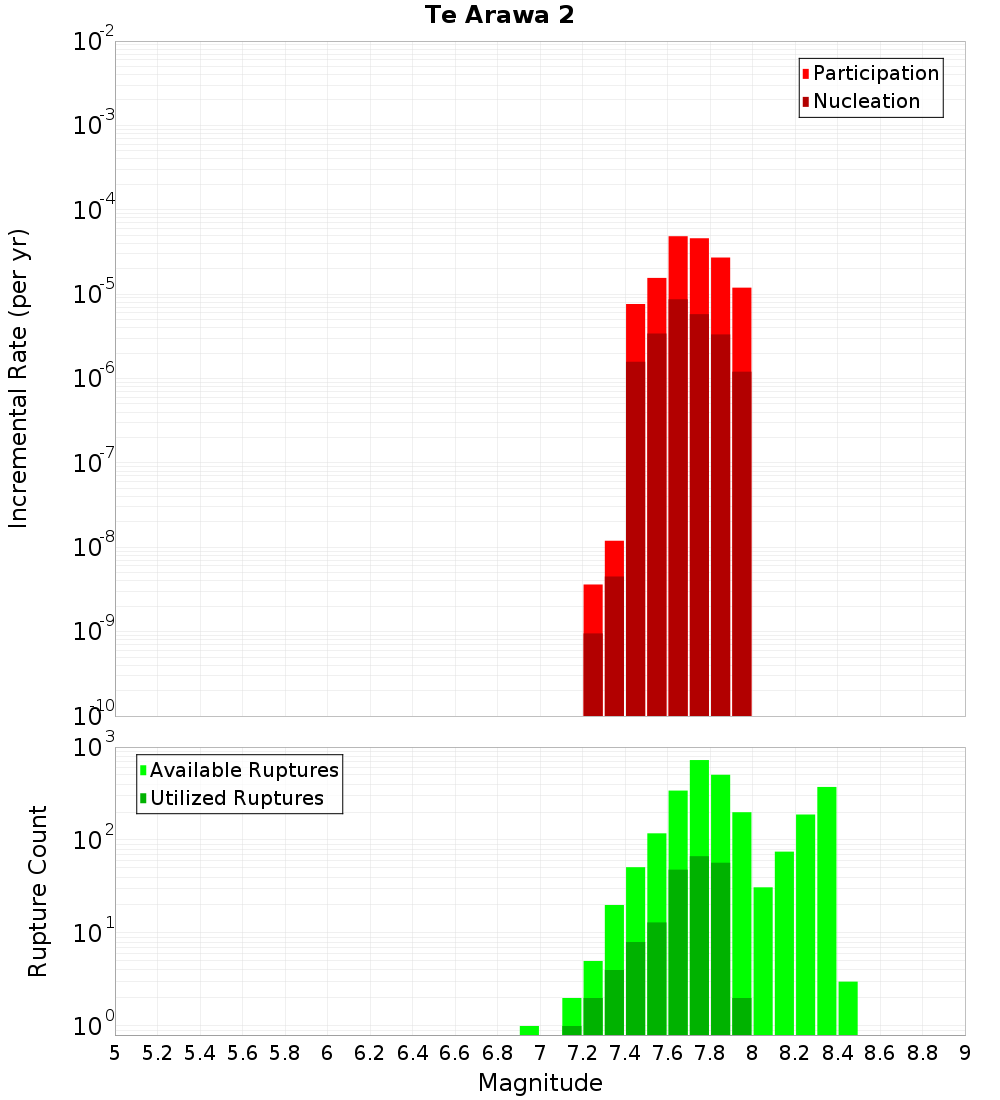

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

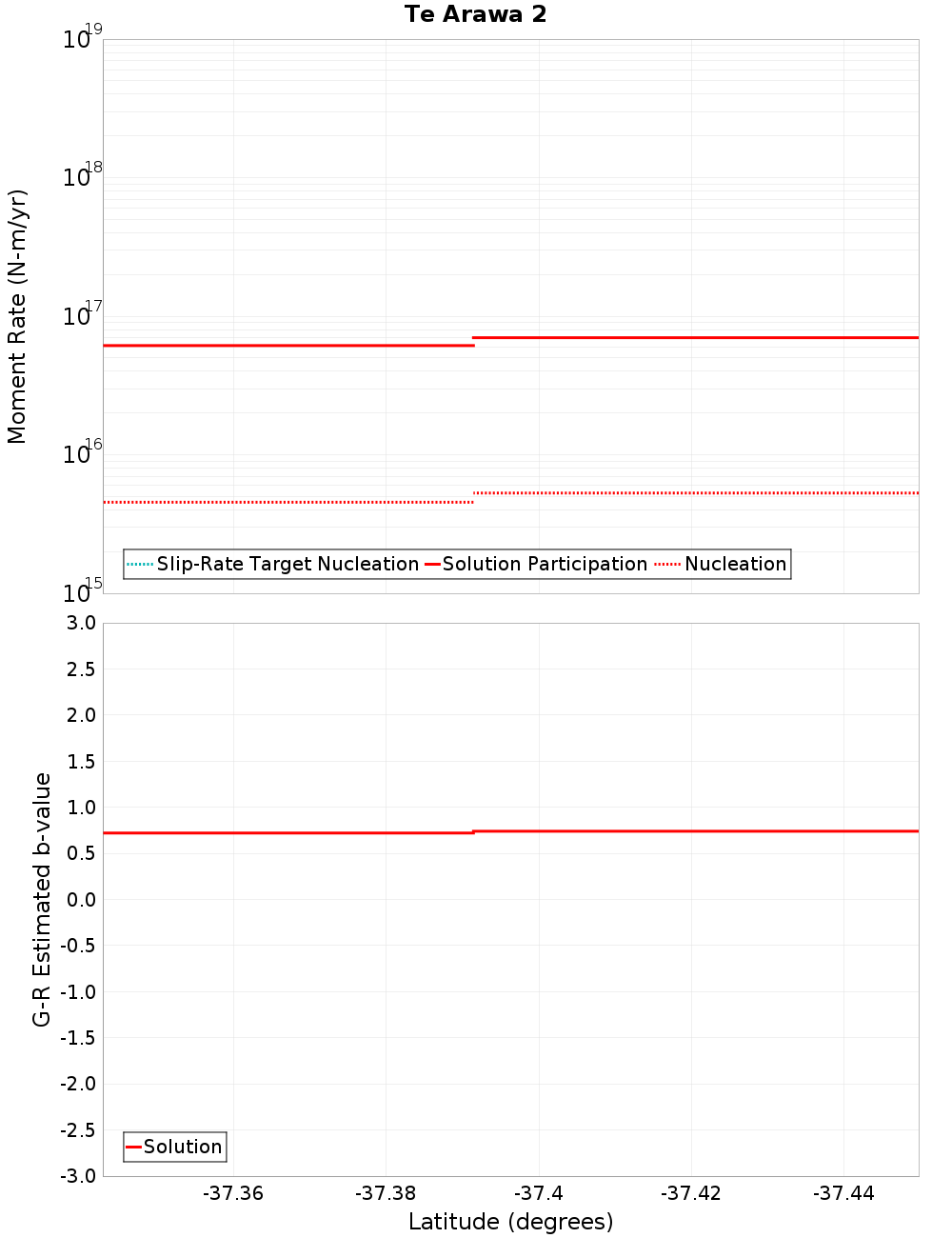

Moment-Rates and b-Values

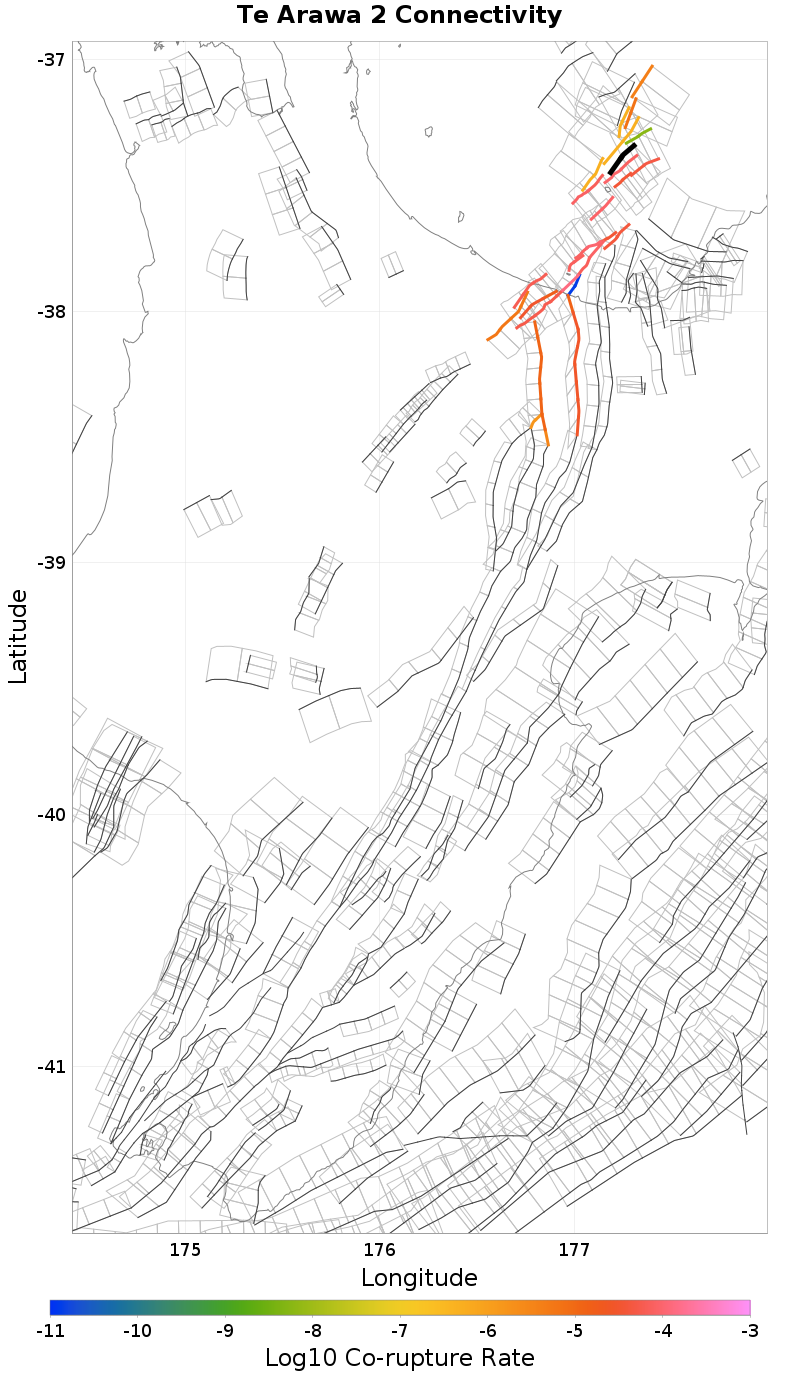

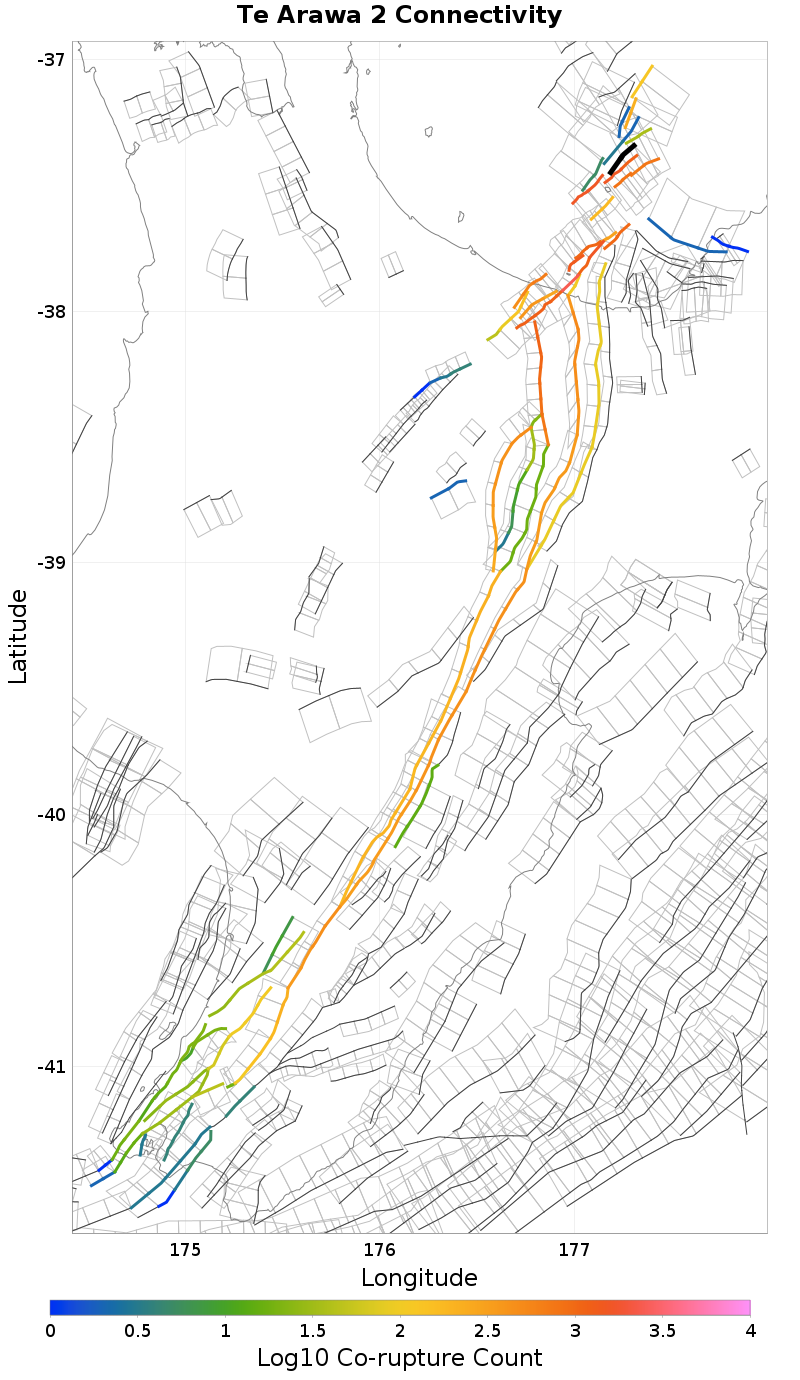

Connectivity

Nearby Sections

Fault Section
Tuatoru 2, 0.12 km away
Te Arawa 1, 1.19 km away
Te Arawa 3, 1.68 km away
Whakaari 4, 3.86 km away
Volkner 4, 4.02 km away
Tuatoru 1, 4.63 km away
Hariki, 5.14 km away
Volkner 3, 6 km away
Calypso 2, 6.95 km away
Otara West 1, 7.42 km away
Otara East 1, 7.74 km away
White Island 2, 9.98 km away
Otara West 2, 11.66 km away
Opotiki 3, 14.46 km away
Ohiwa 1, 14.86 km away

Tuatoru 2, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	765
Co-rupture Rate	4.822502E-5

Te Arawa 1, 1.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,532
Co-rupture Rate	8.973162E-5

Te Arawa 3, 1.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	5.667655E-9

Whakaari 4, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,574
Co-rupture Rate	8.0599035E-5

Volkner 4, 4.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	4.7525387E-7

Tuatoru 1, 4.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	822
Co-rupture Rate	3.628309E-5

Hariki, 5.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Volkner 3, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	4.7584038E-7

Calypso 2, 6.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	true
Co-rupture Count	178
Co-rupture Rate	8.735423E-5

Otara West 1, 7.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	4.7500174E-7

Otara East 1, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	252
Co-rupture Rate	6.8437607E-6

White Island 2, 9.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,009
Co-rupture Rate	4.0666262E-5

Otara West 2, 11.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 14.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?	true
Directly Connected?	false
Co-rupture Count	297
Co-rupture Rate	3.7872076E-5
