Tokomaru Details

PropertyValue
Rupture Count2,365
Ruptures Above Sect Min Mag2,364
Ruptures w/ Nonzero Rates30
Magnitude Range[6.98, 8.60]
Length Range[19, 888] km
Total Rate2.2639957E-4 /yr
Multi-Fault Rate2.2639957E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults113

Table Of Contents

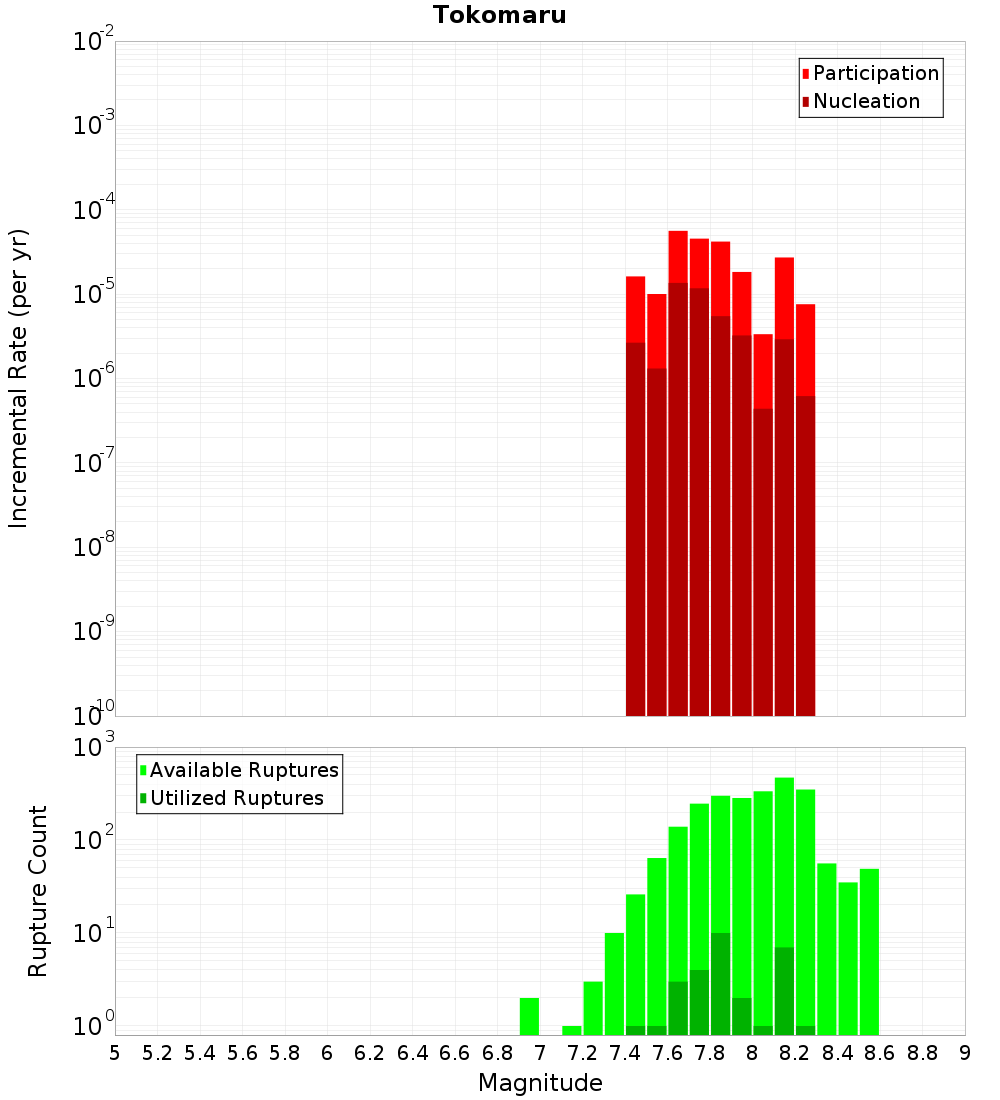

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

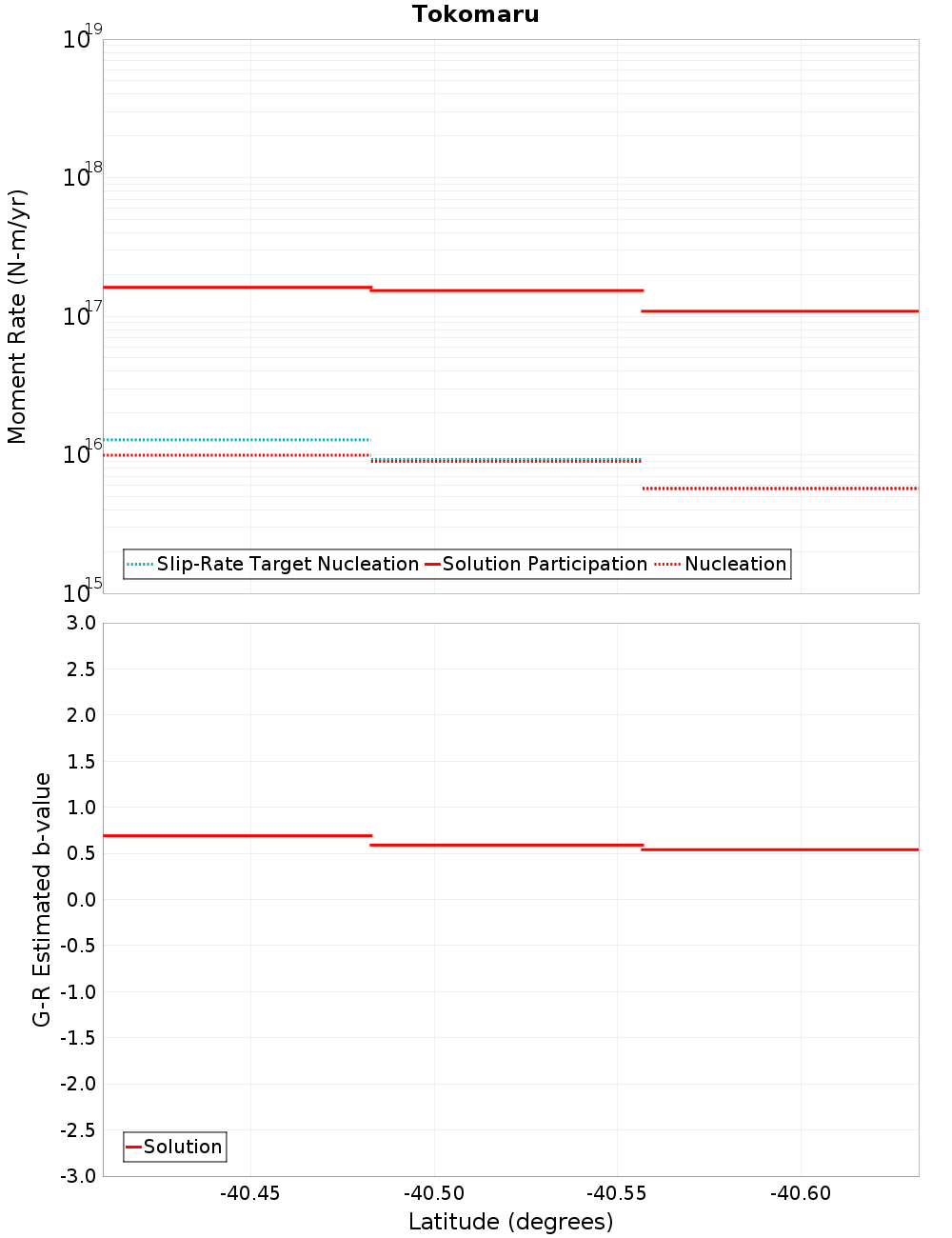

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Pahiatua, 0.14 km awayHimatangi, 12.24 km away
Northern Ohariu, 0.33 km awayTaonui, 12.27 km away
Wellington: Tararua 3, 1.27 km awayPoroutawhao, 13.21 km away
Otaki Forks: 2, 3.91 km awayMt Stewart, 13.54 km away
Levin Anticline, 5.87 km awayDreyers Rock, 14.1 km away
Pahiatua, 9.69 km awayMohaka: South, 14.29 km away
Pohangina, 9.88 km awayRuahine: South, 14.4 km away
Wairarapa: 3, 11.99 km awayRauoterangi, 14.68 km away

Wellington: Pahiatua, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count915
Co-rupture Rate6.582008E-5

Northern Ohariu, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count595
Co-rupture Rate1.5865247E-4

Wellington: Tararua 3, 1.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count1,042
Co-rupture Rate1.146608E-5

Otaki Forks: 2, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count407
Co-rupture Rate2.4558749E-5

Levin Anticline, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 9.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 9.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Wairarapa: 3, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Taonui, 12.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?true
Co-rupture Count324
Co-rupture Rate3.0223926E-5

Poroutawhao, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Stewart, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count710
Co-rupture Rate3.6342204E-5

Ruahine: South, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count298
Co-rupture Rate1.7913316E-6

Rauoterangi, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTIuMEZEd2Zz
Connected?true
Directly Connected?false
Co-rupture Count132
Co-rupture Rate0.0
