Blue Mountain Details

Property	Value
Rupture Count	4,603
Ruptures Above Sect Min Mag	4,603
Ruptures w/ Nonzero Rates	66
Magnitude Range	[7.49, 8.49]
Length Range	[39, 539] km
Total Rate	7.856597E-5 /yr
Multi-Fault Rate	7.8526704E-5 /yr (99.95%)
Directly-Connected Faults	5
All Co-Rupturing Faults	63

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

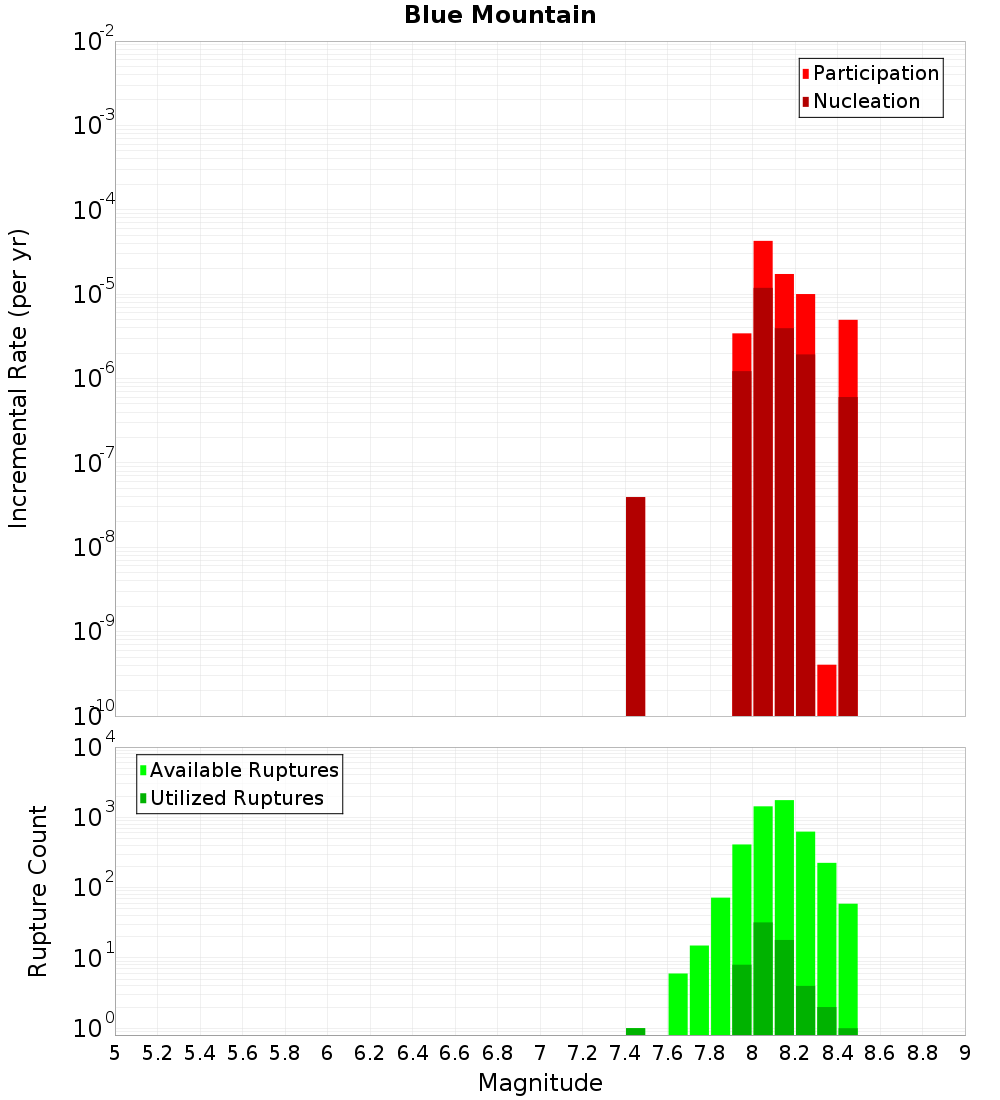

Magnitude-Frequency Distribution

Incremental	Cumulative

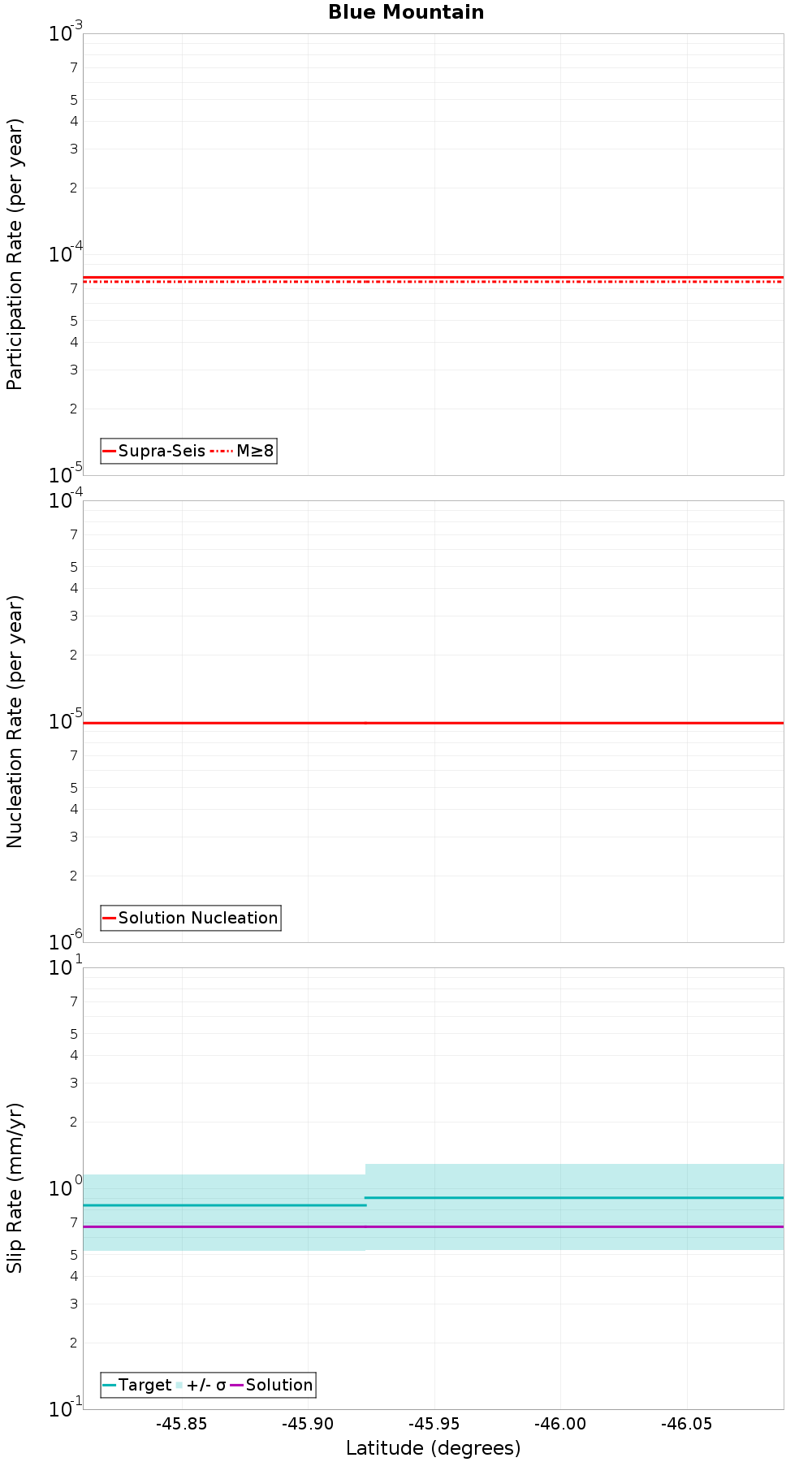

Along-Strike Values

Moment-Rates and b-Values

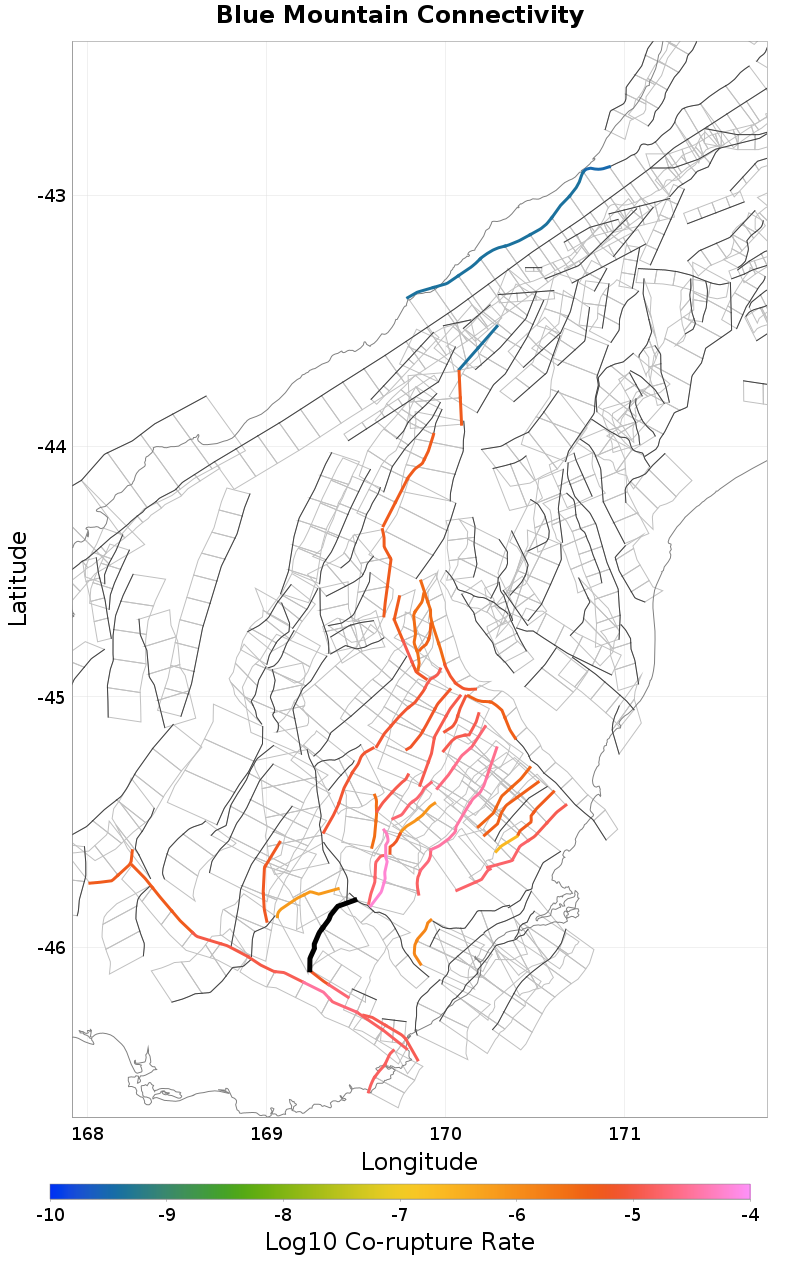

Connectivity

Nearby Sections

Fault Section
Tuapeka, 0.06 km away
Beacon Hill, 0.19 km away
Teviot, 0.86 km away
Backbone, 1.38 km away
Beaumont River, 3.51 km away
Spylaw, 4.01 km away
Clifton, 4.87 km away
Hillfoot, 6.17 km away
Little Hillfoot, 12.4 km away
Hyde South - The Twins, 14.6 km away

Tuapeka, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,402
Co-rupture Rate	1.867166E-5

Teviot, 0.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	139
Co-rupture Rate	0.0

Backbone, 1.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,992
Co-rupture Rate	1.608166E-5

Beaumont River, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,589
Co-rupture Rate	6.244504E-5

Spylaw, 4.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	807
Co-rupture Rate	6.690733E-7

Clifton, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hillfoot, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,291
Co-rupture Rate	3.223302E-5

Little Hillfoot, 12.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	110
Co-rupture Rate	1.2214543E-5

Hyde South - The Twins, 14.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	388
Co-rupture Rate	2.0187E-5
