Clarence: Central Details

PropertyValue
Rupture Count41,037
Ruptures Above Sect Min Mag41,034
Ruptures w/ Nonzero Rates320
Magnitude Range[7.07, 8.65]
Length Range[22, 973] km
Total Rate6.1672076E-4 /yr
Multi-Fault Rate5.367528E-4 /yr (87.03%)
Directly-Connected Faults5
All Co-Rupturing Faults248

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

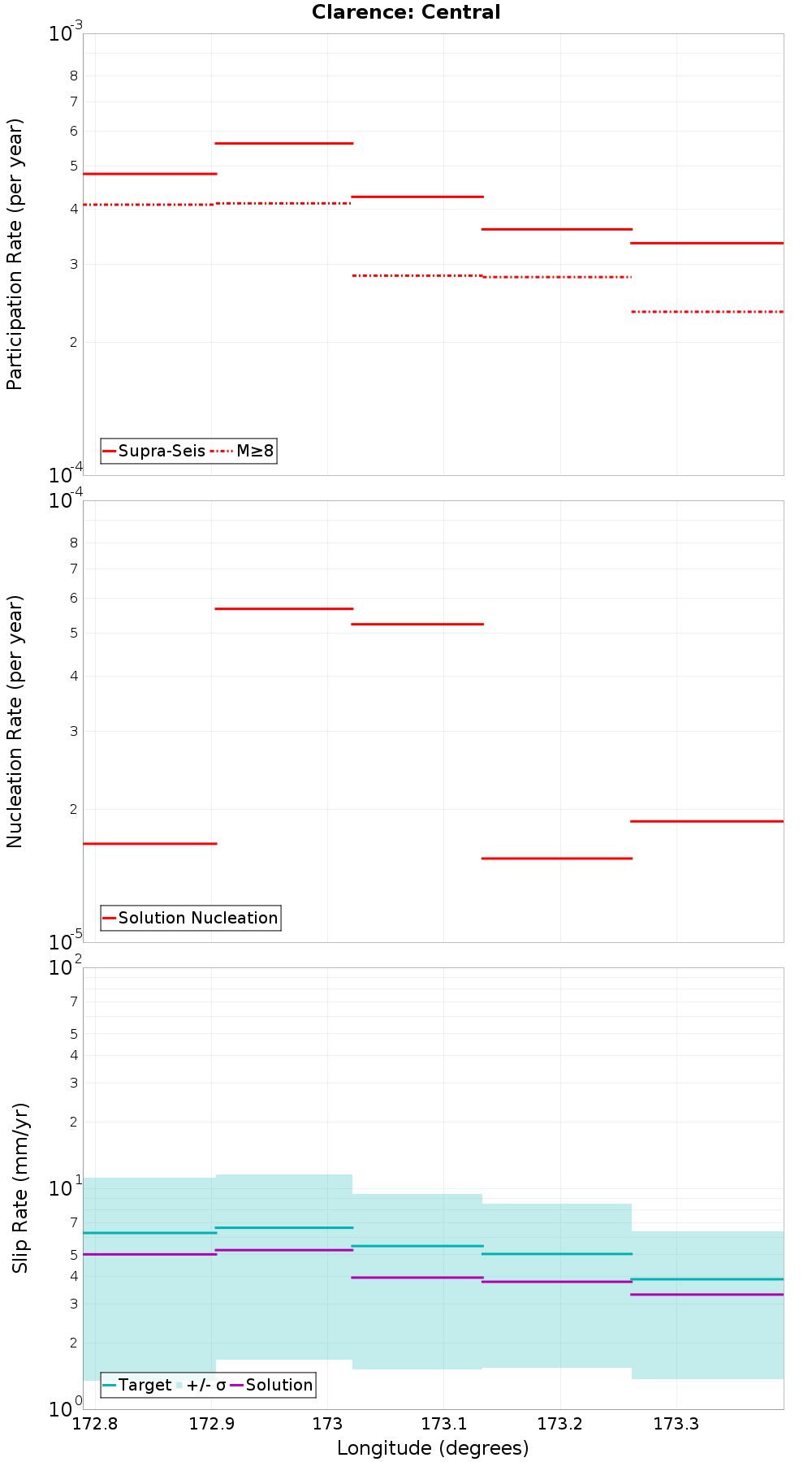

Along-Strike Values

(top)

Along-strike plot

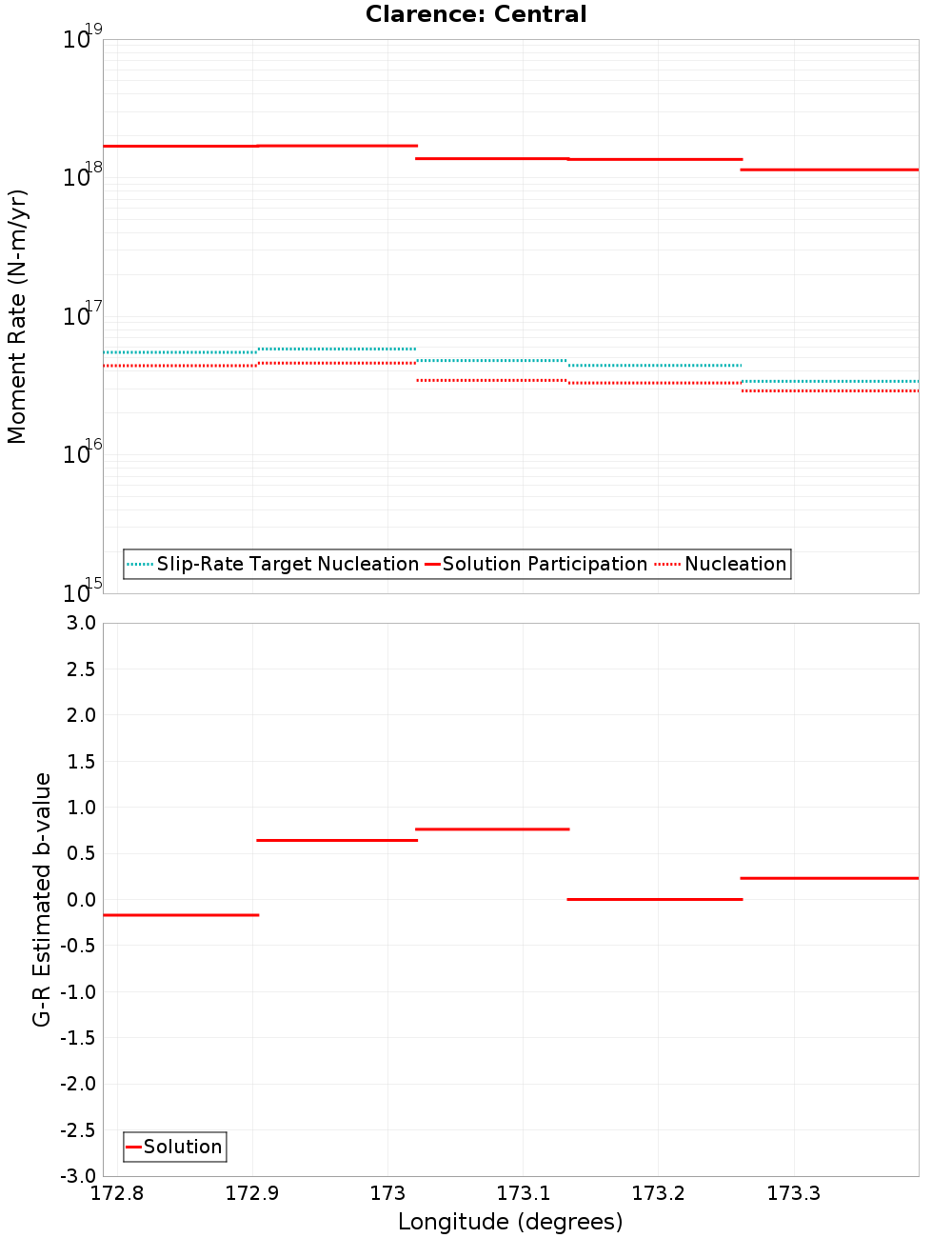

Moment-Rates and b-Values

(top)

Along-strike plot

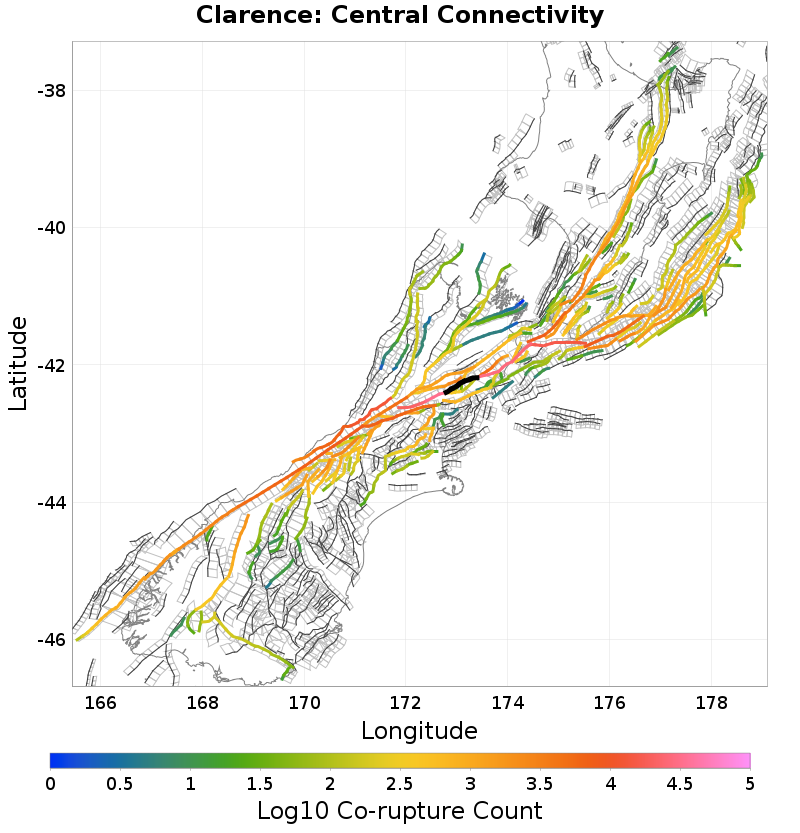

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Clarence: Southwest, 0 km away
Elliott, 0 km away
Fowlers, 0.07 km away
Clarence: Northeast, 0.09 km away
Barefell, 0.11 km away
Acheron, 0.27 km away
Dillon, 0.32 km away
Fidget, 3.22 km away
Jordan, 7.28 km away
Awatere: Northeast 1, 10.17 km away
Shingle Peak, 10.84 km away
Awatere: Southwest, 12.19 km away
Hanmer, 13.19 km away
Hope: Hanmer NW, 13.28 km away

Clarence: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count33,298
Co-rupture Rate4.8775744E-4

Elliott, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count454
Co-rupture Rate2.9064824E-5

Fowlers, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count3,453
Co-rupture Rate1.4198787E-4

Clarence: Northeast, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count5,687
Co-rupture Rate2.4935594E-4

Barefell, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count657
Co-rupture Rate1.4198781E-4

Acheron, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate1.46913835E-5

Dillon, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate7.057471E-6

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count28,932
Co-rupture Rate7.843105E-5

Jordan, 7.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count191
Co-rupture Rate1.2860984E-5

Awatere: Northeast 1, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count708
Co-rupture Rate1.4404861E-4

Shingle Peak, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,492
Co-rupture Rate2.0646642E-6

Hanmer, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count756
Co-rupture Rate2.081021E-5

Hope: Hanmer NW, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
