High Peak - Sheffield Details

PropertyValue
Rupture Count8,602
Ruptures Above Sect Min Mag8,595
Ruptures w/ Nonzero Rates88
Magnitude Range[6.71, 8.41]
Length Range[16, 617] km
Total Rate2.6047786E-4 /yr
Multi-Fault Rate2.604756E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults79

Table Of Contents

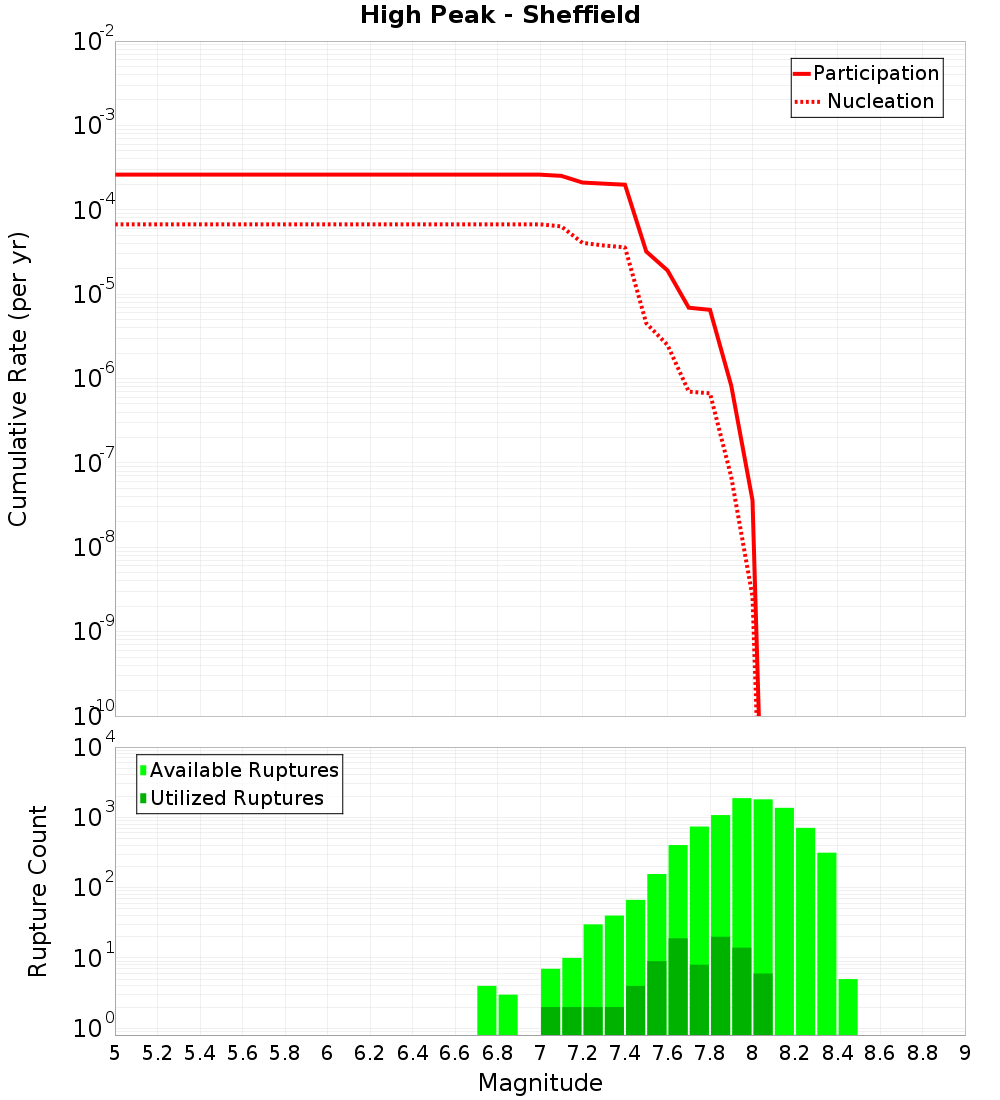

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

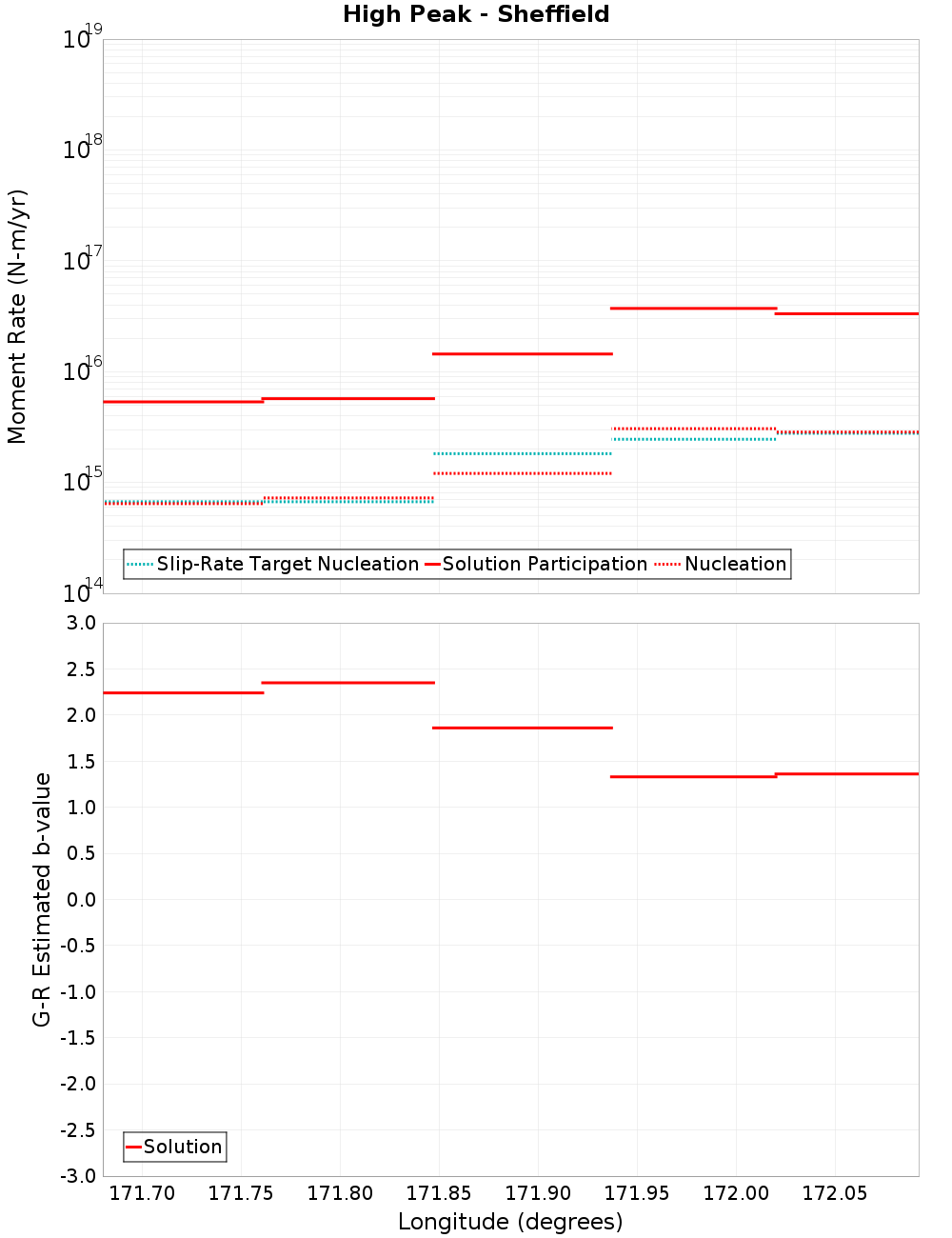

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hororata, 0.14 km away
Big Ben, 1.56 km away
Kowai - View Hill, 1.73 km away
Starvation - Ashley, 3.73 km away
Knowles Top, 6 km away
Hutt Peel, 6.61 km away
Lees Valley, 11.61 km away
Porters Pass, 12.52 km away
Esk South, 12.55 km away
Springbank, 13.42 km away
Greendale, 14.22 km away

Hororata, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count4,490
Co-rupture Rate2.456865E-4

Big Ben, 1.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,848
Co-rupture Rate2.4235821E-6

Starvation - Ashley, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count7,654
Co-rupture Rate1.8366345E-4

Knowles Top, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count700
Co-rupture Rate7.2866846E-6

Hutt Peel, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count1,137
Co-rupture Rate2.0190359E-5

Porters Pass, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 12.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count93
Co-rupture Rate5.624721E-6

Greendale, 14.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
