Hope: Hurunui Details

PropertyValue
Rupture Count148,322
Ruptures Above Sect Min Mag148,321
Ruptures w/ Nonzero Rates659
Magnitude Range[6.83, 8.71]
Length Range[14, 1,083] km
Total Rate7.4804615E-4 /yr
Multi-Fault Rate7.4804615E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults255

Table Of Contents

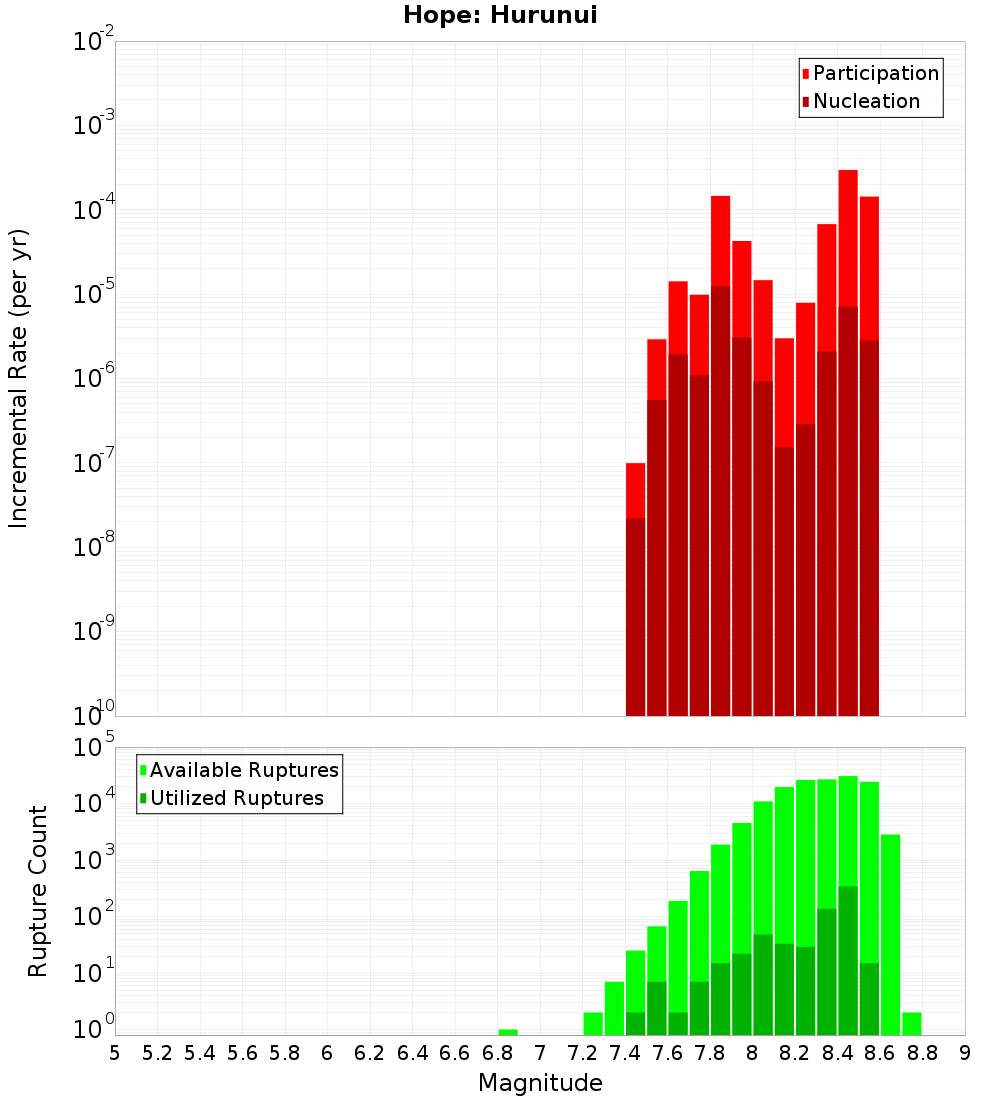

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

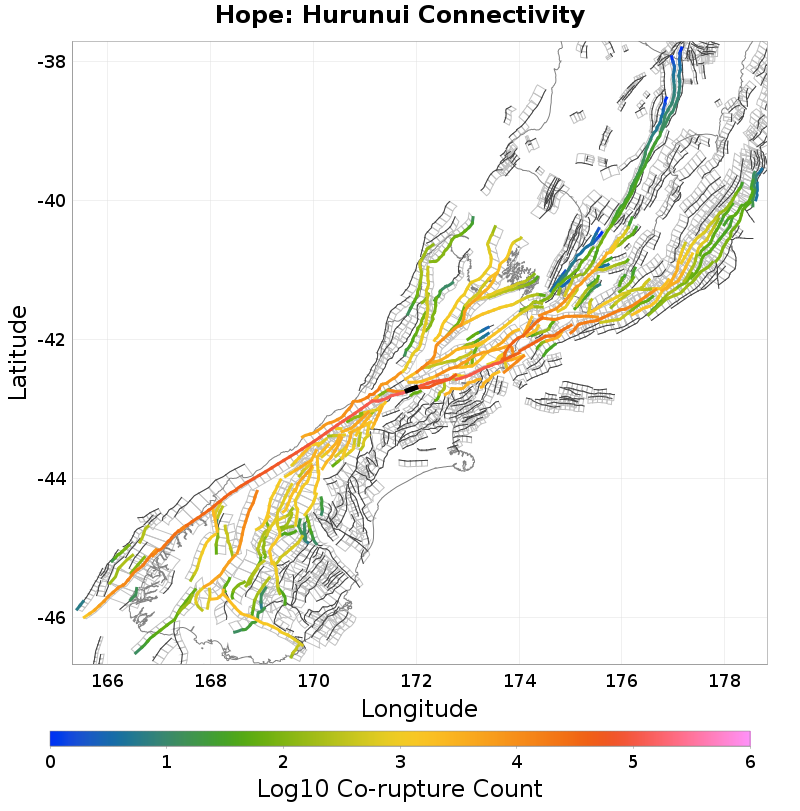

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Kelly, 0 km away
Hope: Hope River, 0 km away
Hohonu North, 0.13 km away
Alpine: Kaniere to Springs Junction, 0.19 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away
Mt White, 13.57 km away

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count56,190
Co-rupture Rate4.0095294E-4

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count12,997
Co-rupture Rate3.5900717E-5

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count144,501
Co-rupture Rate7.4788823E-4

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count96,435
Co-rupture Rate3.4136107E-4

Hohonu North, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count8,056
Co-rupture Rate3.7046346E-9

Alpine: Kaniere to Springs Junction, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count16,418
Co-rupture Rate2.031173E-4

Poulter, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate6.078401E-6

Clarence: Southwest, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count10,149
Co-rupture Rate7.019065E-5

Mt White, 13.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
