Horse Flat Details

Property	Value
Rupture Count	399
Ruptures Above Sect Min Mag	398
Ruptures w/ Nonzero Rates	34
Magnitude Range	[7.10, 8.32]
Length Range	[23, 348] km
Total Rate	8.110409E-5 /yr
Multi-Fault Rate	8.110245E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	38

Table Of Contents

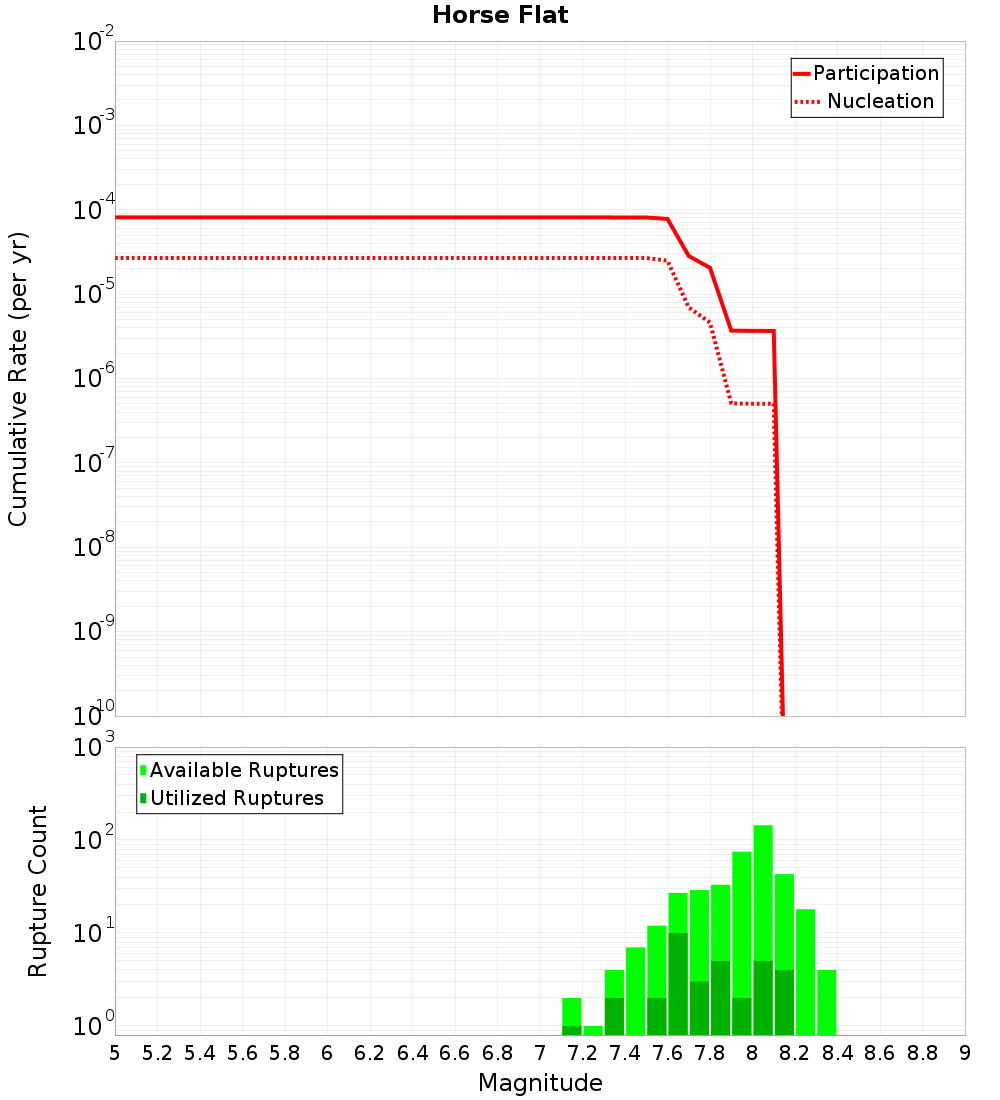

Magnitude-Frequency Distribution

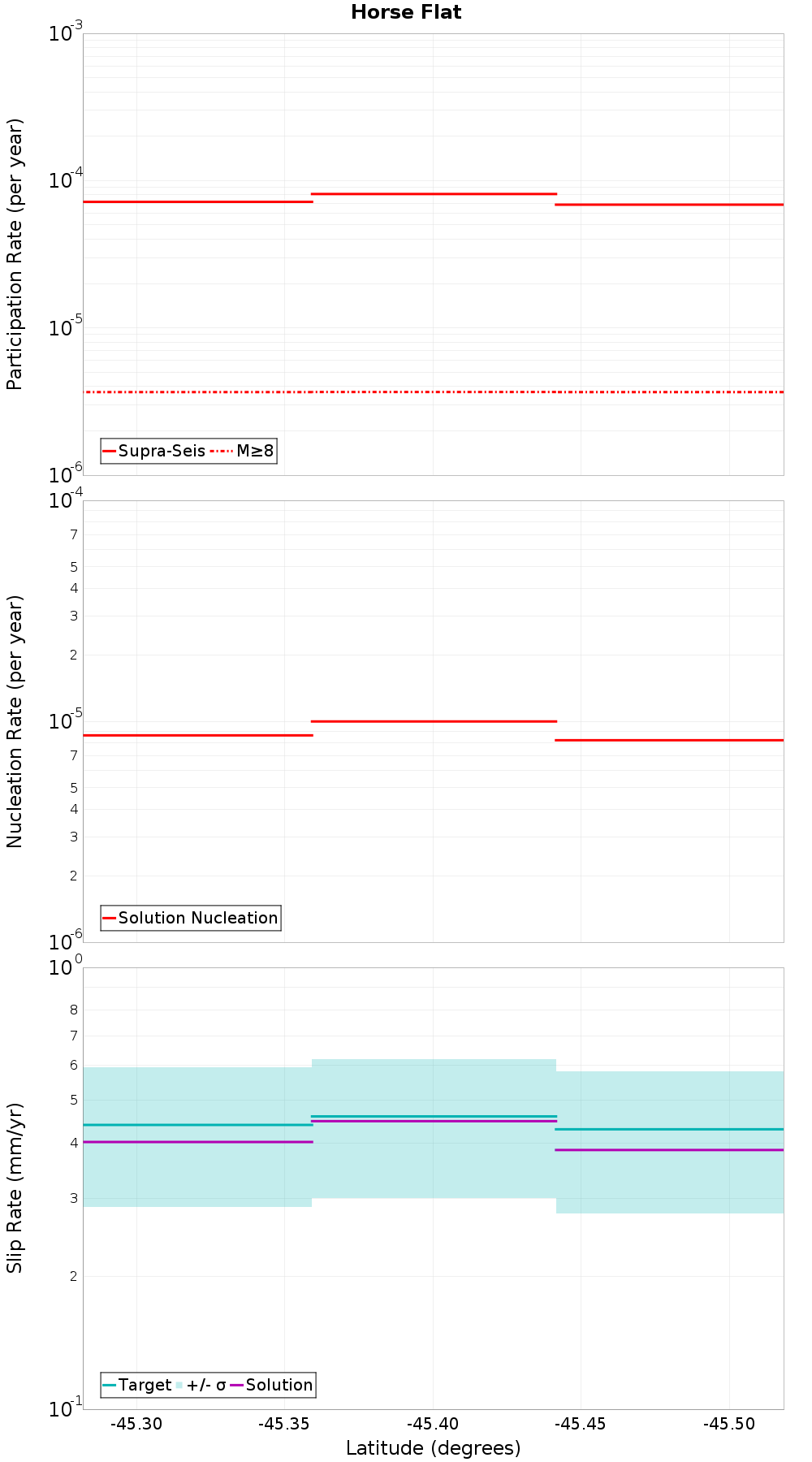

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ranfurly, 0.11 km away
Waipiata, 0.28 km away
Pylap, 0.46 km away
Billys Ridge, 2.27 km away
Waihemo, 2.81 km away
Logan Burn, 4.1 km away
Murphys Creek, 5.19 km away
Hyde North, 6 km away
Long Valley, 7.21 km away
Cross Eden, 7.35 km away
Dunback Hill, 9.22 km away
Nichols Rock, 12.83 km away
Flat Stream - Glenpark, 13.14 km away

Ranfurly, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	91
Co-rupture Rate	5.8039303E-5

Waipiata, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	5.968681E-6

Pylap, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	188
Co-rupture Rate	3.0626612E-5

Billys Ridge, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	1.3026942E-8

Waihemo, 2.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.2257219E-5

Logan Burn, 4.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	2.5466692E-5

Murphys Creek, 5.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	5.2766435E-8

Hyde North, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	2.1713351E-5

Long Valley, 7.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	4.7714543E-6

Cross Eden, 7.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	34
Co-rupture Rate	5.3050982E-8

Dunback Hill, 9.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
