Keepa Details

Property	Value
Rupture Count	5,294
Ruptures Above Sect Min Mag	5,293
Ruptures w/ Nonzero Rates	114
Magnitude Range	[6.62, 8.45]
Length Range	[11, 645] km
Total Rate	1.12710346E-4 /yr
Multi-Fault Rate	1.12710346E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

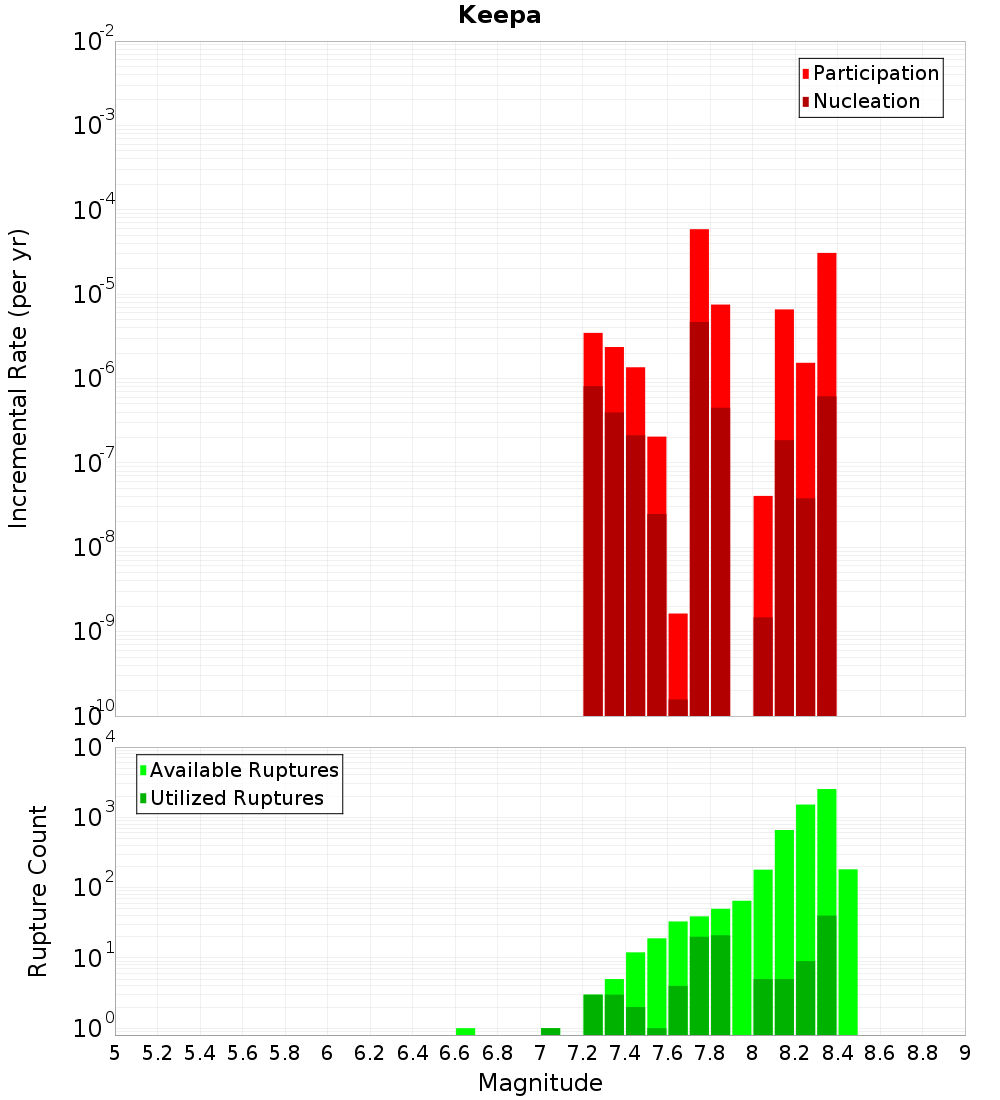

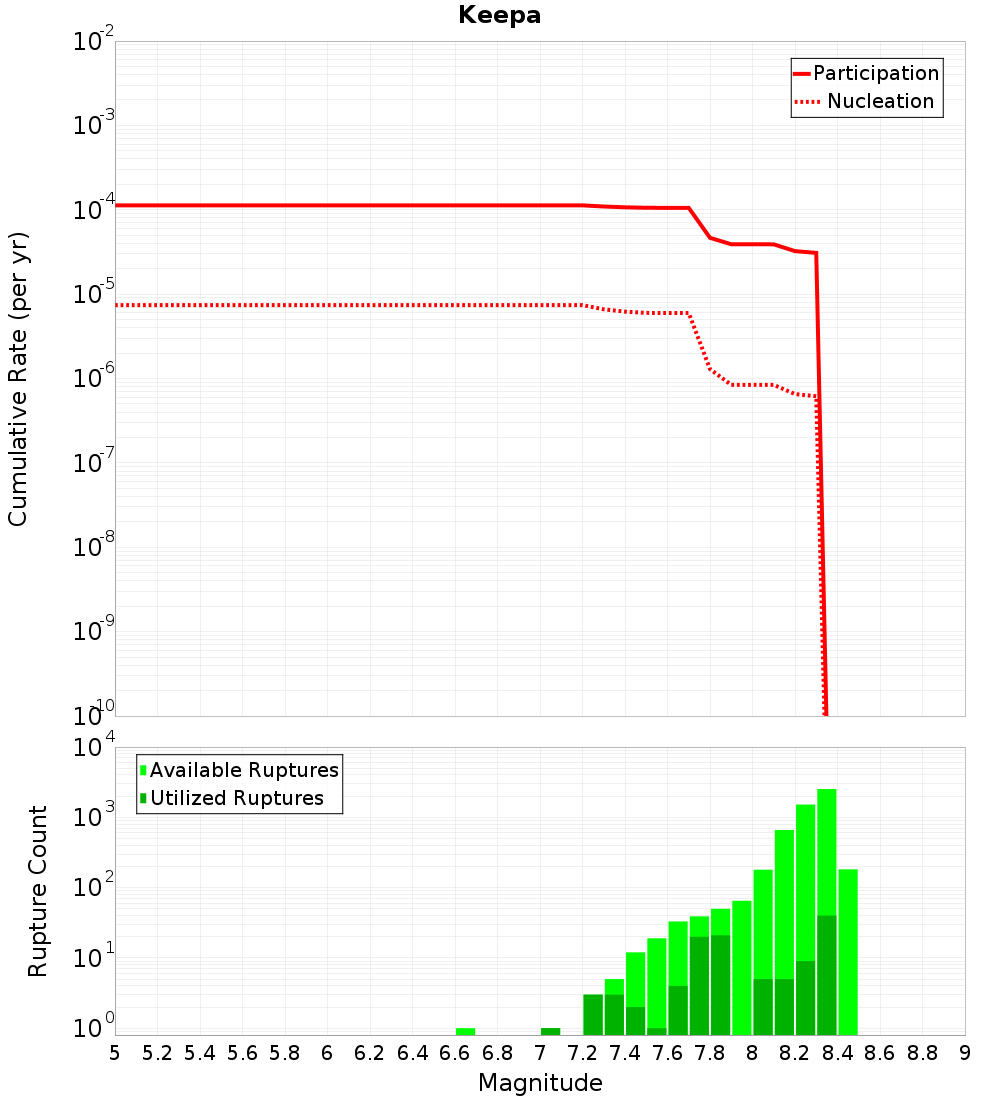

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

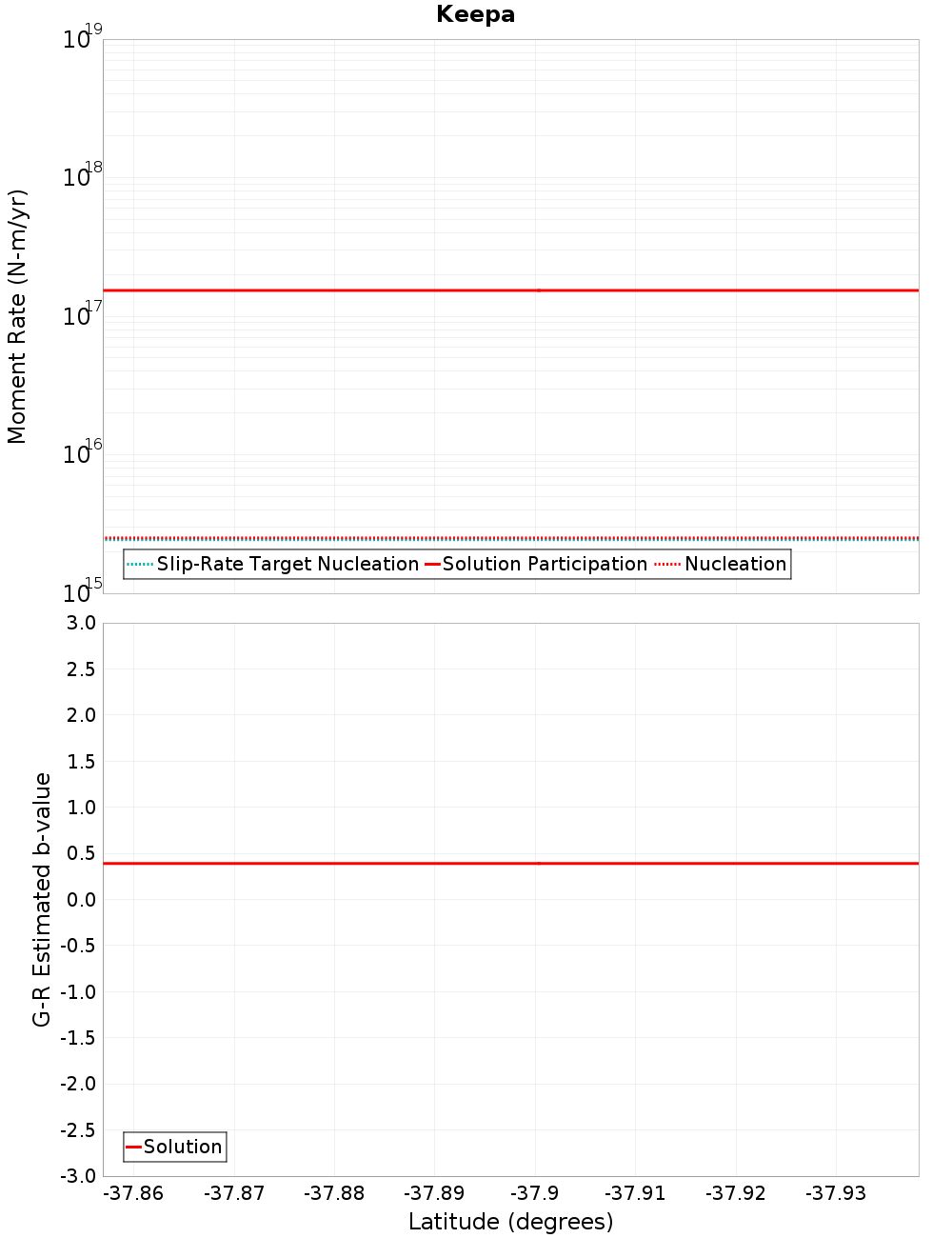

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Whakatane: North, 0 km away
White Island 1, 0.61 km away
Matata, 0.66 km away
Otakiri, 2.92 km away
Edgecumbe Coastal, 3.06 km away
Rangitaiki 1, 4.88 km away
Rangitaiki 2, 7.48 km away
Edgecumbe 1987, 8.1 km away
Waimana: North, 9.02 km away
Waimanawa - Waikaremoana, 10.57 km away
Braemar, 10.8 km away
Waiotahi: North, 11.27 km away

Whakatane: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,717
Co-rupture Rate	8.470262E-5

Matata, 0.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,016
Co-rupture Rate	1.1206755E-4

Otakiri, 2.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,041
Co-rupture Rate	2.3815612E-5

Edgecumbe Coastal, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	507
Co-rupture Rate	3.0214298E-6

Rangitaiki 1, 4.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	376
Co-rupture Rate	6.3868843E-6

Rangitaiki 2, 7.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	4.7834825E-10

Edgecumbe 1987, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	809
Co-rupture Rate	2.8367942E-6

Waimana: North, 9.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,105
Co-rupture Rate	8.22759E-5

Waimanawa - Waikaremoana, 10.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 10.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	601
Co-rupture Rate	4.8777445E-5

Waiotahi: North, 11.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	2.7391744E-9
