Martinborough Details

Property	Value
Rupture Count	3,348
Ruptures Above Sect Min Mag	3,345
Ruptures w/ Nonzero Rates	50
Magnitude Range	[6.72, 8.57]
Length Range	[15, 864] km
Total Rate	1.1418436E-4 /yr
Multi-Fault Rate	1.1418436E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	148

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

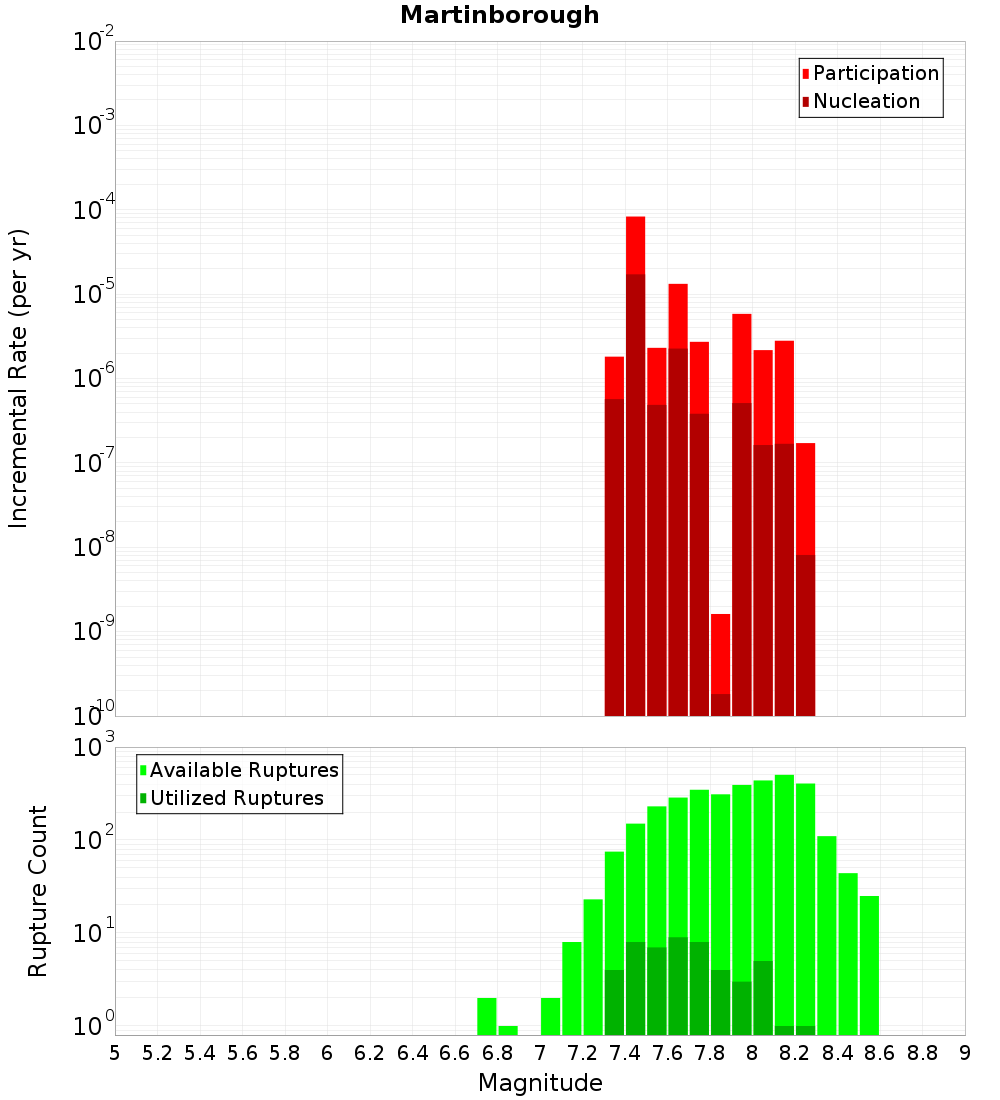

Magnitude-Frequency Distribution

Incremental	Cumulative

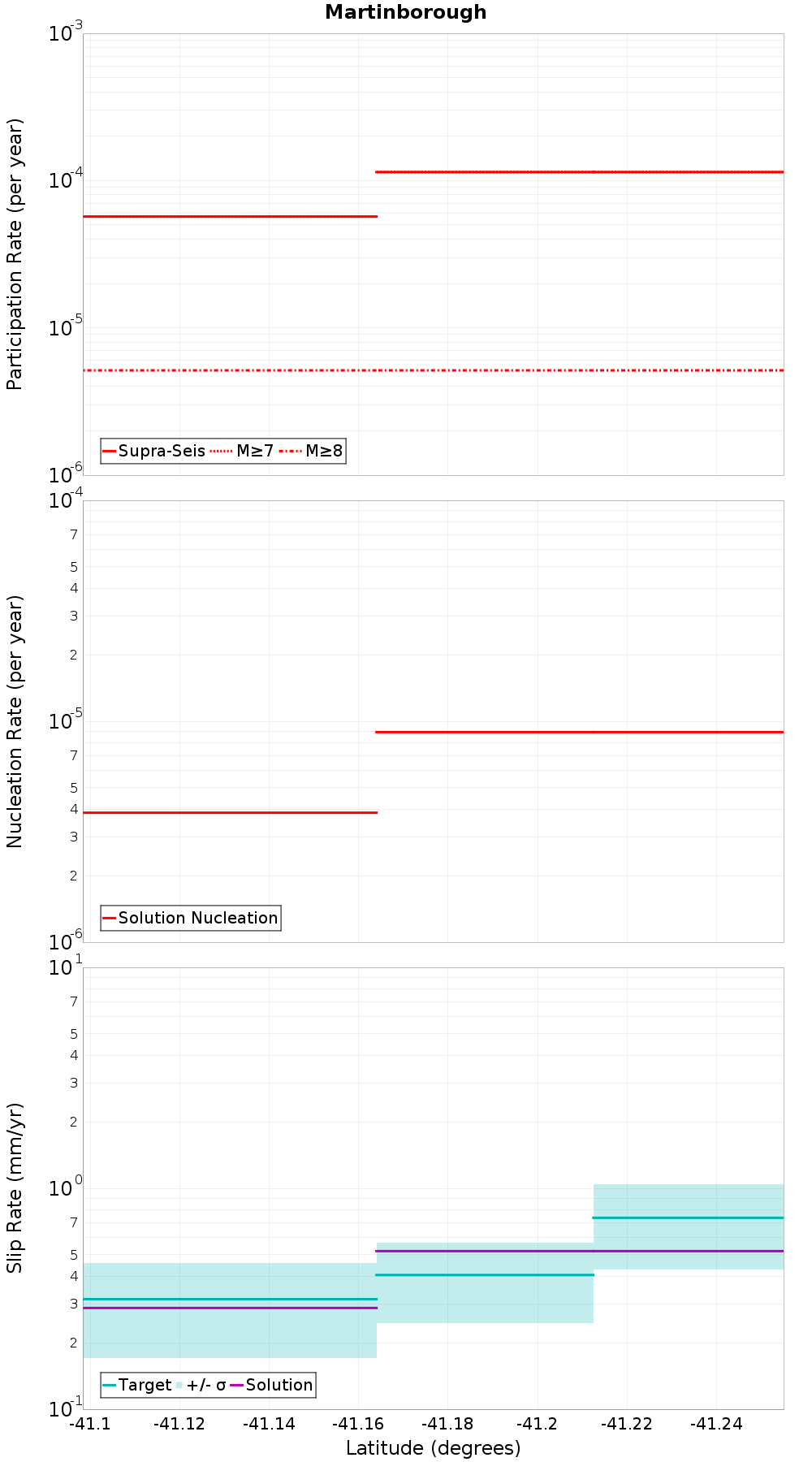

Along-Strike Values

Moment-Rates and b-Values

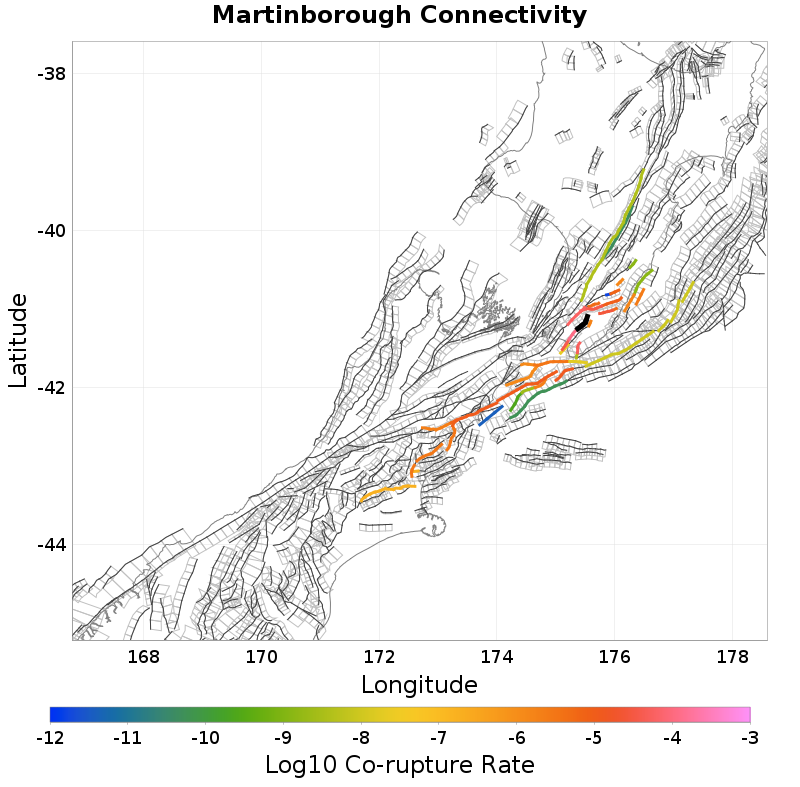

Connectivity

Nearby Sections

Fault Section
Carterton, 0.24 km away
Otaraia, 1.89 km away
Masterton, 2.08 km away
Bidwill, 2.26 km away
Dry River - Huangarua: 1, 4.4 km away
Dry River - Huangarua: 2, 4.43 km away
Dry River - Huangarua: 3, 5.54 km away
Wairarapa: 3, 9.49 km away
Wairarapa: 2, 9.65 km away
Wellington Hutt Valley: 5, 10.68 km away
Mokonui Southwest, 12.59 km away

Carterton, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,895
Co-rupture Rate	4.2669682E-5

Otaraia, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,229
Co-rupture Rate	1.1418436E-4

Masterton, 2.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	42
Co-rupture Rate	5.058341E-6

Bidwill, 2.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 1, 4.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	862
Co-rupture Rate	2.0784963E-8

Dry River - Huangarua: 2, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	0.0

Dry River - Huangarua: 3, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	1.7909111E-6

Wairarapa: 3, 9.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	true
Co-rupture Count	170
Co-rupture Rate	5.722317E-5

Wairarapa: 2, 9.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	77
Co-rupture Rate	5.7223177E-5

Wellington Hutt Valley: 5, 10.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	0.0

Mokonui Southwest, 12.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
