Mungo Details

PropertyValue
Rupture Count10,923
Ruptures Above Sect Min Mag10,917
Ruptures w/ Nonzero Rates361
Magnitude Range[6.68, 8.49]
Length Range[14, 620] km
Total Rate5.2716985E-4 /yr
Multi-Fault Rate5.2716985E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults205

Table Of Contents

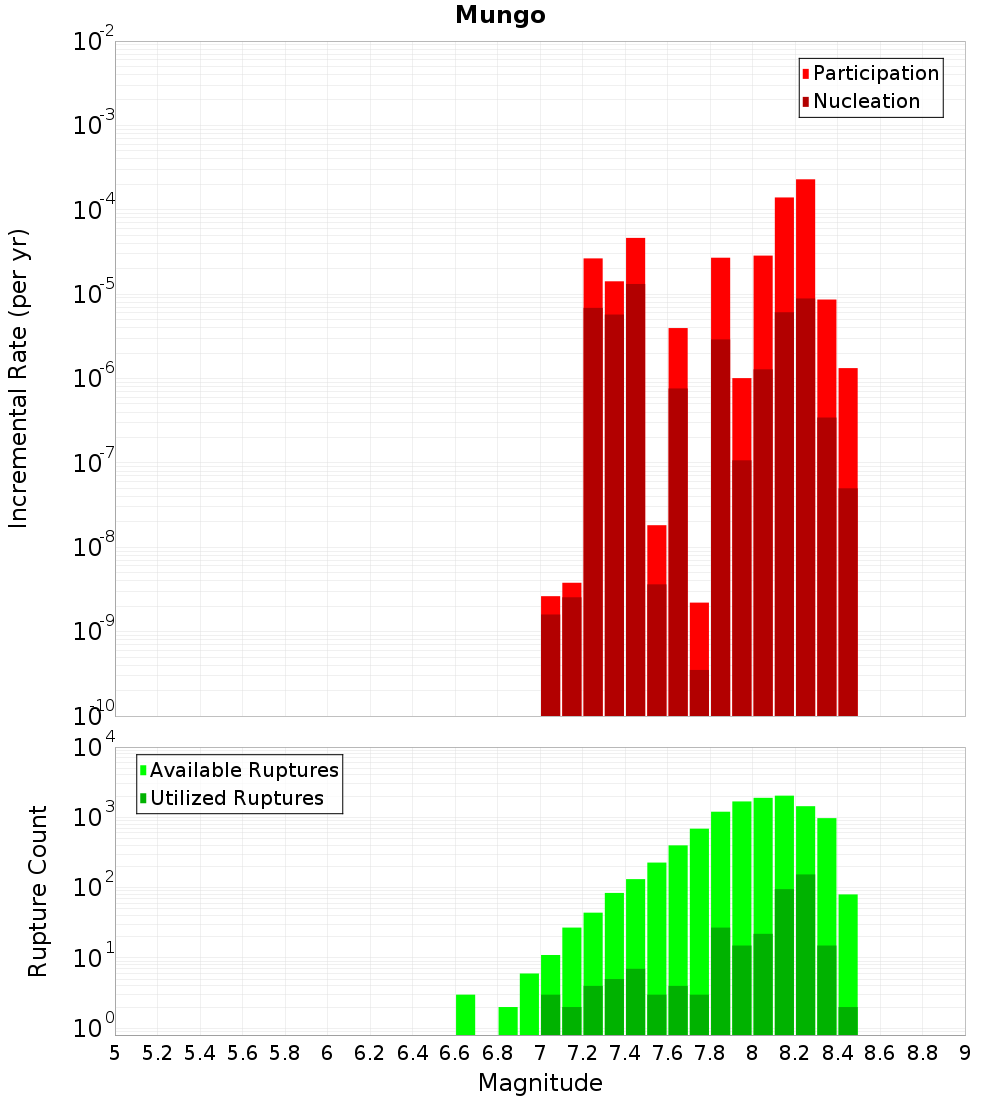

Magnitude-Frequency Distribution

(top)

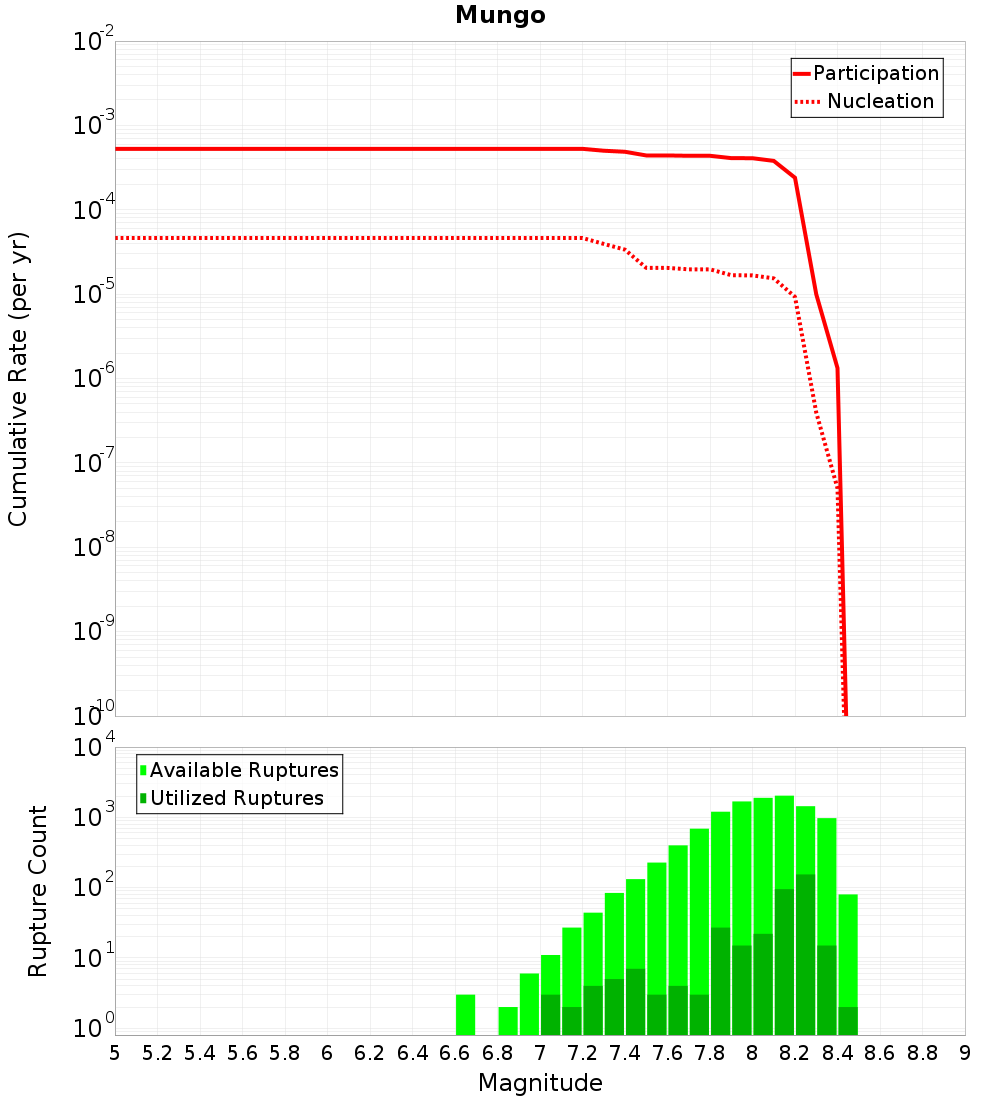

IncrementalCumulative
Incremental PlotCumulative Plot

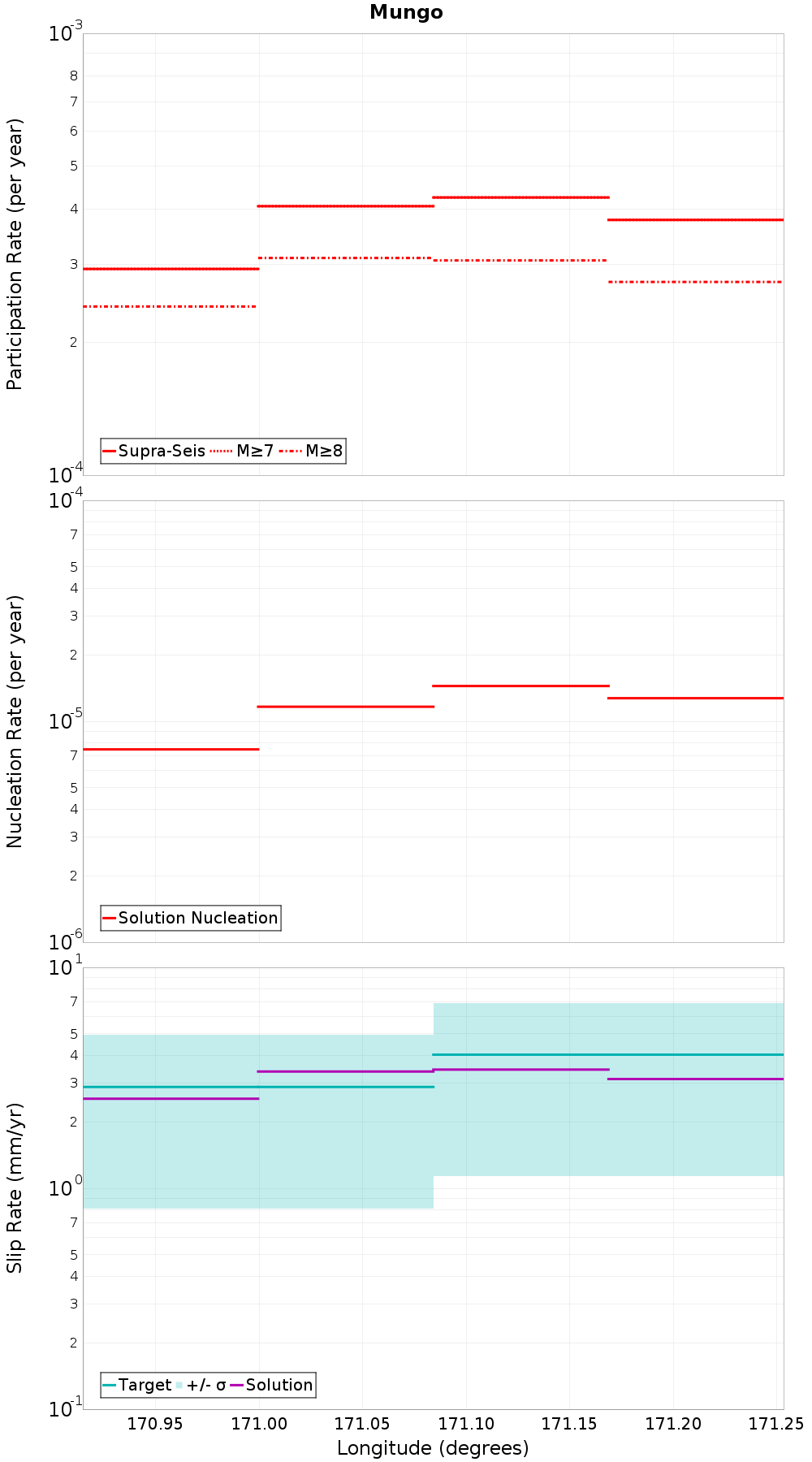

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waitaha, 0.07 km away
Mathias, 0.1 km away
Lord Range, 0.15 km away
Mistake - Rolleston, 0.42 km away
Browning Pass, 0.92 km away
Alpine: Jacksons to Kaniere, 1 km away
Observation, 1.74 km away
Bruce, 4.45 km away
Hohonu South, 7.08 km away
Jagged, 7.15 km away
Alpine: Kaniere to Springs Junction, 13.41 km away
Kelly, 13.58 km away

Waitaha, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,743
Co-rupture Rate1.6401423E-4

Mathias, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count3,660
Co-rupture Rate1.5522105E-4

Lord Range, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count2,197
Co-rupture Rate6.591875E-5

Mistake - Rolleston, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate6.3565916E-5

Browning Pass, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count161
Co-rupture Rate3.1131576E-6

Alpine: Jacksons to Kaniere, 1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count6,245
Co-rupture Rate4.455648E-4

Observation, 1.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count4,427
Co-rupture Rate1.2752054E-4

Bruce, 4.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count3,221
Co-rupture Rate1.1636574E-4

Hohonu South, 7.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count1,496
Co-rupture Rate6.897115E-9

Jagged, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count231
Co-rupture Rate5.364472E-16

Alpine: Kaniere to Springs Junction, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count880
Co-rupture Rate1.6857439E-4

Kelly, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count1,201
Co-rupture Rate0.0
