Opouawe - Uruti Details

PropertyValue
Rupture Count126,904
Ruptures Above Sect Min Mag126,889
Ruptures w/ Nonzero Rates252
Magnitude Range[6.91, 8.68]
Length Range[20, 1,082] km
Total Rate6.909085E-4 /yr
Multi-Fault Rate6.909077E-4 /yr (100.00%)
Directly-Connected Faults19
All Co-Rupturing Faults214

Table Of Contents

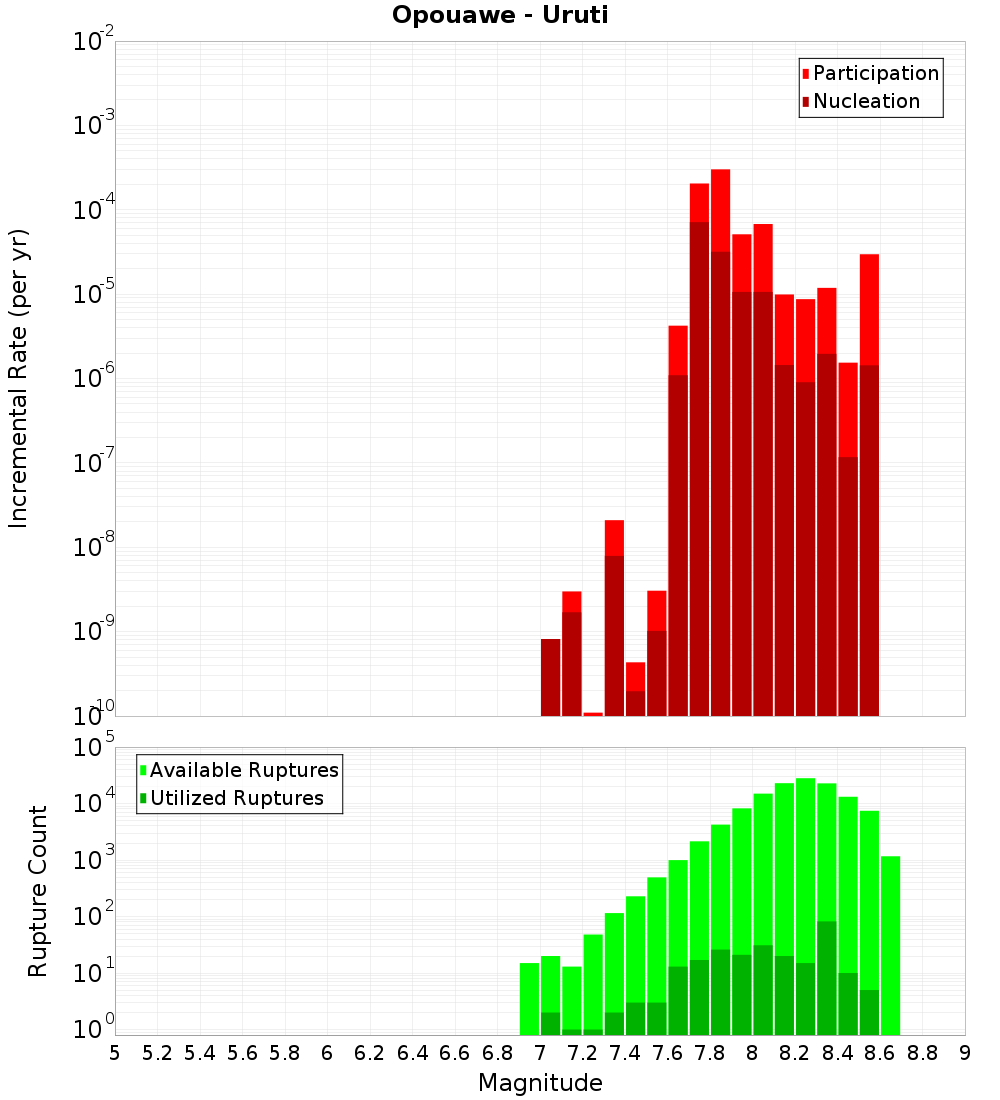

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

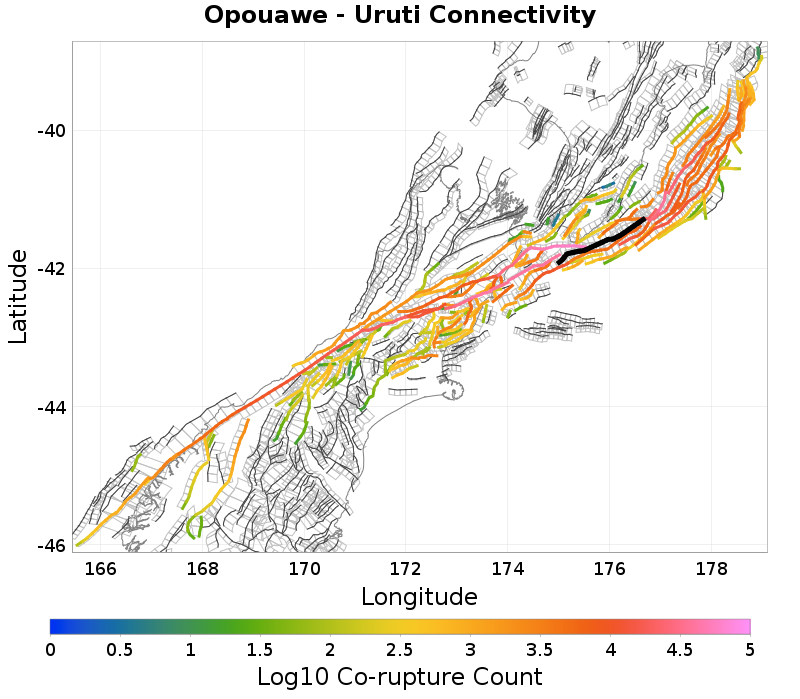

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
BooBoo, 0.13 km awayHoneycomb, 5.87 km away
Uruti Basin 2, 0.14 km awayPahaua SE2, 5.88 km away
Uruti Basin, 0.16 km awayPukeroro Ridge, 7.02 km away
Te Rapa 2, 0.25 km awayOtaraia, 7.92 km away
Pukeroro 2, 1.18 km awayPalliser - Kaiwhata, 8.58 km away
Uruti Ridge 2, 2.44 km awayGlendhu Ridge, 9.19 km away
Pahaua, 2.68 km awayAorangi Trough, 9.52 km away
Pahaua SE1, 3.87 km awayHoneycomb Ridge, 11.16 km away
Ngapotiki, 4.01 km awayUpper Slope, 13.4 km away
Kekerengu Bank, 5.25 km awayUruti North, 13.46 km away
Porangahau Basin, 5.42 km awayCampbell Bank, 13.96 km away
Uruti East - PorWest 1, 5.48 km awayDry River - Huangarua: 1, 14.3 km away

BooBoo, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count60,018
Co-rupture Rate1.0470614E-4

Uruti Basin 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count5,781
Co-rupture Rate3.1344392E-8

Uruti Basin, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count23,794
Co-rupture Rate1.7992641E-4

Te Rapa 2, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count38,874
Co-rupture Rate9.01477E-5

Pukeroro 2, 1.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count16,037
Co-rupture Rate7.571384E-5

Uruti Ridge 2, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count20,488
Co-rupture Rate3.683362E-6

Pahaua, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count6,849
Co-rupture Rate5.562084E-10

Pahaua SE1, 3.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count406
Co-rupture Rate0.0

Ngapotiki, 4.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,138
Co-rupture Rate2.280742E-5

Kekerengu Bank, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count12,574
Co-rupture Rate2.3547238E-5

Porangahau Basin, 5.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count23,827
Co-rupture Rate3.0184392E-4

Uruti East - PorWest 1, 5.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count41,069
Co-rupture Rate1.8174297E-4

Honeycomb, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count5,375
Co-rupture Rate7.168364E-6

Pahaua SE2, 5.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,072
Co-rupture Rate2.7791414E-10

Pukeroro Ridge, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count8,945
Co-rupture Rate2.013167E-6

Otaraia, 7.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count2,477
Co-rupture Rate6.869801E-5

Palliser - Kaiwhata, 8.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count443
Co-rupture Rate0.0

Glendhu Ridge, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,181
Co-rupture Rate2.188073E-8

Aorangi Trough, 9.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count15,622
Co-rupture Rate6.809766E-5

Honeycomb Ridge, 11.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate0.0

Upper Slope, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count5,143
Co-rupture Rate4.7279445E-5

Uruti North, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count2,811
Co-rupture Rate1.11872875E-8

Campbell Bank, 13.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count5,947
Co-rupture Rate2.9771292E-5

Dry River - Huangarua: 1, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count388
Co-rupture Rate1.5220267E-5
