Pakupaku Ridge Details

PropertyValue
Rupture Count32,449
Ruptures Above Sect Min Mag32,446
Ruptures w/ Nonzero Rates18
Magnitude Range[7.19, 8.66]
Length Range[28, 855] km
Total Rate3.7165441E-6 /yr
Multi-Fault Rate3.7165441E-6 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults95

Table Of Contents

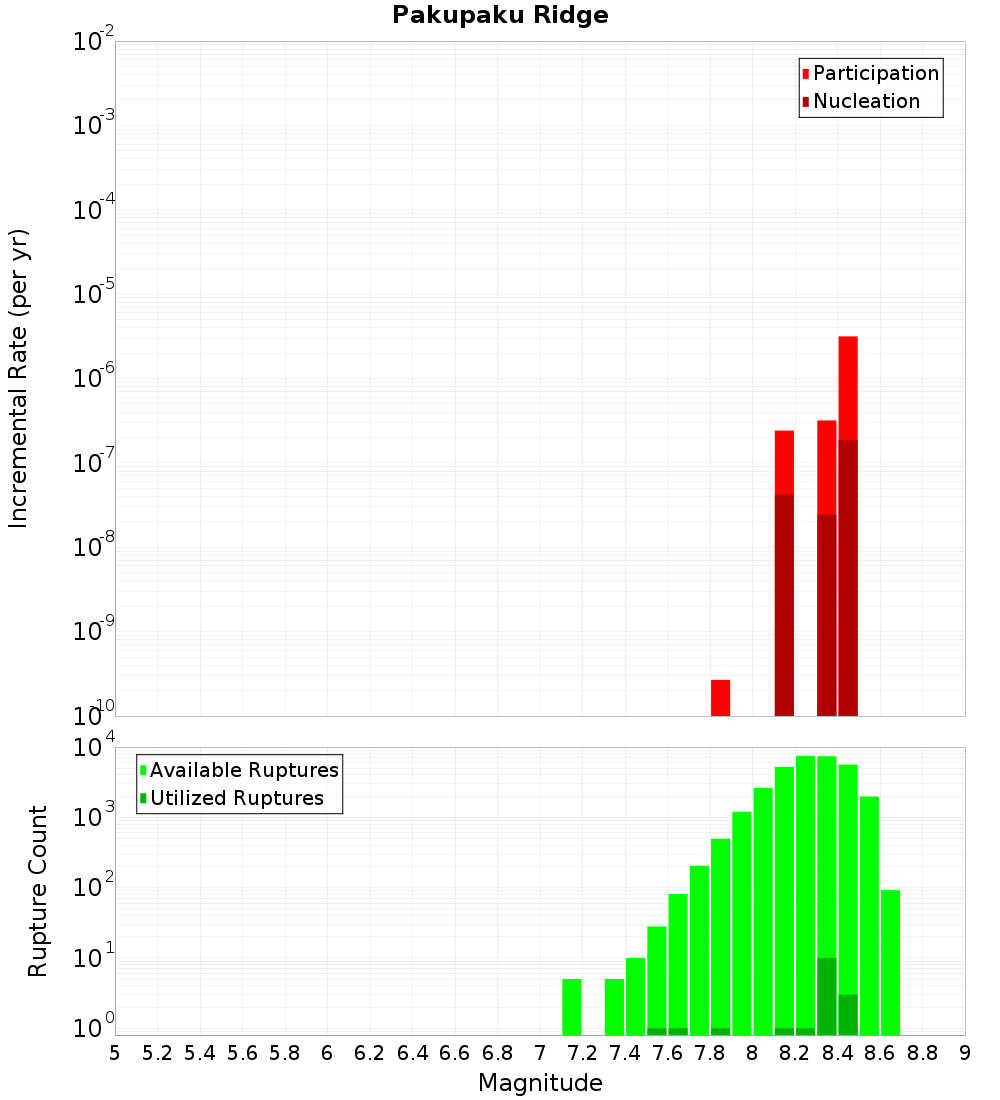

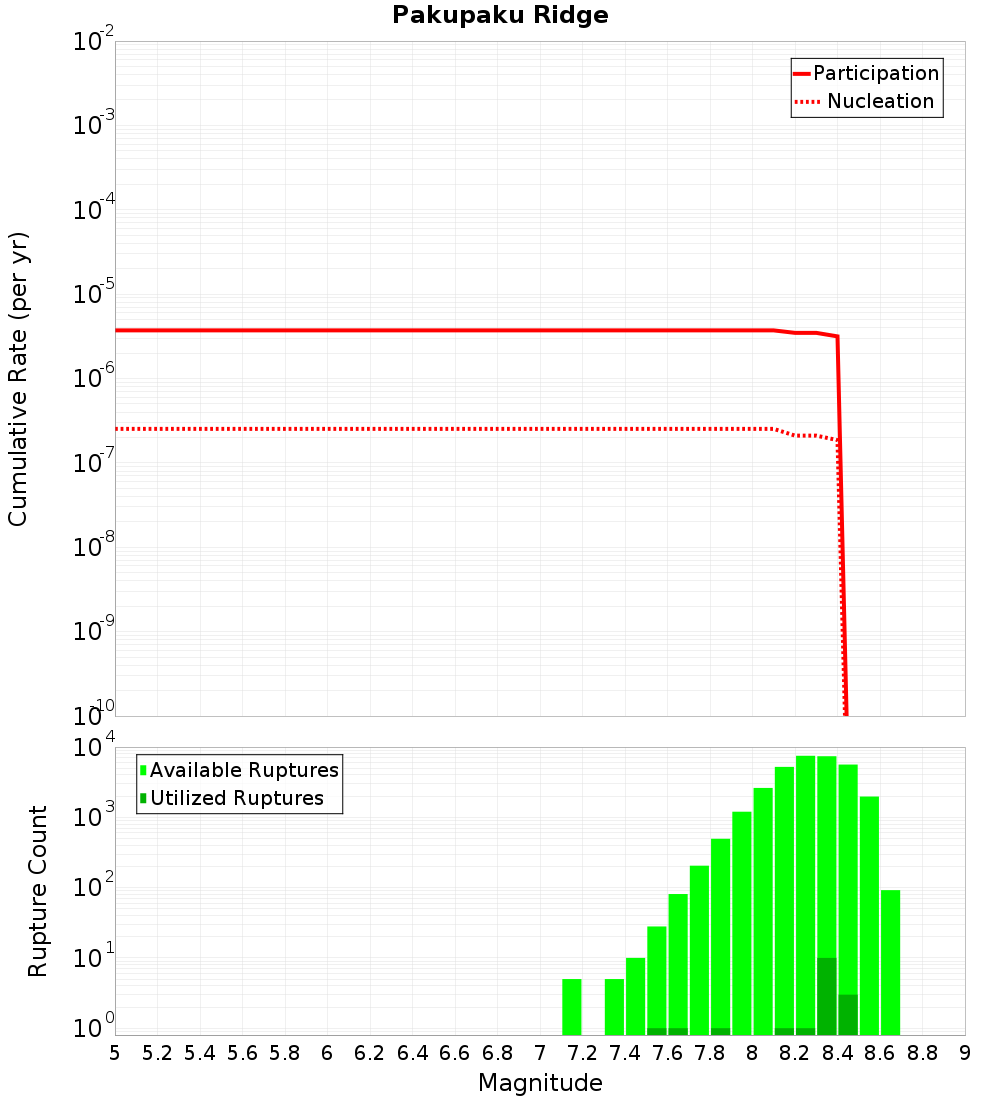

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

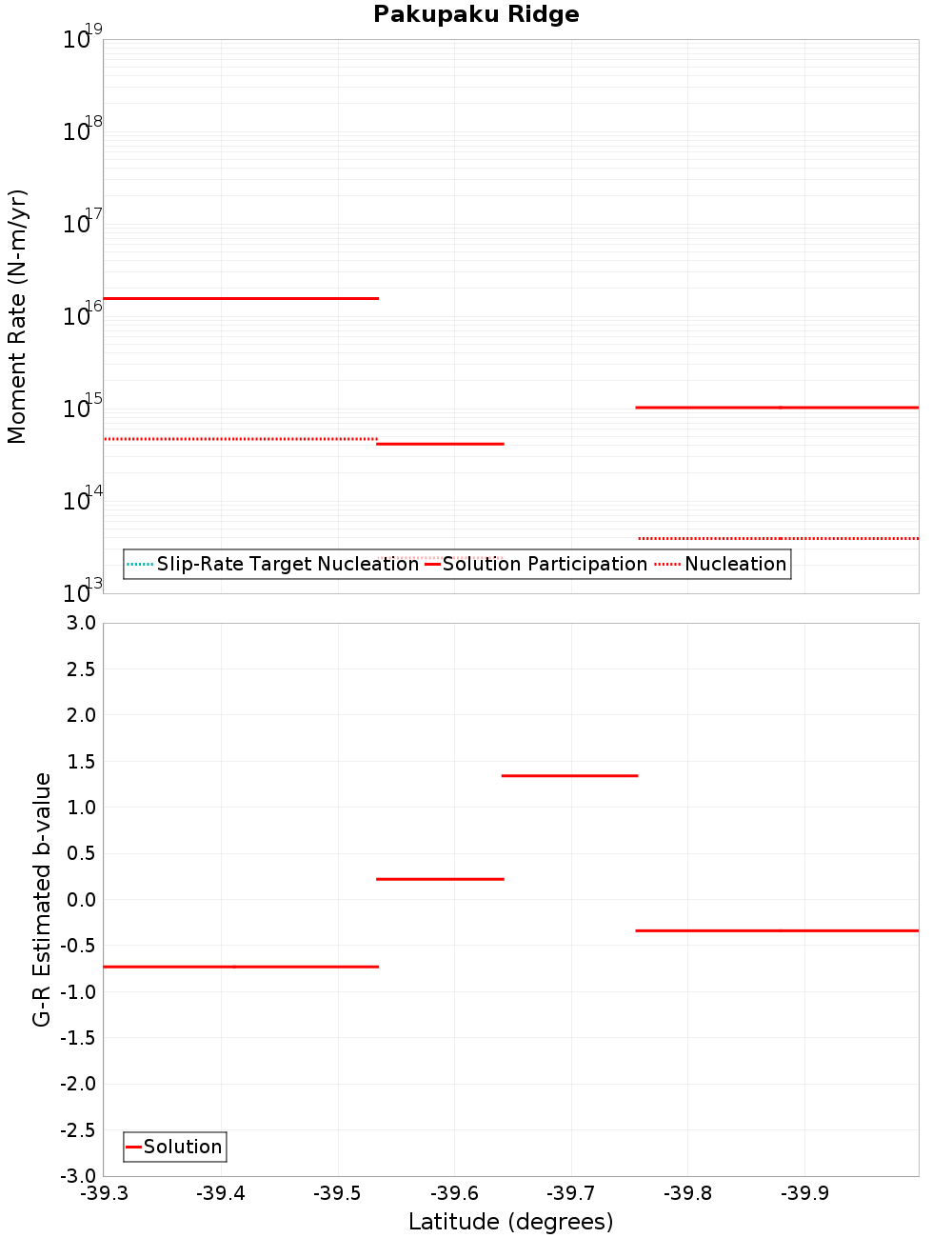

Moment-Rates and b-Values

(top)

Along-strike plot

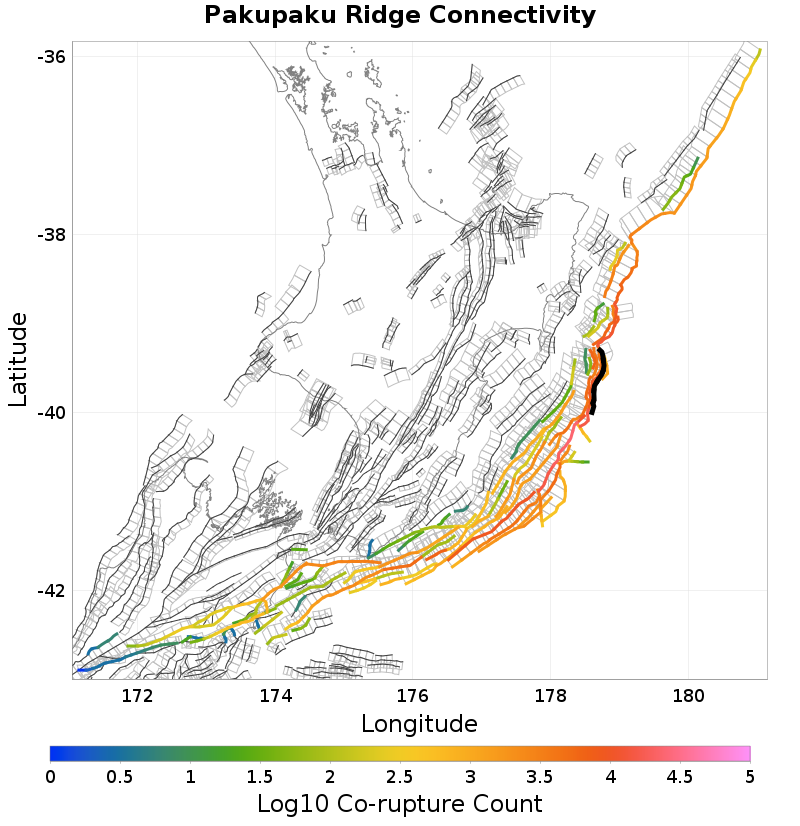

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whaiti Ridge, 0.02 km away
Te Kapu Bank, 0.07 km away
Pakupaku Ridge East, 1.22 km away
Rock Garden - Ritchie East 1, 1.28 km away
Rock Garden - Ritchie East, 1.96 km away
Te Kapu Bank East, 3.44 km away
Akitio Ridge, 3.69 km away
Puke Knoll, 5.08 km away
Ritchie Ridge, 6.34 km away
Riwha, 6.69 km away
Ritchie Ridge 1, 7.49 km away
Paoanui Ridge North, 10.71 km away
Ritchie West 1, 13.64 km away

Whaiti Ridge, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count4,257
Co-rupture Rate0.0

Te Kapu Bank, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count6,437
Co-rupture Rate7.9614494E-13

Pakupaku Ridge East, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1,078
Co-rupture Rate0.0

Rock Garden - Ritchie East 1, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count17,808
Co-rupture Rate2.4146135E-7

Rock Garden - Ritchie East, 1.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count8,310
Co-rupture Rate3.4750406E-6

Te Kapu Bank East, 3.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count4,169
Co-rupture Rate3.1580807E-6

Akitio Ridge, 3.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count23,752
Co-rupture Rate2.4177126E-7

Puke Knoll, 5.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count12,032
Co-rupture Rate2.32613E-10

Ritchie Ridge, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Riwha, 6.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count6,354
Co-rupture Rate7.9614494E-13

Ritchie Ridge 1, 7.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate0.0

Paoanui Ridge North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count1,380
Co-rupture Rate0.0

Ritchie West 1, 13.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count179
Co-rupture Rate1.7031763E-12
