Raukumara 21 Details

PropertyValue
Rupture Count6
Ruptures Above Sect Min Mag6
Ruptures w/ Nonzero Rates4
Magnitude Range[7.06, 7.65]
Length Range[19, 79] km
Total Rate5.7384743E-5 /yr
Multi-Fault Rate5.7340356E-5 /yr (99.92%)
Directly-Connected Faults3
All Co-Rupturing Faults5

Table Of Contents

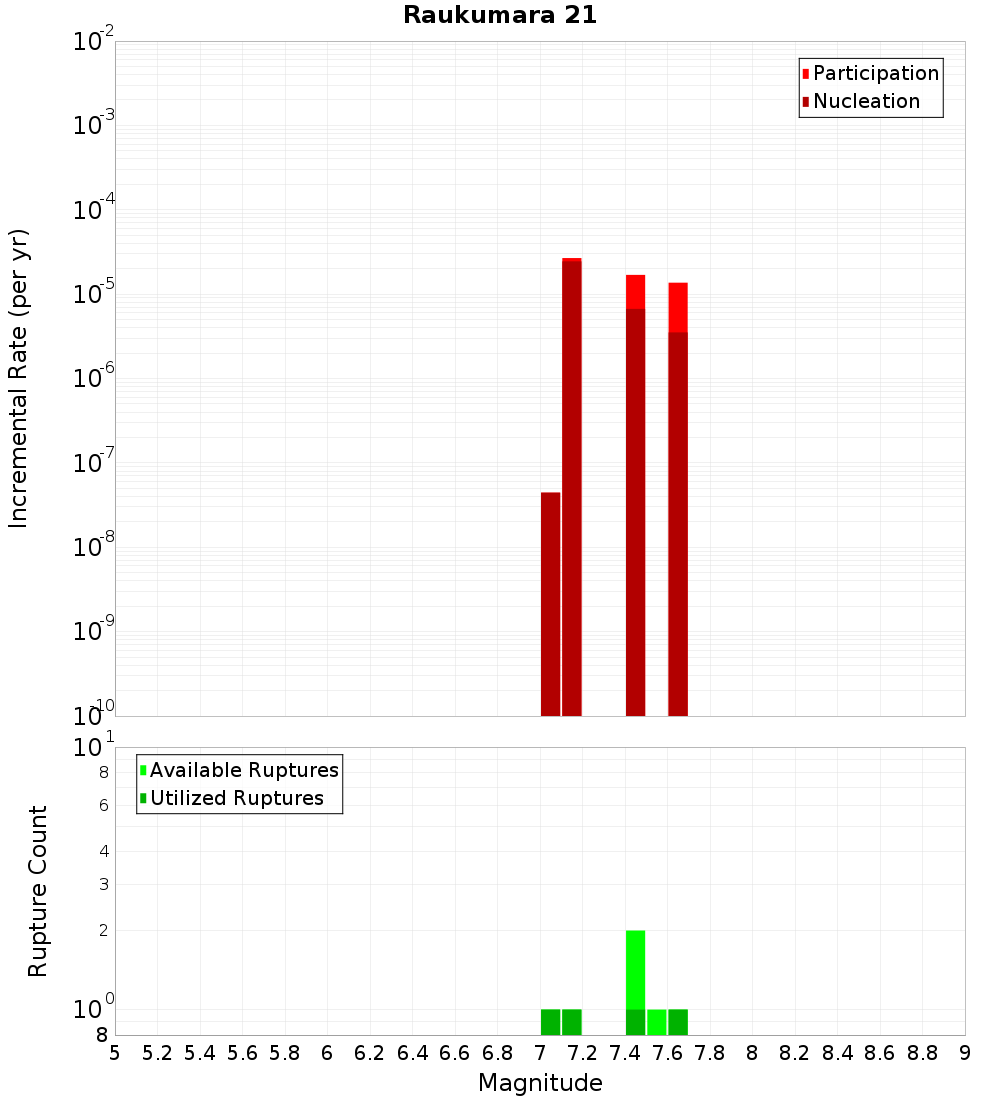

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

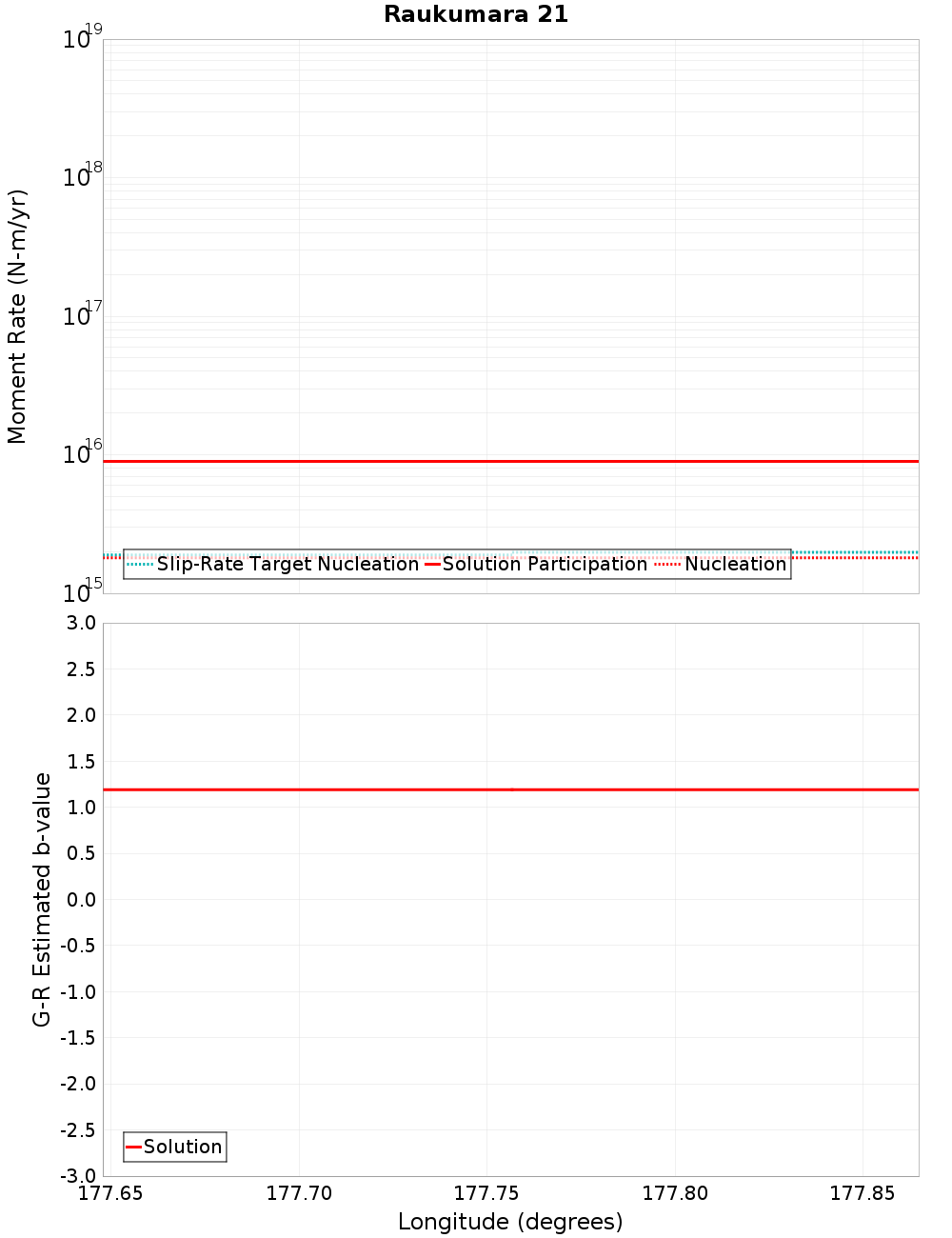

Moment-Rates and b-Values

(top)

Along-strike plot

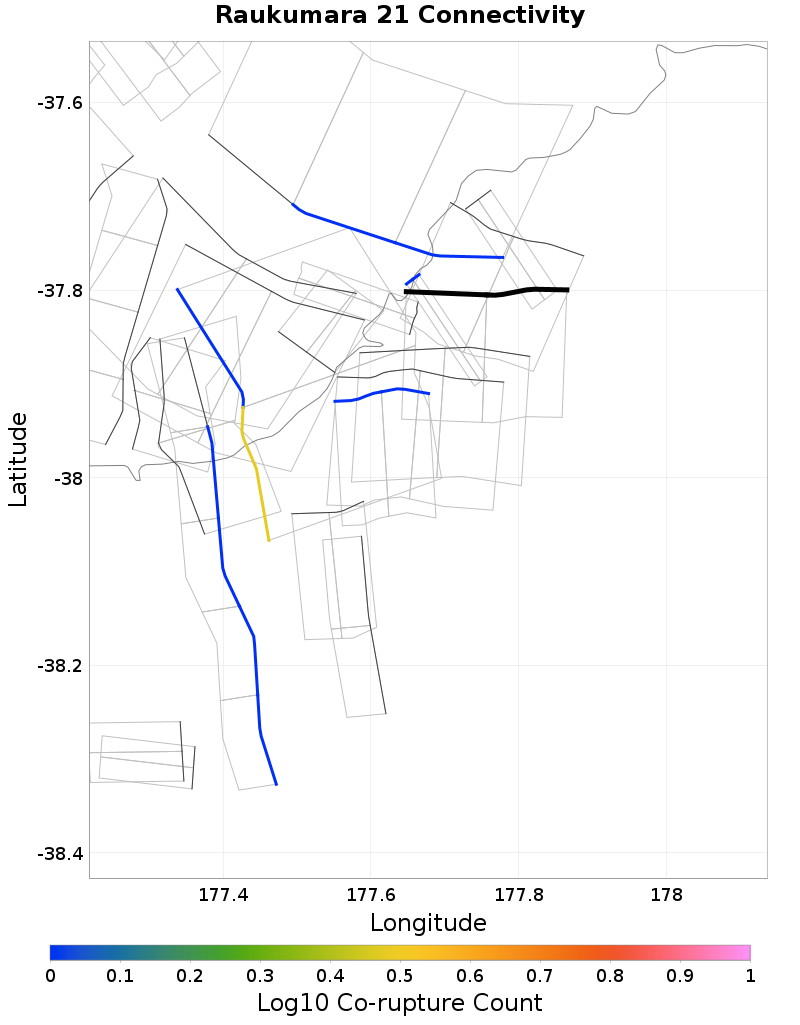

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Raukumara 20, 0.1 km away
Opape 1, 0.2 km away
Raukumara 25, 0.91 km away
Kereu, 3.81 km away
Hariki, 4.31 km away
Motu River, 5.46 km away
Ohae 3, 5.47 km away
Ohae 2, 5.73 km away
Ohae 1, 5.94 km away
Raukumara 18, 7.91 km away
Raukumara 24, 9.15 km away
Raukumara 17, 9.96 km away

Raukumara 20, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate3.0578623E-5

Raukumara 25, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate2.6761732E-5

Kereu, 3.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Motu River, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 5.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 5.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 18, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 24, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 17, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTQuMDliaUI4
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.6910575E-5
