Alderman West 6 Details
| Property | Value |
|---|---|
| Rupture Count | 34 |
| Ruptures Above Sect Min Mag | 25 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.63, 7.83] |
| Length Range | [15, 184] km |
| Total Rate | 1.2548758E-5 /yr |
| Multi-Fault Rate | 8.344641E-6 /yr (66.50%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

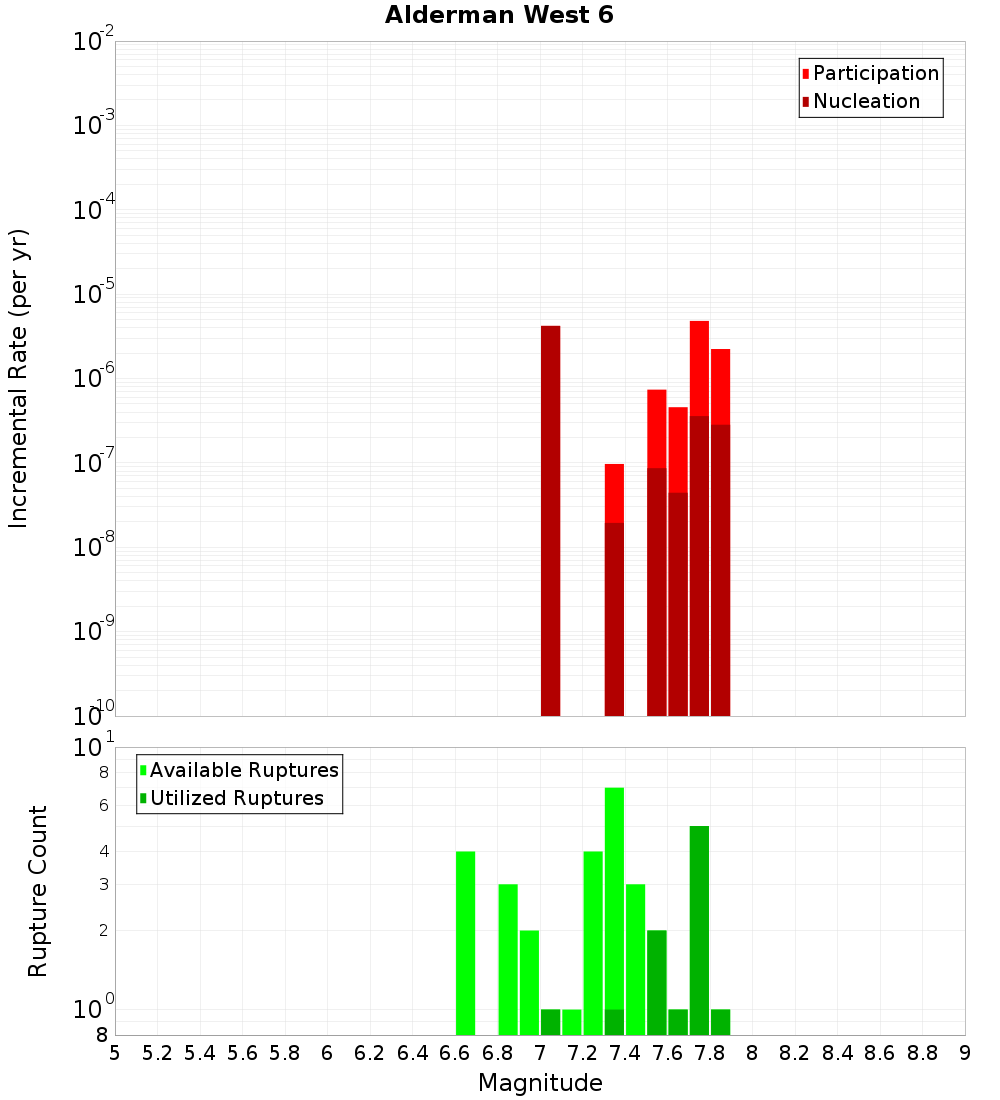

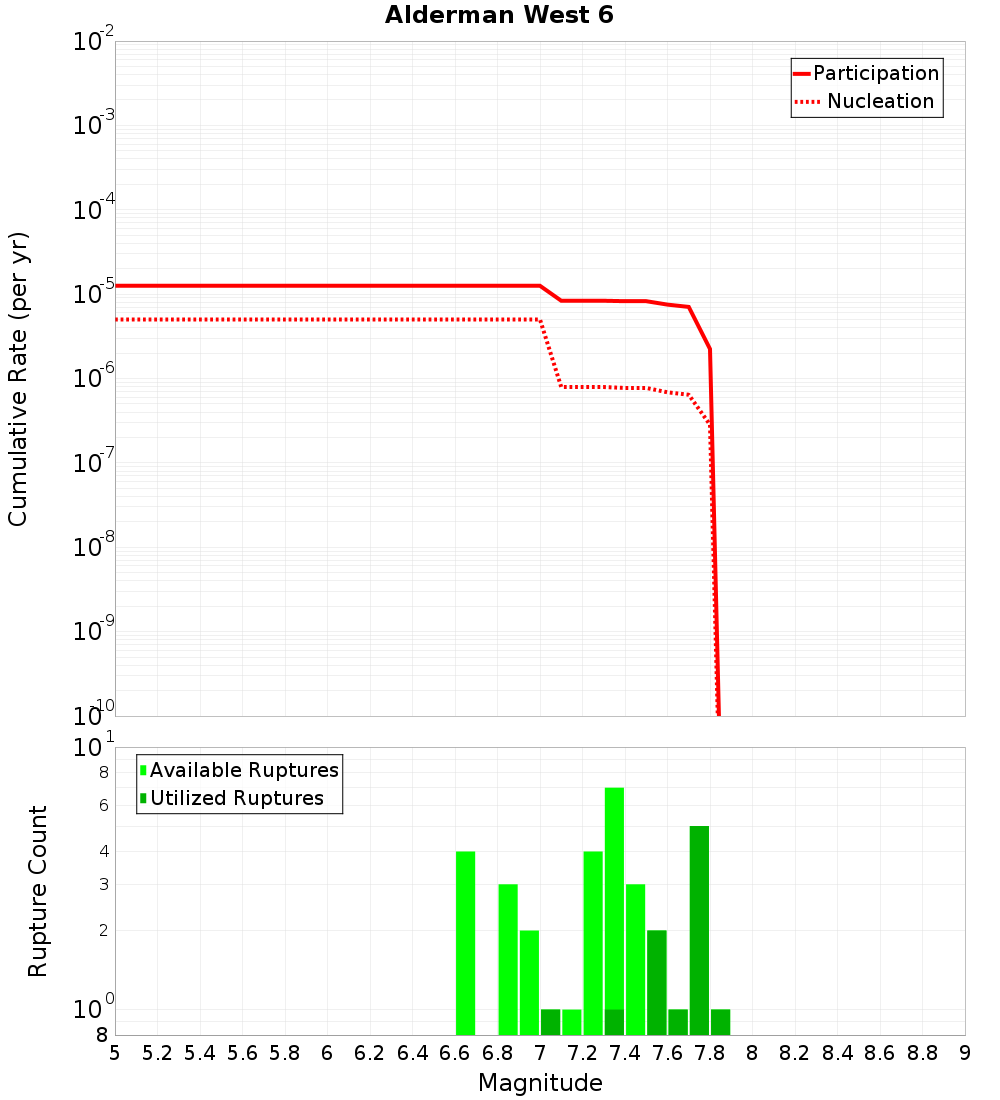

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

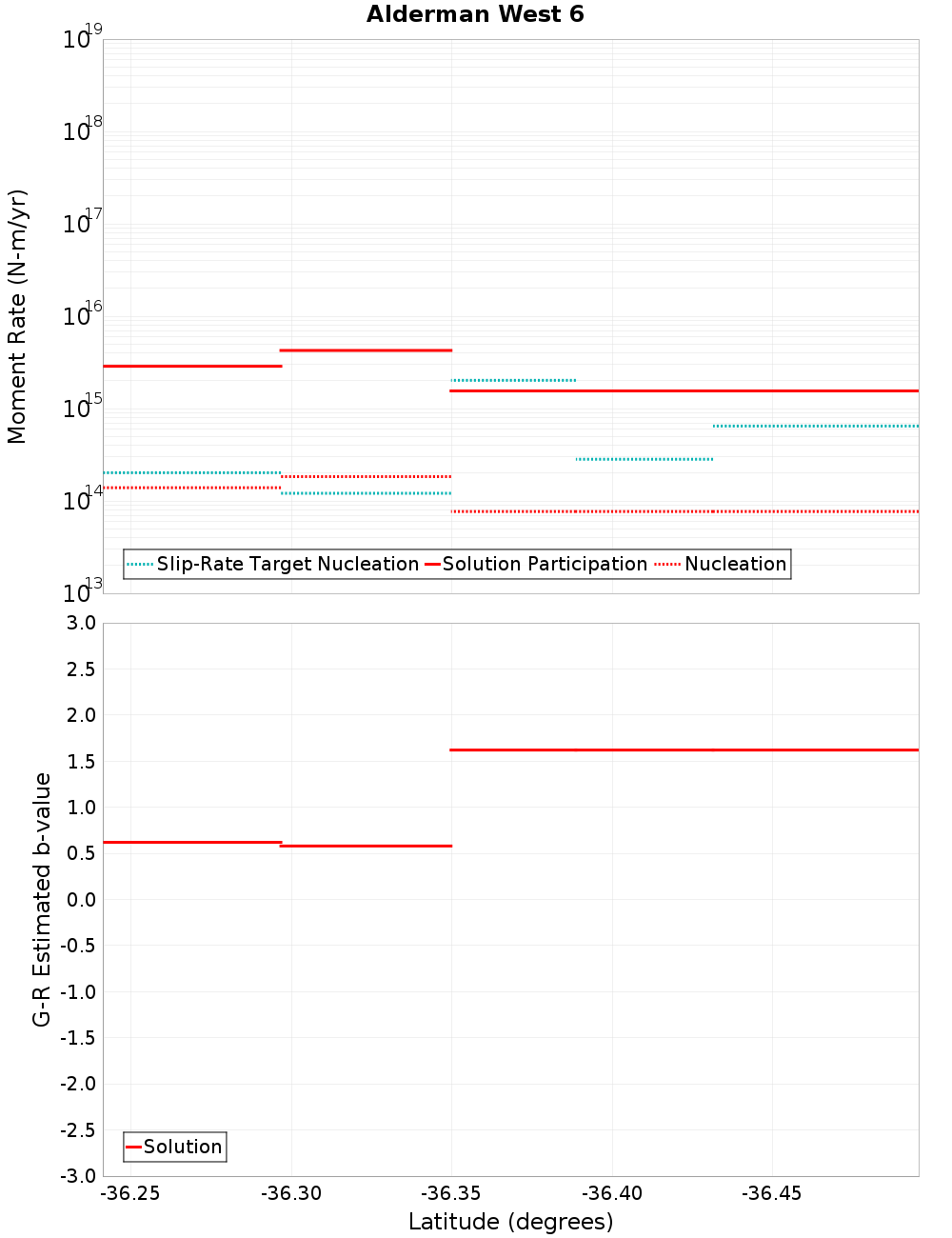

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alderman West 5, 0.23 km away |
| Ohena 5, 13.95 km away |
Alderman West 5, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Ohena 5, 13.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 8.344641E-6 |
