Alpine: Kaniere to Springs Junction Details

Property	Value
Rupture Count	164,117
Ruptures Above Sect Min Mag	164,108
Ruptures w/ Nonzero Rates	1,645
Magnitude Range	[6.86, 8.61]
Length Range	[21, 1,132] km
Total Rate	0.0036535189 /yr
Multi-Fault Rate	0.0036171274 /yr (99.00%)
Directly-Connected Faults	13
All Co-Rupturing Faults	235

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

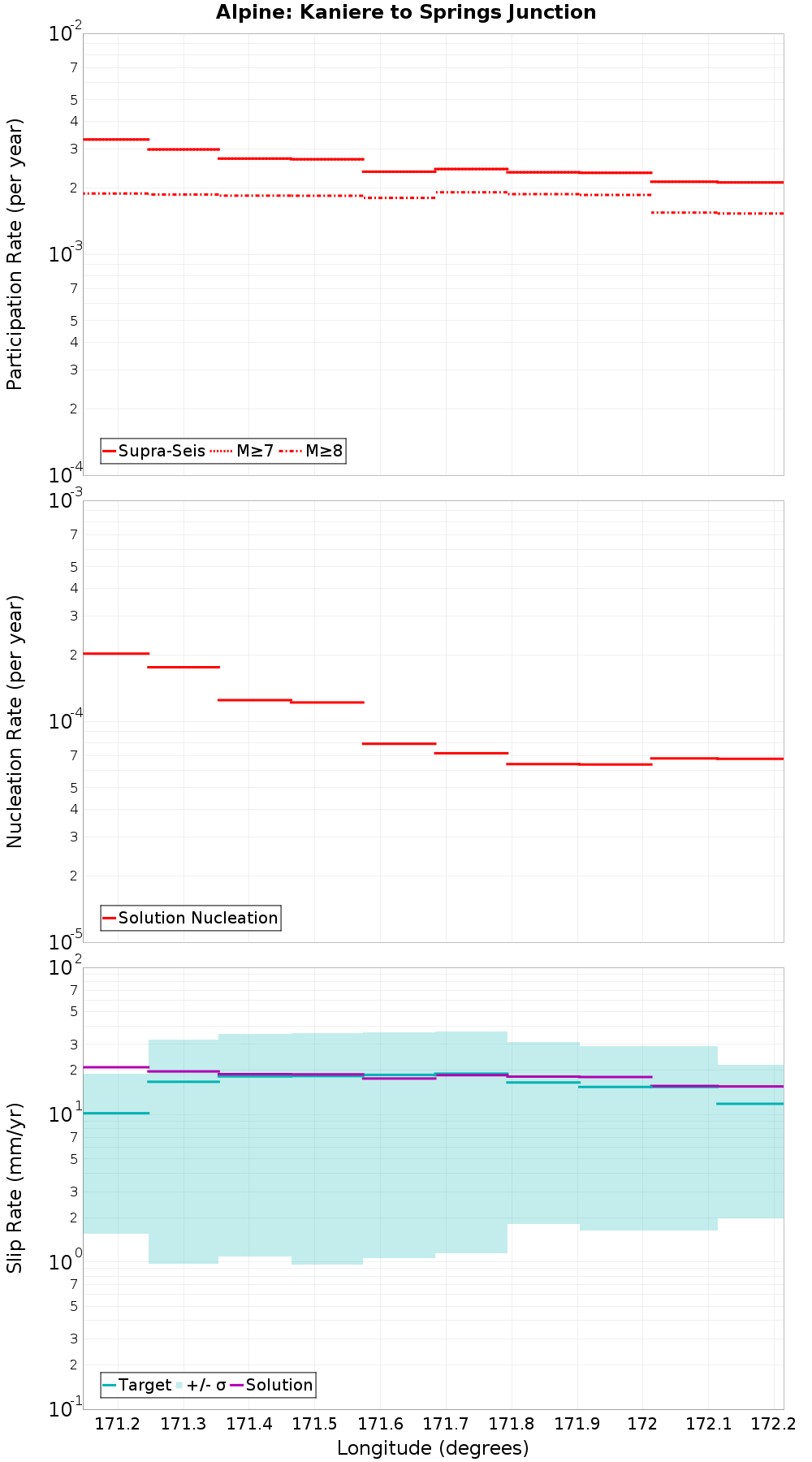

Along-Strike Values

Moment-Rates and b-Values

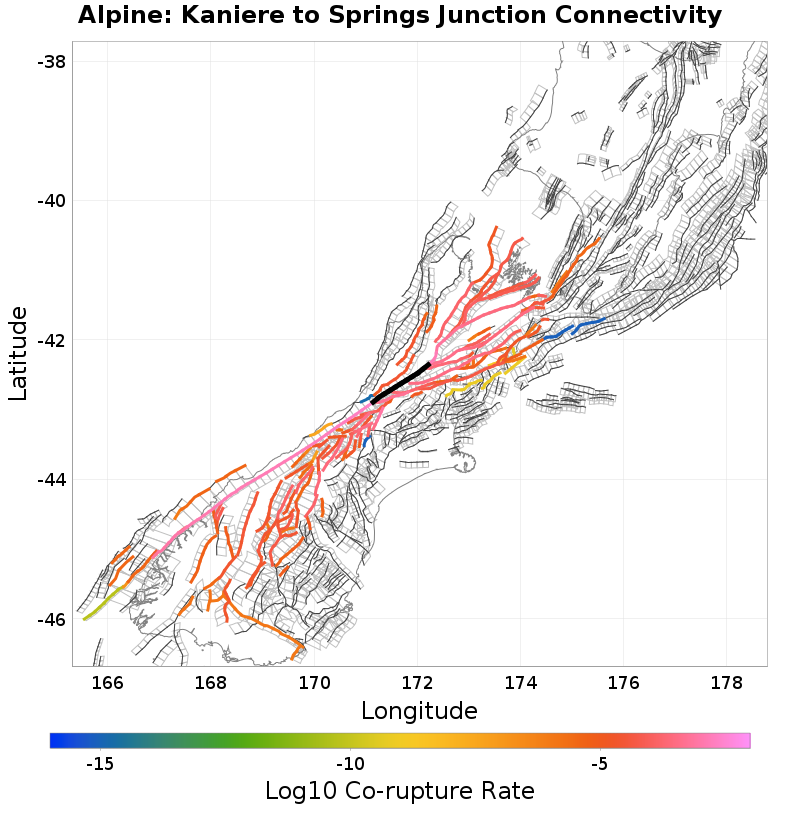

Connectivity

Nearby Sections

Fault Section	Fault Section
Alpine: Springs Junction to Tophouse, 0 km away	Fowlers, 0.24 km away
Alpine: Jacksons to Kaniere, 0 km away	Hohonu North, 0.26 km away
Kelly, 0 km away	Hope: Hope River, 2.94 km away
Awatere: Southwest, 0 km away	Mistake - Rolleston, 3.4 km away
Hohonu South, 0.04 km away	Kakapo, 6.32 km away
Browning Pass, 0.16 km away	Mathias, 10.78 km away
Hohonu, 0.18 km away	White Creek - buried, 12.02 km away
Hope: Hurunui, 0.19 km away	Mungo, 13.41 km away
Clarence: Southwest, 0.21 km away	Esk North, 14.61 km away
Hope: Taramakau, 0.23 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	92,332
Co-rupture Rate	0.0014492301

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	122,197
Co-rupture Rate	0.002591979

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	49,005
Co-rupture Rate	5.629949E-4

Awatere: Southwest, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	39,330
Co-rupture Rate	4.174068E-4

Hohonu South, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	22,109
Co-rupture Rate	1.1931519E-5

Browning Pass, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	30,482
Co-rupture Rate	4.091123E-5

Hohonu, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	6,462
Co-rupture Rate	2.4765619E-5

Hope: Hurunui, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	16,403
Co-rupture Rate	1.5325335E-4

Clarence: Southwest, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	6,910
Co-rupture Rate	3.2570752E-4

Hope: Taramakau, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	2,986
Co-rupture Rate	2.305161E-4

Fowlers, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	5,430
Co-rupture Rate	2.4011135E-4

Hohonu North, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	11,519
Co-rupture Rate	2.5191026E-5

Hope: Hope River, 2.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	16,293
Co-rupture Rate	9.336296E-5

Mistake - Rolleston, 3.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	9,206
Co-rupture Rate	8.343559E-4

Kakapo, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	1,215
Co-rupture Rate	5.2105694E-5

Mathias, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	2,910
Co-rupture Rate	2.9575276E-5

White Creek - buried, 12.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	5,130
Co-rupture Rate	2.2082206E-5

Mungo, 13.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	880
Co-rupture Rate	1.3040814E-4

Esk North, 14.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
