Porangahau Northeast Details

Property	Value
Rupture Count	20,896
Ruptures Above Sect Min Mag	20,892
Ruptures w/ Nonzero Rates	144
Magnitude Range	[7.04, 8.48]
Length Range	[25, 773] km
Total Rate	3.2293774E-5 /yr
Multi-Fault Rate	3.229375E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	105

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

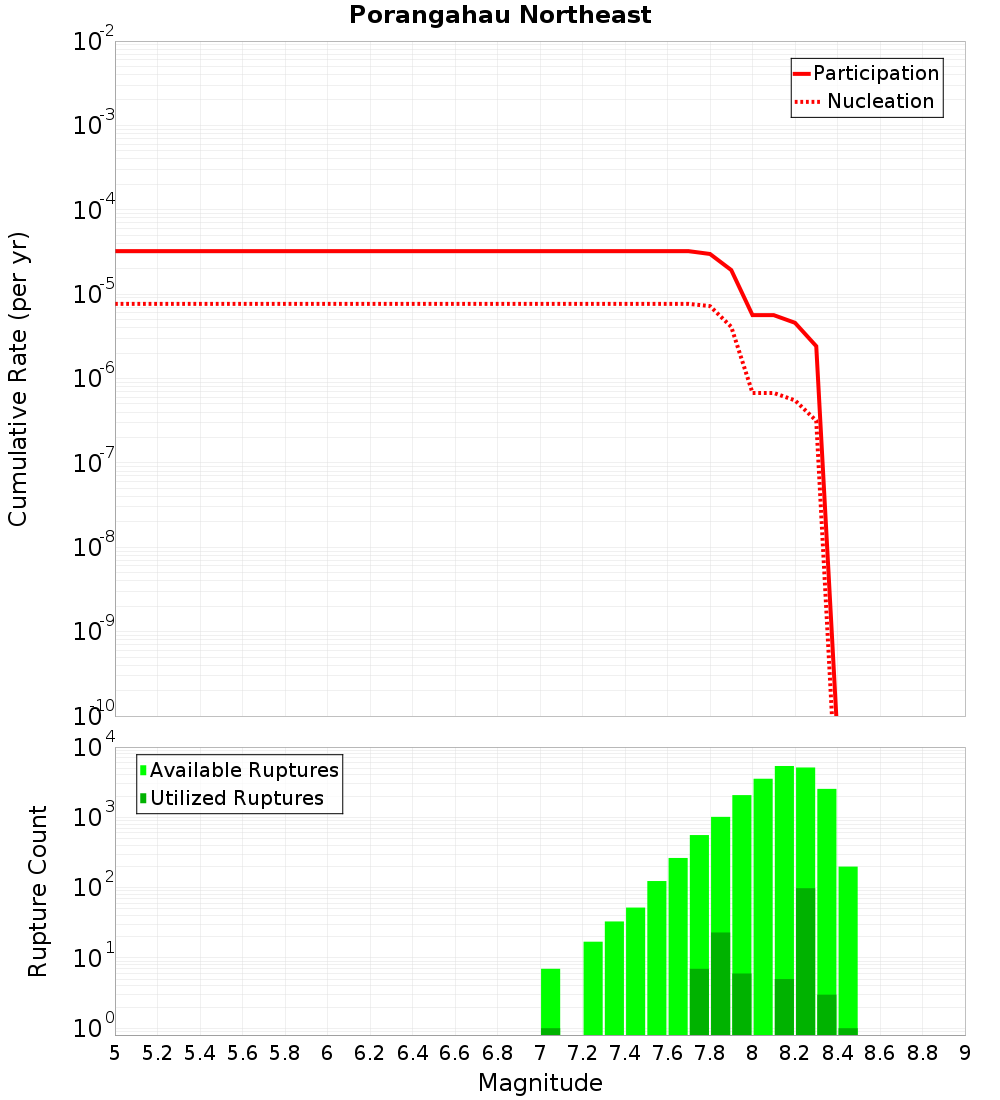

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

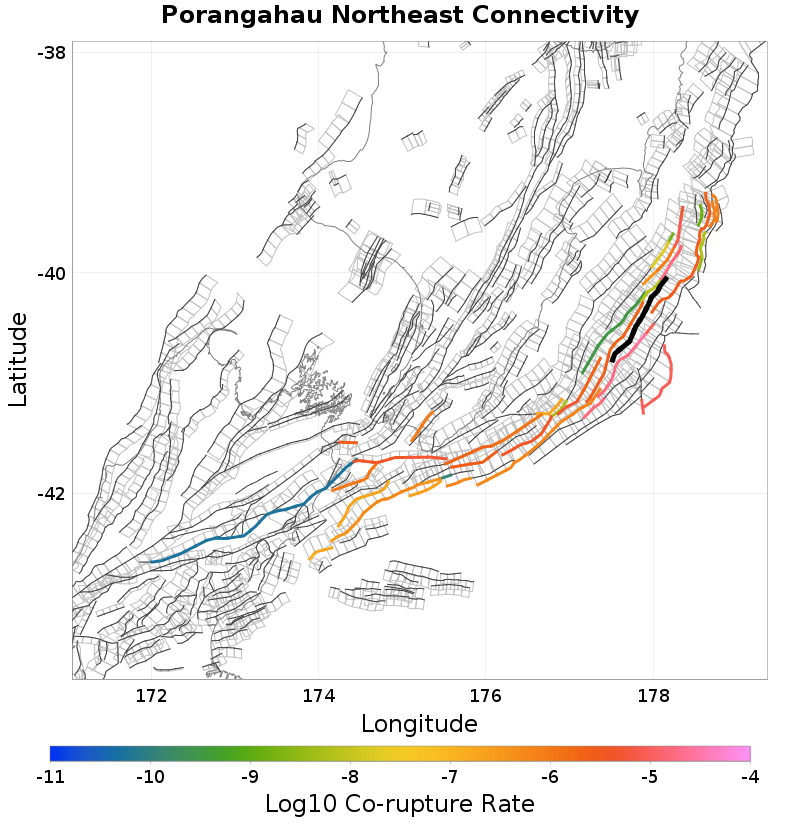

Connectivity

Nearby Sections

Fault Section
Paoanui Ridge North, 0.1 km away
PorWest2 - PaoanuiRSouth, 0.63 km away
Porangahau Ridge, 2.7 km away
Ritchie West 1, 2.87 km away
Akitio Trough West, 2.96 km away
Rock Garden - Ritchie East, 3.43 km away
Omakere Ridge, 6.84 km away
Porangahau Basin, 7.17 km away
Akitio Ridge, 9.59 km away
Omakere South, 9.71 km away
Aorangi Trough, 11.55 km away
Rock Garden - Ritchie East 1, 13.27 km away
Uruti East - PorWest 1, 14.3 km away
F16 - Central, 14.86 km away

Paoanui Ridge North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,101
Co-rupture Rate	1.8136263E-5

PorWest2 - PaoanuiRSouth, 0.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	912
Co-rupture Rate	3.0689057E-10

Porangahau Ridge, 2.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	16,196
Co-rupture Rate	4.965167E-6

Ritchie West 1, 2.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,247
Co-rupture Rate	8.004767E-6

Akitio Trough West, 2.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	3,665
Co-rupture Rate	2.732858E-5

Rock Garden - Ritchie East, 3.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	9,675
Co-rupture Rate	2.7720012E-6

Omakere Ridge, 6.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	544
Co-rupture Rate	1.8236214E-8

Porangahau Basin, 7.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	11,659
Co-rupture Rate	4.965167E-6

Akitio Ridge, 9.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Omakere South, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	true
Co-rupture Count	207
Co-rupture Rate	0.0

Aorangi Trough, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	3,386
Co-rupture Rate	1.5579E-5

Rock Garden - Ritchie East 1, 13.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	2,105
Co-rupture Rate	5.8266347E-9

Uruti East - PorWest 1, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	true
Directly Connected?	false
Co-rupture Count	1,001
Co-rupture Rate	5.2025966E-9

F16 - Central, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMEZSY0NM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
