Barrier Range Details

PropertyValue
Rupture Count27,734
Ruptures Above Sect Min Mag27,732
Ruptures w/ Nonzero Rates27
Magnitude Range[6.99, 8.51]
Length Range[23, 781] km
Total Rate7.2671035E-5 /yr
Multi-Fault Rate7.2671035E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults163

Table Of Contents

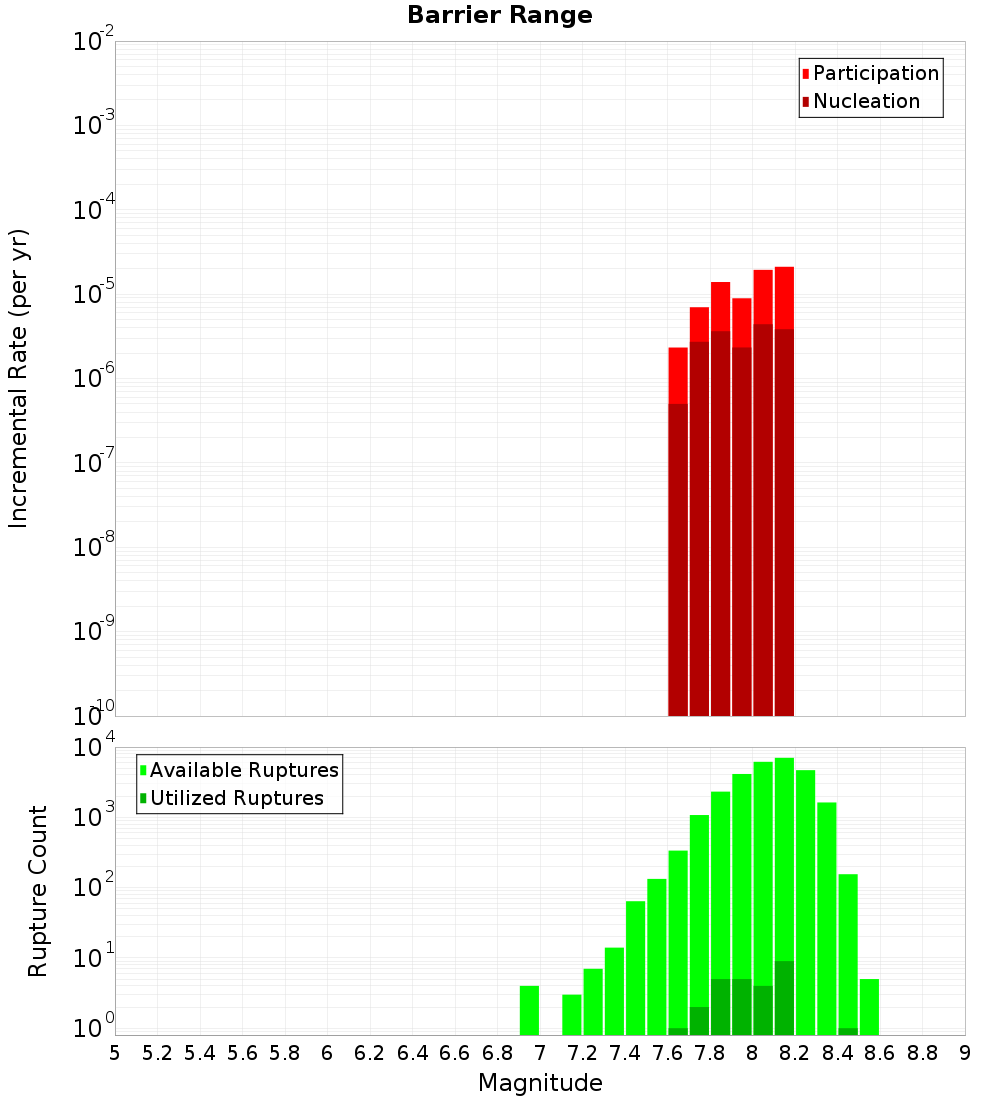

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

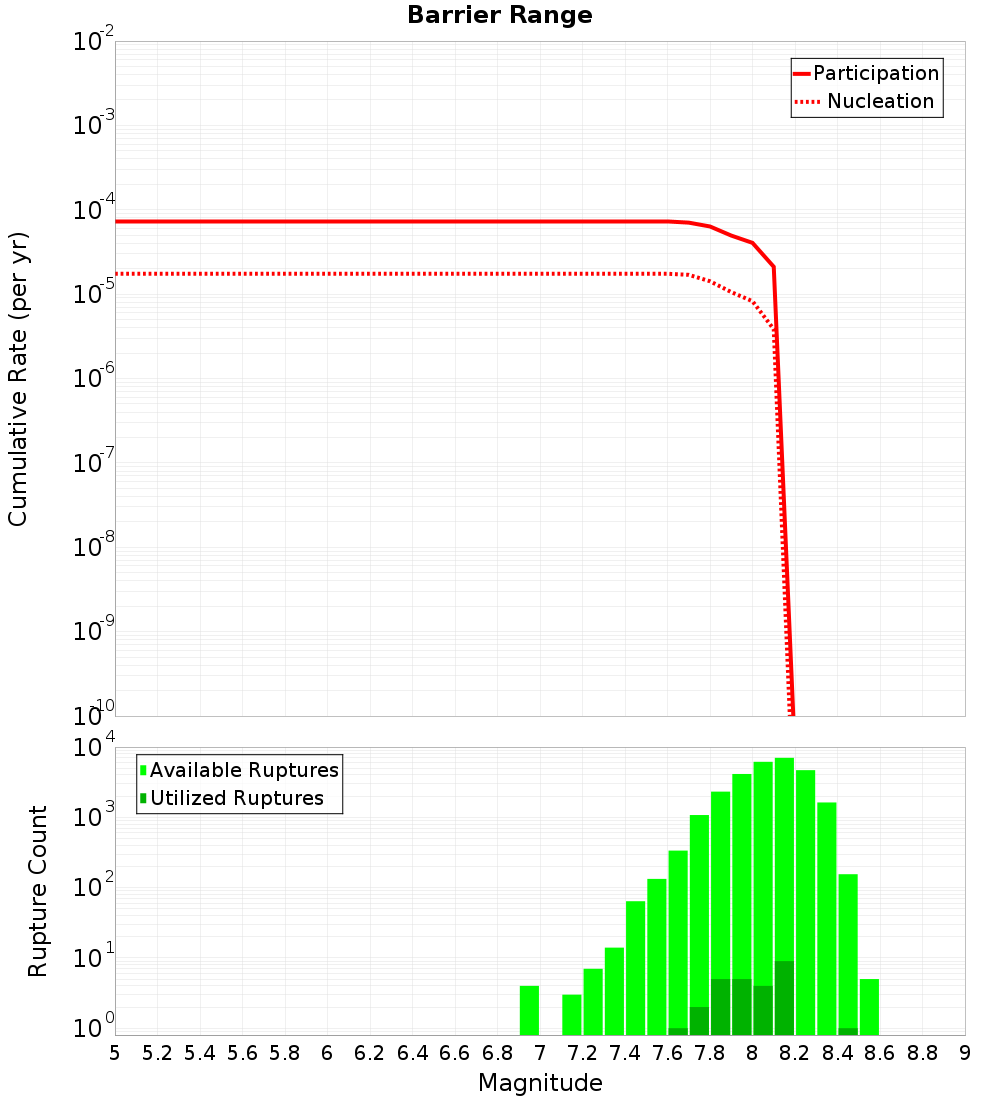

Incremental PlotCumulative Plot

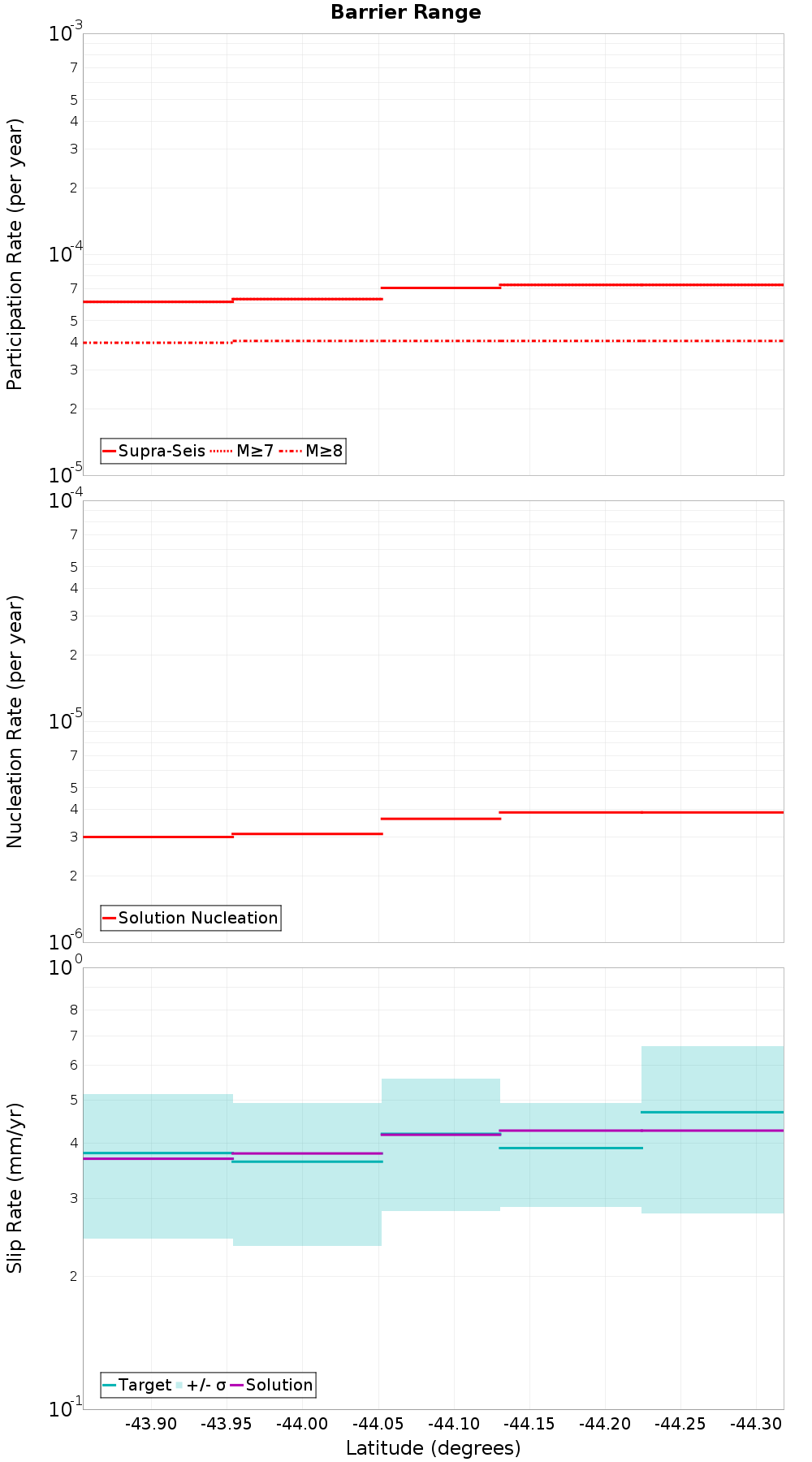

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Great Groove, 0.21 km away
Dromedary, 1.72 km away
Hopkins, 1.82 km away
Ostler North, 2.02 km away
Landsborough 2, 4.34 km away
Huxley, 5.79 km away
Dingle, 7.44 km away
Wanaka, 8.67 km away
Alpine: Jacksons to Kaniere, 9.14 km away
Timaru Creek, 9.34 km away
Karangarua, 11.06 km away
McKerrow - Douglas Duplex, 11.94 km away
Ostler South, 12.2 km away
Liebig North, 12.61 km away
Hunter Valley, 14.29 km away

Great Groove, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count12,963
Co-rupture Rate1.7537056E-6

Dromedary, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count20,098
Co-rupture Rate4.820322E-5

Hopkins, 1.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count5,316
Co-rupture Rate2.6427775E-5

Ostler North, 2.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count733
Co-rupture Rate6.688451E-6

Landsborough 2, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count3,174
Co-rupture Rate2.2515687E-5

Huxley, 5.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count4,239
Co-rupture Rate5.9642857E-6

Dingle, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wanaka, 8.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Alpine: Jacksons to Kaniere, 9.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count7,752
Co-rupture Rate3.239206E-5

Timaru Creek, 9.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count3,516
Co-rupture Rate2.4467812E-5

Karangarua, 11.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count2,592
Co-rupture Rate1.1618773E-9

McKerrow - Douglas Duplex, 11.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count6,035
Co-rupture Rate1.1618773E-9

Ostler South, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Liebig North, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count884
Co-rupture Rate6.438391E-6

Hunter Valley, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count150
Co-rupture Rate0.0
