Cape Foulwind 1 Details

Property	Value
Rupture Count	12,420
Ruptures Above Sect Min Mag	12,413
Ruptures w/ Nonzero Rates	120
Magnitude Range	[6.80, 8.52]
Length Range	[20, 905] km
Total Rate	4.3262015E-4 /yr
Multi-Fault Rate	4.3262015E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

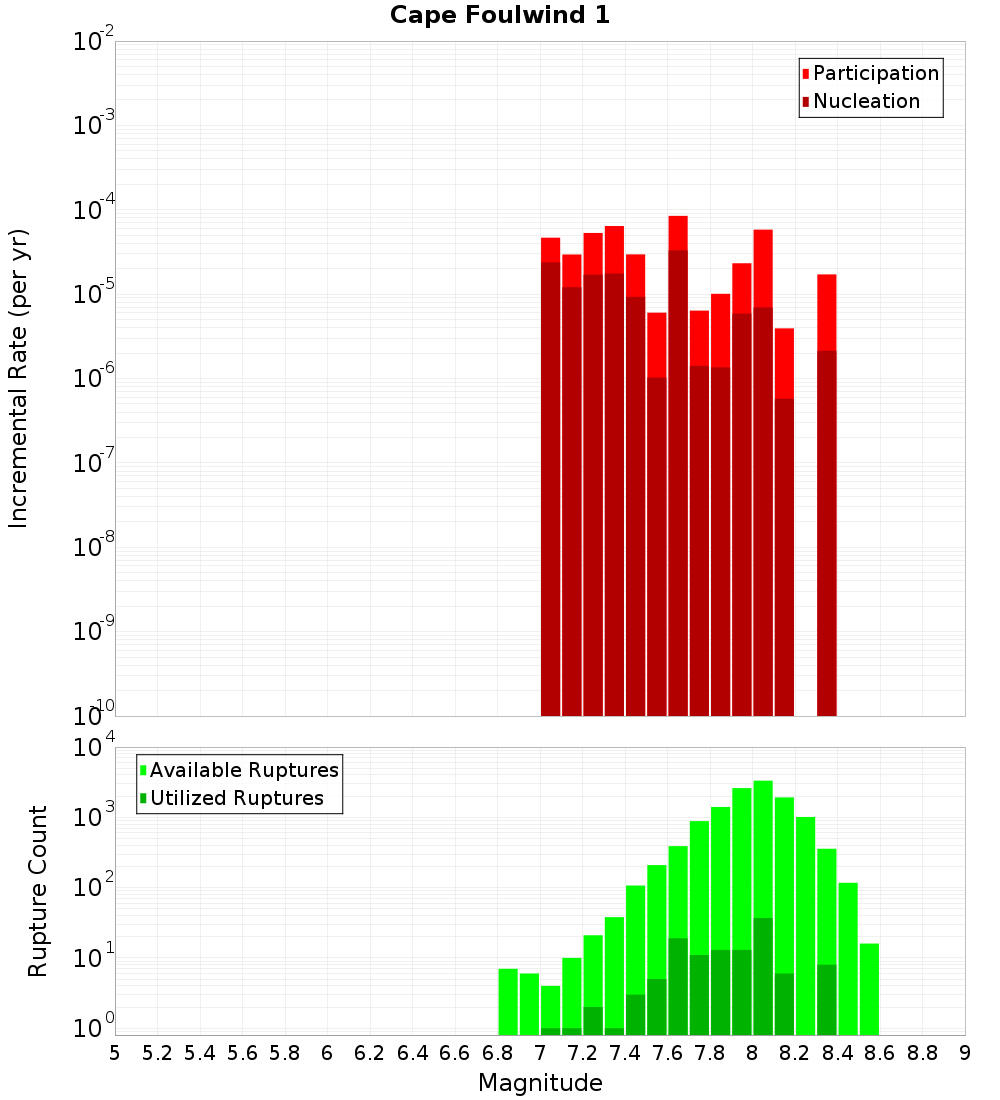

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

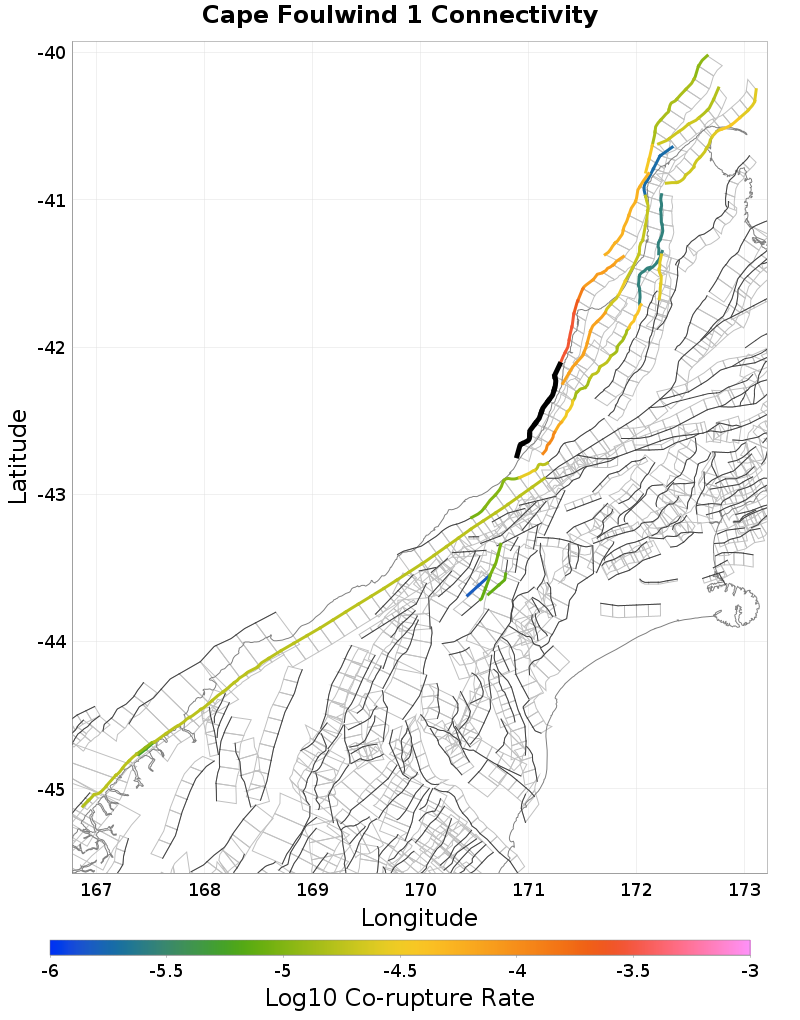

Connectivity

Nearby Sections

Fault Section
Cape Foulwind 2, 0 km away
Maimai: Brunner Anticline, 0.41 km away
Maimai: South, 0.42 km away
Paparoa West, 4.61 km away
Maimai, 5.12 km away
Kelly, 11.54 km away
Hohonu South, 14.46 km away

Cape Foulwind 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	true
Co-rupture Count	2,694
Co-rupture Rate	2.8100814E-4

Maimai: Brunner Anticline, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	true
Co-rupture Count	578
Co-rupture Rate	1.0783433E-4

Maimai: South, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	true
Co-rupture Count	7,311
Co-rupture Rate	1.3612584E-5

Paparoa West, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	true
Co-rupture Count	3,855
Co-rupture Rate	7.589344E-5

Maimai, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	true
Co-rupture Count	5,955
Co-rupture Rate	1.7864882E-5

Kelly, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	false
Co-rupture Count	240
Co-rupture Rate	0.0

Hohonu South, 14.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?	true
Directly Connected?	true
Co-rupture Count	8,489
Co-rupture Rate	2.7750262E-5
