Maimai: South Details

PropertyValue
Rupture Count10,713
Ruptures Above Sect Min Mag10,710
Ruptures w/ Nonzero Rates45
Magnitude Range[6.69, 8.57]
Length Range[15, 1,039] km
Total Rate5.3524782E-5 /yr
Multi-Fault Rate5.3524782E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults66

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

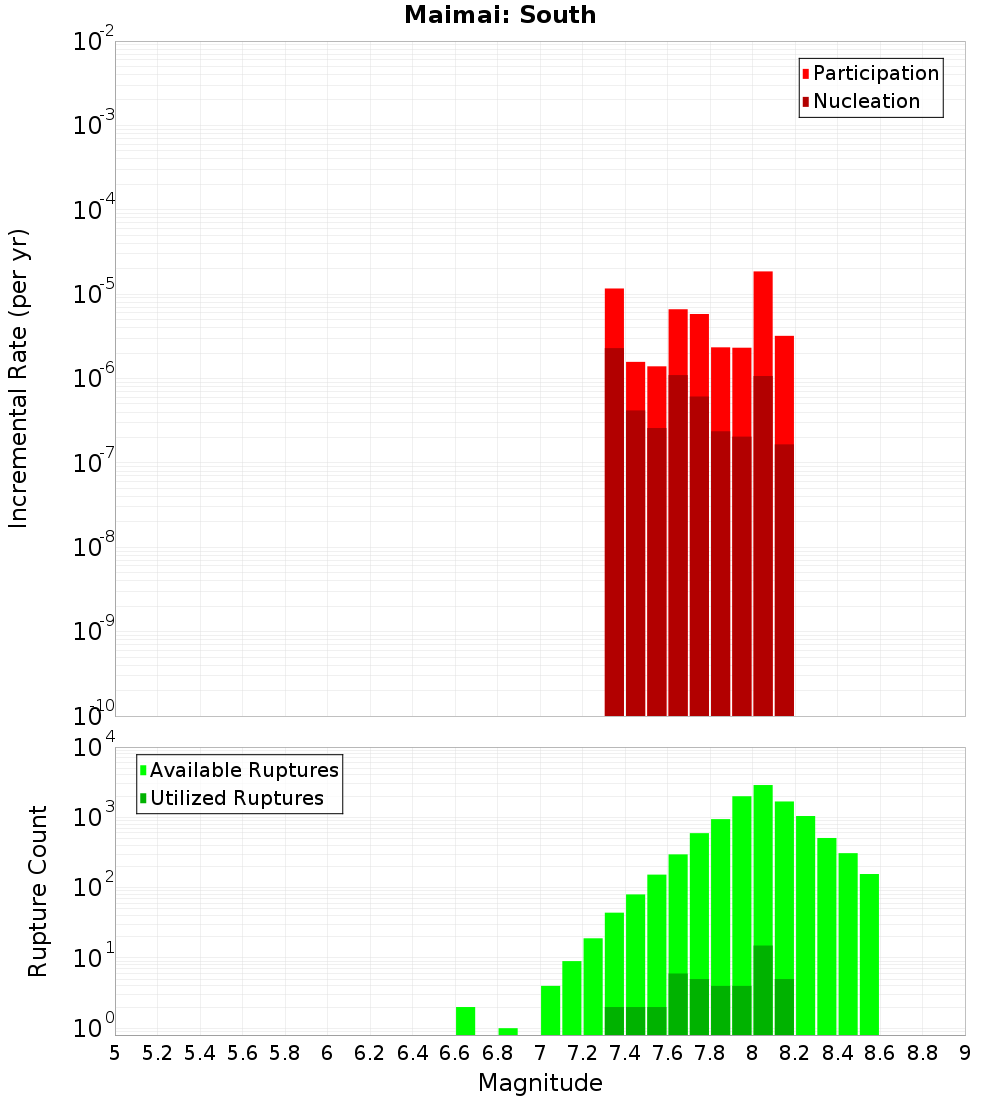

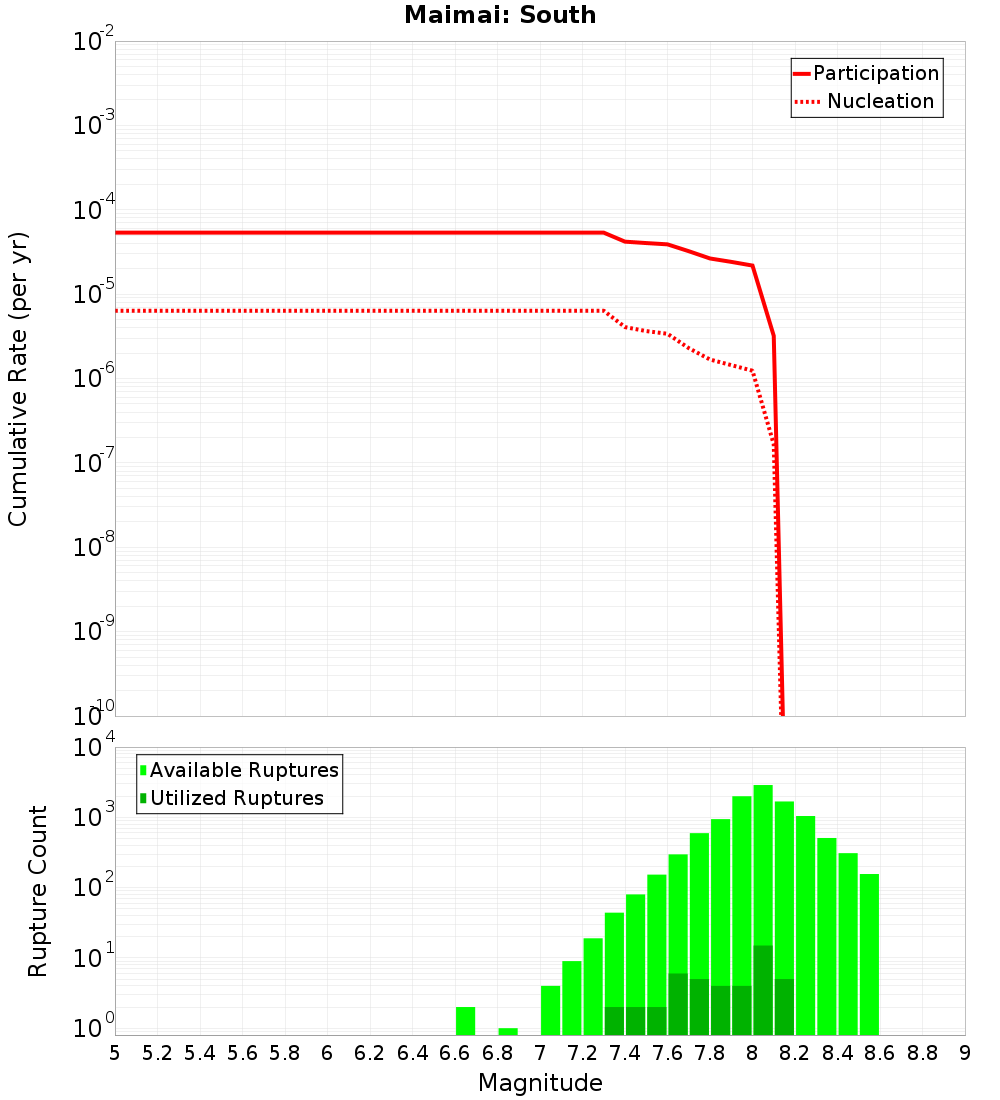

Incremental PlotCumulative Plot

Along-Strike Values

(top)

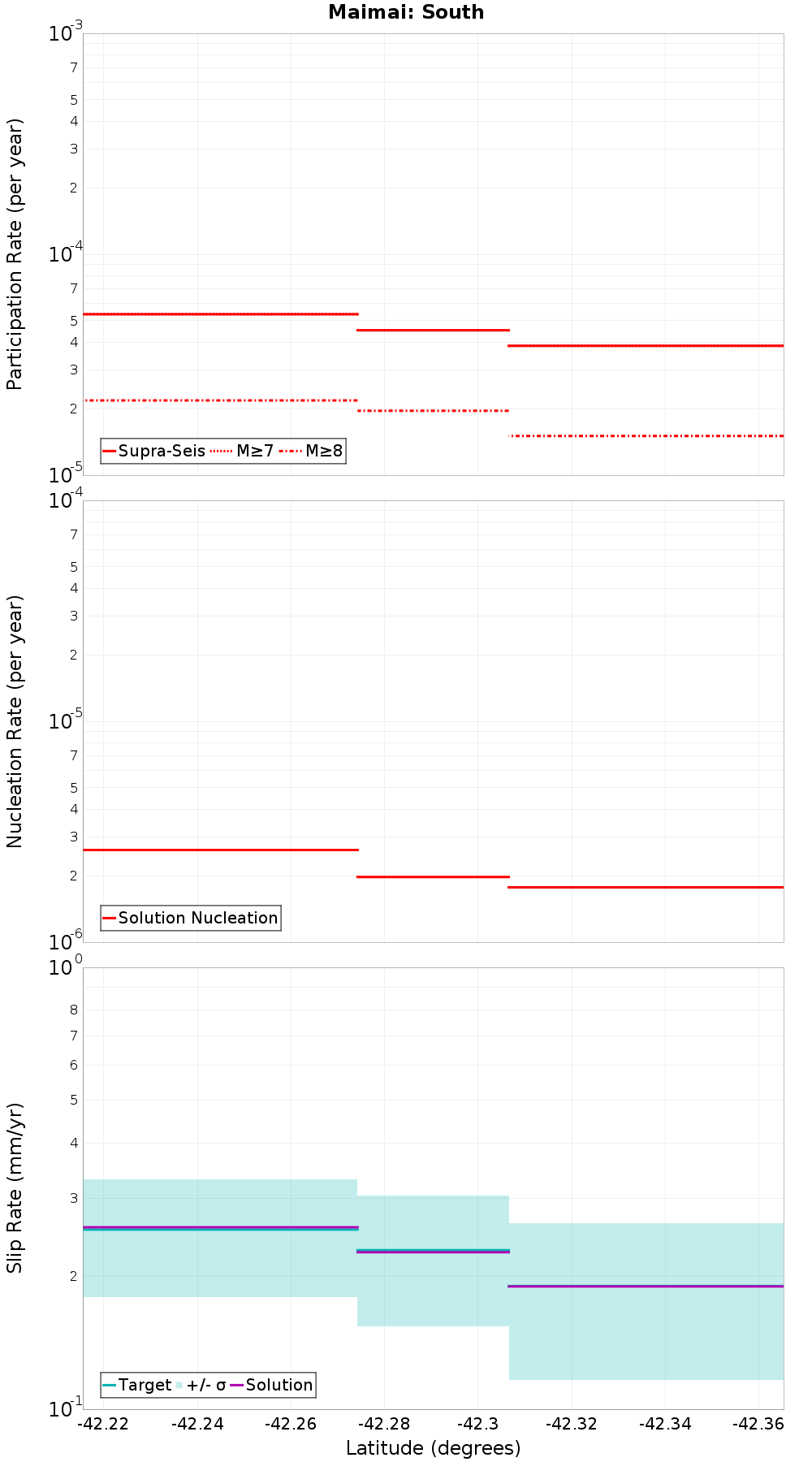

Along-strike plot

Moment-Rates and b-Values

(top)

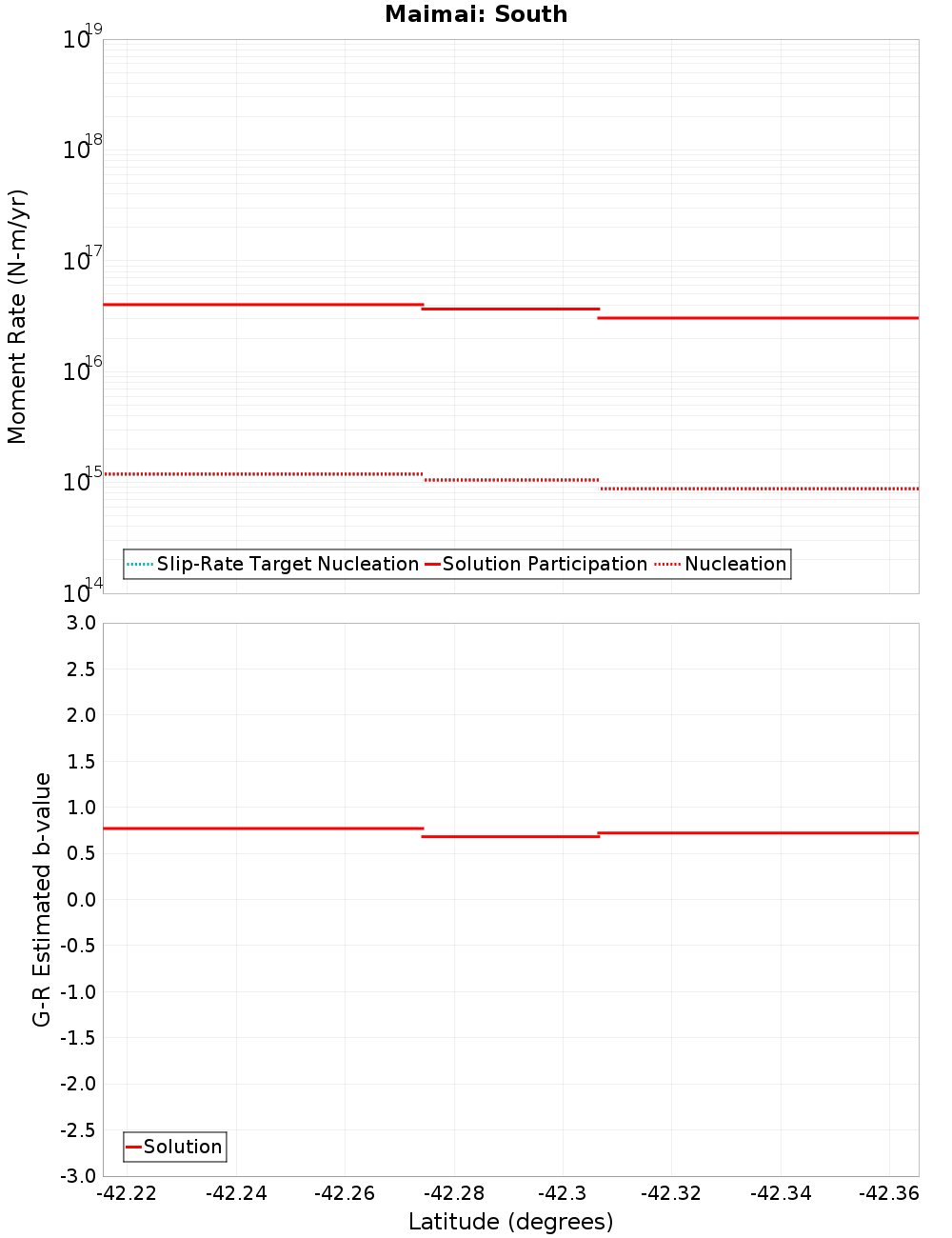

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maimai: Brunner Anticline, 0 km away
Maimai, 0.09 km away
Paparoa West, 0.18 km away
Cape Foulwind 1, 0.42 km away
Cape Foulwind 2, 4.96 km away
Lyell South, 11.15 km away

Maimai: Brunner Anticline, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count2,127
Co-rupture Rate3.9625857E-6

Maimai, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count6,357
Co-rupture Rate1.09115645E-5

Paparoa West, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count3,485
Co-rupture Rate1.8399498E-5

Cape Foulwind 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count7,311
Co-rupture Rate1.3612584E-5

Cape Foulwind 2, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count1,218
Co-rupture Rate4.1404764E-5

Lyell South, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate0.0
