Rock Garden - Ritchie East Details

PropertyValue
Rupture Count43,021
Ruptures Above Sect Min Mag43,015
Ruptures w/ Nonzero Rates43
Magnitude Range[7.08, 8.49]
Length Range[27, 791] km
Total Rate9.852053E-5 /yr
Multi-Fault Rate9.852053E-5 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults112

Table Of Contents

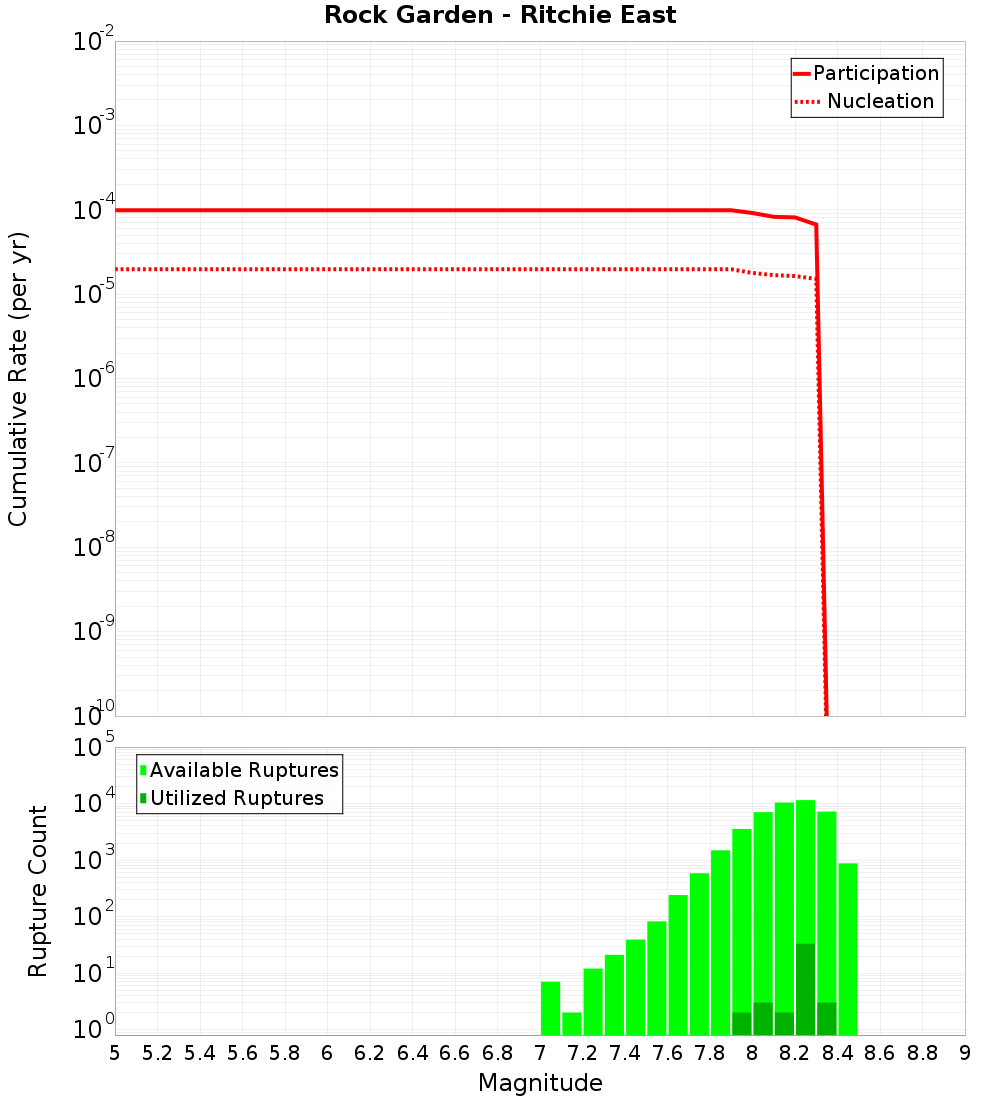

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

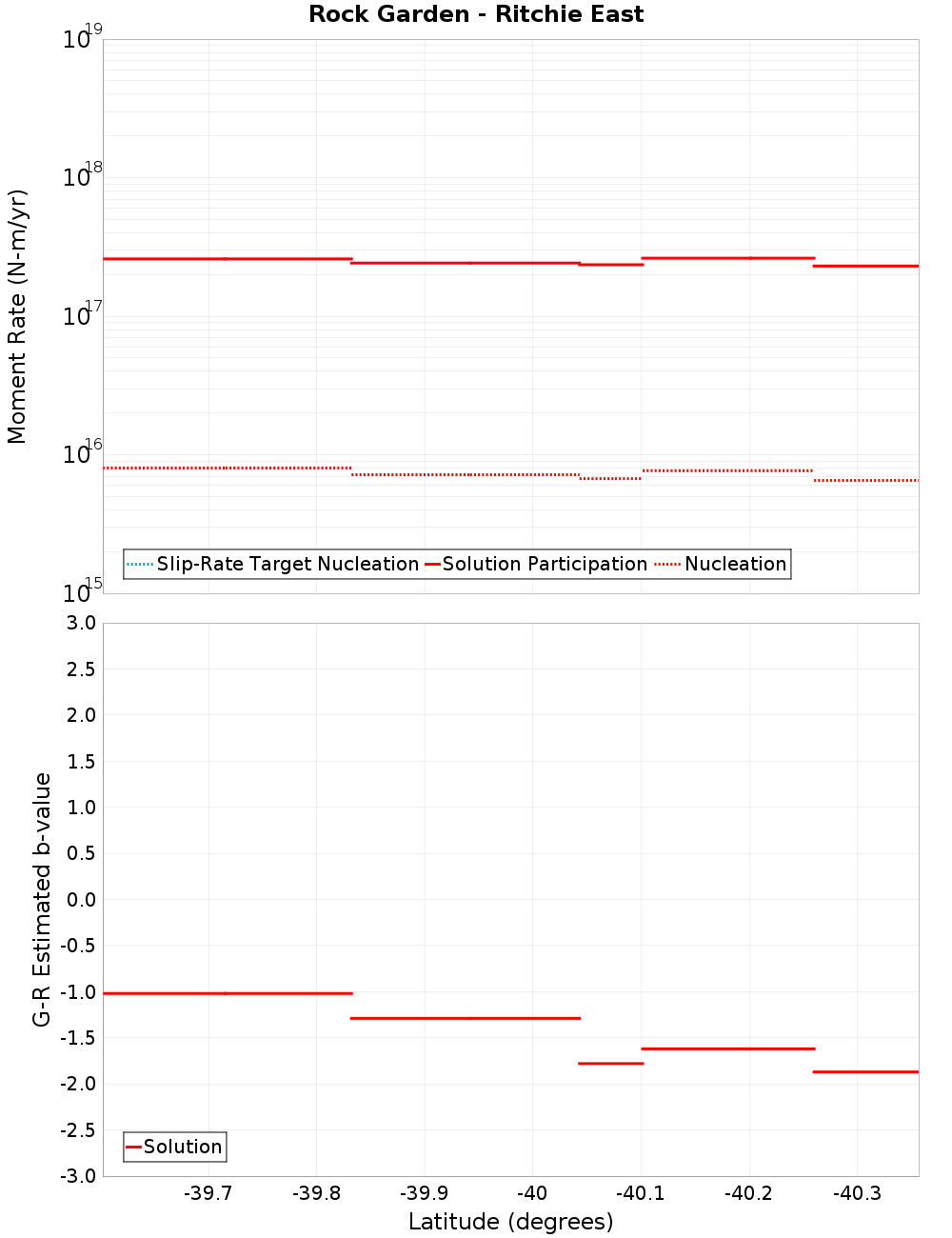

Moment-Rates and b-Values

(top)

Along-strike plot

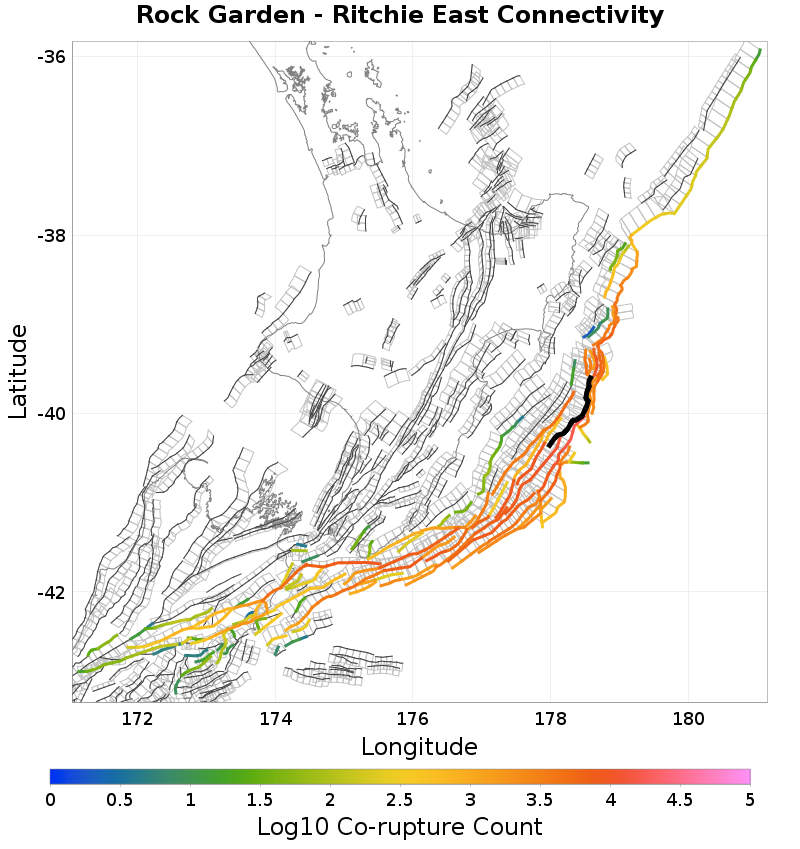

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Rock Garden - Ritchie East 1, 0.01 km awayPorWest2 - PaoanuiRSouth, 6.1 km away
Ritchie Ridge, 0.17 km awayPorangahau Ridge, 6.42 km away
Te Kapu Bank East, 0.78 km awayRock Garden South east, 6.51 km away
Akitio Trough West, 1.16 km awayPakupaku Ridge East, 8.41 km away
Akitio Ridge, 1.37 km awayRitchie West 1, 9.7 km away
Pakupaku Ridge, 1.96 km awayTe Kapu Bank, 11.15 km away
Ritchie Ridge 1, 2.34 km awayOmakere Ridge, 13.08 km away
Porangahau Northeast, 3.43 km awayF14 - North, 13.2 km away
Paoanui Ridge North, 4.78 km awayOmakere South, 14.23 km away
Whaiti Ridge, 5.87 km away

Rock Garden - Ritchie East 1, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count3,452
Co-rupture Rate1.0667667E-5

Ritchie Ridge, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count4,453
Co-rupture Rate1.2493861E-5

Te Kapu Bank East, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count10,008
Co-rupture Rate6.681654E-5

Akitio Trough West, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count13,066
Co-rupture Rate2.2221451E-5

Akitio Ridge, 1.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count16,817
Co-rupture Rate7.028576E-6

Pakupaku Ridge, 1.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count8,310
Co-rupture Rate2.9060811E-5

Ritchie Ridge 1, 2.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count3,039
Co-rupture Rate2.7723527E-8

Porangahau Northeast, 3.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count9,675
Co-rupture Rate6.6659624E-5

Paoanui Ridge North, 4.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count5,176
Co-rupture Rate1.1707905E-5

Whaiti Ridge, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count5,870
Co-rupture Rate2.9325487E-5

PorWest2 - PaoanuiRSouth, 6.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count3,826
Co-rupture Rate9.097023E-6

Porangahau Ridge, 6.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count9,336
Co-rupture Rate6.927051E-5

Rock Garden South east, 6.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?true
Co-rupture Count319
Co-rupture Rate0.0

Pakupaku Ridge East, 8.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count575
Co-rupture Rate0.0

Ritchie West 1, 9.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Te Kapu Bank, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count1,438
Co-rupture Rate1.0667667E-5

Omakere Ridge, 13.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

F14 - North, 13.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?true
Directly Connected?false
Co-rupture Count3,275
Co-rupture Rate0.0

Omakere South, 14.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTUuMHZ1dkdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
