Lyell South Details

Property	Value
Rupture Count	7,077
Ruptures Above Sect Min Mag	7,072
Ruptures w/ Nonzero Rates	138
Magnitude Range	[6.90, 8.57]
Length Range	[19, 817] km
Total Rate	1.2554208E-4 /yr
Multi-Fault Rate	1.2554205E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

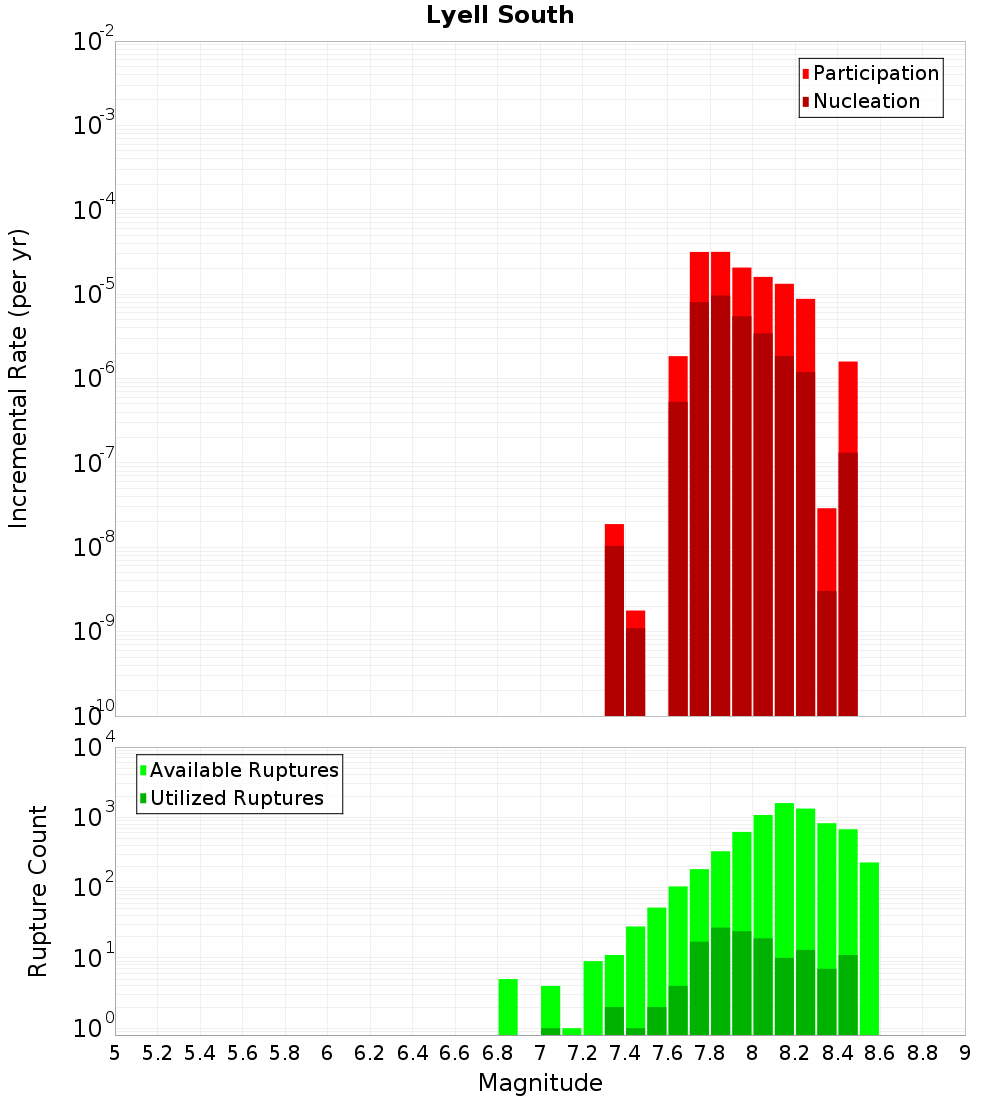

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

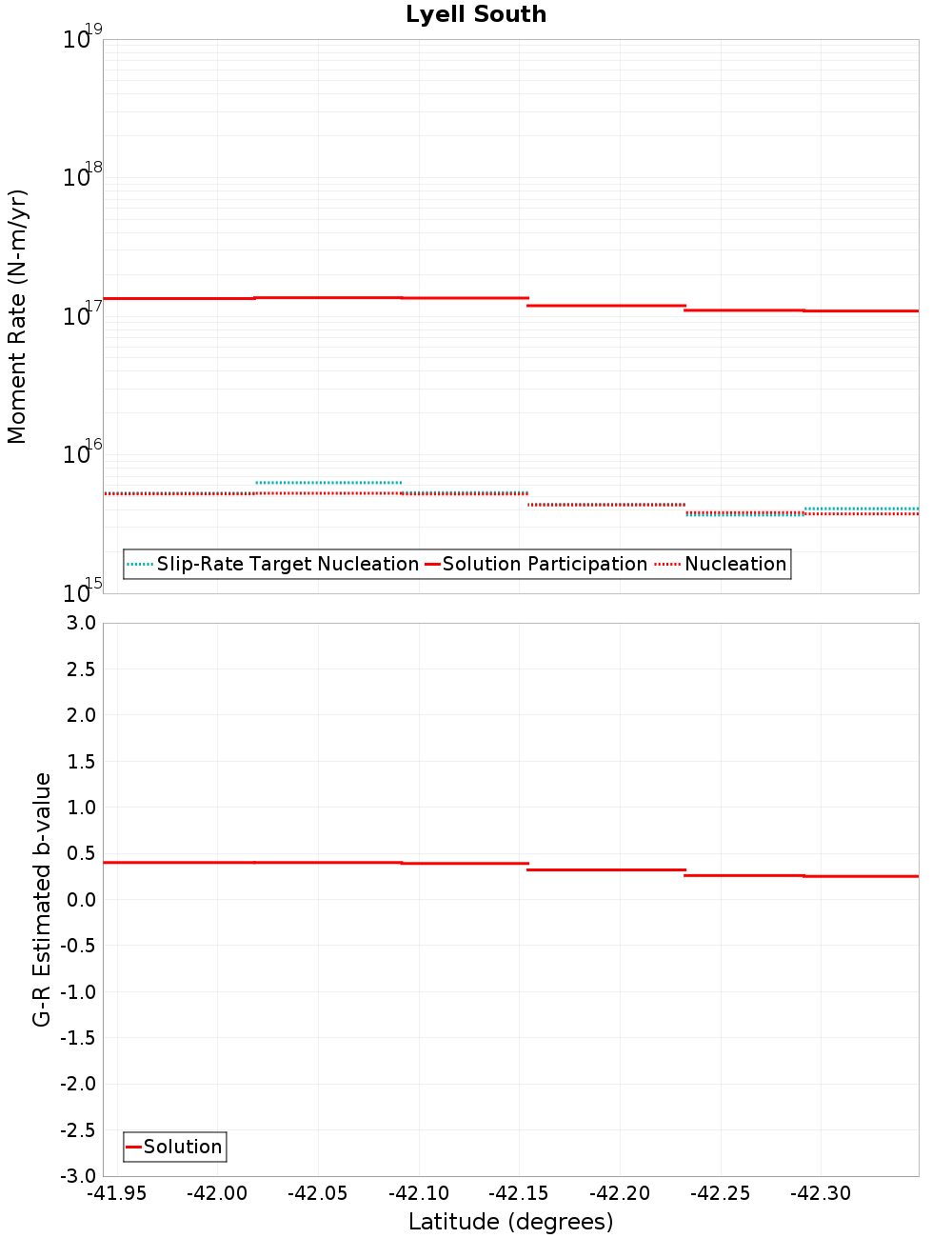

Moment-Rates and b-Values

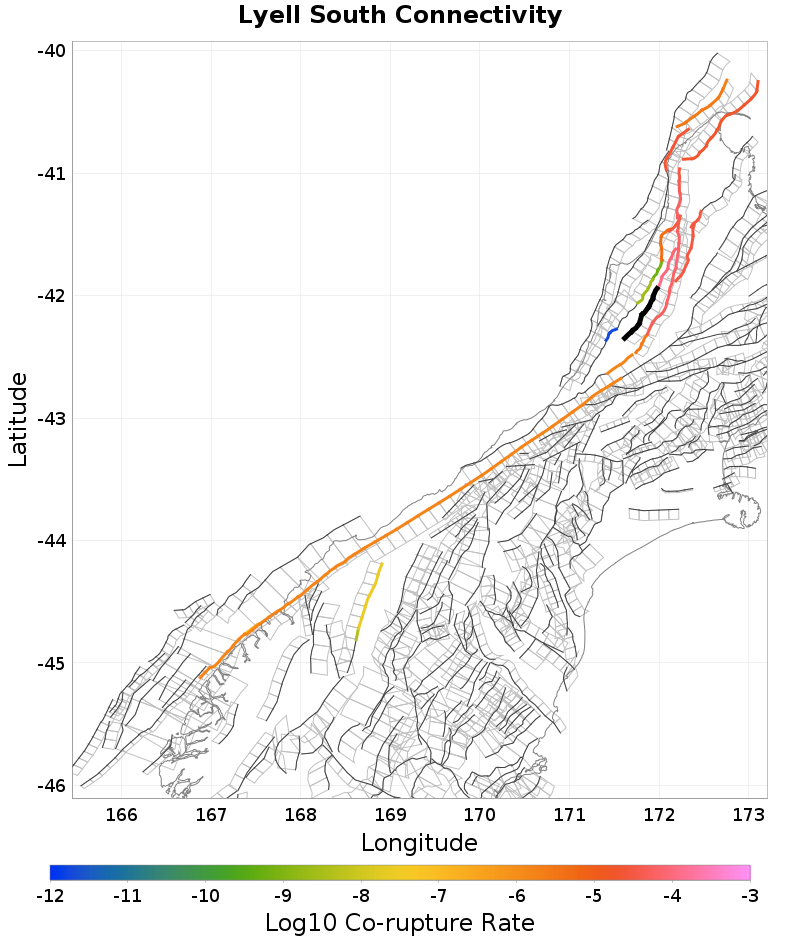

Connectivity

Nearby Sections

Fault Section
Lyell, 1.51 km away
White Creek, 6.37 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.38 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away
Matiri West, 13.9 km away

Lyell, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	true
Co-rupture Count	4,884
Co-rupture Rate	1.1943301E-4

White Creek, 6.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	true
Co-rupture Count	6,518
Co-rupture Rate	9.684675E-5

Maimai: North, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	2.43268E-9

White Creek - buried, 7.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	false
Co-rupture Count	5,726
Co-rupture Rate	2.5677537E-6

Inangahua, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	false
Co-rupture Count	866
Co-rupture Rate	6.5371747E-10

Maimai, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Maimai: South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	1.8350803E-12

Matiri West, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NTcuMGhrd1Nu
Connected?	true
Directly Connected?	false
Co-rupture Count	1,069
Co-rupture Rate	3.215052E-5
